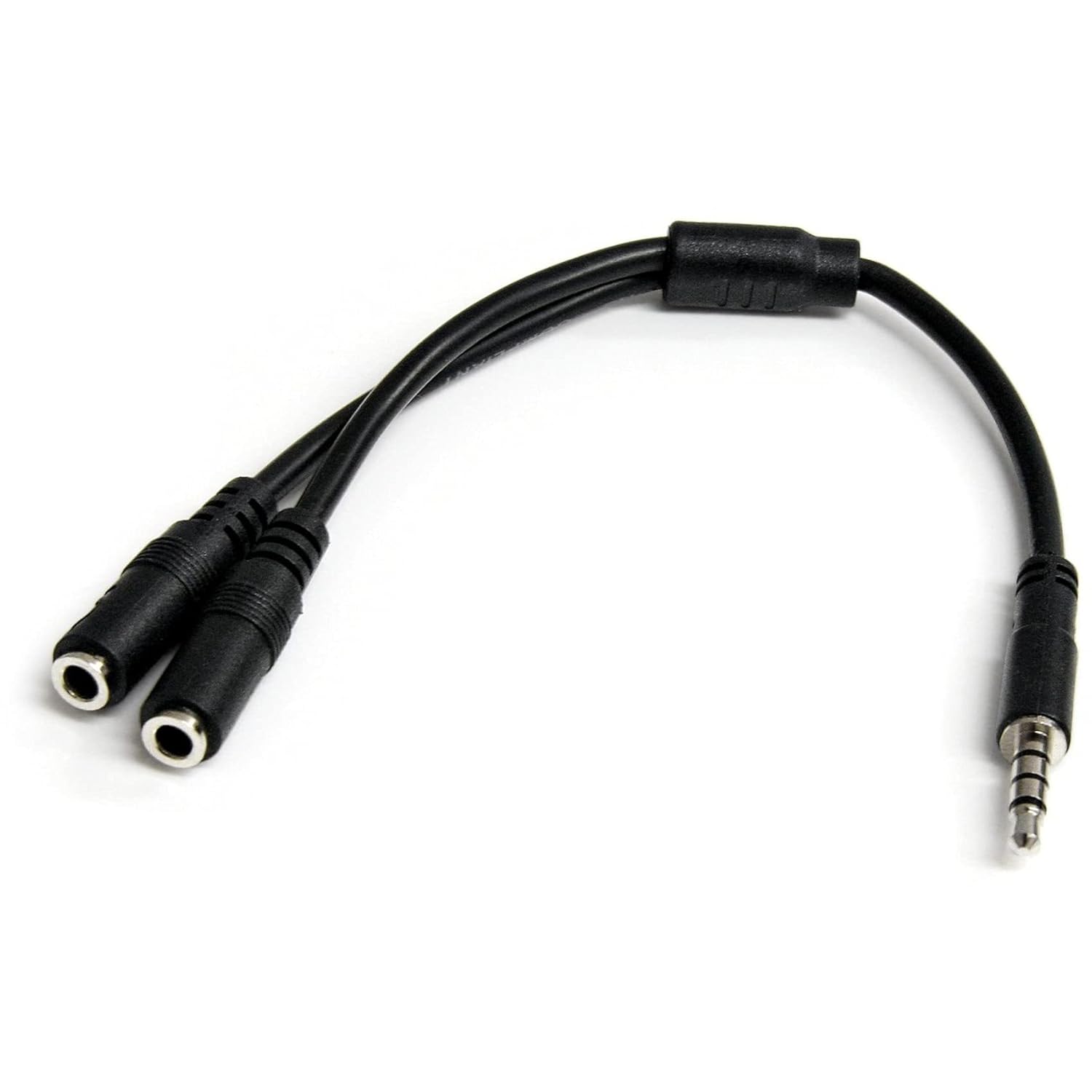

• Startech Headset Adapter for Headsets With Separate Headphone / Microphone Plugs


  Most new laptops and Ultrabooks come equipped with a single 3.5mm 4-position (4pin) audio port that supports both audio input and output. A great number of headsets on the market come equipped with two separate headphone and microphone connectors that are not compatible with this new configuration.

  The MUYHSMFF headset adapter features two 3.5mm 3-position ports that provide a separate headphone and microphone connection that can be connected to the single audio port on your laptop. Alternatively, you can also connect a separate microphone and powered speakers if you prefer to use Skype or chat online without using a headset.

  Headset Connectivity
  Simply connect the headphone plug from your headset into the audio output port marked with the headphone symbol, and connect the microphone plug into the audio input port marked with the microphone symbol. Plug the adapter into audio port on your laptop and you’re all set.


  Microphone and Powered Speaker Connectivity
  Want to work or game without using a headset?
  You can also connect a microphone and powered speakers to your laptop using the adapter. Just plug in your microphone into the audio input port marked with the microphone symbol, and plug your powered speakers into the audio output port marked with the headphone symbol, and connect the adapter to the audio port on your laptop.

  Keep in touch while you travel
  Are you travelling for work or taking a trip?
  The headset adapter features a compact and sturdy design that makes it the perfect solution for mobile applications.

  Tuck the adapter in with your tablet or slip it inside another carrying case. It works great with tablets and smartphones that have a single audio port. Just connect the headphone and microphone plugs from your headset into the adapter, connect the adapter to your mobile device and start talking.
  This high quality 3.5mm headset adapter is backed by StarTech.com’s lifetime warranty.

  Applications
  Connect a headset equipped with separate headphone and microphone plugs to the audio port on your laptop
  Connect an external microphone and powered speakers to the audio port on your laptop
  Connect a headset equipped with separate headphone and microphone plugs to the audio port on your phone or tablet
  The StarTech.com Advantage
  Turns a 3.5mm combo headphone/microphone port into two distinct ports – one 3.5mm headphone jack and one 3.5mm microphone port
  Allows the use of older audio accessories with newer computers

• Specifications	Details
  Warranty Information	Warranty: Lifetime

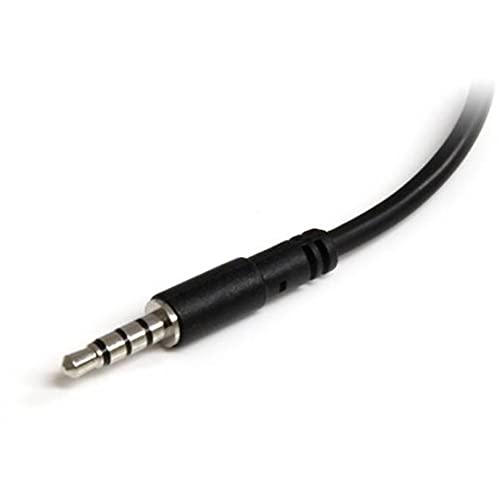

  Connector(s)	Connector A: 1 – 3.5 mm Mini-Jack (4 Position)

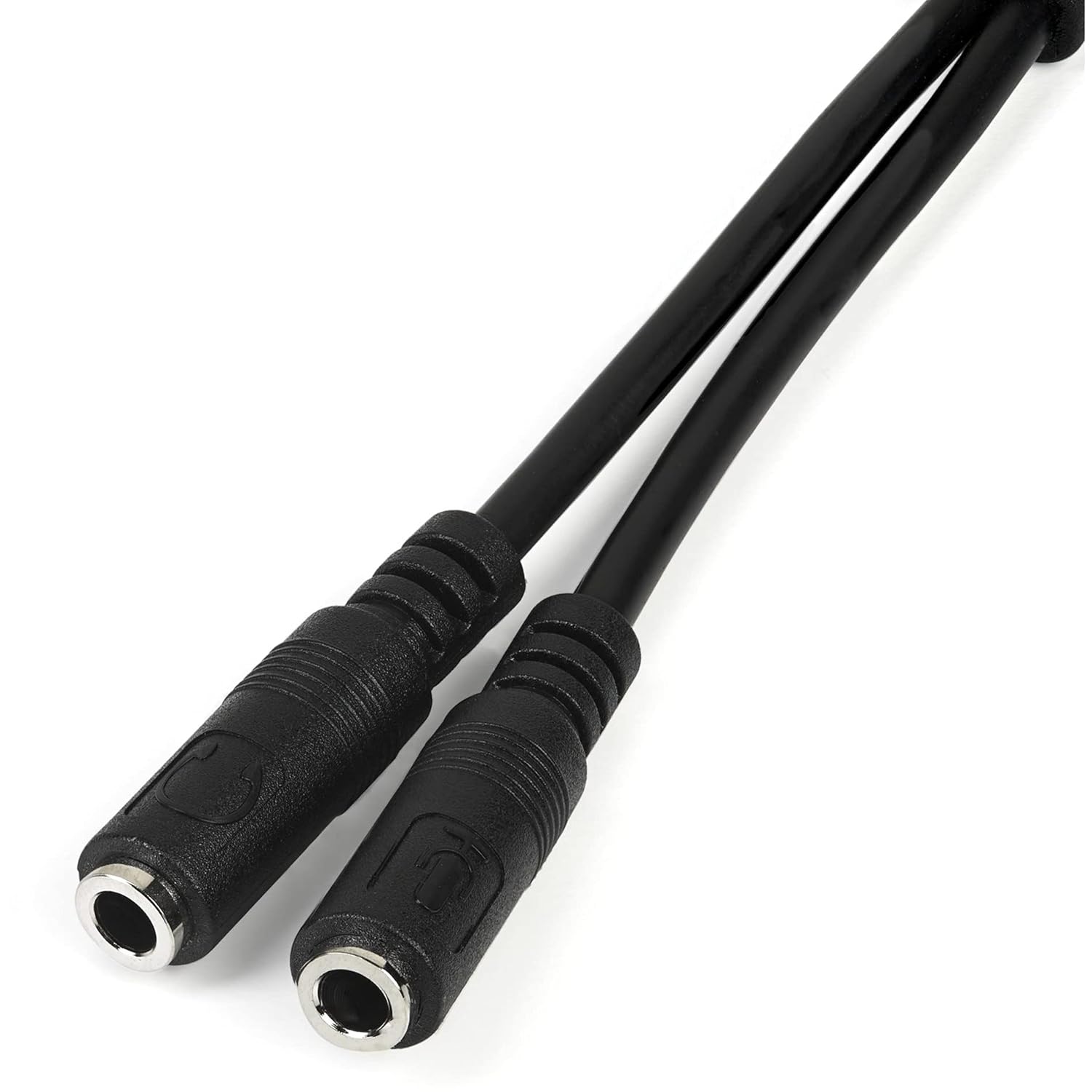

  	Connector B: 2 – 3.5 mm Mini-Jack (3 Position)
  Environmental	Storage Temperature: -15°C to 75°C (-59°F to 167°F)
  	Humidity: 30~60% RH
  Hardware	Connector Plating: Nickel
  	Cable Jacket Material: PVC – Polyvinyl Chloride
  Packaging Information	Package Height: 0.3 in [7.0 mm]
  	Package Length: 4.9 in [12.5 cm]
  	Shipping (Package) Weight: 0.5 oz [14.0 g]
  	Package Width: 0.4 in [9.0 mm]
  	Package Quantity: 1
  Physical Characteristics	Product Height: 0.2 in [0.6 cm]
  	Weight of Product: 0.4 oz [12.0 g]
  	Product Width: 0.2 in [0.6 cm]
  	Color: Black
  	Connector Style: Straight
  	Wire Gauge: 28 AWG
  	Cable Length: 7.9 in [200 mm]
  	Product Length: 7.9 in [20.0 cm]
  Special Notes / Requirements	Note: 3.5 mm Mini-Jack (4 position) male is configured per CTIA Standard
  What’s in the Box	Included in Package: 1 – 3.5mm 4 Pin to 2x 3 Pin 3.5mm Headset Splitter Adapter – M/F
