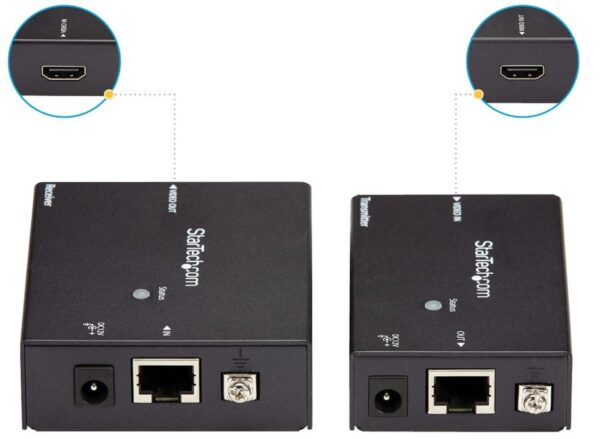

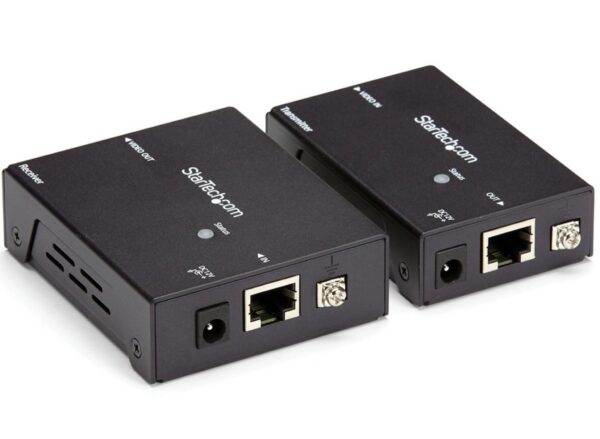

• StarTech HDMI over CAT5e HDBaseT Extender


  The StarTech.com HDBaseT extender kit, extends HDMI up to 230 feet (70 Meters) over a single CAT5e or CAT6 cable. The extender supports Ultra HD and Full HD resolutions (4K / 1080p) with support for 3D and the accompanying digital audio. For added versatility, both the transmitter and receiver can be powered by the same single power source using Power Over Cable (POC). The versatility of this video extender makes it an ideal solution for digital signage applications in large buildings such as commercial shopping centers, stadiums, schools, and hospitals.

  What is HDBaseT?
  HDBaseT is a standardized, zero latency, video distribution technology that’s revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio and video along with additional signals such as 100BaseT Ethernet, IR, RS-232 serial and power over cable.

  Extend more with HDBaseT
  The extender offers HDBaseT technology with HDMI and Power in a single extender kit, for complete end-to-end solution. Offering greater versatility than traditional HDMI extenders or HDMI cabling alone HDBaseT is the clear choice for every integrator and system designer. The added benefit of power over cable means you’ll only need one power source at either side of your extension, great for extending video to areas where power outlets may be limited, such as industrial sites.

  Astonishing 4K picture quality from an impressive distance
  With the A/V industry quickly adopting 4K as the new high-resolution video standard, long range video distribution can be a challenge with standard HDMI cables beginning signal degradation at 30 feet. With support for 4K you’ll be amazed at how HDBaseT maintains your Ultra HD picture quality, four times the resolution of high-definition 1080p, even at 130 feet away from your video source. Plus, because the extender supports High-Definition 1080p and lower resolutions at 230 feet away, you can comfortably use this extender to make any video source look great.

  Simplify your setup
  This extender has been specially crafted for a smooth, tidy installation. HDBaseT technology allows for single cable installation, for seamless integration using existing CAT5e or CAT6 infrastructure, avoiding the hassle of running multiple Ethernet cables while, reducing potential failure points. Plus, the added benefit of power over cable means you’ll only need one power source to power both your extender and receiver, great for extending to areas where power outlets may be limited. Mounting hardware is also included for both the extender and receiver for discrete, professional mounting.

  The ST121HDBTE is TAA compliant and backed by a 2-year StarTech.com warranty with free lifetime technical support.

• Feature	Specification
  Part Number	ST121HDBTE  EAN: 065030851107
  Warranty	2 Years
  Cable Types Supported	Cat5e, Cat6
  Maximum Resolution Supported	4096 x 2160 (UltraHD 4K)
  Supported Graphics Resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 4096 x 2160 (4K)
  Maximum Refresh Rate	60 Hz
  Maximum Transfer Distance	70m (230ft) over Cat5e/Cat6 cable
  Audio Support	Dolby TrueHD, DTS-HD MA Audio
  Audio Output Channels	7.1 Channels
  LED Indicators	Status (for operation indication)
  Daisy Chain Support	No
  Product Colour	Black
  Material	Aluminium
  Certification	CE, FCC, HDBT, TAA
  Compliance Certificates	RoHS
  MTBF (Mean Time Between Failures)	52,000 hours
  RJ-45 Output Ports	1
  HDMI Input	1
  RJ-45 Input Ports	1
  DC-In Jack	Yes
  HDMI Output	1
  Connectivity Technology	Wired
  AC Input Voltage	110 – 240V
  Power Consumption (Typical)	3W
  Power Plug Type	Type M (AU, EU, NA, UK compatible)
  Input Current	0.5 A
  Operating Voltage	12V
  Output Current	1.5 A
  Mounting Brackets	Yes
  Cables Included	LAN (RJ-45)
  Grounding Wire	Yes
  Manual Included	Yes
  AC Adapter Included	Yes
  Included Power Plug Types	AU, EU, NA, UK
  Product Dimensions (LxWxH)	70 mm x 14 mm x 13 mm
  Product Weight	28g
  Package Dimensions (LxWxH)	23.5 cm x 15.6 cm x 6.5 cm
  Package Weight	1.1 kg
  Operating Temperature	0°C to 40°C
  Storage Temperature	-10°C to 60°C
  Operating Relative Humidity	0% – 80%
  Storage Relative Humidity	0% – 80%
  Master Case Width	32.5 cm
  Master Case Height	25.7 cm
  Master Case Length	41.1 cm
  Products Per Master Case	12 pcs
