StarTech HBS304A24A 4 to 4 USB 3.0 Peripheral Sharing Switch
4 to 4 USB 3.0 Peripheral Sharing Switch
Share up to four USB 3.2 Gen 1 devices between four different computersSave costs by sharing four USB peripherals between four computers
Remote port selector lets you switch devices from one computer to another, with the press of a button
USB 3.2 Gen 1 throughput support with data transfer rates of up to 5Gbps (backwards compatible)
Hot-pluggable USB switch, with over-current protection

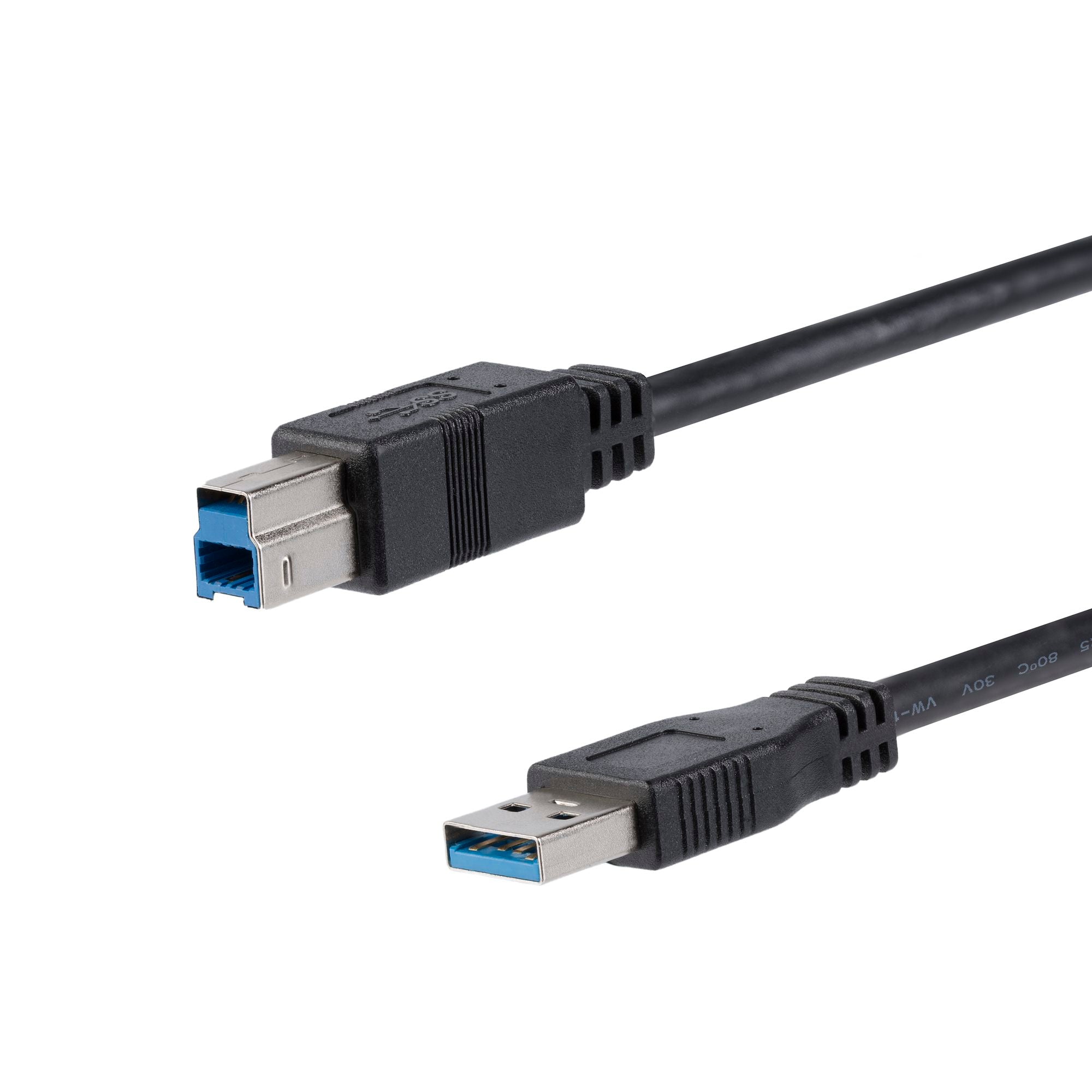

Includes four USB-A to USB-B cables – 2x 1.2 m (4 ft) / 2x 1.8 m (6 ft)This 4 to 4 USB 3.2 Gen 1 peripheral sharing switch connects four USB 3.2 Gen 1 peripheral devices to four different computers, making it easy to switch between which computer is accessing the ports, providing a cost-effective way to create a more productive, space-efficient work area.
Save costs and time by sharing peripherals
Save the expense of purchasing duplicate peripherals, by sharing devices (such as USB printers, portable hard drives, mouse and keyboard) with up to four computers. The USB switch also lets you avoid having to swap cables from one system to another, saving time and effort.Fast data transfer speed
Enjoy fast data transfers to and from your shared peripheral devices. The USB switch supports USB 3.2 Gen 1 (up to 5Gbps), providing high-bandwidth support for devices like external hard drives and webcams. The USB 3.2 Gen 1 switch is also backward compatible with USB 2.0/1.1 and works with older devices.Easy to use
The plug-and-play USB switch is easy to use, with no drivers or software required. It features a remote port selector that lets you switch peripheral devices from one computer to another with the press of a button. The LED indicates the active computer.The switch’s compact design takes up minimal desk space and it’s USB-powered.
Share more devices
The 4-port USB switch can also be connected to a USB hub or docking station, to expand the number of shared devices.The HBS304A24A is backed by a StarTech.com 2-year warranty and free lifetime technical support.
-
Specifications Warranty Information 2 Years Connector(s) Connector Type(s) 4 – USB Type-A (9 pin, 5 Gbps) 4 – USB 3.2 Type-B (9 pin, Gen 1, 5Gbps) 1 – USB Micro-B (5 pin) (Power) Environmental Operating Temperature 0°C to 40°C (32°F to 104°F) Storage Temperature -20°C to 60°C (-4°F to 140°F) Humidity 0~80% RH Hardware USB-C Device Port(s) No USB-C Host Connection No Fast-Charge Port(s) No Ports 4 Interface USB 3.2 Gen 1 Bus Type USB 3.2 Gen 1 (5Gbps) Indicators LED Indicators 4 – Computer selection indicators Packaging Information Shipping (Package) Weight 0.6 kg [1.2 lb] Package Quantity 1 Package Length 24.0 cm [9.4 in] Package Width 16.0 cm [6.3 in] Package Height 6.2 cm [2.4 in] Performance Maximum Data Transfer Rate 5 Gbps (USB 3.2 Gen 1) Type and Rate USB 3.2 Gen 1 – 5 Gbit/s General Specifications Optional power requirements 5V 2A Physical Characteristics Form Factor Compact Color Black Material Plastic Product Length 9.4 cm [3.7 in] Product Width 9.4 cm [3.7 in] Product Height 2.6 cm [1.0 in] Weight of Product 124.0 g [4.4 oz] Power Power Source USB-Powered Input Voltage 5V DC Output Voltage 5 DC Software OS Compatibility OS Independent – No software or drivers required Special Notes / Requirements Note The switch does not require an external power source as it draws power from the computers that it’s connected to. If you have a special application that requires additional power, such as higher powered USB peripherals or if less than 4 hosts are connected and powered at one time, connect a 5V source to the power adapter port (USB Micro-B). What’s in the Box Included in Package 1 – peripheral sharing switch 1 – 1.8 m [6 ft] remote port selector 4 – USB 3.0 cables – USB-A to USB-B 2x 1.2 m [4 ft] / 2x 1.8 m [6 ft] 1 – quick-start guide -
