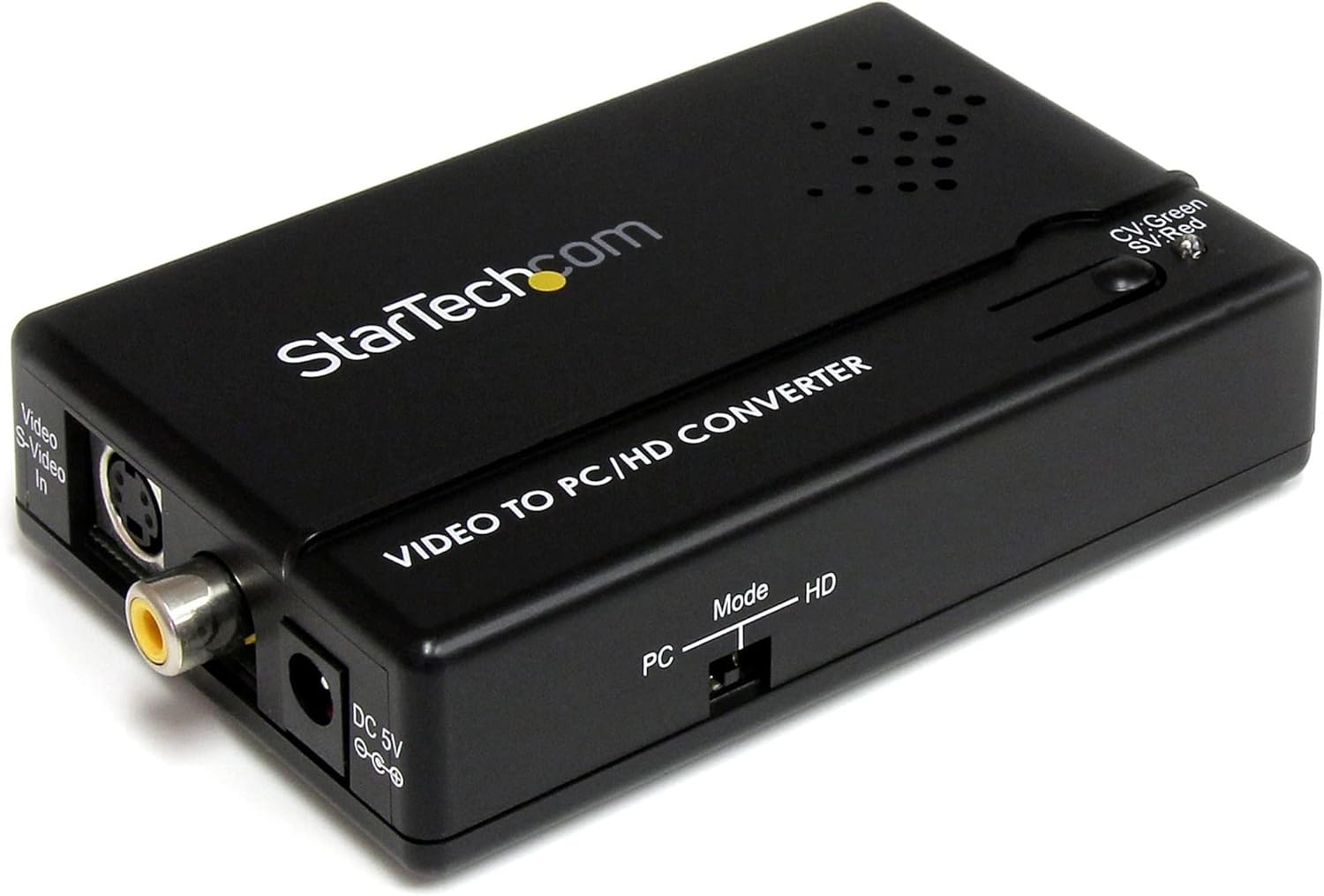

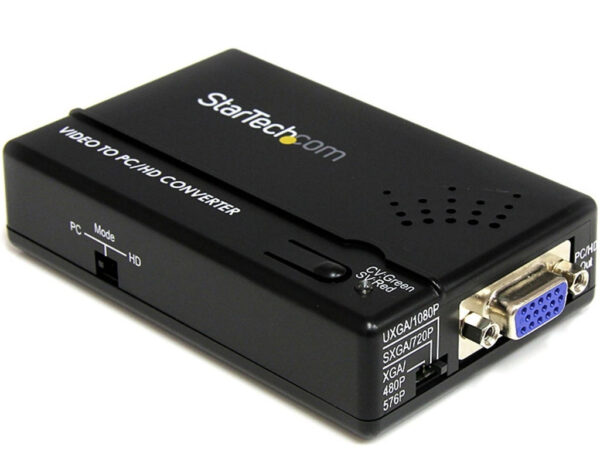

• StarTech Composite and S-Video to VGA Video Scan Converter


  The VID2VGATV2 Composite and S-Video to VGA Video Scan Converter (with Scaler) provides a simple way to convert Composite or S-Video signals to VGA (or Component RCA) output, for use with computer monitors, projectors or HDTV sets.

  Equipped with an On-Screen Display (OSD) menu and dip switches for simple configuration and selection of your video output settings, this compact video scaler installs quickly and easily for a true plug-and-play experience. An integrated scaler circuit dynamically converts the S-Video or Composite video input signal, giving you multiple output resolutions to choose from, to ensure compatibility with your display or projector.
  Plus, the Component/S-Video-VGA Converter includes a VGA to Component (RCA) breakout cable, which enables you to connect to TV sets that are not equipped with a VGA port.

  Backed by a StarTech.com 2-year warranty and free lifetime technical support.


  Applications
  Perfect for displaying video from DVD players, VCRs or legacy Game Consoles on VGA projectors and HDTV sets
  Display camcorder output on televisions or monitors equipped with VGA input
  Monitor security cameras with S-Video or composite signaling using VGA monitors or televisions
  Adapt VHS video in the classroom to newer televisions
  Convert legacy Medical Imaging equipment for display on computer monitors
  Use in boardrooms for adapting legacy video equipment to work with new projectors

  The StarTech.com Advantage
  Automatically detects the input resolution while allowing you to customize the output resolution and refresh rate using the On-Screen Display, ensuring compatibility with your display or projector
  Adjustments for brightness, contrast, color, RGB level and horizontal/vertical positioning offers flexibility
  Offers a pure hardware design, with no software installation required, delivering an easy-to-use and time-saving solution

• Specifications
  Warranty Information
  Warranty	2 Years
  Connector(s)

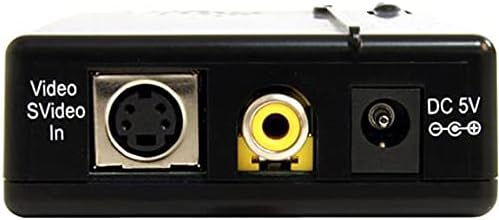

  Connector A	1 – Composite Video (1 x RCA), 1 – S-Video (4 pin, Mini-DIN)
  Connector B	1 – VGA (15 pin, High Density D-Sub)
  Environmental
  Operating Temperature	0°C to 40°C (32°F to 104°F)
  Storage Temperature	0°C to 60°C (32°F to 140°F)
  Humidity	0~60% RH
  Hardware
  Active or Passive Adapter	Active
  AV Input	Composite, S-Video
  AV Output	VGA, Component
  Audio	No
  Indicators
  LED Indicators	1 – Composite (Yellow) / S-Video (Red) input indicator
  Packaging Information
  Package Height	2.4 in [6.0 cm]
  Package Length	8.2 in [20.8 cm]
  Shipping (Package) Weight	15.8 oz [448.0 g]
  Package Width	4.6 in [11.8 cm]
  Package Quantity	1
  Performance
  Supported Resolutions	PC: 1600×1200, 1280×1024, 1024×768; HDTV: 480p (50/60Hz), 576p (50Hz), 720p (50/60Hz), 1080p (50/60Hz)
  Signal Levels	Input: Video @ 1V p-p, 75 ohm; Y @ 1 V p-p, 75 ohm; Color @ 0.7V p-p, 75 ohm
  Physical Characteristics
  Weight of Product	3.0 oz [86 g]
  Color	Black
  Material	Plastic
  Product Length	4.4 in [11.2 cm]
  Product Width	2.5 in [6.4 cm]
  Product Height	1.0 in [2.6 cm]
  Power
  Power Source	AC Adapter Included
  Output Voltage	5 DC
  Output Current	1A
  Power Consumption (In Watts)	2.5
  What’s in the Box
  Included in Package	1 – Video Converter/Scaler, 1 – VGA to Component (RCA) breakout cable, 1 – Universal Power Adapter, 1 – Instruction Manual
