• StarTech 8 Port 1U Rackmount USB KVM Switch with OSD | SV831DUSBU

  The SV831DUSBU 8 Port 1U Rack Mount USB KVM Switch with OSD offers a dependable computer management tool that allows you to control up to 8 USB-connected computers from a single keyboard, mouse and monitor.

  The KVM switch offers maximum control, allowing you to switch computers using hotkey commands or front panel push-buttons, and offers added configuration options and convenience through an On Screen Display (OSD).

  A suitable addition to server room operations, the 8 port switch can be rack mounted into 1U of cabinet space, and can be cascaded with multiple KVM switches to deliver control of up to 64 computers from this single switch.


  Applications
  Add single console administration to your Co-location/ISP facility saving you time and money

  Create a scalable, streamlined access solution in your Datacenter or Server Farm

  Perfect for manufacturing line computer control, simplifying access to multiple systems

  Great for PC test/burn-in computer control saving the desk space required for multiple monitors, keyboards and mice

  Monitor multiple systems simultaneously in Software QA labs

• Category	Specification
  Warranty Information	Warranty: 3 Years

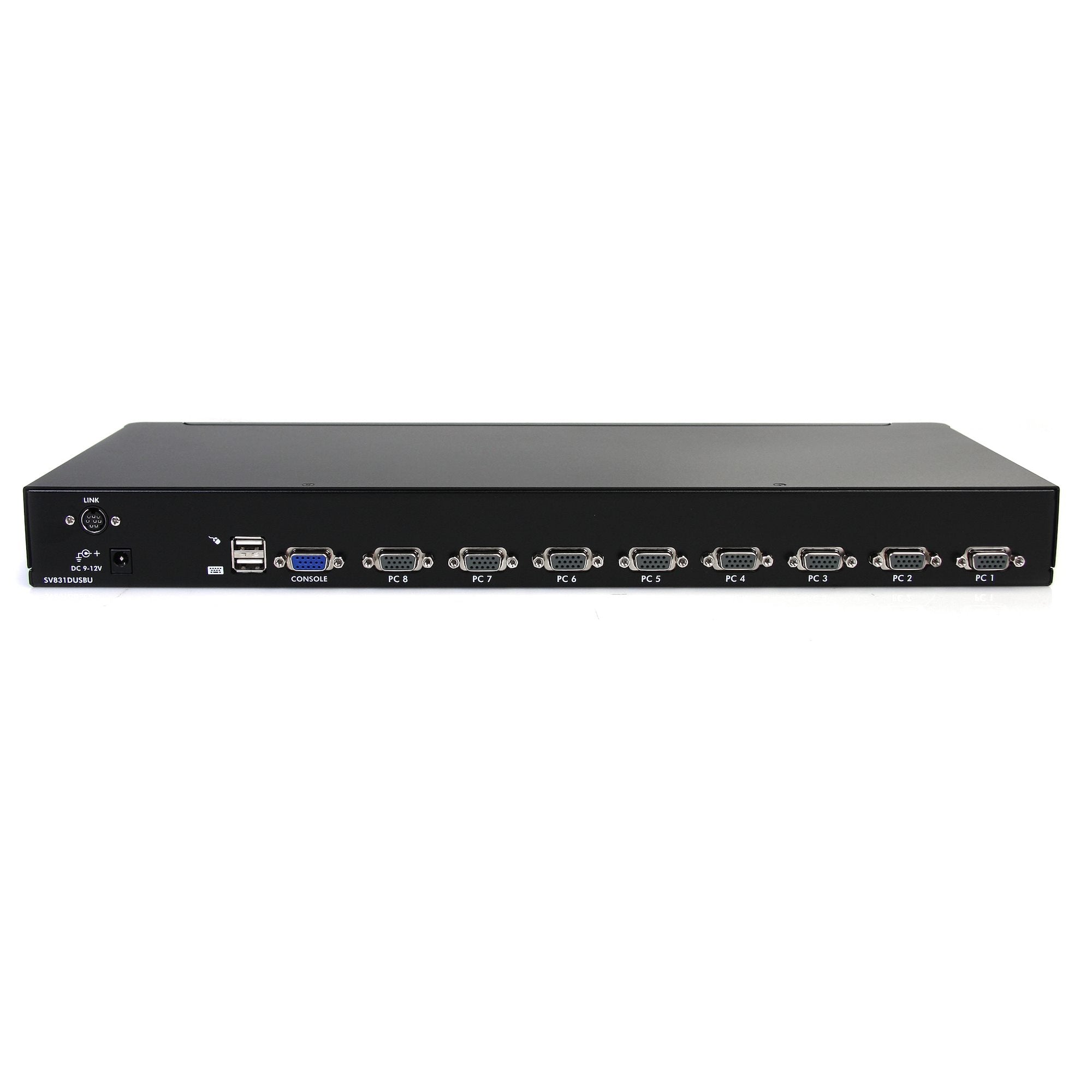

  Connector(s)	Console Interface(s):
  	2 – USB 2.0 Type-A (4 pin, 480Mbps)
  	1 – VGA (15 pin, High Density D-Sub)
  	Host Connectors:
  	8 – VGA (15 pin, High Density D-Sub)
  Environmental	Operating Temperature: 5°C to 40°C (41°F to 104°F)
  	Storage Temperature: -20°C to 60°C (-4°F to 140°F)
  	Humidity: 80% RH
  Hardware	Audio: No
  	KVM Ports: 8
  	PC Interface: USB
  	PC Video Type: VGA
  	Number of Monitors Supported: 1
  	Rack-Mountable: Yes
  	Cables Included: No
  	Daisy-Chain: Yes

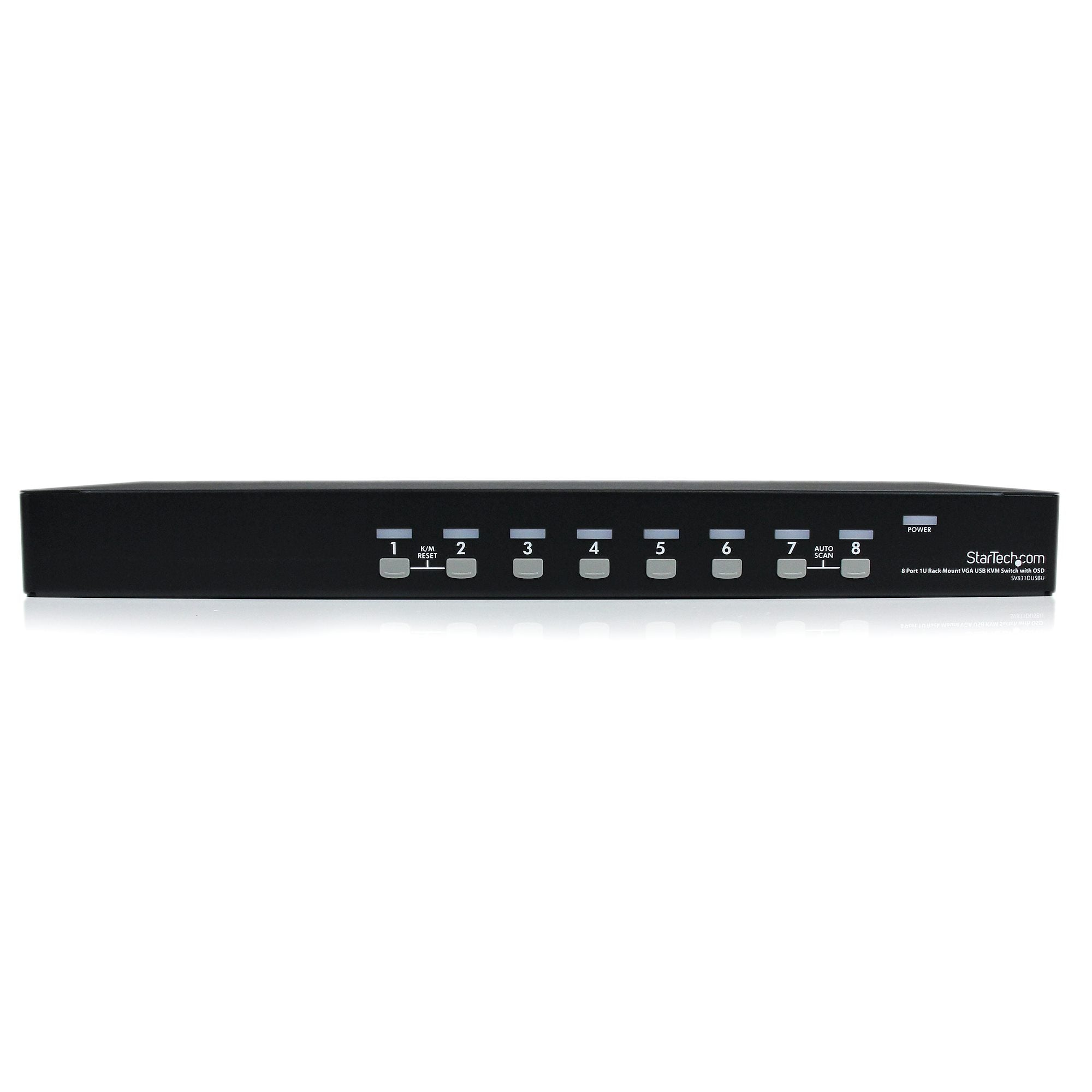

  Indicators	LED Indicators:
  	8 – Red – Selected PC
  	1 – Green – Power
  	8 – Green – Online PC
  Packaging Information	Package Quantity: 1
  	Package Length: 22.6 in [57.3 cm]
  	Package Width: 3.5 in [8.9 cm]
  	Package Height: 10.6 in [26.8 cm]
  	Shipping (Package) Weight: 7.3 lb [3.3 kg]
  Performance	On-Screen Display: Yes
  	IP Control: No
  	Hot-Key Selection: Yes
  	Maximum Analog Resolutions: 1920 x 1440 @ 60Hz
  	Wide Screen Supported: Yes
  	Maximum Number of Users: 1
  	Maximum Cascaded Computers: 64
  	Port Selection Support: Push Button, Hotkeys, and OSD
  	MTBF: 150000 hours
  Physical Characteristics	Color: Black
  	Material: Steel
  	Product Length: 17.2 in [43.8 cm]
  	Product Width: 7.1 in [18.0 cm]
  	Product Height: 1.8 in [4.5 cm]
  	Weight of Product: 4.9 lb [2.2 kg]
  Power	Power Source: AC Adapter Included
  	Input Voltage: 100 – 240 AC
  	Input Current: 0.6A
  	Output Voltage: 12V DC
  	Output Current: 1.5A
  	Center Tip Polarity: Positive
  	Plug Type: M
  	Power Consumption (In Watts): 18
  Software	OS Compatibility: OS independent; No software or drivers required

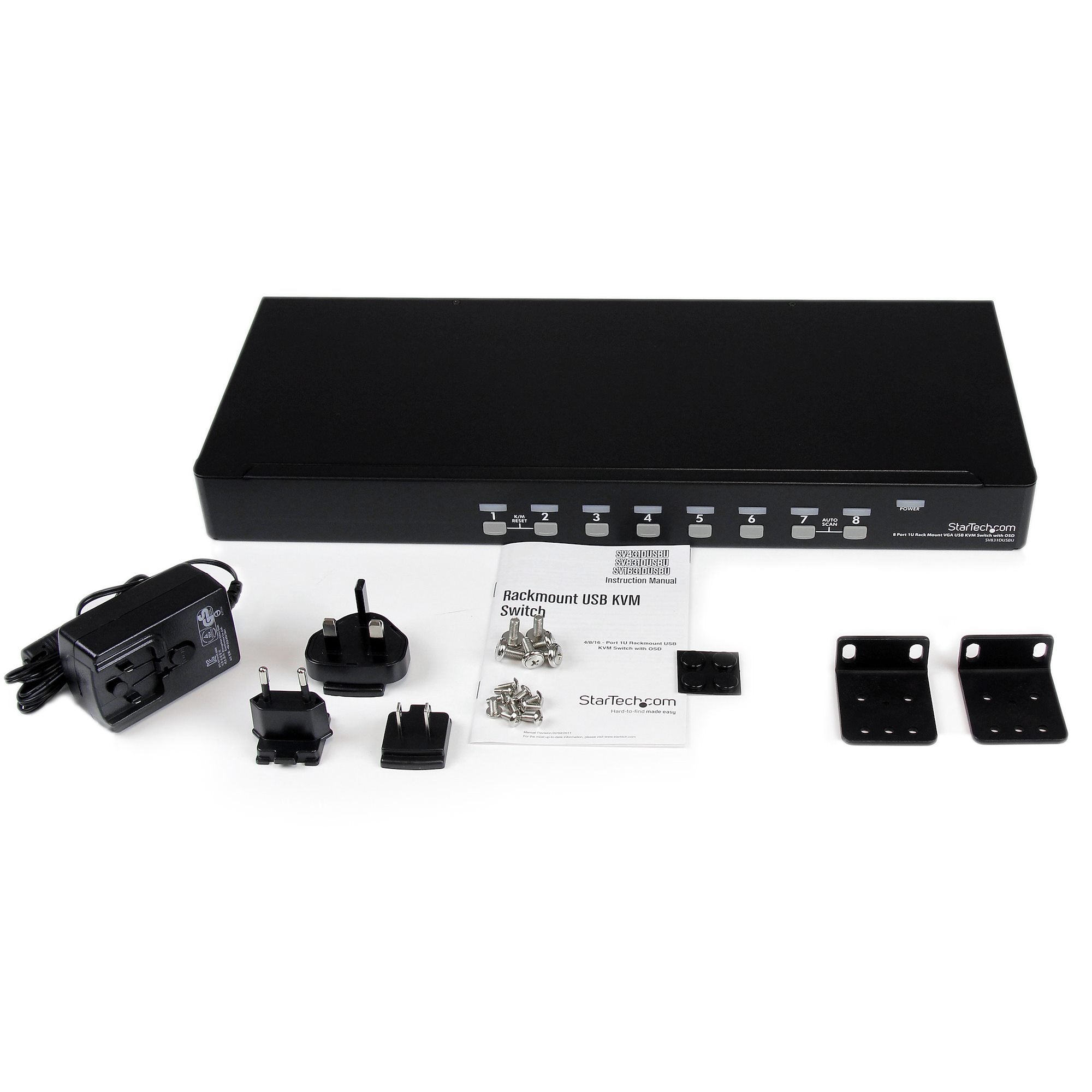

  What’s in the Box	Included in Package:
  	1 – 8 Port USB KVM Switch
  	2 – Mounting Brackets
  	1 – Bag of Screws
  	1 – Pack Rubber Feet
  	1 – Universal Power Adapter (NA/UK/EU)
  	1 – User Manual
