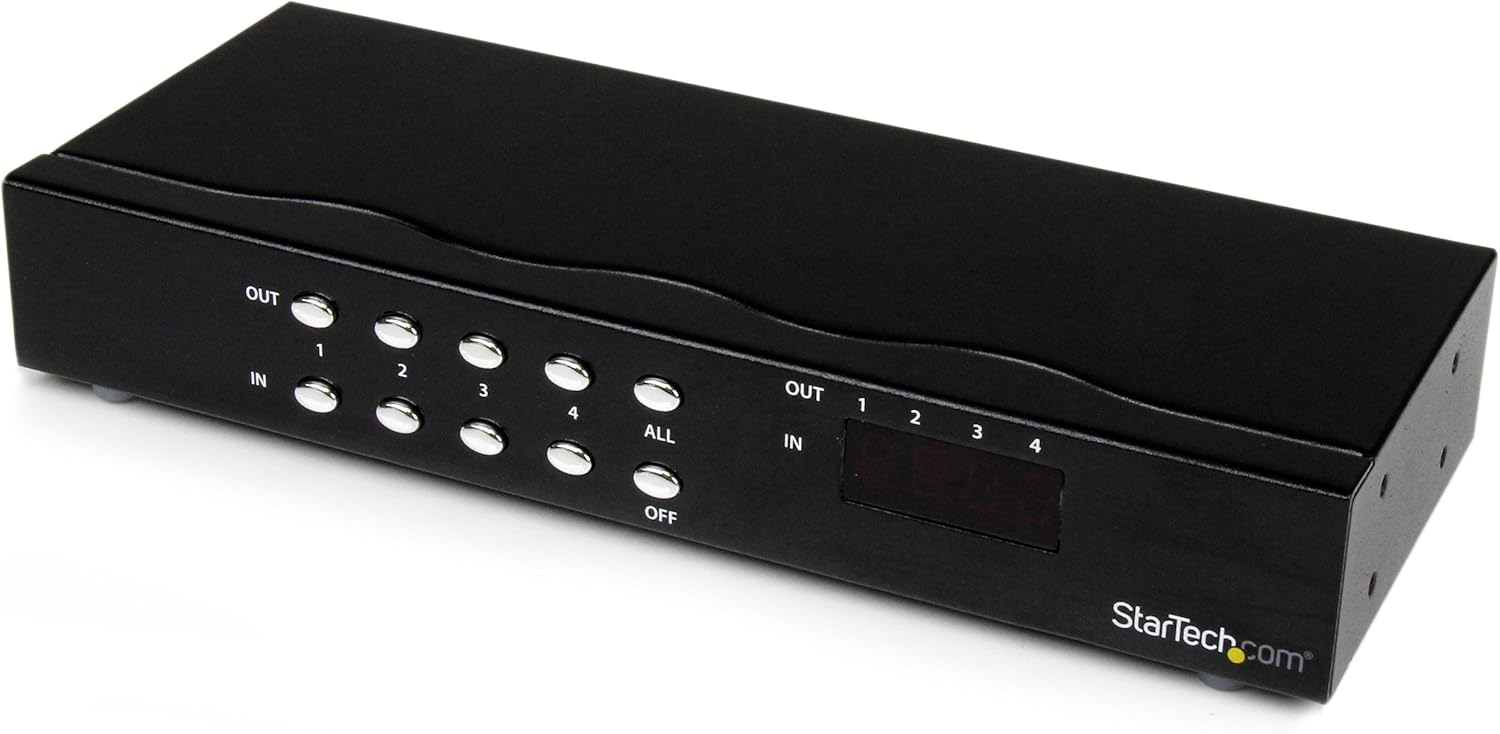

• Startech 4×4 VGA Matrix Video Switch Splitter with Audio


  The ST424MX 4×4 VGA Matrix Switcher/Splitter allows users to share up to four distinct VGA inputs (as well as a corresponding audio source) between four independent displays or projectors.

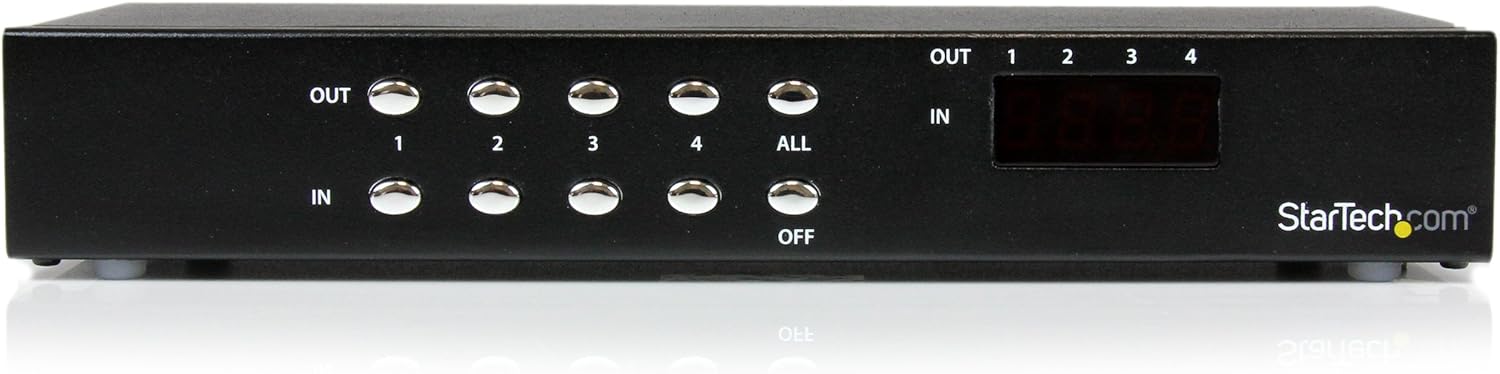

  Providing convenient push button control, the VGA Matrix Switcher/Splitter allows each of the four input VGA signals and the corresponding audio, to be switched individually meaning that you can have a different source showing on each display or one source showing on both offering maximum flexibility and control.

  To ensure optimized VGA distribution and signal management even over longer distance signal transmissions, the ST424MX VGA Matrix Switcher/Splitter features a built-in signal booster that facilitates installation of displays at distances of up to 210ft away from the source device, while maintaining flawless signal integrity.


  Designed to provide maximum control while saving space and eliminating clutter, the ST424MX can be used as a standalone solution or rack mounted using the (included) ear-mounts.

  Backed by a StarTech.com 2-year warranty and free lifetime technical support.

  Applications
  Take full control of your sources and displays/projectors – select any source on any display
  Run multimedia presentations with supporting data showing on another display in business conference rooms or at trade-shows
  Perfect for digital signage applications in retail environments requiring more than one media player or PC to be connected
  Allow trainees/students to see what is on your display and then switch them back to their own display after the demonstration completes
  Ideal for connecting/switching multiple sources in Test Bench Facilities, Data Centers, Help Desks and Video Broadcasting Facilities
  The StarTech.com Advantage
  Matrix switching functionality gives you full control of what source is shown on each display with the touch of a button
  Built-in signal amplifier lets you extend your connection by up to 210 feet

• Category	Details
  Warranty Information	Warranty: 2 Years

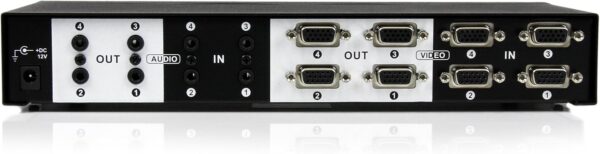

  Connector(s)	Connector A: 4 – VGA (15 pin, High Density D-Sub), 4 – 3.5 mm Mini-Jack (3 Position) Connector B: 4 – VGA (15 pin, High Density D-Sub), 4 – 3.5 mm Mini-Jack (3 Position)
  Hardware	Ports: 4 AV Input: VGA AV Output: VGA Audio: Yes Rack-Mountable: Yes Industry Standards: DDC, DDC2, DDC2B Daisy-Chain: Yes
  Packaging Information	Shipping (Package) Weight: 3.9 lb [1.8 kg] Package Quantity: 1 Package Length: 14.1 in [35.7 cm] Package Width: 3.2 in [8.2 cm] Package Height: 11.0 in [27.9 cm]
  Performance	Maximum Cable Length: 213.2 ft [65 m] Maximum Analog Resolutions: 1920×1440 @ 85Hz Bandwidth: 350 MHz
  Physical Characteristics	Weight of Product: 2.3 lb [1.1 kg] Color: Black Material: Steel Product Length: 10.6 in [26.9 cm] Product Width: 4.3 in [10.8 cm] Product Height: 1.7 in [4.2 cm]
  Power	Power Source: AC Adapter Included Input Voltage: 100 – 240 AC Input Current: 0.3A Output Voltage: 12V DC Output Current: 1.25A Center Tip Polarity: Positive Power Consumption (In Watts): 15
  What’s in the Box	Included in Package: 1 – VGA 4×4 Matrix Switch, 2 – Ear-mounts for rack-mounting, 1 – Bag of Screws, 1 – Universal Power Adapter (US/UK/EU/AUS), 1 – Instruction Manual

• Description	Downloads
  Startech 4×4 VGA Matrix Video Switch Splitter with Audio | ST424MX DataSheet	Downloads
  Startech 4×4 VGA Matrix Video Switch Splitter with Audio | ST424MX Manual	Downloads
