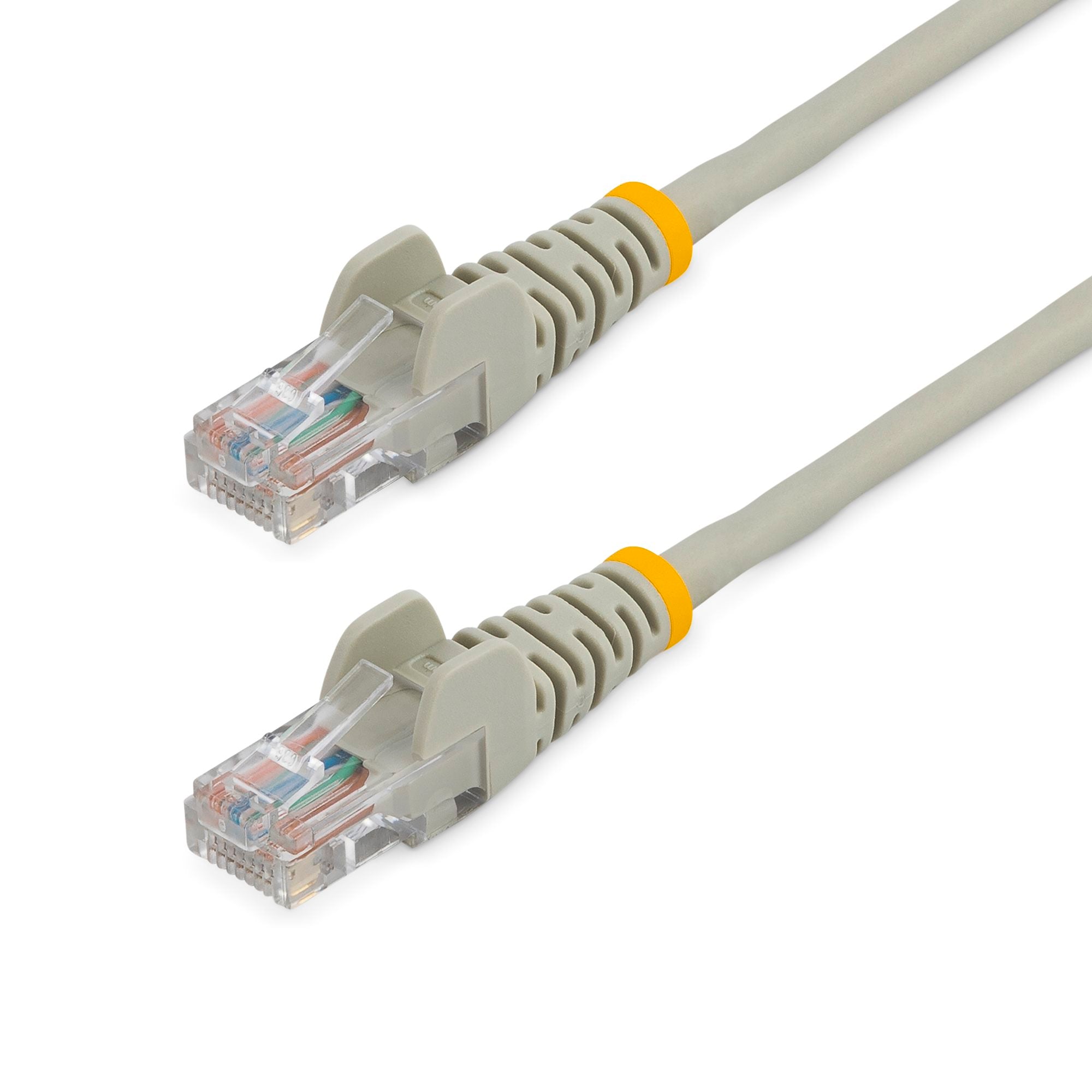

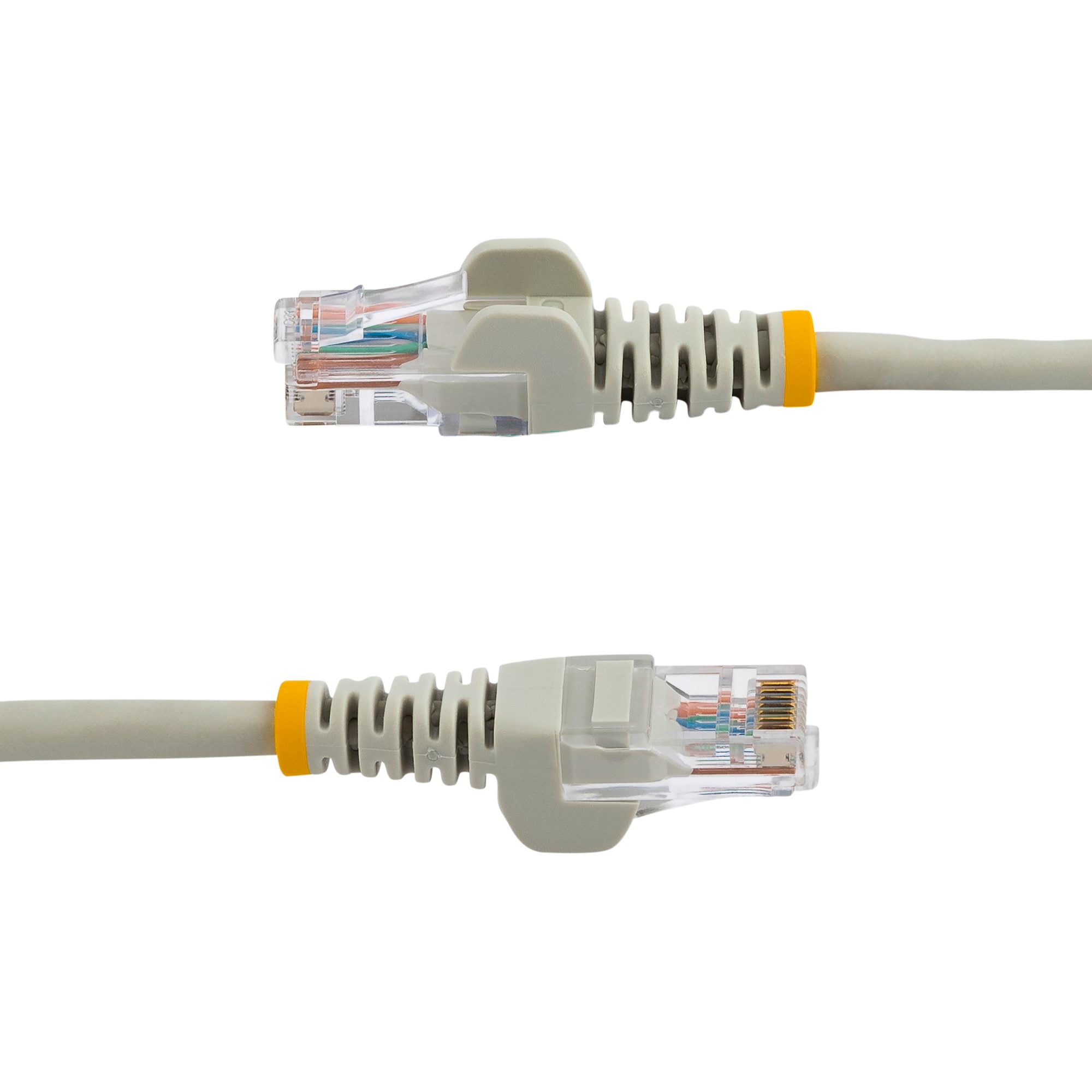

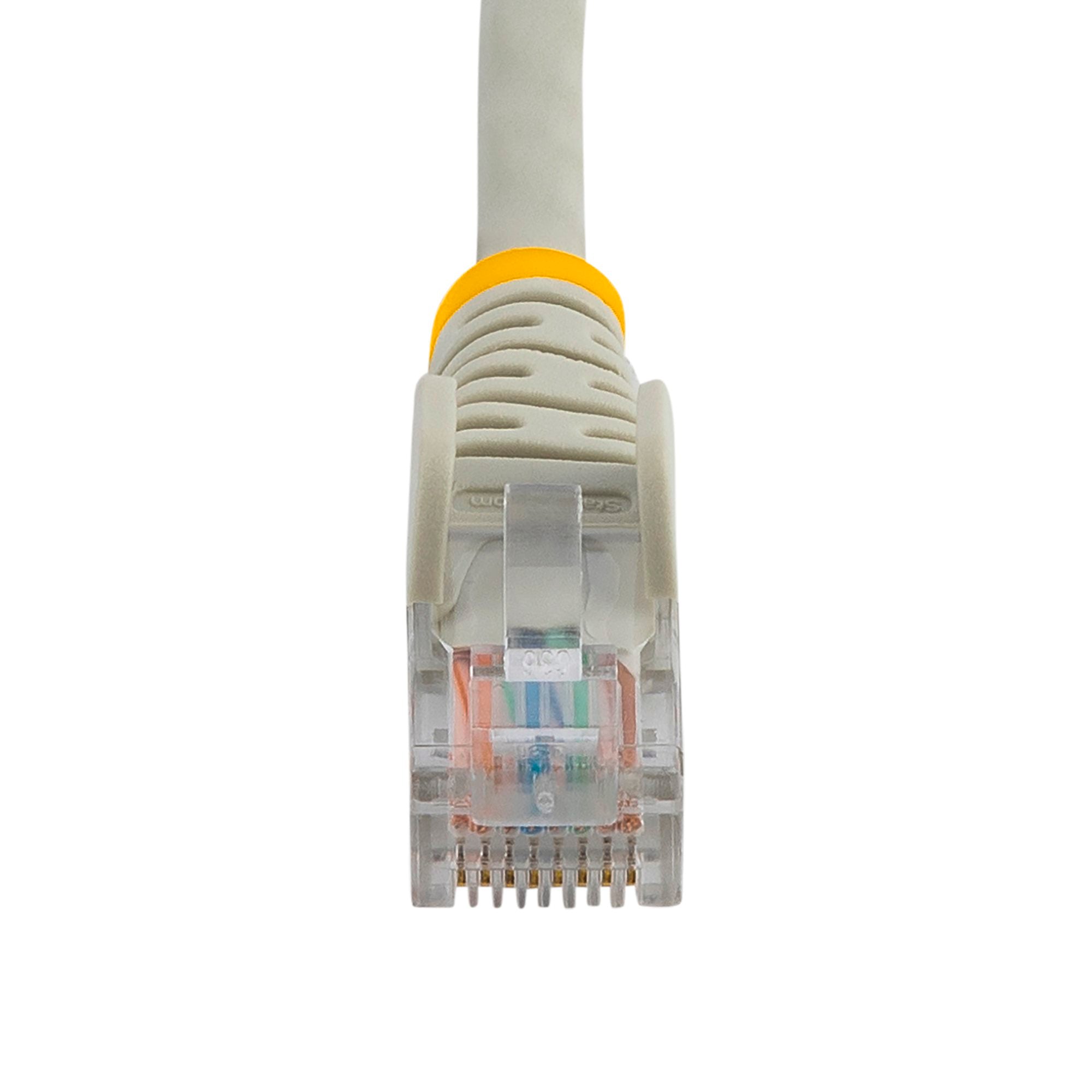

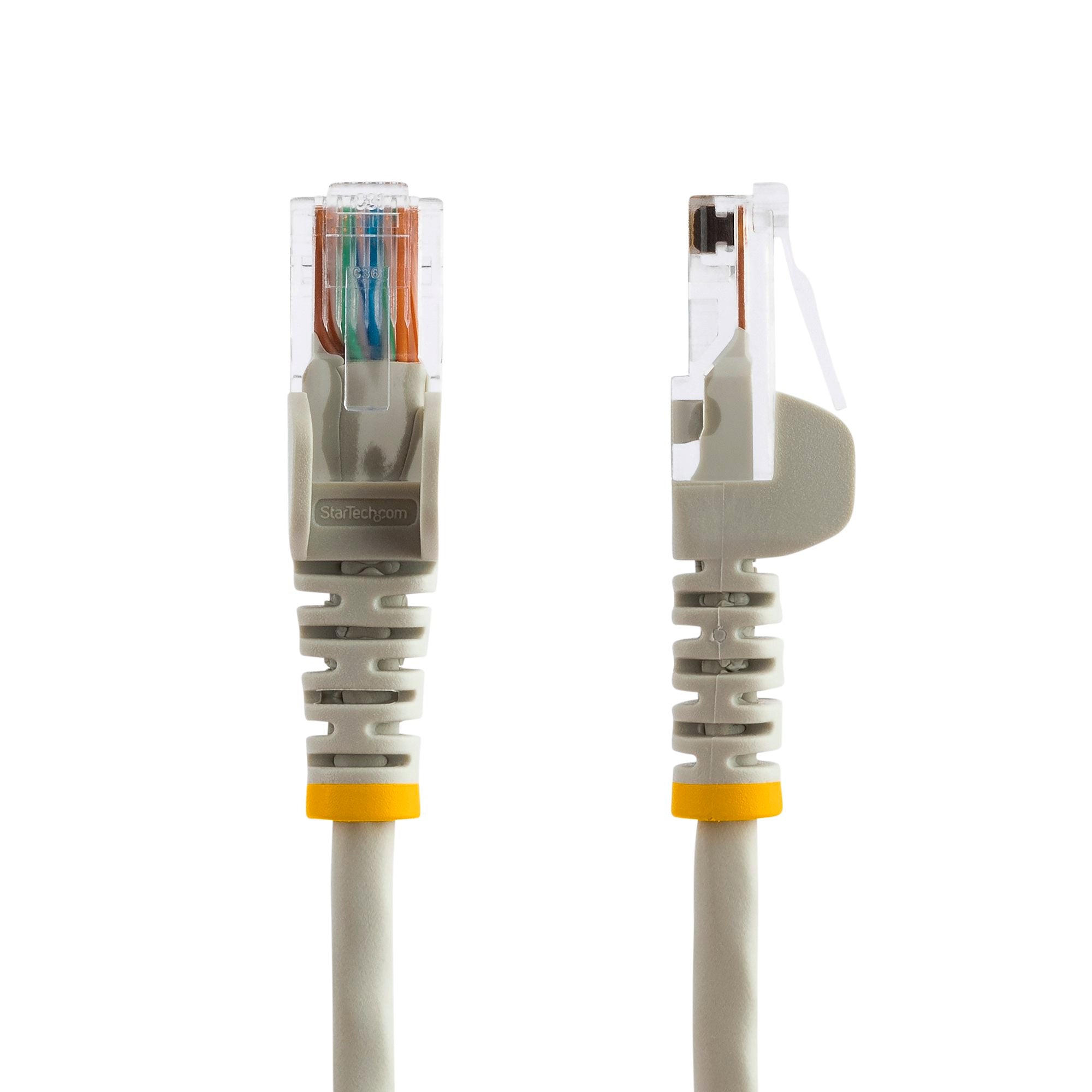

• StarTech 45PAT2MGR Cat5e Patch Cable with Snagless RJ45 Connectors – 2m, Gray

  The 45PAT2MGR Cat5e patch cable (2m) meets or exceeds all Cat 5e cable specifications to ensure reliable Ethernet network connections, and features a durable gray PVC jacket that enables you to color code your network cable runs as needed.

  To ensure long-lasting performance, this high quality Cat5e patch cable features a snagless design that protects the RJ45 connector clips from damage and makes the cable less prone to snagging during installation. The cable also features molded PVC strain relief that prevents the RJ45 connector termination points from bending at sharp angles, reducing the risk of cable failure.

  Constructed of only top quality materials, this Cat5e patch cord delivers reliable performance and is backed by our lifetime warranty.

  100% copper for outstanding value
  Get the highest value for your cable investment with our Cat 5e cables, each one manufactured using high-quality copper conductors.

  24-gauge wire for high-performance network connection
  Ensure high-performance capability for your demanding Ethernet applications, such as Power-over-Ethernet, using cables that include 24 AWG copper.

  50-micron gold connectors provide peak conductivity
  Rely on our RJ45 connectors to deliver optimum conductivity while eliminating signal loss due to oxidation or corrosion.

  Applications
  Designed for use with Fast Ethernet networks
  Patches from hub to distribution panel
  Connects workstation to wall outlet

• Warranty Information
  Warranty	Lifetime
  Connector(s)
  Connector A	1 – RJ-45
  Connector B	1 – RJ-45
  Environmental
  Humidity	0 ~ 60% RH
  Operating Temperature	0°C to 30°C (32°F to 86°F)
  Storage Temperature	-20°C to 60°C (-4°F to 140°F)
  Hardware
  Number of Conductors	4 pair UTP
  Cable Jacket Material	PVC – Polyvinyl Chloride
  Fire Rating	CM Rated
  Cable Type	Snagless
  Packaging Information
  Package Height	1.6 cm [0.6 in]
  Package Length	22.0 cm [8.7 in]
  Shipping (Package) Weight	79.0 g [2.8 oz]
  Package Width	20.0 cm [7.9 in]
  Package Quantity	1
  Performance
  Cable Rating	CAT5e – 350 MHz
  Physical Characteristics
  Product Height	1.6 cm [0.6 in]
  Product Width	1.3 cm [0.5 in]
  Color	Gray
  Wire Gauge	24 AWG
  Conductor Type	Stranded Copper
  Cable Length	2 m [6.6 ft]
  Product Length	2.0 m [6.6 ft]
  Weight of Product	70.0 g [2.5 oz]
  What’s in the Box	Included in Package
  	1 – 2m Gray Snagless Cat5e UTP Patch Cable
