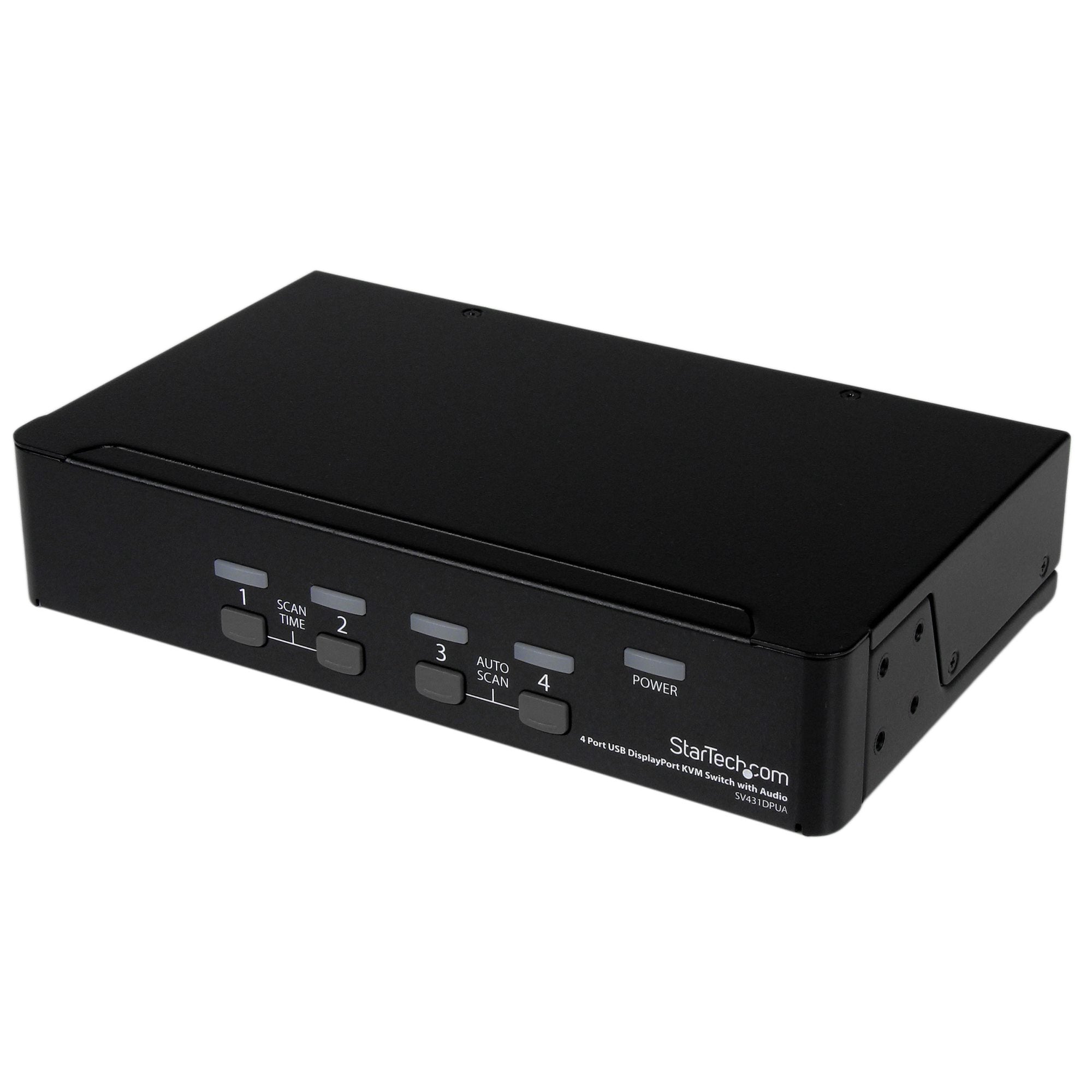

• StarTech 4 Port USB DisplayPort KVM Switch with Audio | SV431DPUA

  The SV431DPUA 4 Port USB DisplayPort KVM Switch with Audio combines next generation display standards with seamless KVM control of up to 4 connected PC or Mac computers.

  Featuring DisplayPort resolutions of 2560×1600 @60Hz, as well as offering both 7.1 HD digital audio (with supporting displays and sources) and separate 3.5mm stereo audio support. An integrated USB 2.0 hub allows you to share 2 additional peripherals among attached computers as if they were directly connected.

  Suitable for high quality static imaging applications such as health care (MRI, X-ray diagnostics, etc.), a maximum resolution of 3840×2400 is supported at reduced refresh rates.

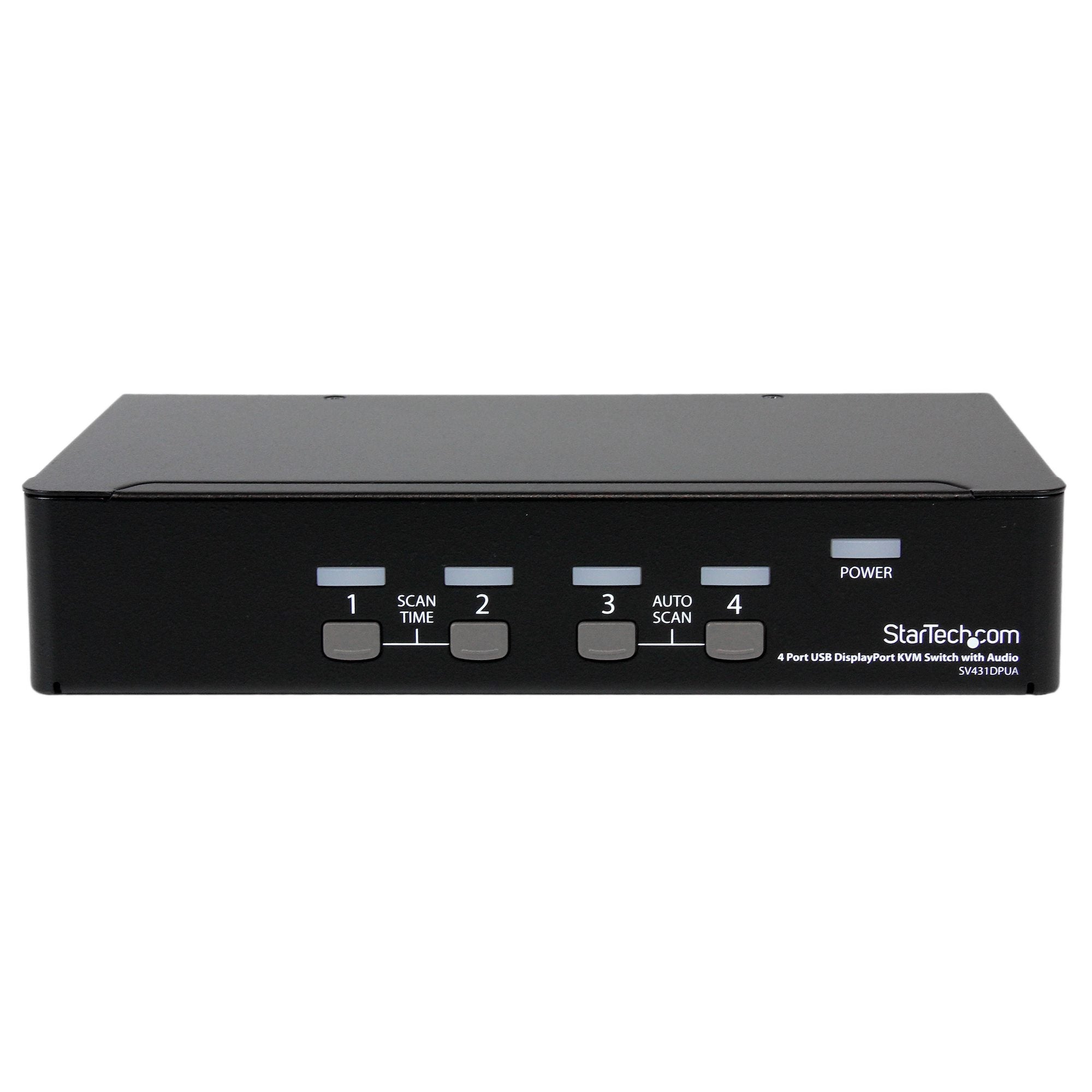

  A simple yet comprehensive solution, the 4-port KVM features both front-panel push-button and hotkey switching, and offers a small form factor with rear connection ports, to minimize workspace disruptions.


  Applications
  Dual system control for a single workstation increasing productivity in the Office

  High resolution medical imaging and Health care display, such as MRI and X-Ray display

  Perfect for high-res Digital Signage server control, simplifying access to multiple systems

  Multimedia design, multimedia post-production and video editing

  Great for PC test/burn-in computer control saving the desk space required for multiple monitors, keyboards and mice

  Leverage DisplayPort’s high resolution capabilities for Satellite Topography equipment

• Category	Detail
  Warranty Information
  Warranty	3 Years

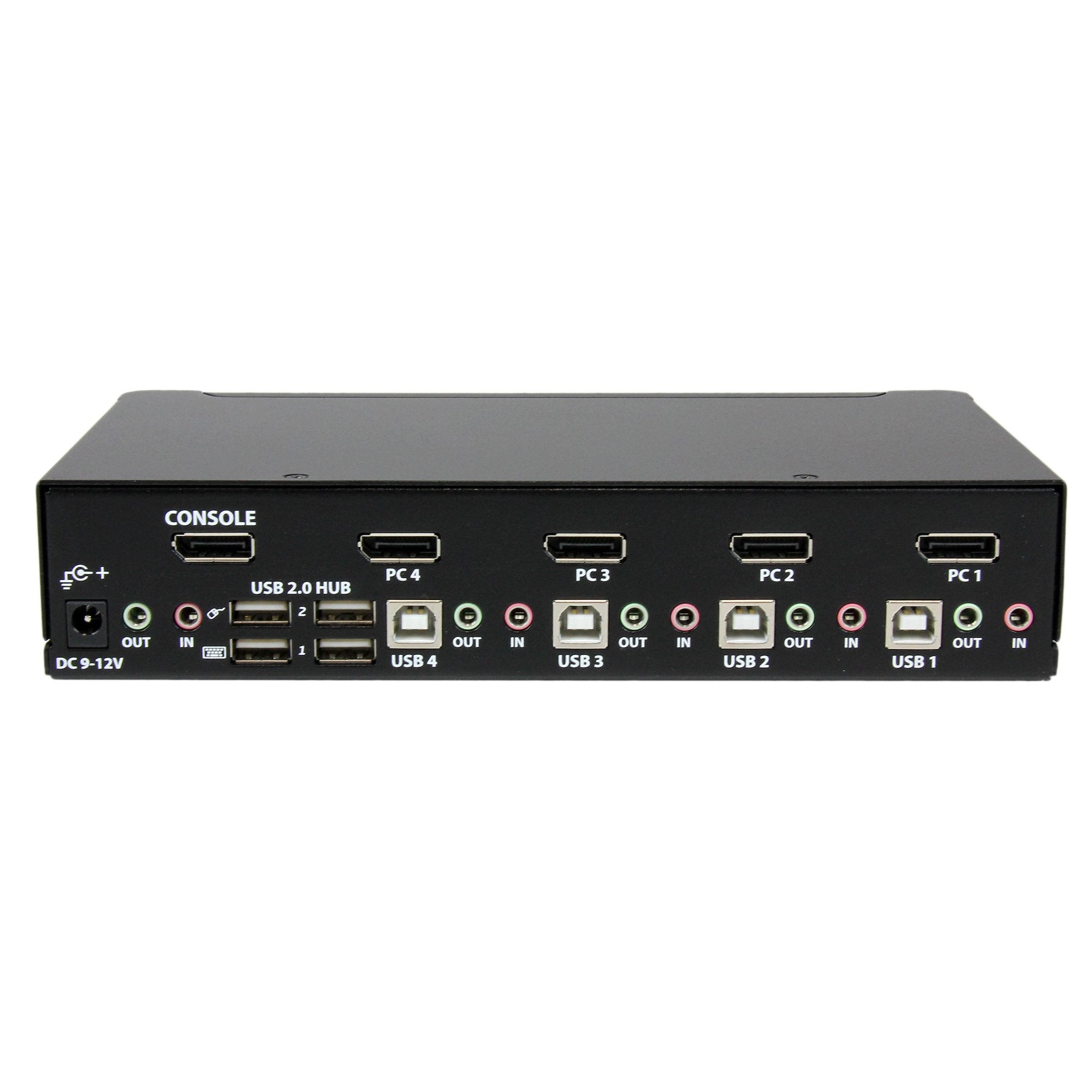

  Connector(s)
  Console Interface(s)	2 – 3.5 mm Mini-Jack (3 Position)
  	1 – DisplayPort (20 pin)
  	4 – USB 2.0 Type-A (4 pin, 480Mbps)
  Host Connectors	4 – USB B (4 pin)
  	8 – 3.5 mm Mini-Jack (3 Position)
  	4 – DisplayPort (20 pin)
  Environmental
  Operating Temperature	0°C to 40°C (32°F to 104°F)
  Storage Temperature	-20°C to 60°C (-4°F to 140°F)
  Humidity	0~80% RH
  Hardware
  Audio	Yes
  KVM Ports	4
  PC Interface	USB
  PC Video Type	DisplayPort
  Number of Monitors Supported	1
  Rack-Mountable	Optional
  Cables Included	No
  Daisy-Chain	No
  Indicators
  LED Indicators	4 – Red (Select indicator; One LED per port)
  	4 – Green (Online indicator; One LED per port)
  	1 – Power
  Packaging Information
  Package Height	8.8 cm [3.5 in]
  Package Length	41.0 cm [16.1 in]
  Shipping (Package) Weight	1.6 kg [3.5 lb]
  Package Width	21.2 cm [8.3 in]
  Package Quantity	1
  Performance
  On-Screen Display	No
  DVI Support	No
  IP Control	No
  Hot-Key Selection	Yes
  Maximum Digital Resolutions	2560 x 1600 @ 60Hz
  Wide Screen Supported	Yes
  Maximum Number of Users	1
  Port Selection Support	Push Button and Hotkeys
  MTBF	136,000 hours
  Physical Characteristics
  Weight of Product	1.0 kg [2.3 lb]
  Color	Black
  Material	Steel
  Product Width	22.1 cm [8.7 in]
  Product Height	4.4 cm [1.7 in]
  Product Depth	130.6 mm [5.1 in]
  Power
  Power Source	AC Adapter Included
  Input Voltage	100 – 240 AC
  Input Current	0.8A
  Output Voltage	12V DC
  Output Current	1.5A
  Center Tip Polarity	Positive
  Plug Type	M
  Power Consumption (In Watts)	18W
  Software
  OS Compatibility	OS independent; No software or drivers required

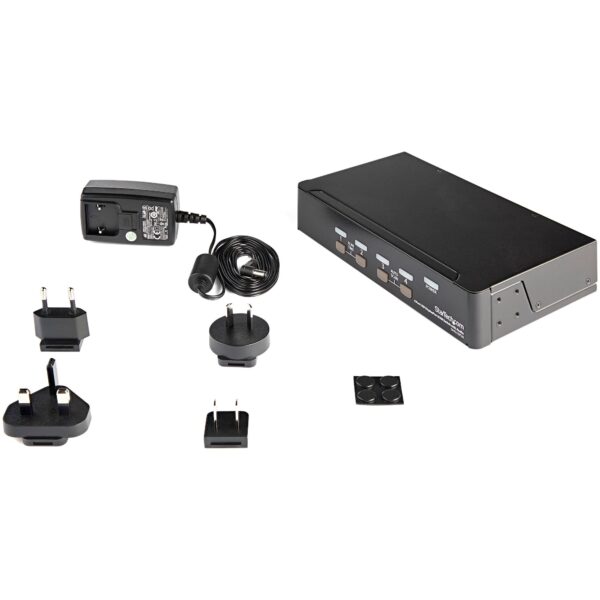

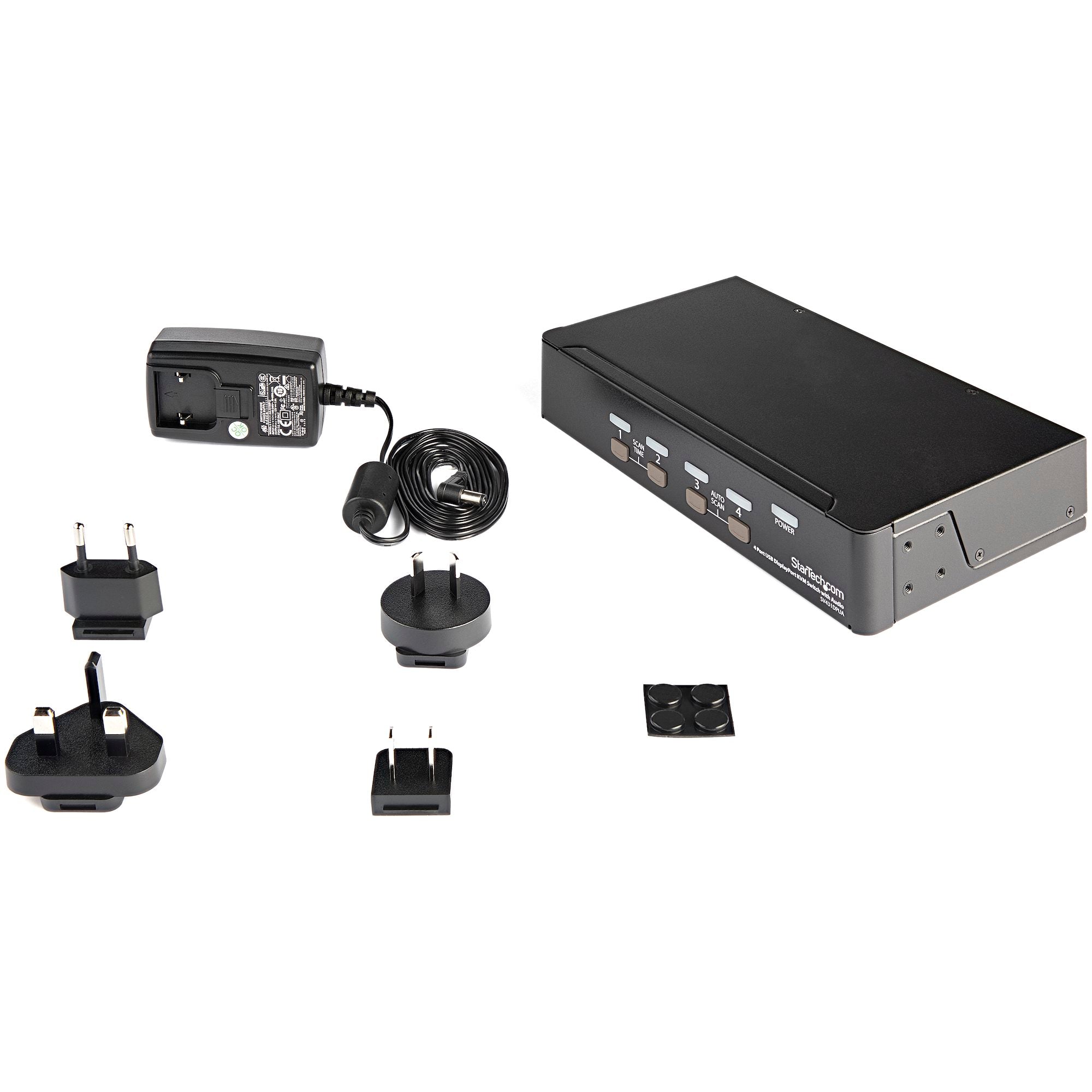

  What’s in the Box
  Included in Package	1 – 4-port DisplayPort KVM switch
  	4 – Foot pads
  	1 – Universal power adapter (NA/UK/EU/AU)
  	1 – Instruction manual
