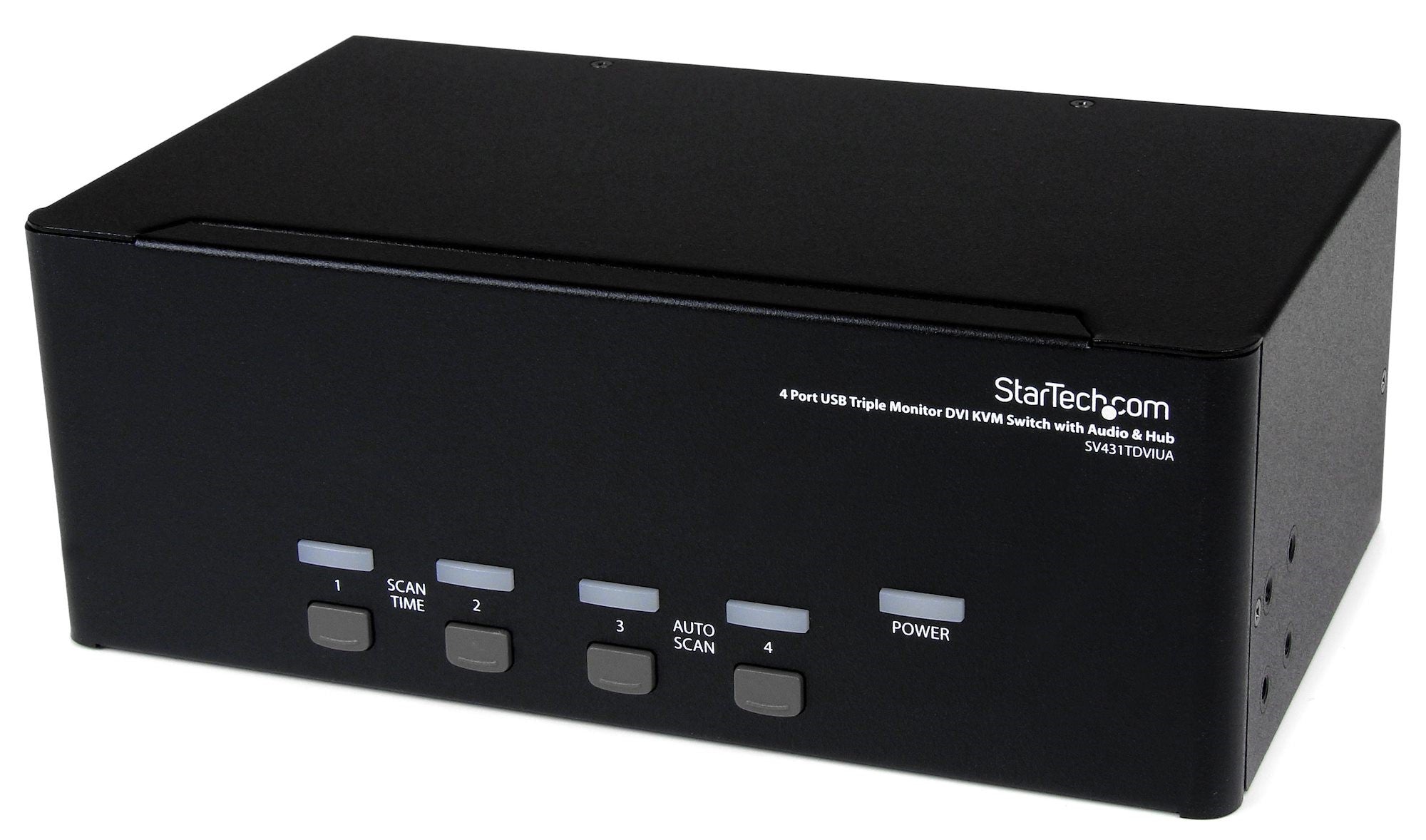

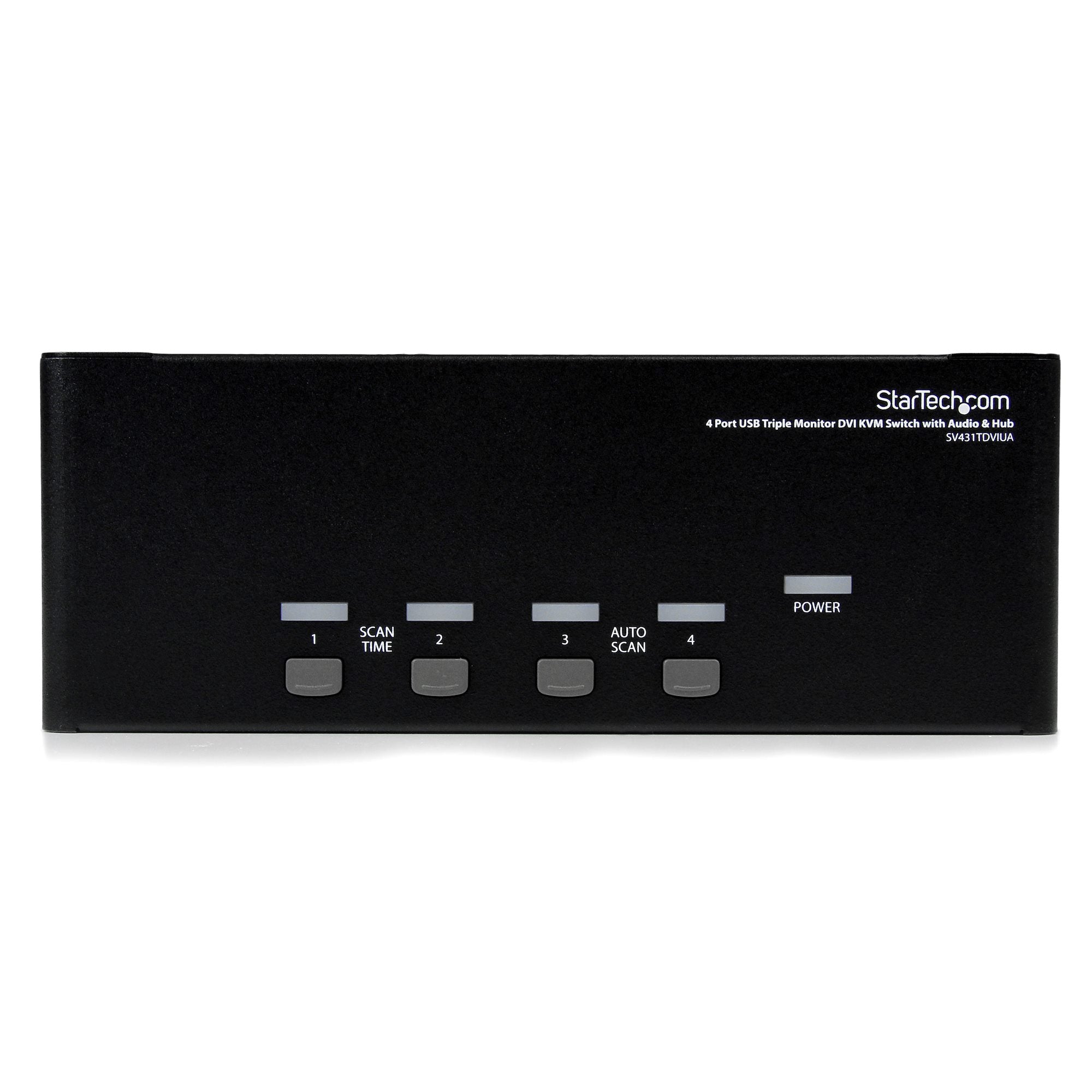

• StarTech 4 Port Triple Monitor DVI USB KVM Switch with Audio & USB 2.0 Hub | SV431TDVIUA

  The SV431TDVIUA 4-Port Triple Monitor DVI USB KVM Switch allows 4 PCs (each with 3 DVI video outputs) to share monitors, 1 microphone and set of speakers, 1 keyboard and 1 mouse, as well as an additional USB 2.0 peripheral such as an external hard drive, thumb drive, printer, or webcam.

  The Triple DVI KVM switch enables you to switch back and forth between 4 multi DVI PCs at the touch of a button, while maintaining professional-level video quality on all monitors at resolutions up to 1920×1200. The triple DVI KVM switch also features an integrated USB hub port which allows USB 2.0 peripherals to be shared between attached systems, eliminating duplicate peripheral costs and offering the convenience of sharing stored data between PCs.

  PLEASE NOTE: While the DVI connector on this KVM is DVI-I, the KVM only supports single-link DVI-D (digital only) video sources. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to console connections.

  Applications
  Switch three displays, mouse, keyboard, speakers, microphone, and one USB peripheral between four PCs

  Graphic design and multimedia production applications

  Great for CAD/CAM operators using multiple monitor systems

  Financial/banking and trading workstations with multiple monitors

  High resolution medical imaging with multiple displays

• Category	Details
  Warranty Information	Warranty: 3 Years

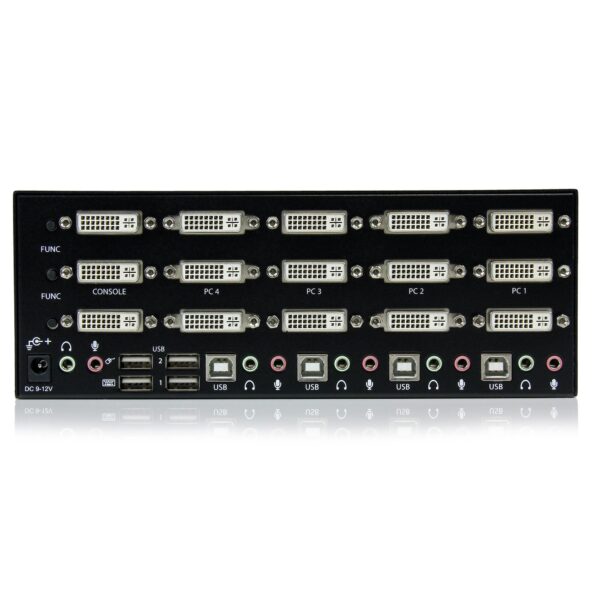

  Connector(s)	Console Interface(s):
  	2 – 3.5 mm Mini-Jack (3 Position)
  	3 – DVI-I (29 pin)
  	4 – USB 2.0 Type-A (4 pin, 480Mbps)
  	Host Connectors:
  	8 – 3.5 mm Mini-Jack (3 Position)
  	12 – DVI-I (29 pin)
  	4 – USB B (4 pin)
  Environmental	Operating Temperature: 0°C to 40°C (32°F to 104°F)
  	Storage Temperature: -10°C to 60°C (14°F to 140°F)
  	Humidity: 0~80% RH
  Hardware	Audio: Yes
  	KVM Ports: 4
  	PC Interface: USB
  	PC Video Type: DVI
  	Number of Monitors Supported: 3
  	Rack-Mountable: Optional
  	Cables Included: No
  	Daisy-Chain: No
  Indicators	LED Indicators:
  	4 – Orange – PC Online
  	4 – Green – Active PC
  Packaging Information	Package Height: 10.8 cm [4.3 in]
  	Package Length: 29.8 cm [11.7 in]
  	Package Width: 27.2 cm [10.7 in]
  	Package Quantity: 1
  	Shipping (Package) Weight: 2.2 kg [4.8 lb]
  Performance	On-Screen Display: No
  	DVI Support: Yes
  	IP Control: No
  	Hot-Key Selection: Yes
  	Maximum Digital Resolutions: 1920×1200
  	Wide Screen Supported: Yes
  	Auto Scan: 3, 8, 15 & 30 seconds
  	Maximum Number of Users: 1
  	Port Selection Support: Push Button and Hotkeys
  	MTBF: 156,000 hours
  Physical Characteristics	Product Length: 0.0 mm [0.0 in]
  	Color: Black
  	Material: Steel
  	Product Width: 21.9 cm [8.6 in]
  	Product Height: 8.1 cm [3.2 in]
  	Product Depth: 137 mm [5.4 in]
  	Weight of Product: 1.5 kg [3.3 lb]
  Power	Power Source: AC Adapter Included
  	Input Voltage: 100 – 240 AC
  	Input Current: 0.8A
  	Output Voltage: 12V DC
  	Output Current: 1.5A
  	Center Tip Polarity: Positive
  	Plug Type: M
  	Power Consumption (In Watts): 18
  Software	OS Compatibility: OS independent; No software or drivers required
  Special Notes / Requirements	Note: DVI connector supports single-link DVI-D (digital only) video sources. Recommended to use DVI-D cables across all connections.

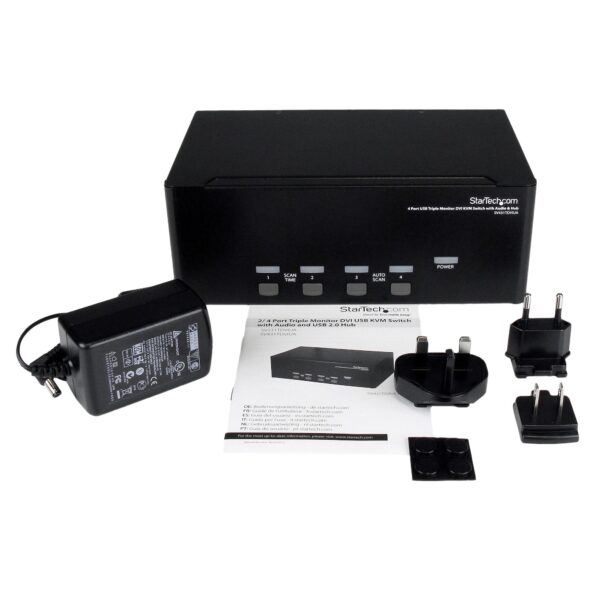

  What’s in the Box	Included in Package:
  	1 – 4 Port Triple Display KVM
  	4 – Rubber Foot Pads
  	1 – Universal Power Adapter (NA/UK/EU)
  	1 – User Manual

• Description	Downloads
  Datasheet	Downloads
  User Manual	Downloads
