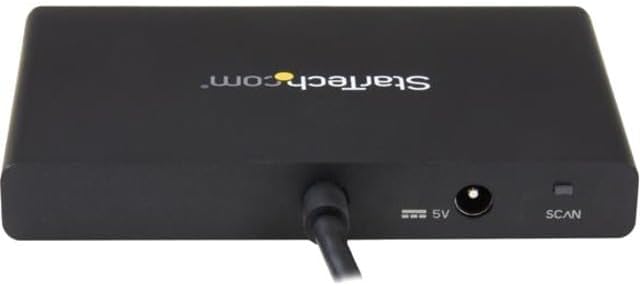

Startech 4-Port Multi Monitor Adapter – Mini DisplayPort to DisplayPort MST Hub
Increase productivity with multiple screens
The newest generations of computers are more portable than ever, which often means that you’re left with fewer video outputs and smaller integrated screens. This MST hub solves both of these problems by letting you connect four additional displays to your computer, which makes multitasking much easier.
Connect to any display
With the MST hub, you can use Mini DisplayPort video adapters and cable adapters that enable you to connect HDMI, VGA or DVI displays. This ensures that your MST hub will be compatible with virtually any television, monitor or projector. The hub is VESA and DisplayPort certified to support DP 1.2 enabled systems, for seamless integration with your existing video equipment.
Configure your displays for any environment
Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display, giving you the freedom to multitask and increase your productivity. You can also mirror the same image onto multiple displays for remote viewing applications such as digital signage.
Enjoy amazing video quality, without draining system resources
MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. This unprecedented performance makes MST perfect for high-resolution applications such as graphic design, gaming and medical imaging.
The MSTMDP124DP supports plug-and-play installation for a hassle-free setup, and is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Applications

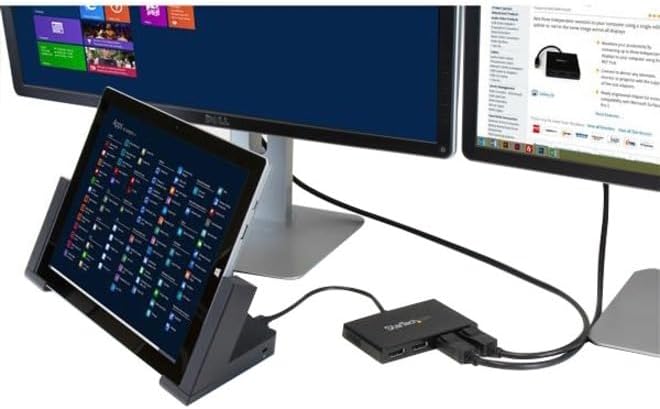

Add additional displays to your Surface Pro 3
Build a four-display video wall to present entertainment to your patrons with an impressive display at a restaurant or shopping center
Use one screen for reference data such as websites, while composing in another screen
Dock your mDP 1.2 device and add four high-resolution displays to your workstation
Create a panoramic video wall for digital signage applications
Edit images, video or audio clips across four additional displays in any orientation or resolution
Span a spreadsheet or worksheet across multiple displays, to avoid side-scrolling -
Category Details Warranty 3 Years Connector A 1 – Mini-DisplayPort (20 pin) Connector B 4 – DisplayPort (20 pin) Operating Temp 0°C to 45°C (32°F to 113°F) Storage Temp -20°C to 70°C (-4°F to 158°F) Adapter Type Active AV Input Mini DisplayPort – 1.2 Ports 4 AV Output DisplayPort – 1.2 Audio Yes Chipset ID MegaChips – STDP4320 Package Height 6.2 cm [2.4 in] Package Length 24.4 cm [9.6 in] Shipping Weight 0.5 kg [1.2 lb] Package Width 15.4 cm [6.1 in] Package Quantity 1 Audio Specs DisplayPort – 5.1 Channel Audio Max Cable Distance 2 m [6.6 ft] Max Resolutions 3840 x 2160 (Ultra HD 4K) @30hz Supported Res 1024×768, 1280×720 (HD 720p), 1920×1080 (HD 1080p), 1920×1200, 2560×1440, 2560×1600, 3840 x 2160 (Ultra HD 4K) @30hz Wide Screen Yes Color Black Material Plastic Cable Length 19 cm [7.5 in] Product Length 38.6 cm [15.2 in] Product Width 6.5 cm [2.6 in] Product Height 1.5 cm [0.6 in] Weight 127.0 g [4.5 oz] Power Source AC Adapter Included Input Voltage 100 – 240 AC Input Current 0.5 A Output Voltage 5 DC Output Current 3A Center Tip Polarity Positive Plug Type N Power Consumption 15 Watts OS Compatibility Windows 11, Windows 10 (32/64), Windows 8/8.1 (32/64), Windows 7(32/64) Included 1 – 4-Port Multi Monitor Mini DisplayPort™ MST Hub, 1 – Universal power adapter (NA/EU/UK/AUS), 1 – Quick install guide -
Description Downloads Startech 4-Port Multi Monitor Adapter DataSheet Downloads Startech 4-Port Multi Monitor Adapter Quick Start Guide Downloads
