• StarTech 4 Port HDMI KVM Switch, Single Monitor 4K 60Hz Ultra HD HDR | SV431HU34K6

  This 4 port KVM switch combines 4K (60Hz) digital display capabilities with control of our connected computers.

  4K 60Hz Picture and Full Audio Support
  The HDMI KVM switch supports resolutions up to 4K at 60Hz. It drives one large monitor at the full 4K resolution. Includes EDID and HDCP signal emulation so monitors always remain synced for faster switching times, and desktop settings are maintained to avoid disrupting your workflow.

  With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the HDMI 2.0 KVM switch delivers full audio compatibility.


  Integrated USB Hub
  The integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.

  Windows, Mac & Linux Compatible
  While supporting Windows, this HDMI KVM switch is also compatible with Mac and Linux operating systems.

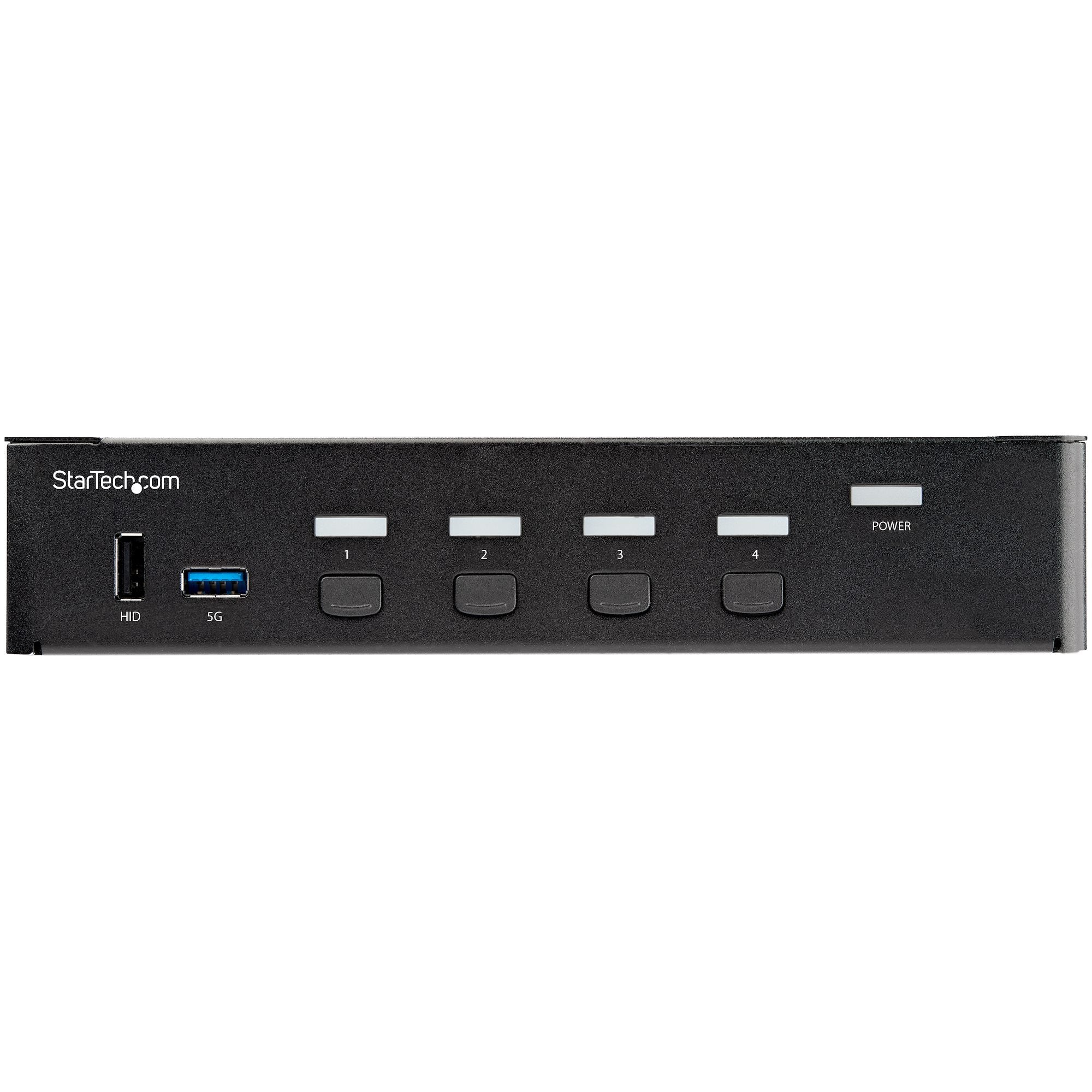

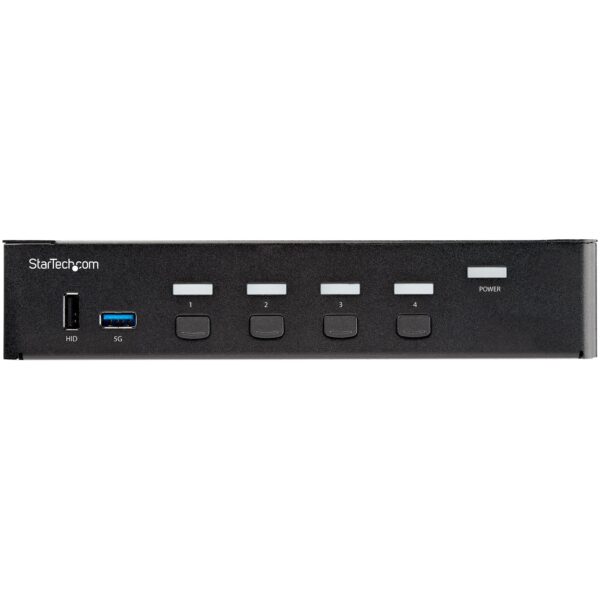

  Easy to Operate
  The front-panel pushbuttons make it easy to switch between systems and activate the auto-scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.

• Category	Details
  Warranty Information	Warranty: 2 Years
  Connector(s)	Console Interface(s):
  	1 – 19 pin HDMI Female
  	1 – 3.5 mm Audio Female
  	2 – USB 3.2 Type-A (9 pin, Gen 1, 5Gbps)
  	4 – USB Type-A (4 pin; HID Port) USB 1.1
  	Host Connectors:
  	4 – 19 pin HDMI Female
  	4 – 3.5 mm Stereo Audio (3 Position) Female
  	4 – 9 pin USB 3.0 B Female
  	Other Interface(s):
  	1 – USB Mini-B (5 pin)
  Environmental	Operating Temperature: 0℃~40℃
  	Storage Temperature: -10℃~60℃
  	Humidity: 0%~80%
  Hardware	U Height: 1U
  	Audio: Yes
  	Cables Included: No
  	Daisy-Chain: No
  	Number of Monitors Supported: 1
  	KVM Ports: 4
  	Rack-Mountable: No
  	PC Interface: USB 3.2 Gen 1 (5Gbps)
  	PC Video Type: HDMI
  	Chipset ID: Genesys Logic – GL3523
  Indicators	LED Indicators:
  	1 – Green (Power)
  	4 – Green (PC Power/Sync)
  	4 – Red (Selected Host)
  Packaging Information	Package Height: 8.7 cm [3.4 in]
  	Package Length: 40.9 cm [16.1 in]
  	Package Width: 21.2 cm [8.3 in]
  	Shipping (Package) Weight: 1.8 kg [4.0 lb]
  	Package Quantity: 1
  Performance	Audio Specifications:
  	HDMI – 7.1 Channel Audio
  	HDMI – 2 Channel Audio
  	Analog Stereo – 2 Channel Audio
  	Auto Scan: 3, 8, 15 & 30 seconds
  	MTBF: 143,000 hrs
  	Port Selection Support: Push Button and Hotkeys
  	On-Screen Display: No
  	Video Revision: HDMI 2.0
  	IP Control: No
  	Hot-Key Selection: Yes
  	Supported Resolutions: 3840 x 2160 @60Hz
  	Wide Screen Supported: Yes
  	Maximum Number of Users: 1
  Physical Characteristics	Color: Black
  	Product Length: 22.0 cm [8.7 in]
  	Product Height: 4.4 cm [1.7 in]
  	Weight of Product: 1.1 kg [2.4 lb]
  	Product Width: 13.0 cm [5.1 in]
  	Material: Steel
  Power	Power Source: AC Adapter Included
  	Input Voltage: 100 – 240 AC
  	Input Current: 1.0A
  	Output Voltage: 12V DC
  	Output Current: 3A
  	Center Tip Polarity: Positive
  	Plug Type: M
  	Power Consumption (In Watts): 36W
  What’s in the Box	Included in Package:
  	1 – KVM Switch
  	1 – Universal Power Adapter (NA/JP, EU, UK, NZ)
  	4 – Rubber Feet
  	1 – Quick-Start Guide
