• StarTech 4 Port DVI VGA Dual Monitor KVM Switch USB with Audio & USB 2.0 Hub | SV431DDVDUA

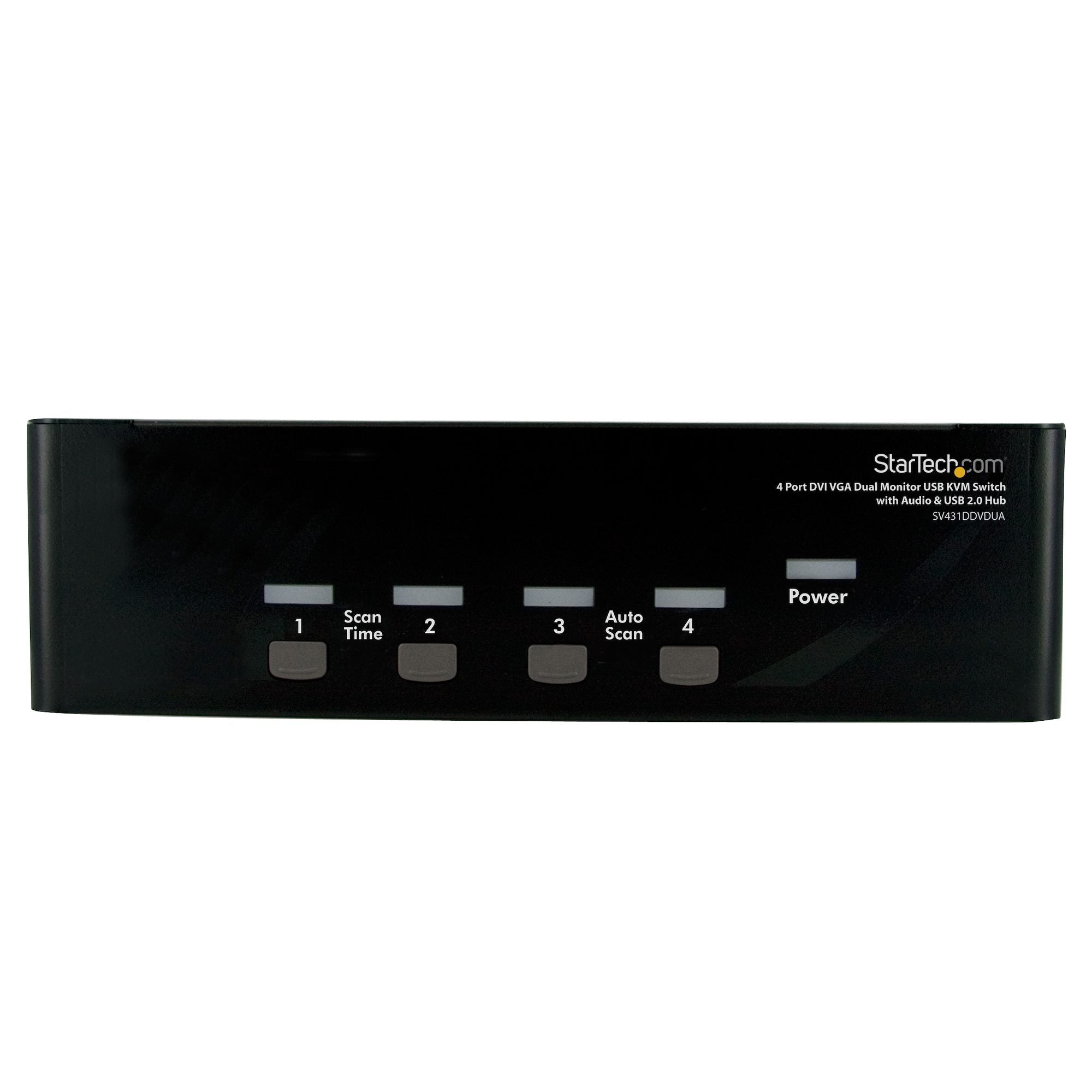

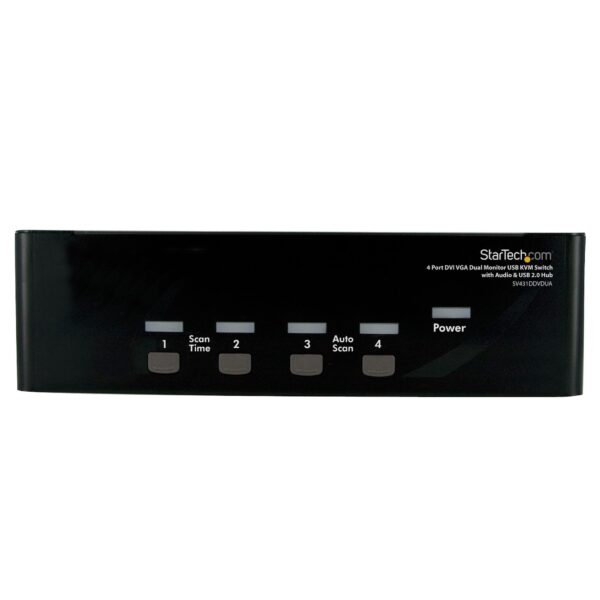

  The SV431DDVDUA 4-port DVI VGA dual monitor KVM switch lets you control 4 Dual Display computers using a single USB mouse and keyboard peripheral set.

  This dual view KVM switch provides 1 VGA and 1 DVI-I port per computer connection for high-resolution video, as well as audio switching capability between connected computers.

  The DVI/VGA KVM switch features an integrated 2-port USB hub that allows USB 2.0 peripherals to be shared between connected computers, and offers a compact design with a rugged metal chassis for durable performance.

  NOTE: While both DVI-I (analog) and DVI-D (digital) are supported by the KVM, source PCs must output the same signal for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. If necessary, please contact technical support for assistance identifying your source.


  Applications
  Perfect solution for desktops, workstations and servers with both VGA and DVI-digital ports, allowing a user to take advantage of dual monitor configurations

  Ideal for financial/banking industries, graphic designers, engineers, multi-media designers, and industries using CAD/CAM applications, where high resolution dual monitor units are needed

  Suitable for use in environments with electromagnetic interference, based on sturdy metal design

  Versatile support for setups where one machine is DVI & VGA, and the other is VGA & VGA (with available adapters)

• Category	Detail
  Warranty Information	3 Years
  Connector(s)
  Console Interface(s)	1 – VGA (15 pin, High Density D-Sub)
  	4 – USB 2.0 Type-A (4 pin, 480Mbps)
  	1 – DVI-I (29 pin)
  	2 – 3.5 mm Mini-Jack (3 Position)
  Host Connectors	4 – 3.5 mm Mini-Jack (3 Position)
  	4 – DVI-I (29 pin)
  	4 – USB B (4 pin)
  	4 – VGA (15 pin, High Density D-Sub)
  Environmental
  Operating Temperature	0°C to 40°C (32°F to 104°F)
  Storage Temperature	-20°C to 60°C (-4°F to 140°F)
  Humidity	80% RH
  Hardware
  Audio	Yes
  KVM Ports	4
  PC Interface	USB
  PC Video Type	DVI + VGA
  Number of Monitors Supported	2
  Rack-Mountable	Optional
  Cables Included	No
  Daisy-Chain	No
  Indicators
  LED Indicators	2 – Green (PC Detected)
  	1 – Green (Power)
  	2 – Red (PC Indicator)
  Packaging Information
  Package Height	8.4 cm [3.3 in]
  Package Length	29.8 cm [11.7 in]
  Shipping (Package) Weight	1.8 kg [3.9 lb]
  Package Width	24.6 cm [9.7 in]
  Package Quantity	1
  Performance
  On-Screen Display	No
  DVI Support	Yes – Single Link
  IP Control	No
  Hot-Key Selection	Yes
  Maximum Analog Resolutions	1920 x 1400
  Maximum Digital Resolutions	1920 x 1200
  Maximum Number of Users	1
  Port Selection Support	Push Button and Hotkeys
  MTBF	140,000 hours
  Physical Characteristics
  Weight of Product	1.3 kg [2.8 lb]
  Color	Black
  Material	Steel
  Product Length	16.3 cm [6.4 in]
  Product Width	22 cm [8.7 in]
  Product Height	6 cm [2.4 in]
  Product Depth	130 mm [5.1 in]
  Power
  Power Source	AC Adapter Included
  Input Voltage	100 – 240 AC
  Input Current	0.8A
  Output Voltage	12V DC
  Output Current	1.5A
  Center Tip Polarity	Positive
  Plug Type	M
  Power Consumption (In Watts)	18W
  Software
  OS Compatibility	OS independent; No software or drivers required
  Special Notes / Requirements
  Note	DVI-I (analog) and DVI-D (digital) must match between source PCs for proper switching.

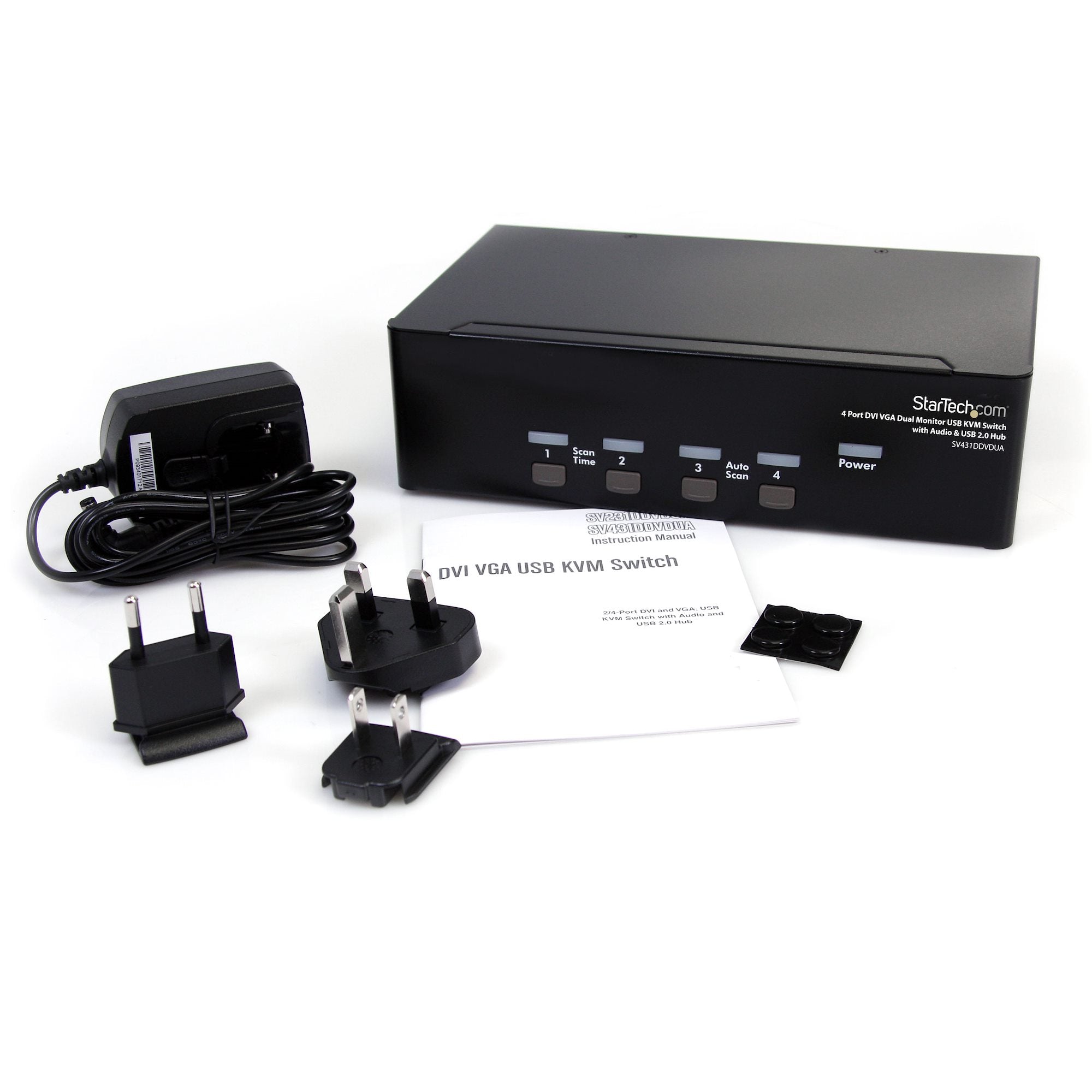

  What’s in the Box
  Included in Package	1 – 4-port KVM switch
  	4 – Foot pads
  	1 – Universal power adapter (NA/EU/UK/AU)
  	1 – Instruction manual
