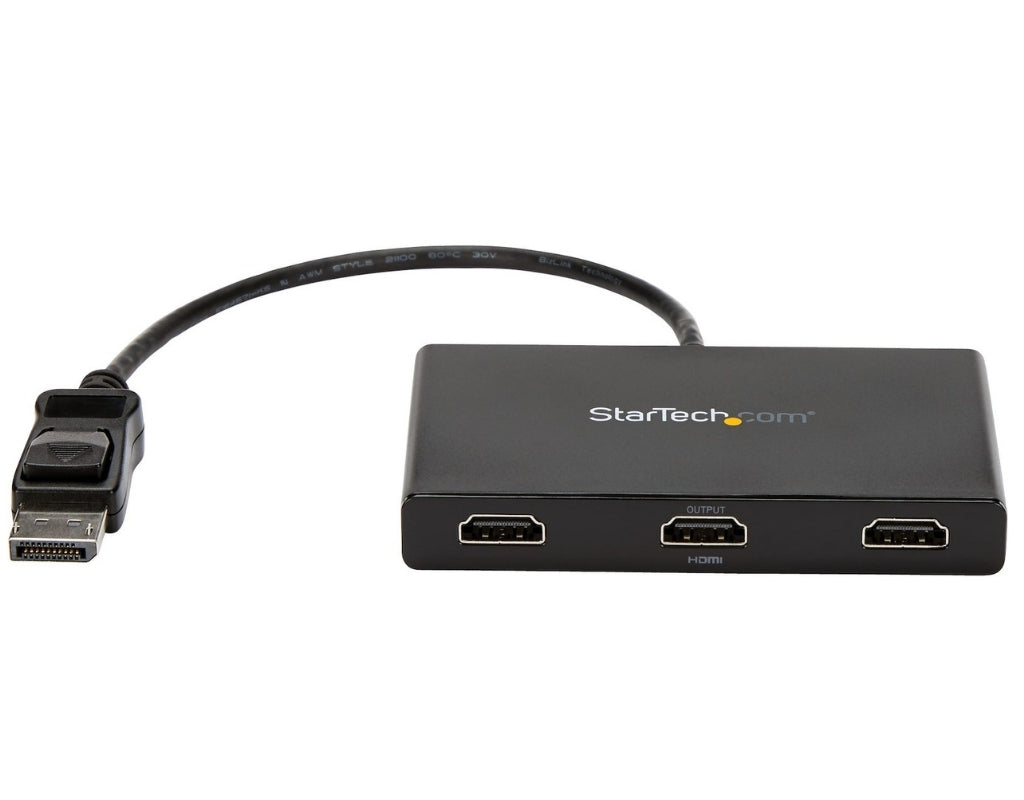

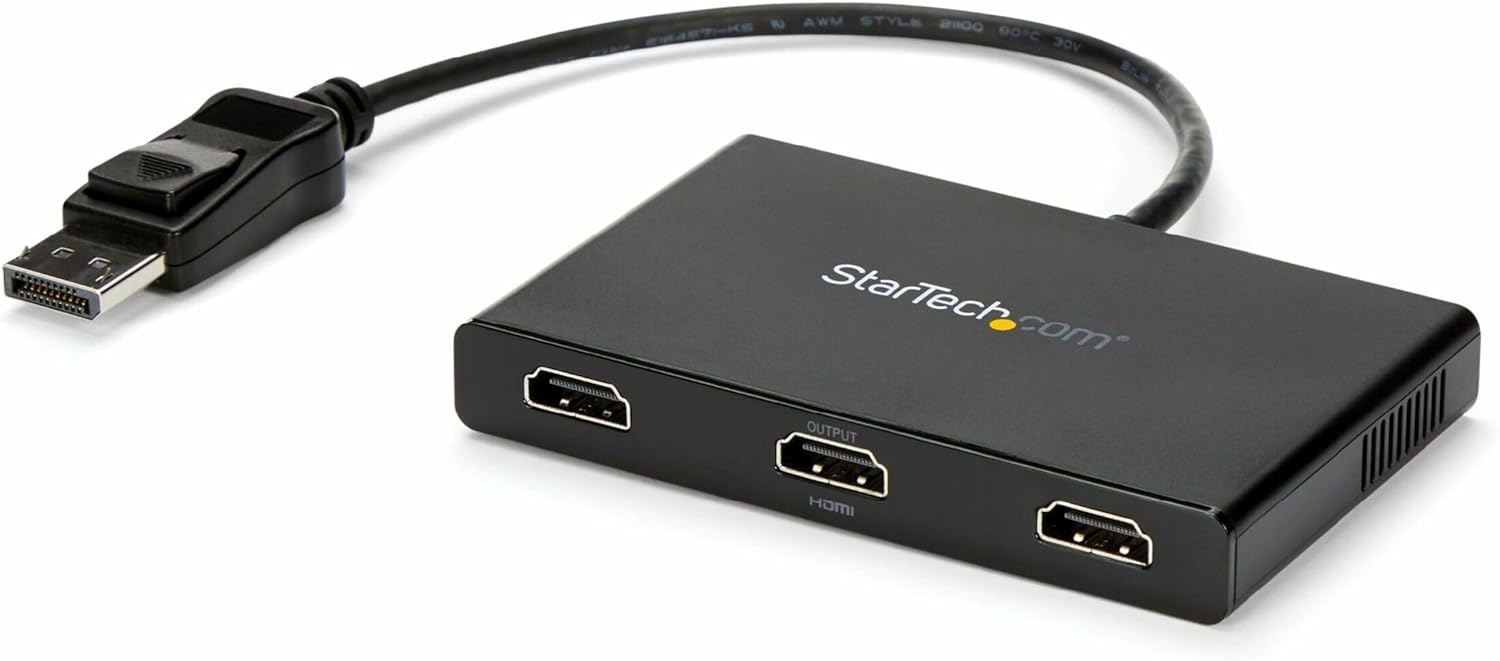

Startech 3-Port Multi Monitor Adapter – DisplayPort 1.2 to 3x HDMI MST Hub
Increase productivity with multiple screens
The newest generations of computers are more portable than ever, which often means that you’re left with fewer video outputs and smaller integrated screens. This MST hub solves both of these problems by letting you connect three additional displays to your computer, which makes multitasking much easier.
Configure your displays for any environment
Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display. You can also mirror the same image onto multiple HDMI televisions or projectors for remote viewing applications such as digital signage.
Enjoy amazing video quality without draining system resources
MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. This unprecedented performance makes MST perfect for high-resolution applications such as graphic design, gaming and medical imaging.
The MSTDP123HD supports plug-and-play installation for a hassle-free setup, and is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Applications
Use one screen for reference data such as websites, while composing in another screen
Dock your DP 1.2 device and add three high-resolution displays at your workstation

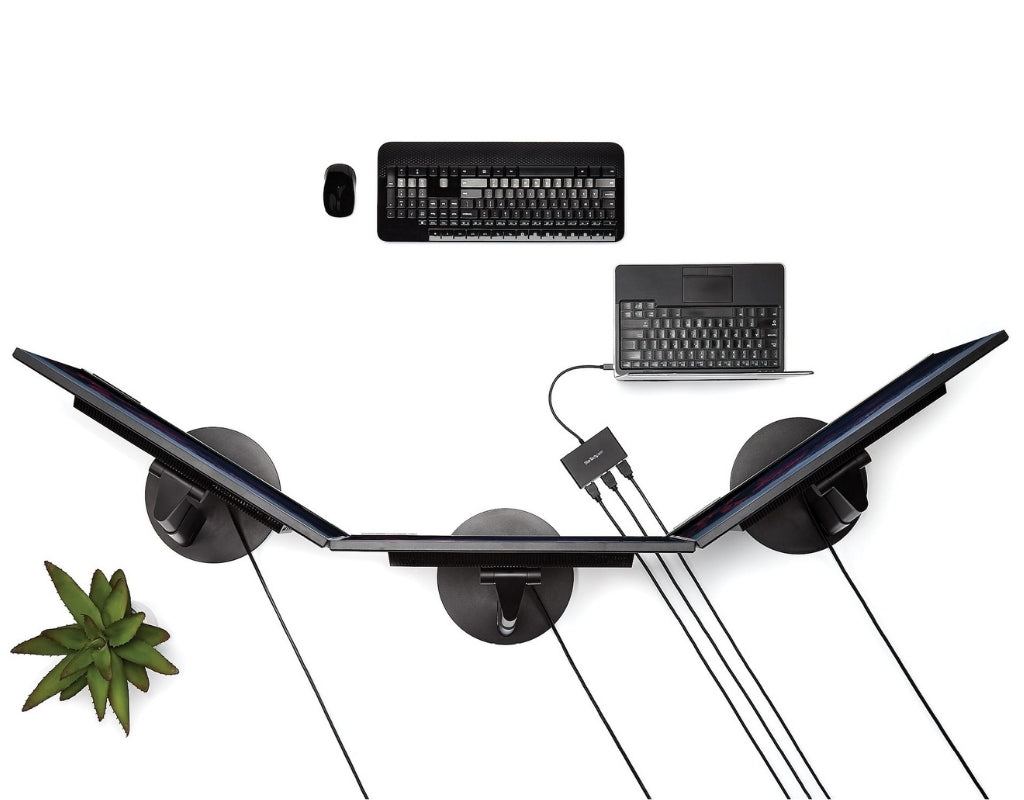

Create a panoramic video wall for HDMI digital signage applications using your DisplayPort computer
Edit images, video or audio clips across three displays in any orientation or resolution
Perfect for spanning a spreadsheet or worksheet across three displays, to avoid side-scrolling
Enjoy the panoramic views built into games and display helpful codes and walk-through data on a third display, at the same time -
Category Details Warranty Information Warranty: 3 Years Connector(s) Connector A: 1 – DisplayPort (20 pin)
Connector B: 3 – HDMI (19 pin)Environmental Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -20°C to 70°C (-4°F to 158°F)
Humidity: 50-90%Hardware Active or Passive Adapter: Active
AV Input: DisplayPort – 1.2
Ports: 3
AV Output: HDMI – 1.4
Audio: Yes
Chipset ID: MegaChips – STDP4320Packaging Information Package Height: 2.6 in [6.6 cm]
Package Length: 9.5 in [24.2 cm]
Shipping (Package) Weight: 1.1 lb [0.5 kg]
Package Width: 6.0 in [15.2 cm]
Package Quantity: 1Performance Audio Specifications: HDMI – 7.1 Channel Audio
Maximum Cable Distance To Display: 49.9 ft [15.2 m]
Maximum Digital Resolutions: 3840 x 2160 @30hz
Supported Resolutions: Note: MST shares 21.6 Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guideline below for determining an ideal resolution for your setup.Average resolution bandwidth allocation 1920×1080 (High-definition 1080p) @60hz – 22%
1920×1200 @60hz – 30%
2560×1440 @60hz – 35%
2560×1600 @60hz – 38%
3840 x 2160 (Ultra HD 4K) @30hz – 38%Wide Screen Supported Yes Physical Characteristics Weight of Product: 4.5 oz [127.0 g]
Color: Black
Material: Plastic
Cable Length: 7.5 in [19 cm]
Product Length: 13.0 in [33.0 cm]
Product Width: 4.1 in [10.5 cm]
Product Height: 0.6 in [1.4 cm]Power Power Source: AC Adapter Included
Input Voltage: 100 – 240 AC
Input Current: 0.5 A
Output Voltage: 5 DC
Output Current: 3A
Center Tip Polarity: Positive
Plug Type: N
Power Consumption (In Watts): 15Software OS Compatibility: Windows 11, 10, 8.1, 8 What’s in the Box Included in Package: 1 – DisplayPort to 3x HDMI MST Hub
1 – Universal power adapter (NA/EU/UK/AU)
1 – Quick install guide -
