StarTech 2-Port USB-C KVM Switch, Single 4K 60Hz DisplayPort Monitor | SV231DPUCA

• Description
• Specifications
• Downloads

• StarTech 2-Port USB-C KVM Switch, Single 4K 60Hz DisplayPort Monitor | SV231DPUCA

  This 2-port KVM switch combines 4K 60Hz capabilities with control of two USB-C DP Alt-mode, Thunderbolt 3, or Thunderbolt 4 computers.

  4K 60Hz Resolution
  This 2-Port USB-C KVM switches between two USB-C enabled computers viewed over a single DisplayPort monitor. It supports up to 4K 60Hz (4:4:4) resolutions with 6x USB-A 480Mbps hub ports. This KVM is ideal for applications such as CAD/CAM, video editing, and content creation. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.


  Analog and Digital Audio
  This USB-C DisplayPort KVM Switch supports 2-channel analog and digital audio output, as well as microphone input, through 3.5mm or USB ports. This provides the user with centralized audio control through the KVM switch. Audio profiles are selectable with hot key commands.

  Intuitive Control

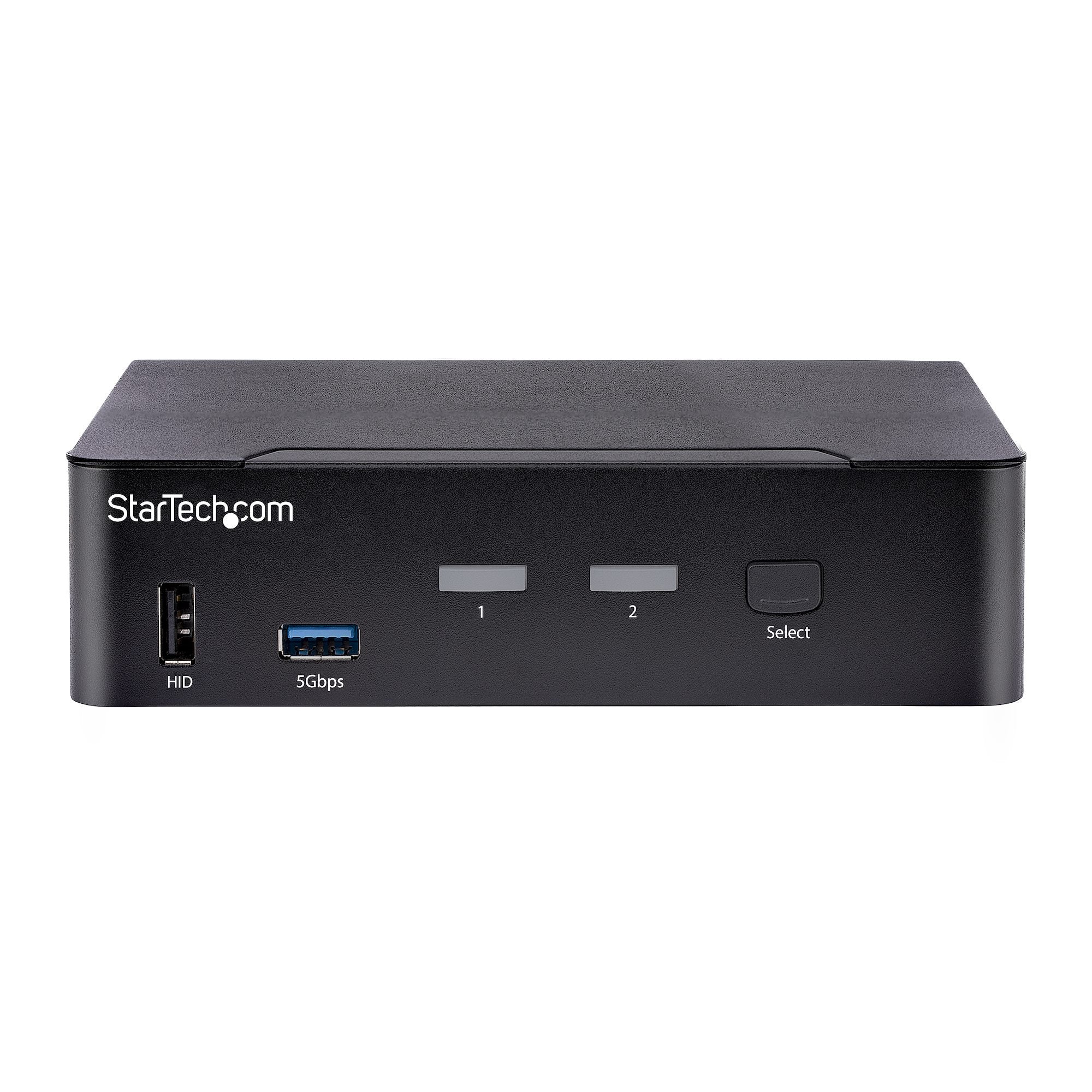

  The front panel push button and hot key functions make it easy to switch between computers. Install host computers using a single USB-C cable to connect to the KVM. USB HID and USB Hub ports on the front and rear ensure convenient setup configuration and access to USB peripherals. The metal housing of the KVM Switch is suitable for many installation environments.

  Applications
  Share a monitor, mouse, keyboard, and peripherals using a single USB-C cable per host

  Great for applications like CAD/CAM, video editing, and content creation

• Category	Details
  Warranty Information	Warranty: 2 Years
  Connector(s)	Console Interface(s):
  	1 – 20 pin DisplayPort Female
  	2 – 9 pin USB 3.0 A Female
  	4 – USB Type-A (4 pin; HID Port) USB 1.1
  	2 – 3.5 mm Stereo Audio (3 Position) Female
  Host Connectors	2 – USB-C (24 pin) DisplayPort Alt Mode
  Environmental	Operating Temperature: 0°C to 40°C (32°F to 104°F)
  	Storage Temperature: -10°C to 60°C (14°F to 140°F)
  	Humidity: 0 ~ 80% RH
  Hardware	Audio: Yes
  	KVM Ports: 2
  	PC Interface: USB-C
  	PC Video Type: USB-C (DP Alt-Mode)
  	Number of Monitors Supported: 1
  	Rack-Mountable: No
  	Cables Included: No
  	Chipset ID: Parade – PS8461, Etron – EJ899I
  	Daisy-Chain: No
  Indicators	LED Indicators: 2 – Red (Selected Host), 2 – Green (Power/Sync)
  Packaging Information	Shipping (Package) Weight: 2.1 lb [1.0 kg]
  	Package Height: 3.5 in [8.9 cm]
  	Package Length: 9.4 in [23.8 cm]
  	Package Width: 7.2 in [18.4 cm]
  	Package Quantity: 1
  Performance	On-Screen Display: No
  	Video Revision: DisplayPort 1.2
  	IP Control: No
  	Hot-Key Selection: Yes
  	Maximum Data Transfer Rate: 5 Gbps
  	Wide Screen Supported: Yes
  	Audio Specifications: Analog Stereo – 2 Channel Audio
  	Auto Scan: 3, 8, 15 & 30 seconds
  	Port Selection Support: Push Button and Hotkeys
  	MTBF: 158,000 hrs
  Physical Characteristics	Product Height: 1.6 in [4.0 cm]
  	Weight of Product: 1.4 lb [0.6 kg]
  	Product Length: 6.3 in [16.0 cm]
  	Product Width: 5.5 in [14.0 cm]
  Power	Power Source: AC Adapter Included
  	Input Voltage: 100 – 240 AC
  	Input Current: 1.2A
  	Output Voltage: 12V DC
  	Output Current: 3A
  	Center Tip Polarity: Positive
  	Plug Type: M
  Software	OS Compatibility: No software or drivers required
  What’s in the Box	Included in Package:
  	1 – KVM Switch
  	1 – Set of Rubber Feet
  	1 – Universal Power Adapter
  	1 – Quick-Start Guide
