• StarTech 2-Port Hybrid USB-C DisplayPort Cable KVM Switch | C2-D46-UAC-CBL-KVM

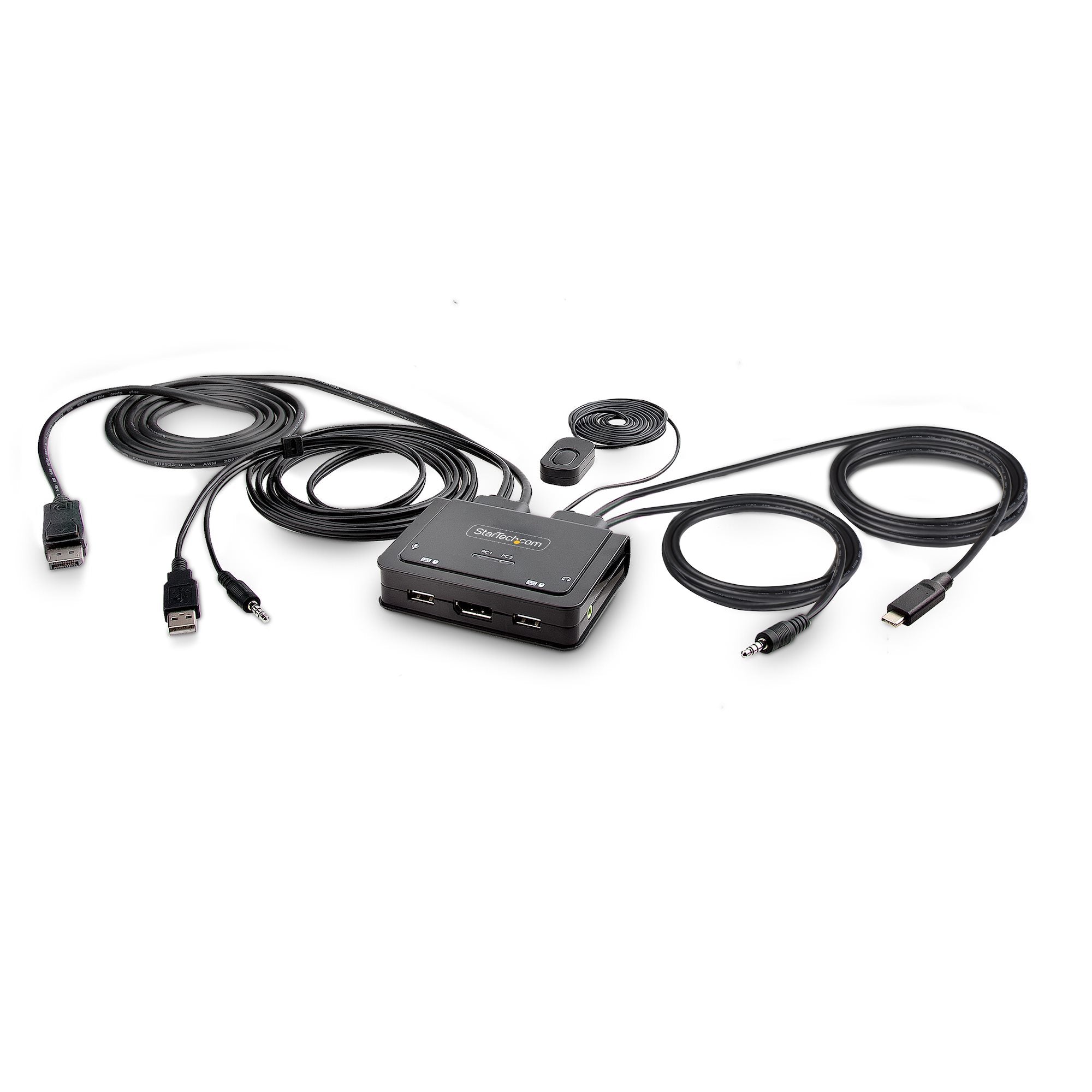

  This Hybrid KVM Switch enables users to switch between a USB Type-A and DisplayPort-enabled desktop and a USB Type-C (DP Alt-Mode) enabled laptop, to share a keyboard, mouse, audio input/output devices, and a single 4K 60Hz DisplayPort monitor.


  Hassle-Free Setup

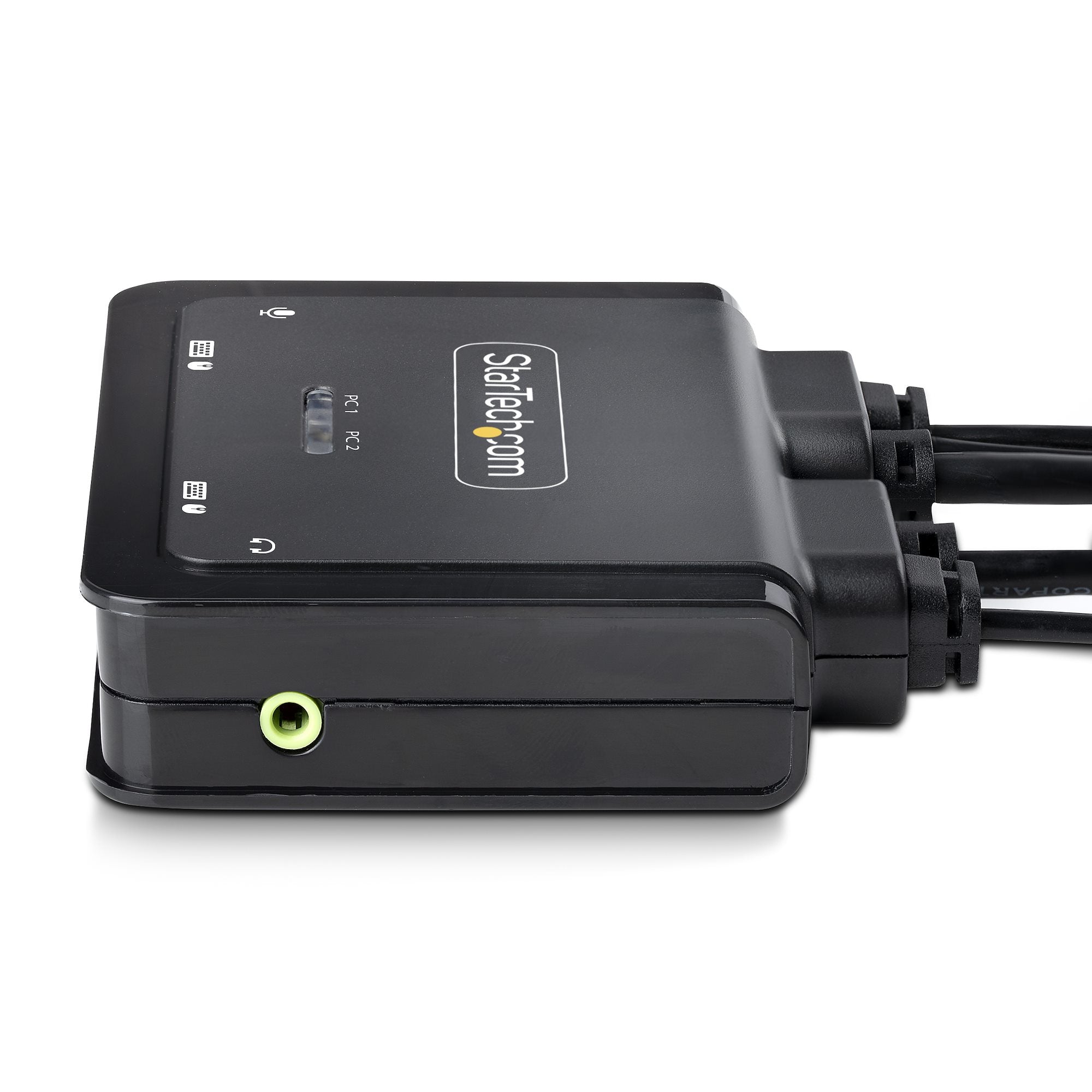

  The KVM switch is bus powered and features built-in DisplayPort, USB-A, USB-C, and 3.5mm Audio Input/Output cables. This ensures compatibility and performance between the KVM switch, monitors, and peripherals – without the need to select and purchase the cables required for those connections.

  Compatibility
  The 2-port KVM switch is compatible with all operating systems, including Windows, macOS, ChromeOS, and Linux. The KVM works with all hardware platforms including Intel, AMD, and Apple M1/M2. The USB-C host port works with USB-C, USB4, Thunderbolt 3, and Thunderbolt 4 laptops. If the desktop does not have a 4-position 3.5mm port the included 3.5mm Headset Adapter ensures compatibility out of the box.

  Intuitive Control
  The KVM switch offers two options to switch between hosts – a remote push button or hotkey commands, using the downloadable software. The remote push button includes a 1.5m cable for optimal placement in the setup. Independent audio switching can be achieved through the software, utilizing keyboard shortcuts (i.e., hotkeys), ensuring uninterrupted audio when switching between host devices.


  Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
  Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

  Advanced Windows Layout Utility: Setup and save custom windows layouts.
  MAC Address Pass-Through Utility: Improve network security.
  USB Event Monitoring Utility: Track and log connected USB devices.
  Wi-Fi Auto Switch Utility: Enable users to quickly access faster network speeds via wired LAN.

  Applications
  Ideal for sharing peripherals between home and office
  Great for CAD/CAM, video editing, and content creation applications

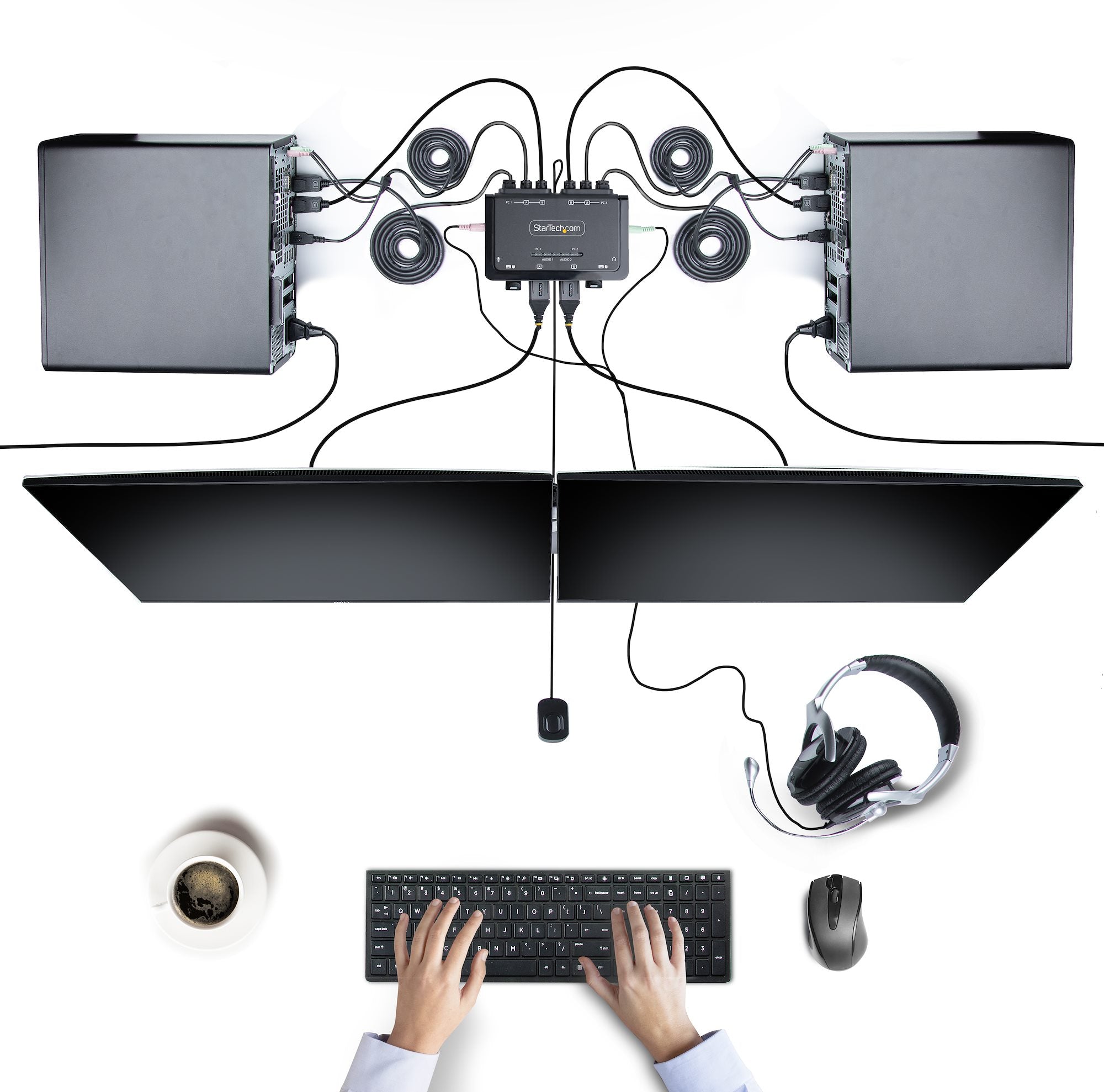

  Switch a display, mouse, keyboard, and audio peripherals between two computers

• Category	Details
  Warranty Information
  Warranty	2 Years
  Connector(s)

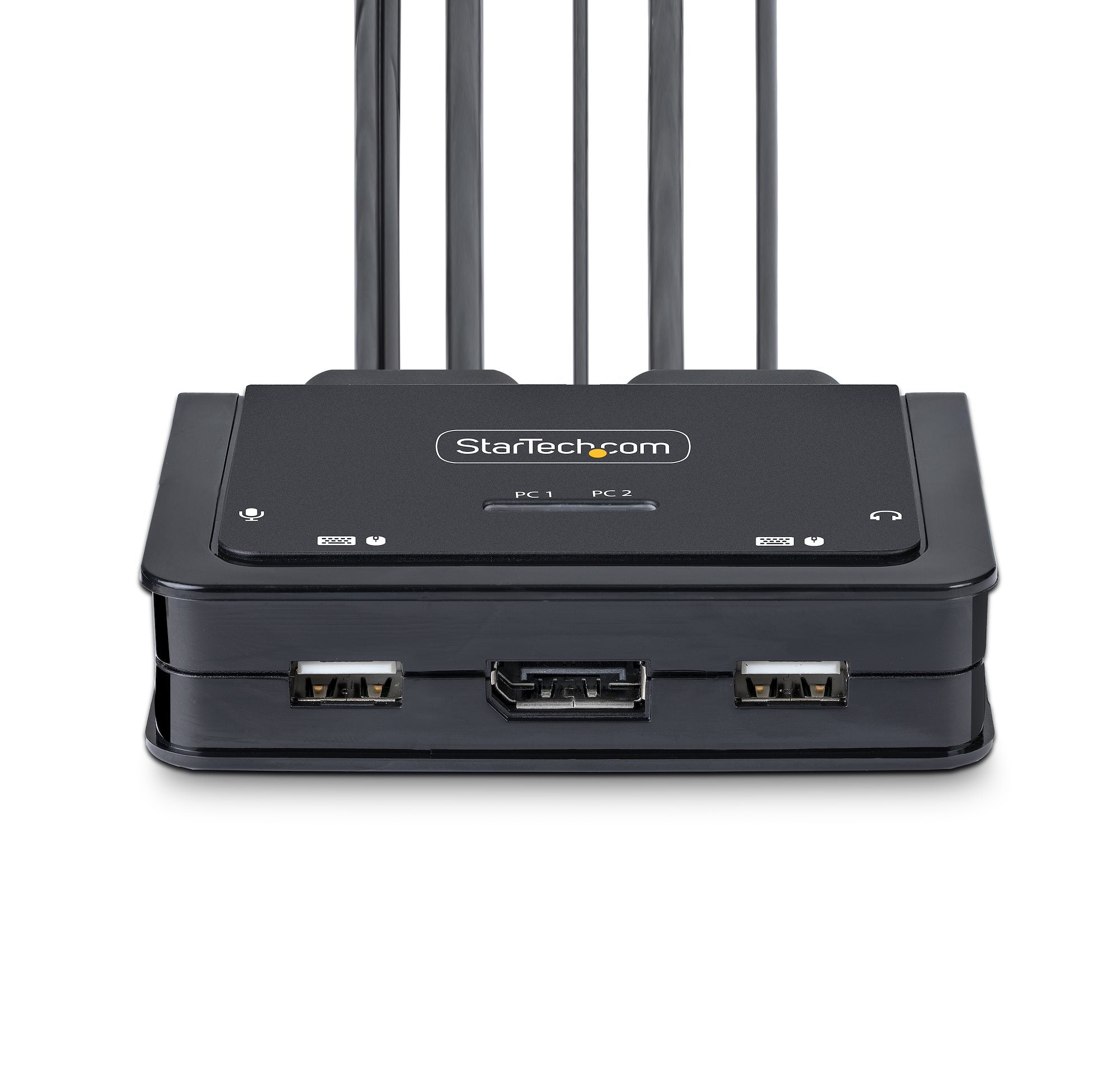

  Console Interface(s)	1 – DisplayPort 2 – USB 2.0 Type-A (4 pin, 480Mbps) 2 – 3.5mm Stereo Female 3 pos
  Host Connectors	1 – USB-C (DP Alt-Mode) 2 – 3.5mm Stereo Male 4 pos 1 – DisplayPort 1 – USB 2.0 Type-A (4 pin, 480Mbps)
  Environmental
  Operating Temperature	0°C to 40°C (32°F to 104°F)
  Storage Temperature	-20°C to 60°C (-4°F to 140°F)
  Humidity	0% ~ 90% RH (non-condensing)
  Hardware
  Audio	Yes
  KVM Ports	2
  PC Interface	USB & USB-C
  PC Video Type	DisplayPort
  Number of Monitors Supported	1
  Rack-Mountable	No
  Cables Included	Yes
  Chipset ID	SN8P2202SG
  Daisy-Chain	No
  Indicators
  LED Indicators	1 – Solid Green: Selected PC is connected 1 – Blinking Green: Selected PC is not detected
  Packaging Information
  Package Quantity	1
  Package Length	8.3 in [21.0 cm]
  Package Width	6.3 in [16.0 cm]
  Package Height	2.4 in [6.0 cm]
  Shipping (Package) Weight	15.9 oz [450.0 g]
  Performance
  On-Screen Display	No
  Video Revision	DisplayPort 1.2
  IP Control	No
  Hot-Key Selection	Yes
  Maximum Data Transfer Rate	480Mbps (USB 2.0)
  Supported Resolutions	4096×2160 @60Hz 3840×2160 @60Hz 5120×1440 @60Hz 3440×1440 @60Hz 2560×1440 @60Hz 2560×1080 @60Hz 1920×1200 @60Hz 1920×1080 @60Hz
  Wide Screen Supported	Yes
  Audio Specifications	DisplayPort – 2 Channel Audio Analog Stereo – 2 Channel Audio
  Auto Scan	10, 20, 30, 40, 50, and 60 seconds
  Port Selection Support	Push Button, Hotkeys, and Software
  General Specifications
  PC1 Cable Length	1.2m/4ft
  PC2 Cable Length	1.8m/6ft
  MTBF	261,196 Hours
  Physical Characteristics
  Color	Black
  Product Length	3.7 in [9.5 cm]
  Product Width	3.1 in [8.0 cm]
  Product Height	0.9 in [2.4 cm]
  Weight of Product	13.4 oz [380.0 g]
  Material	ABS
  Power
  Power Source	Bus Powered
  Input Voltage	5V DC
  Output Voltage	5 DC
  Software
  OS Compatibility	Windows 7, 8/8.1, 10, 10 ARM, 11, 11 ARM macOS 10.12 – 10.15, 11, 12 ChromeOS
  Special Notes / Requirements
  Note	OS Compatibility refers to the available KVM software only. The KVM can be used without software on any platform
  What’s in the Box
  Included in Package	1 – KVM Switch 1 – 3.5mm 4 Position to 2x 3.5mm 3 Position Headset Adapter 1 – Quick-Start Guide
