StarTech 2 Port DVI USB KVM Switch with Audio and USB 2.0 Hub | SV231DVIUA

• Description
• Specifications
• Downloads

• StarTech 2 Port DVI USB KVM Switch with Audio and USB 2.0 Hub | SV231DVIUA

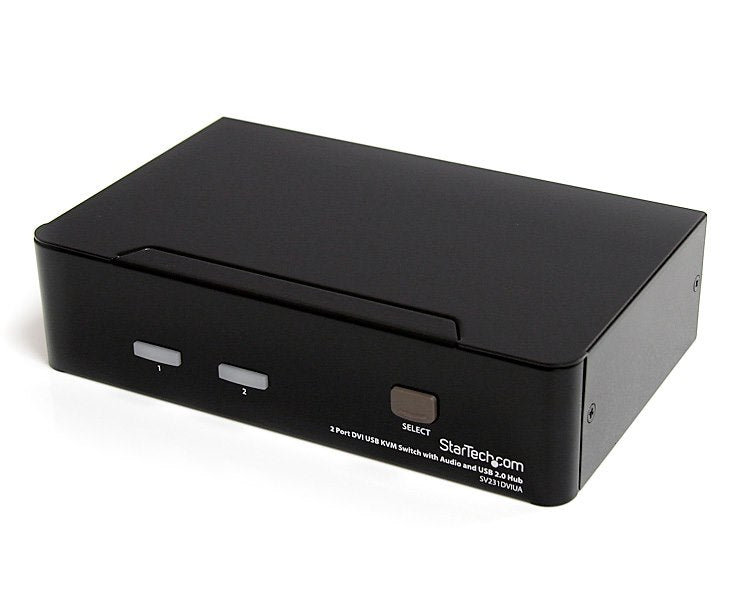

  The SV231DVIUA 2-Port DVI USB KVM Switch lets you control two USB-enabled, DVI-capable computers from a single monitor and peripheral set (keyboard, mouse and speakers), and two additional USB peripherals connected through the built-in USB hub ports.

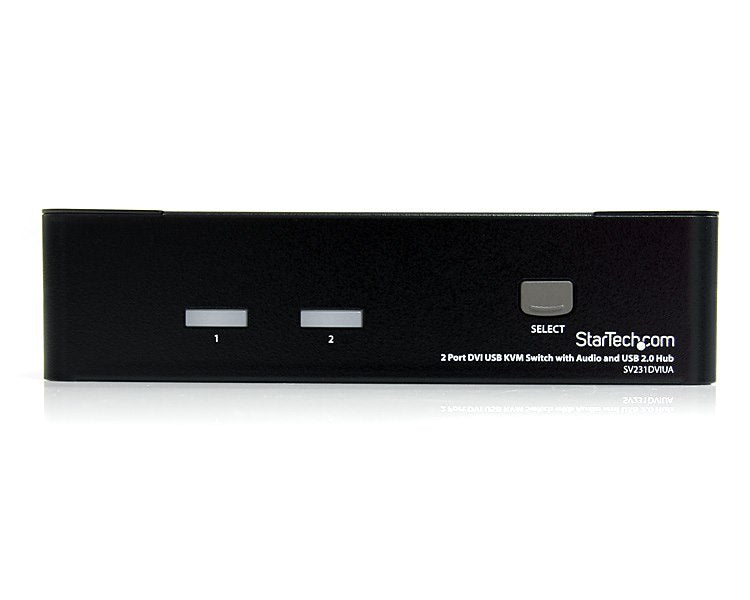

  Featuring convenient hot-key and front panel push-button switching, and high-resolution support (up to 1920×1200), the DVI KVM Switch is perfect for controlling high-performance systems. Ideal for multimedia applications, this KVM switch supports audio and microphone switching either independently, or simultaneously when switching between computers for KVM control.

  The DVI USB KVM also features an integrated USB 2.0 hub, which lets you share USB peripherals point as if they were connected directly to the slave computers.


  Applications
  Control two multimedia computers with a single set of console peripherals (Keyboard, Mouse, and two Monitors)

  Dual system control for single user workstations, increasing user productivity in the office

  Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals in a home office

• Category	Detail
  Warranty Information
  Warranty	3 Years

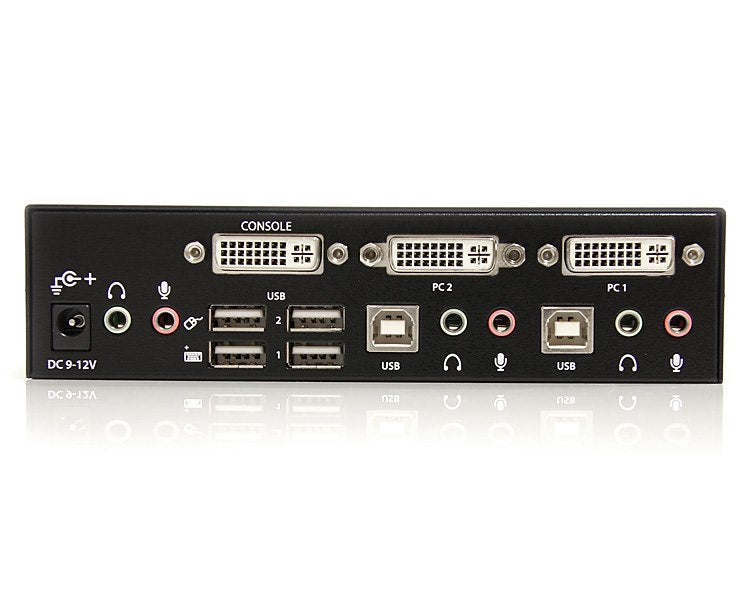

  Connector(s)
  Console Interface(s)	4 – USB 2.0 Type-A (4 pin, 480Mbps)
  	2 – 3.5 mm Mini-Jack (3 Position)
  	1 – DVI-I (29 pin)
  Host Connectors	4 – 3.5 mm Mini-Jack (3 Position)
  	2 – DVI-I (29 pin)
  	2 – USB B (4 pin)
  Environmental
  Operating Temperature	0°C to 40°C (32°F to 104°F)
  Storage Temperature	-20°C to 60°C (-4°F to 140°F)
  Humidity	0%~80%
  Hardware
  Audio	Yes
  KVM Ports	2
  PC Interface	USB
  PC Video Type	DVI
  Number of Monitors Supported	1
  Rack-Mountable	No
  Cables Included	No
  Daisy-Chain	No
  Packaging Information
  Package Height	9.2 cm [3.6 in]
  Package Length	24.2 cm [9.5 in]
  Shipping (Package) Weight	1.0 kg [2.3 lb]
  Package Width	18.8 cm [7.4 in]
  Package Quantity	1
  Performance
  On-Screen Display	No
  DVI Support	Yes
  IP Control	No
  Hot-Key Selection	Yes
  Maximum Digital Resolutions	1920 x 1200 @60/70 Hz
  Maximum Number of Users	1
  Port Selection Support	Push Button and Hotkeys
  MTBF	126,397 hours
  Physical Characteristics
  Weight of Product	650 g [22.9 oz]
  Color	Black
  Material	Steel
  Product Length	16 cm [6.3 in]
  Product Width	10 cm [3.9 in]
  Product Height	4 cm [1.6 in]
  Power
  Power Source	AC Adapter Included
  Input Voltage	100 – 240 AC
  Input Current	0.8A
  Output Voltage	12V DC
  Output Current	1.5A
  Center Tip Polarity	Positive
  Plug Type	M
  Power Consumption (In Watts)	18W
  Software
  OS Compatibility	OS independent; No software or drivers required

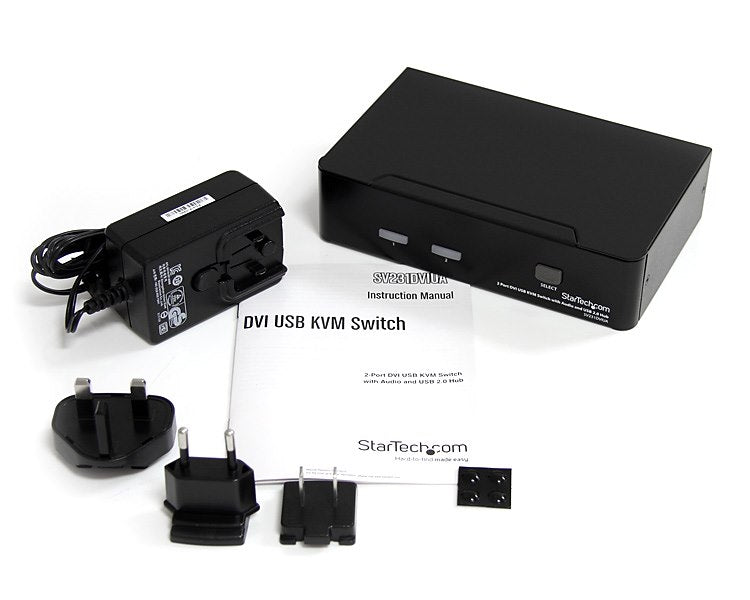

  What’s in the Box
  Included in Package	1 – 2 Port DVI KVM Switch
  	1 – Pack, rubber feet
  	1 – Universal Power Adapter (US/UK/EU)
  	1 – User Manual

• Description	Downloads
  Datasheet	Downloads
  User Manual	Downloads
