• StarTech 2-Port Dual-Monitor DisplayPort KVM Switch, 4K 60Hz | P2DD46A2-KVM-SWITC

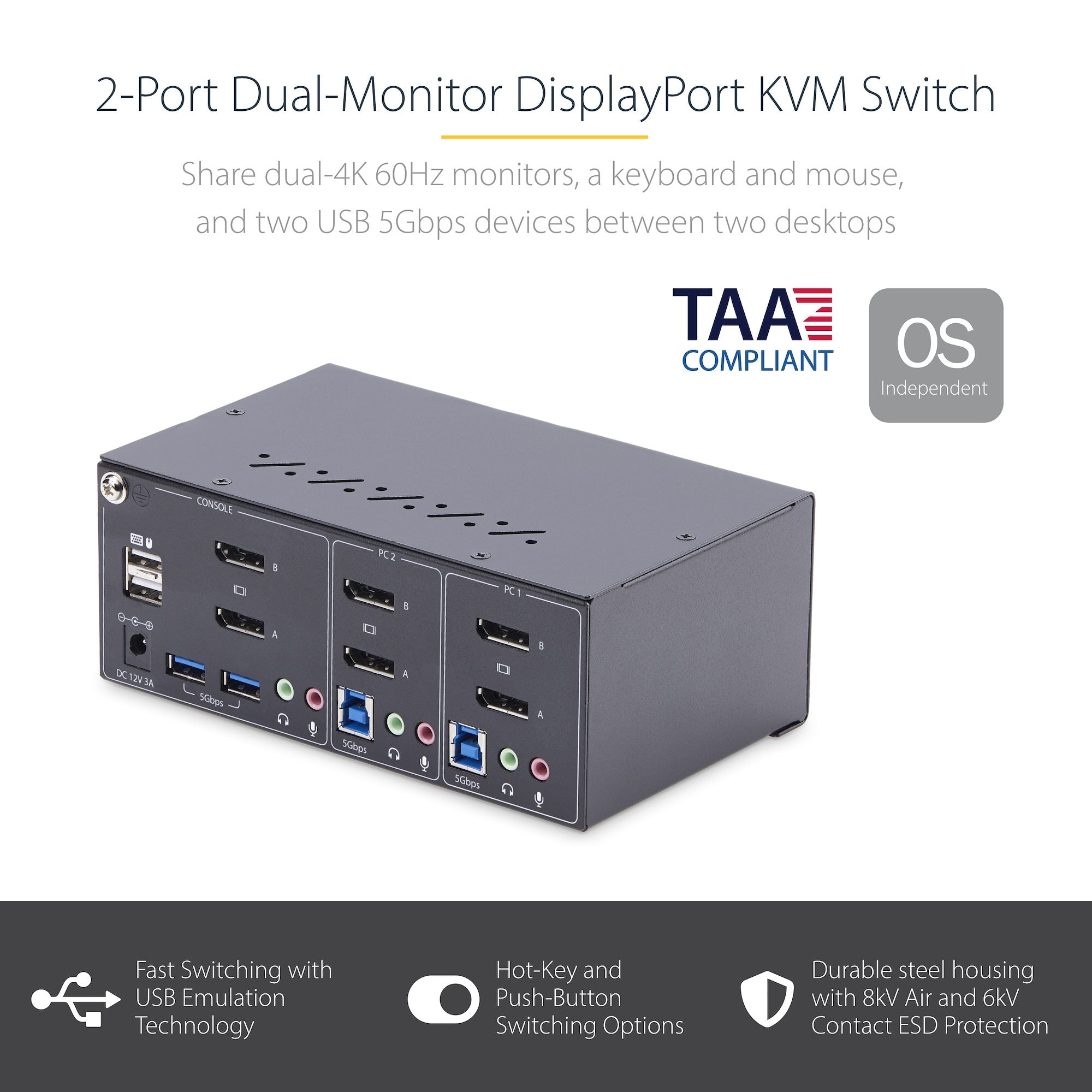

  This Dual-Monitor KVM Switch enables users to switch between two desktops that are USB-A and DisplayPort enabled. It allows for sharing of dual-4K 60Hz DisplayPort monitors, a keyboard and mouse, and two USB 5Gbps devices.


  Fast Switching with USB Emulation
  USB Emulation technology enables faster switching of a keyboard, video, and mouse compared to traditional KVMs. USB Emulation also ensures compatibility with combination keyboards/mice as well as keyboards featuring additional function keys.

  Dual-4K 60Hz Displays & USB 5Gbps Hub Ports
  This TAA-Compliant KVM Switch supports dual-4K 60Hz DisplayPort monitors, making it ideal for working with high-resolution graphics or video. Additionally, it offers two USB 3.2 Gen 1 (5Gbps) Hub Ports for fast data transfer, and two USB 2.0 HID Ports for the keyboard and mouse. 8kV air and 6kV contact Electrostatic Discharge (ESD) protection.


  Customizable Switching
  This Universal KVM Switch provides various switching options, including hotkey or push-button switching. Hotkeys allow for independent switching of USB/Video and Audio, enabling audio playback from one computer while controlling the other. An audible buzzer confirms hotkey input, and LEDs provide a visual status of the selected host.

  Applications
  Share dual displays, mouse, keyboard, and audio peripherals between two desktop computers

  Great for CAD/CAM, video editing, and content creation applications

• Category	Details
  Warranty Information	2 Years

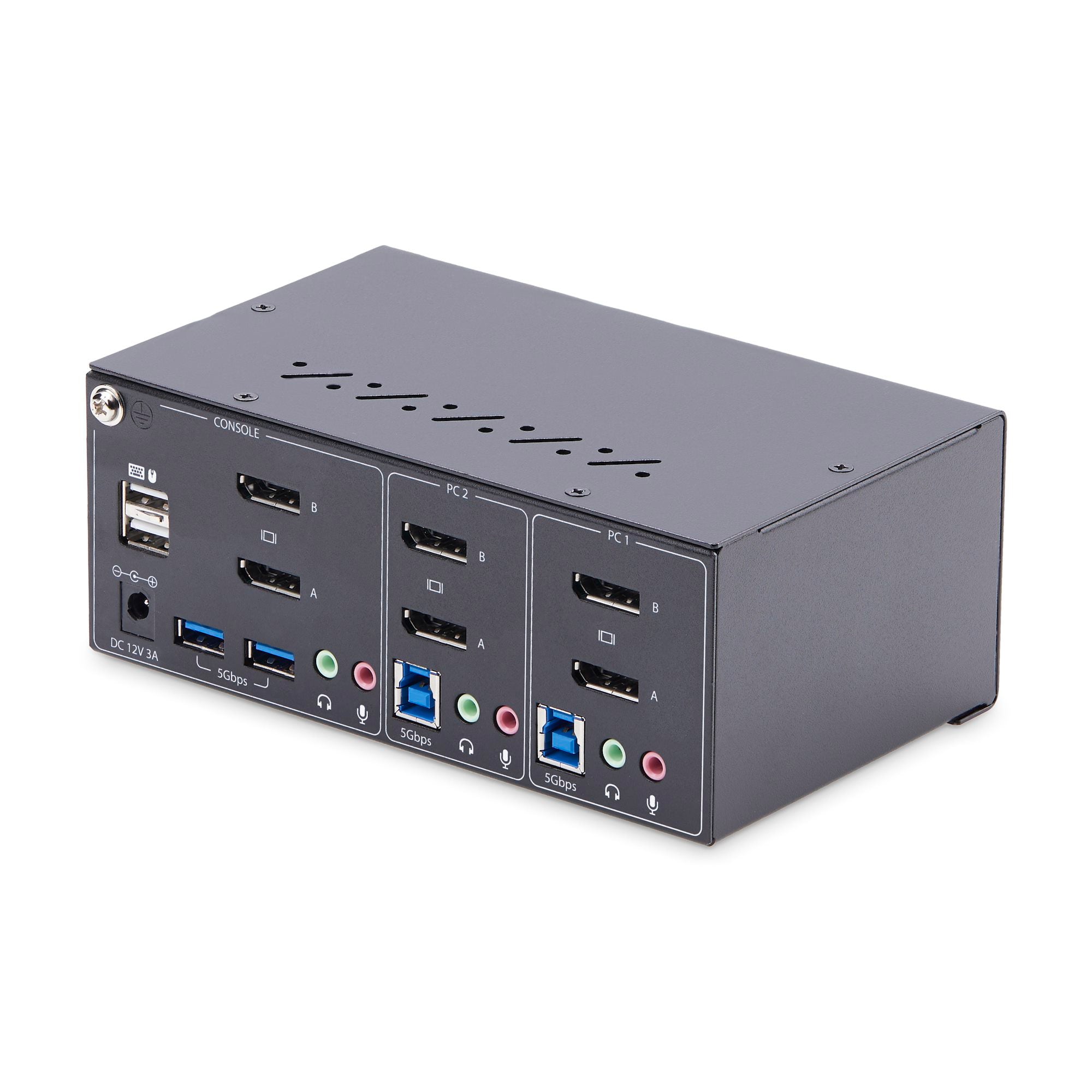

  Console Interface(s)	2 – DisplayPort, 2 – USB Type-A (9 pin, 5 Gbps), 2 – USB 2.0 Type-A (4 pin, 480Mbps), 2 – 3.5mm Stereo Female 3 pos, 1 – Barrel Power Connector (Size N, OD: 5.5, ID: 2.5)
  Host Connectors	4 – DisplayPort, 2 – USB 3.2 USB Type-B (9 pin, Gen 1, 5 Gbps), 4 – 3.5mm Stereo Female 3 pos
  Operating Temperature	0°C to 40°C (32°F to 104°F)
  Storage Temperature	-20°C to 60°C (-4°F to 140°F)
  Humidity	0% ~ 90% RH (non-condensing)
  Audio	Yes
  KVM Ports	2
  PC Interface	USB 3.2 Gen 1 (5Gbps)
  PC Video Type	DisplayPort
  Number of Monitors Supported	2
  Rack-Mountable	No
  Cables Included	No
  Daisy-Chain	No
  LED Indicators	2 – PC LED: Solid Green when host detected; Blinking Green when not detected, 2 – Hub LED: Solid Red when PC port selected
  Package Quantity	1
  Package Height	13.4 cm [5.3 in]
  Package Length	16.3 cm [6.4 in]
  Shipping Weight	1.3 kg [2.8 lb]
  Package Width	33.1 cm [13.0 in]
  On-Screen Display	No
  Video Revision	DisplayPort 1.2
  IP Control	No
  Hot-Key Selection	Yes
  Maximum Data Transfer Rate	5Gbps
  Maximum Cable Length	7.5 m [24.6 ft]
  Maximum Digital Resolutions	3840 x 2160 @ 60Hz
  Supported Resolutions	3840×2160 @60Hz, 2560×1440 @60Hz, 1920×1200 @60Hz, 1920×1080 @60Hz
  Audio Specifications	DisplayPort – 2 Channel Audio, Analog Stereo – 2 Channel Audio
  Auto Scan	10, 20, 30, 40, 50, and 60 seconds
  Port Selection Support	Push Button and Hotkeys
  MTBF	173,052 Hours
  Color	Black
  Product Height	6.6 cm [2.6 in]
  Product Length	16.3 cm [6.4 in]
  Weight of Product	0.8 kg [1.7 lb]
  Product Width	10.0 cm [3.9 in]
  Material	Steel
  Power Source	AC Adapter Included
  Input Voltage	100 – 240 AC
  Input Current	1 A
  Output Voltage	12V DC
  Output Current	3 A
  Center Tip Polarity	Positive
  Power Consumption	0.1 W
  OS Compatibility	No Drivers or Software Required

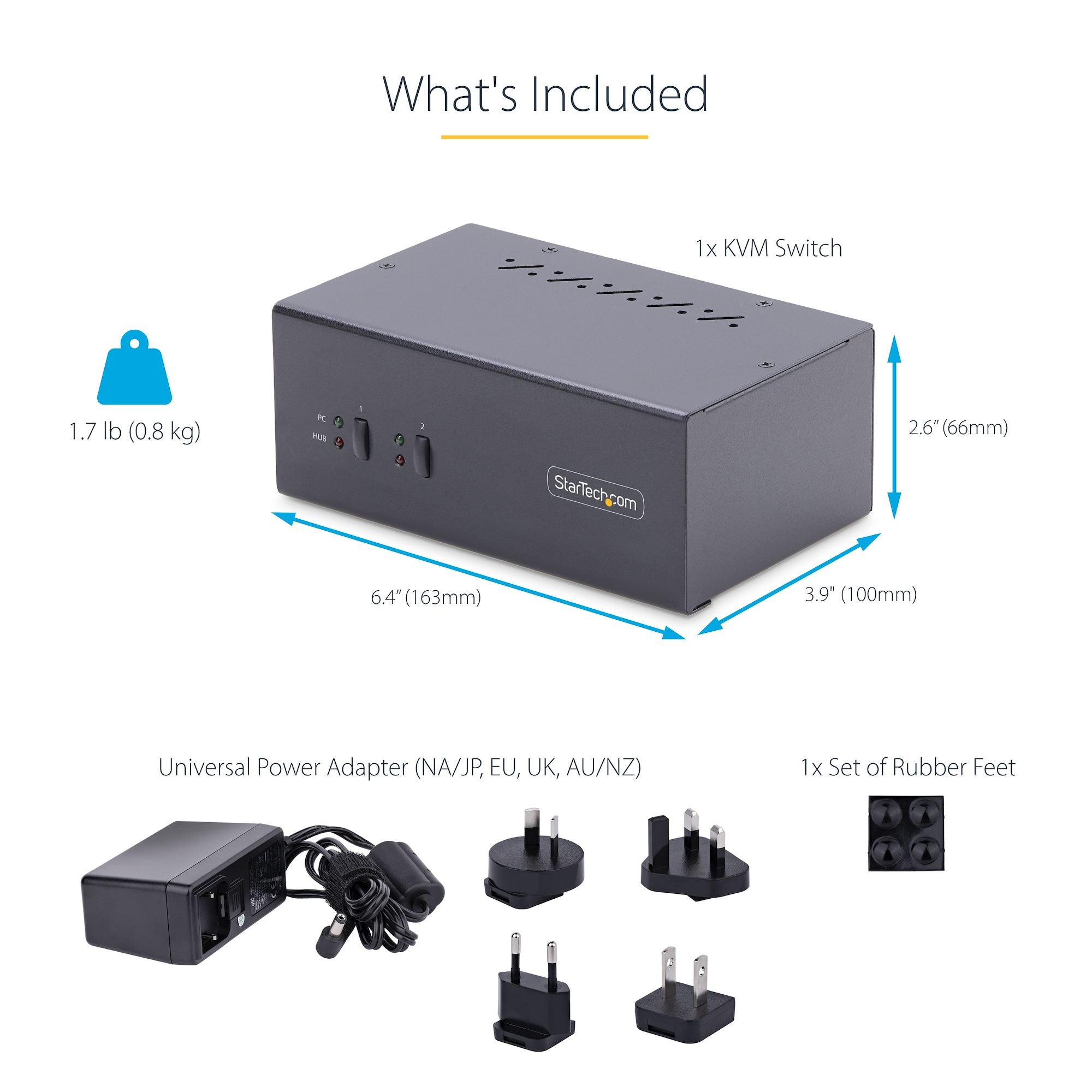

  What’s in the Box	1 – KVM Switch, 1 – Universal Power Adapter (NA/JP, EU, UK, NZ), 1 – Quick-Start Guide
