StarTech 2-Port DisplayPort KVM Switch, 8K 60Hz / 4K 144Hz, Single Display | D86A2-2-PORT-8K-KVM
- Description
- Specifications
- Downloads
-
StarTech 2-Port DisplayPort KVM Switch, 8K 60Hz / 4K 144Hz, Single Display | D86A2-2-PORT-8K-KVM
Share and switch between two USB-A and DisplayPort-enabled computers, using this DisplayPort KVM Switch. Share an 8K 60Hz DisplayPort monitor, a keyboard and mouse, two USB 5Gbps devices, and two additional USB 2.0 devices.
High-Resolution 8K 60Hz Video
This KVM supports resolutions up to 8K 60Hz or 4K 144Hz/120Hz. Daisy chain additional monitors via MST pass-through. The KVM supports ultrawide resolutions of up to 5120×1440 at 60Hz. Ideal for applications such as CAD/CAM, video editing, and content creation. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.Customizable Switching

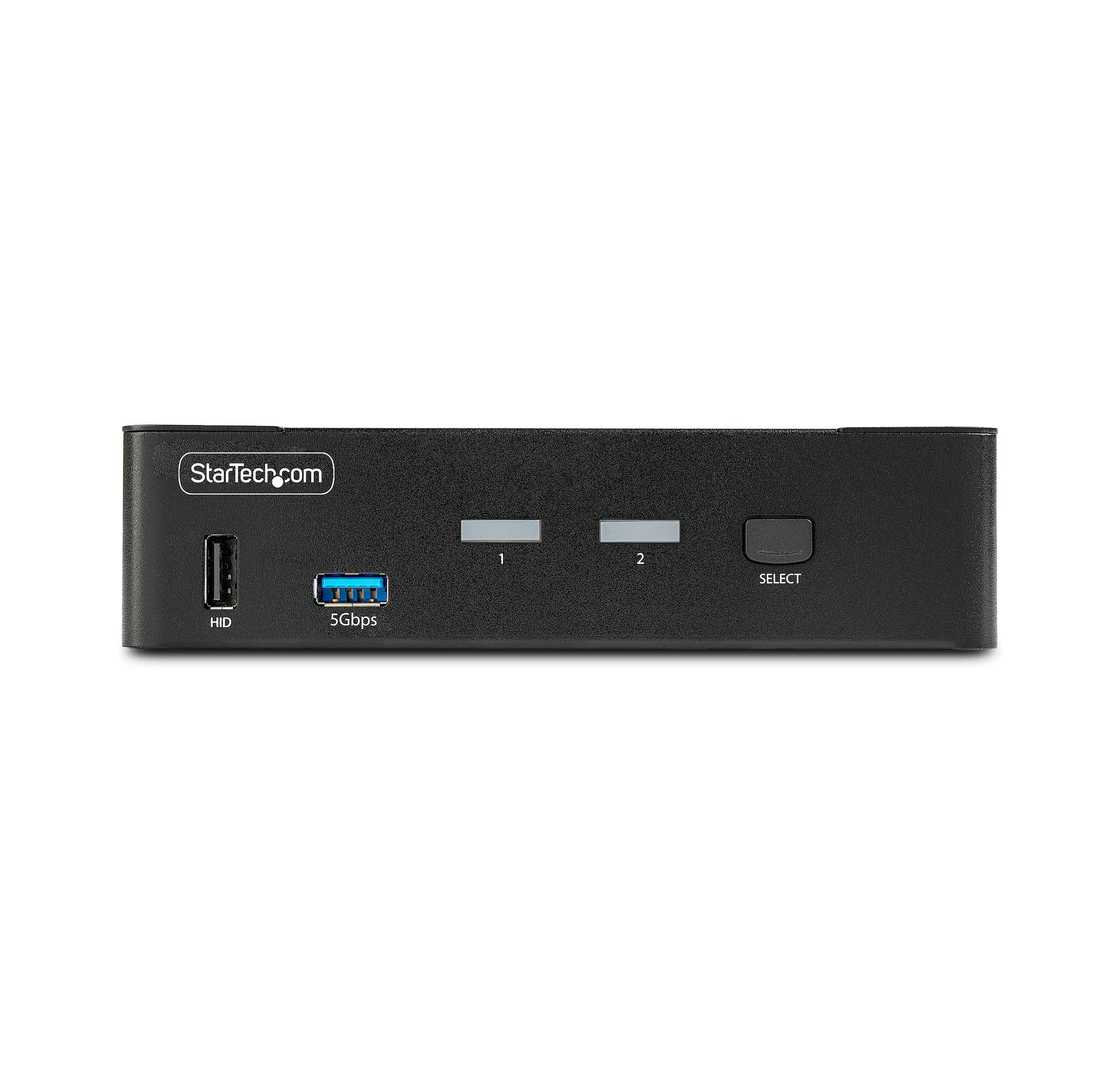

This Universal KVM Switch provides various switching options, including hotkey or push-button switching. Hotkeys allow for independent switching of audio and video, enabling audio playback from one computer while controlling the other. An audible buzzer confirms hotkey input, and LEDs provide a visual status of the selected host.Universal Compatibility
The TAA-Compliant KVM Switch offers universal compatibility, working with all operating systems, including Windows, macOS, ChromeOS, and Linux. It is also compatible with all hardware platforms, including Intel and AMD.
Reliable Performance
The durable metal housing helps prevent Electro-magnetic Interference (EMI). Overcurrent Protection (OCP) ensures peripherals don’t overdraw power, reducing the occurrence of device dropouts or shutdowns.Applications
Share a monitor, mouse, keyboard, and audio peripheral between two desktop computersGreat for applications like CAD/CAM, video editing, and content creation
-

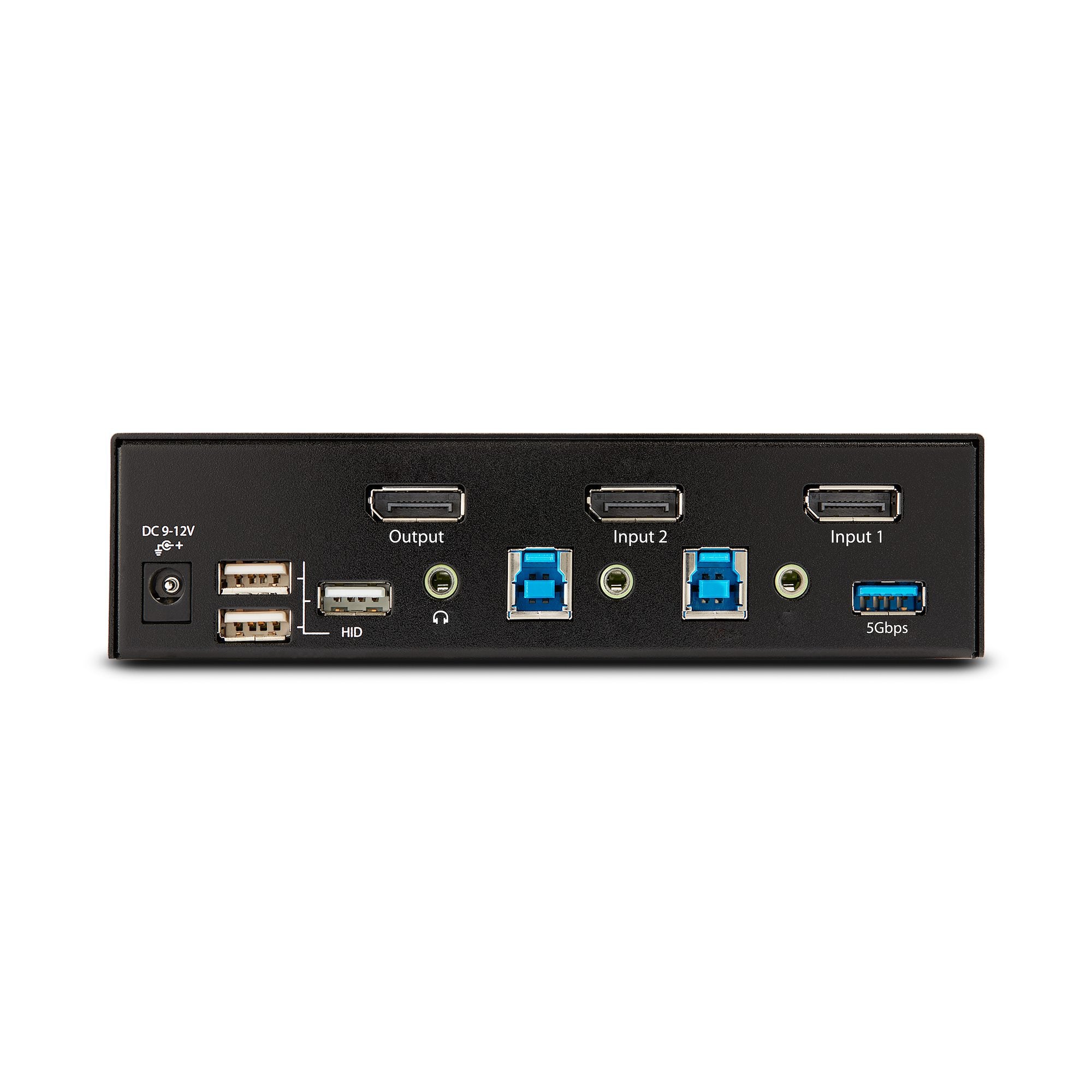

Category Detail Warranty Information Warranty 2 Years Connector(s) Console Interface(s) 2 – USB Type-A (9 pin, 5 Gbps) 4 – USB 2.0 Type-A (4 pin, 480Mbps) 1 – DisplayPort 1 – 3.5mm Stereo Female 3 pos 1 – Barrel Power Connector (Size M, OD: 5.50, ID: 2.10) Host Connectors 2 – USB 3.2 USB Type-B (9 pin, Gen 1, 5 Gbps) 2 – DisplayPort 2 – 3.5mm Stereo Female 3 pos Environmental Operating Temperature 0°C to 40°C (32°F to 104°F) Storage Temperature -20°C to 60°C (-4°F to 140°F) Humidity 0% ~ 80% RH (non-condensing) Hardware Audio Yes KVM Ports 2 PC Interface USB 3.2 Gen 1 (5Gbps) PC Video Type DisplayPort Number of Monitors Supported 1 Rack-Mountable No Cables Included No Chipset ID GL-3523 Daisy-Chain No Indicators LED Indicators 2 – Solid Green: PC connected (power on) 1 – Solid Red: PC selected (power on) Packaging Information Package Height 9.1 cm [3.6 in] Package Length 18.4 cm [7.2 in] Shipping (Package) Weight 1.1 kg [2.5 lb] Package Width 23.8 cm [9.4 in] Package Quantity 1 Performance On-Screen Display No Video Revision DisplayPort 1.4 IP Control No Hot-Key Selection Yes Maximum Data Transfer Rate 5Gbps Maximum Digital Resolutions 7680 x 4320 @ 60Hz Wide Screen Supported Yes Audio Specifications DisplayPort – 2 Channel Audio Analog Stereo – 2 Channel Audio Auto Scan 3, 8, 15 & 30 seconds Port Selection Support Push Button and Hotkeys MTBF 130,000 Hours Physical Characteristics Color Black Product Height 4.0 cm [1.6 in] Product Length 16.0 cm [6.3 in] Weight of Product 0.6 kg [1.3 lb] Product Width 10.0 cm [3.9 in] Material Steel Power Power Source AC Adapter Included Input Voltage 100 – 240 AC Input Current 1.0A Output Voltage 12V DC Output Current 3A Center Tip Polarity Positive Plug Type M Power Consumption (In Watts) 36W Software OS Compatibility No Drivers or Software Required Special Notes / Requirements System and Cable Requirements A host that supports DisplayPort 1.4 and DSC is required for maximum performance What’s in the Box Included in Package 1 – KVM Switch 1 – Quick-Start Guide 1 – Universal Power Adapter (NA/JP, EU, UK, NZ) 4 – Rubber Feet -
