• StarTech 2 Port DisplayPort KVM Switch, 4K 60Hz | SV211DPUA4K

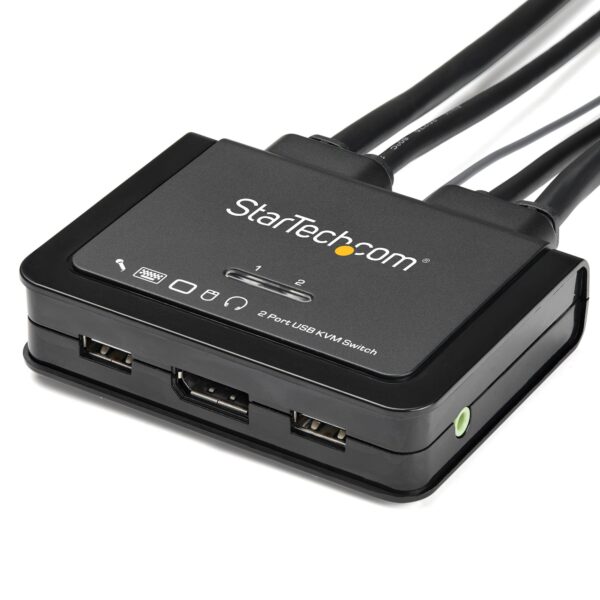

  The SV211DPUA4K 2-Port 4K60Hz DisplayPort® Cable KVM Switch with Audio and Remote Switching Control gives you control of two DisplayPort, USB equipped computers with a single monitor, keyboard, mouse and audio peripheral set.


  4K60 Picture & Full Audio Support
  The DisplayPort KVM switch supports resolutions up to 4K at 60Hz and can drive one large DP display with ease, maximizing viewing space. With support for separate 3.5 mm stereo audio, the KVM switch delivers full audio compatibility across connected computers.

  OS Independent
  This DP KVM switch is OS independent, meaning it can work with any USB-A and DisplayPort equipped desktop computer or laptop.


  Simple to Operate
  The switch features a remote push-button on a 1.5 meter (4ft) integrated cable that can be placed in an easily accessible location, as well as keyboard hot-keys, and optional PC or Mac® compatible software for switching between systems.

  KVM Switches & Consoles
  StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice and monitors.



• Category	Details
  Warranty Information	2 Years
  Connector(s)	Console Interface(s): 2 – USB 2.0 Type-A (4 pin, 480Mbps) 1 – DisplayPort (20 pin) 2 – 3.5 mm Mini-Jack (3 Position) Female Host Connectors: 2 – USB 2.0 Type-A (4 pin, 480Mbps) 2 – DisplayPort (20 pin) 4 – 3.5 mm Mini-Jack (3 Position) Female
  Environmental	Operating Temperature: 0 ~ 40°C Storage Temperature: -20 ~ 60°C Humidity: 0 ~ 90% RH, Non-Condensing
  Hardware	Audio: Yes KVM Ports: 2 PC Interface: USB PC Video Type: DisplayPort Number of Monitors Supported: 1 Rack-Mountable: No Cables Included: Yes Daisy-Chain: No
  Indicators	LED Indicators: 2 – Orange
  Packaging Information	Package Height: 8.4 in [21.3 cm] Package Length: 6.4 in [16.3 cm] Shipping Weight: 1.2 lb [0.5 kg] Package Width: 2.5 in [6.3 cm] Package Quantity: 1
  Performance	On-Screen Display: No Video Revision: DisplayPort 1.2 IP Control: No Hot-Key Selection: Yes Max Digital Resolutions: 3840 x 2160 (Ultra HD 4K) @ 60Hz Wide Screen Supported: Yes Auto Scan: 10, 20, 30, 40, 50, 60 seconds Port Selection Support: Push Button, Hotkeys, and Software MTBF: 1,012,884 hours
  Physical Characteristics	Color: Black Product Height: 0.4 in [0.9 cm] Product Length: 3.8 in [9.7 cm] Weight of Product: 15.5 oz [438.0 g] Product Width: 3.2 in [8.2 cm] Material: Plastic Cable Length: 4.0 ft [1.2 m]
  Power	Power Source: Bus Powered Input Voltage: 5V DC Output Voltage: 5 DC
  Software	OS Compatibility: Windows® 2000, XP, Vista, 7, 8, 8.1, 10, 11; Windows Server® 2003, 2008 R2, 2012, 2016, 2019, 2022; Mac OS 10.6 to 10.12
  Special Notes	Note: To access the software and hotkeys, a compatible OS must be installed; however, KVM and push button functions are OS independent.
  What’s in the Box	1 – KVM Switch 1 – Quick-Start Guide
