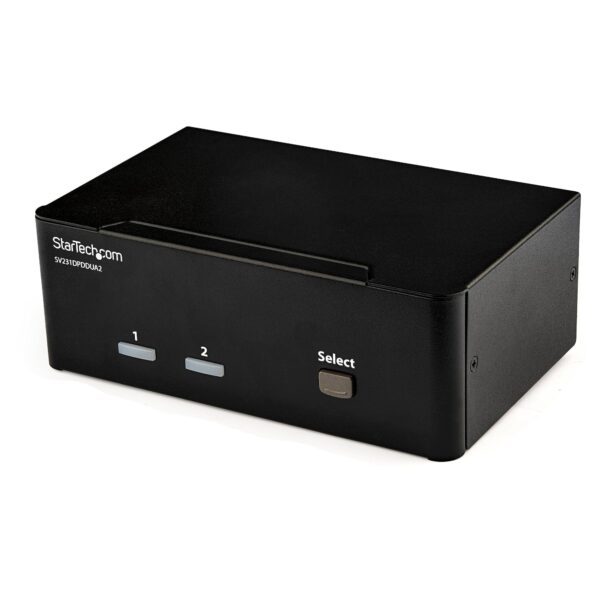

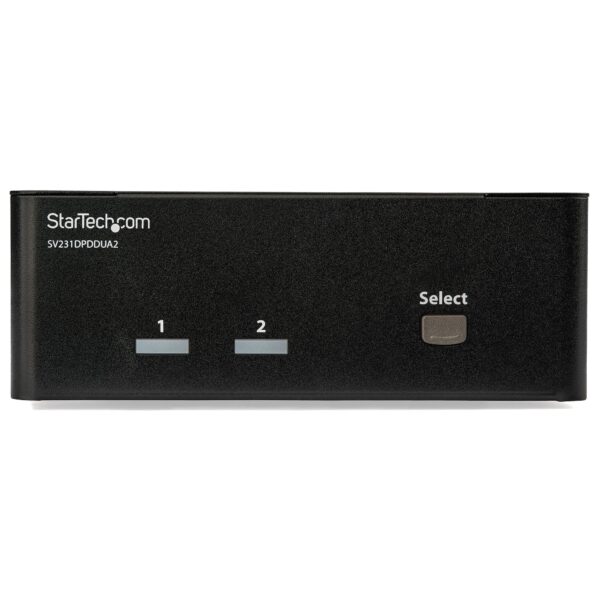

• StarTech 2-Port DisplayPort Dual-Monitor KVM Switch, 4K 60Hz | SV231DPDDUA2

  This dual DisplayPort KVM switch combines next-generation digital display standards with seamless KVM control. The 2-port KVM switch features audio and USB peripheral support along with dual-display capability, which makes it easy to create a multimedia workstation that can switch between two dual-head or twin DisplayPort systems.


  Maximize productivity with dual video
  With support for two DisplayPort video inputs and two different computers, this KVM switch helps maximize productivity.You can access multiple computers, giving you the freedom to multitask and increase your productivity. Each of the DP ports supports resolutions up to 4K for maximum screen viewing space.

  You can also use low-cost adapters to achieve a dual-monitor setup using your computer’s secondary HDMI or DVI port.

  Astonishing picture quality
  The dual DisplayPort KVM switch supports resolutions up to Ultra HD 4K at 60Hz, and can drive two large DP displays with ease. This makes it the ideal solution for creating workstations where high-quality imaging is critical, such as for graphic design.

  Complete multimedia control
  The KVM switch features auxiliary 3.5 mm audio ports that let you share independent analog audio, from each of your connected computers, with your desktop speaker set. With independent audio support, along with dual 4K DP video, you get full multimedia control between different computers which makes this the perfect KVM switch for creative professional applications such as video and sound design or editing.

  Convenient peripheral sharing
  This KVM switch offers a built-in 2-port USB hub that’s separate from your HID keyboard and mouse. This enables you to share USB peripherals between each connected computer and avoid the expense of separate equipment. The USB hub automatically switches your connected USB devices to the selected computer, saving you the hassle and cost of outfitting each of your computers with their own peripherals.


  Applications
  Control two computers, each with dual-head video cards, from a single workstation

  Work with multimedia applications such as 4K video and photo editing

  Operate multiple computers in manufacturing lines

  Install in your server room, for multi-computer access

  Perform high-resolution tasks such as graphic design or CAD drawing

• Category	Detail
  Warranty Information	2 Years

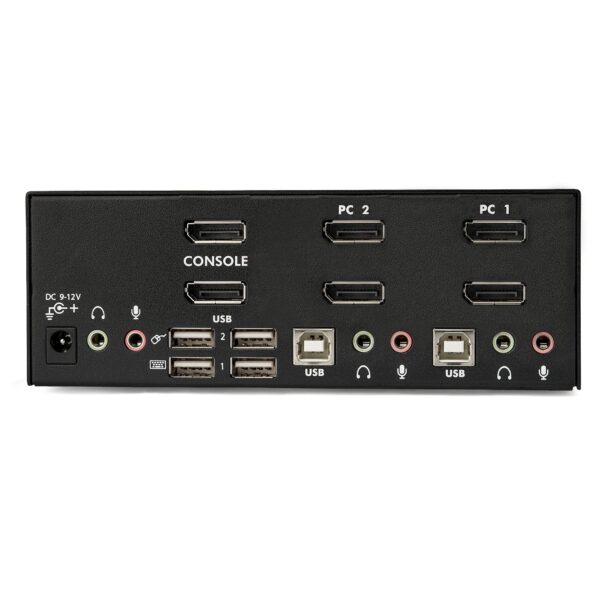

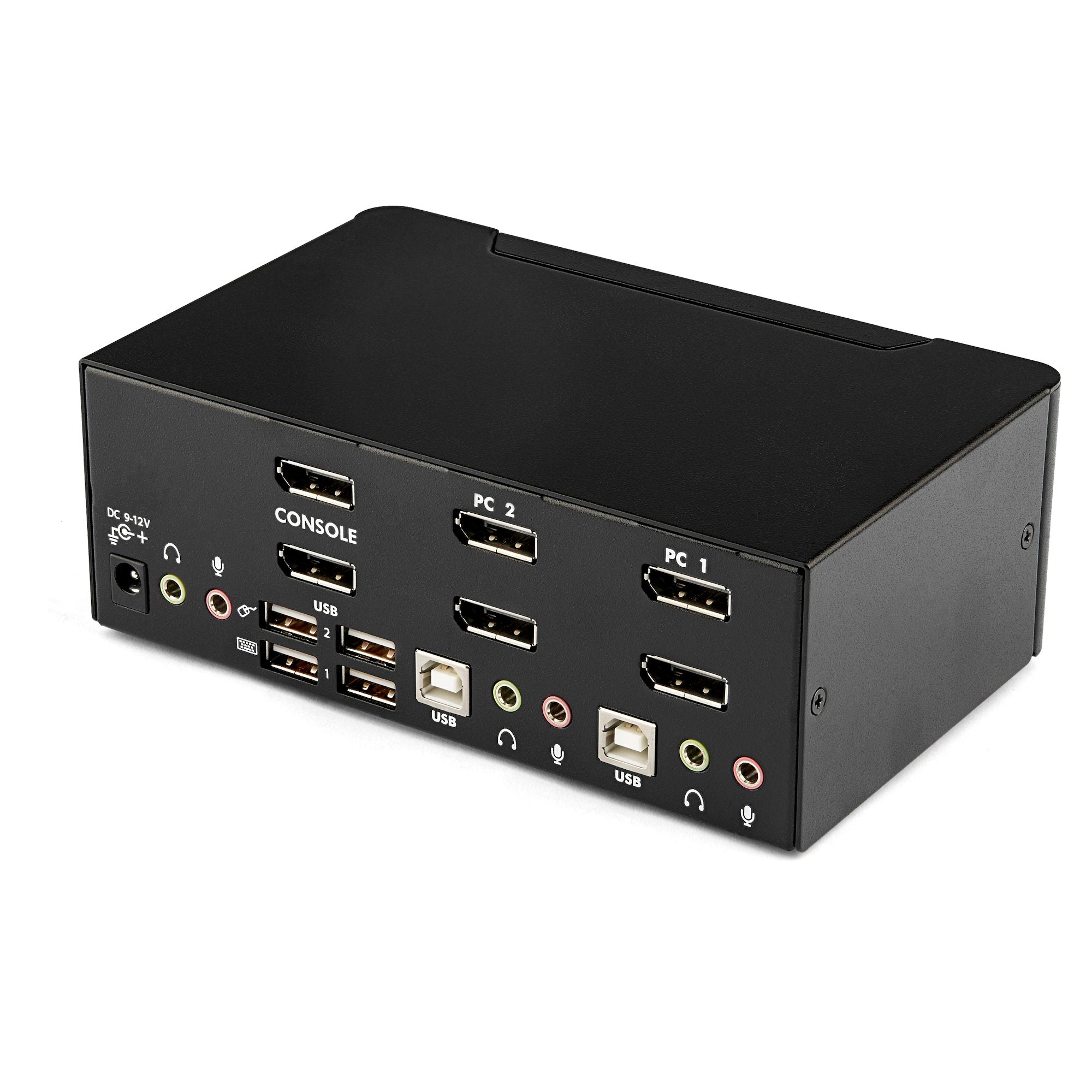

  Connector(s)
  Console Interface(s)	2 – DisplayPort (20 pin)
  	4 – USB 2.0 Type-A (4 pin, 480Mbps)
  	2 – 3.5 mm Mini-Jack (3 Position)
  Host Connectors	4 – 3.5 mm Mini-Jack (3 Position)
  	4 – DisplayPort (20 pin)
  	2 – USB B (4 pin)
  Environmental
  Operating Temperature	0°C to 40°C (32°F to 104°F)
  Storage Temperature	-20°C to 50°C (-4°F to 140°F)
  Humidity	0~80% RH
  Hardware
  Audio	Yes
  KVM Ports	2
  PC Interface	USB
  PC Video Type	DisplayPort
  Number of Monitors Supported	2
  Rack-Mountable	No
  Cables Included	No
  Daisy-Chain	No
  Indicators
  LED Indicators	2 – Computer LEDs
  Packaging Information
  Package Height	3.9 in [10.0 cm]
  Package Length	9.8 in [25.0 cm]
  Shipping (Package) Weight	2.7 lb [1.2 kg]
  Package Width	7.4 in [18.8 cm]
  Package Quantity	1
  Performance
  On-Screen Display	No
  DVI Support	No
  IP Control	No
  Hot-Key Selection	Yes
  Maximum Digital Resolutions	3840 x 2160 (Ultra HD 4K) @ 60Hz
  Supported Resolutions	1024×768
  	1280×720 (High-definition 720p)
  	1920×1080 (High-definition 1080p)
  	1920×1200
  	2560×1600
  	3840 x 2160 (4K) @ 60Hz
  Aspect Ratio	16:9
  Wide Screen Supported	Yes
  Maximum Number of Users	1
  Port Selection Support	Push Button and Hotkeys
  MTBF	138,000 hours
  Physical Characteristics
  Product Length	3.9 in [100.0 mm]
  Weight of Product	25.9 oz [734.0 g]
  Color	Black
  Material	Steel
  Product Width	6.3 in [16.1 cm]
  Product Height	2.3 in [5.8 cm]
  Product Depth	3.9 in [100 mm]
  Power
  Power Source	AC Adapter Included
  Input Voltage	100 – 240 AC
  Input Current	0.6 A
  Output Voltage	12V DC
  Output Current	1.5 A
  Center Tip Polarity	Positive
  What’s in the Box
  Included in Package	1 – KVM switch
  	1 – Universal power adapter (NA/JP, EU, UK, ANZ)
  	4 – Rubber feet
  	1 – Instruction manual
