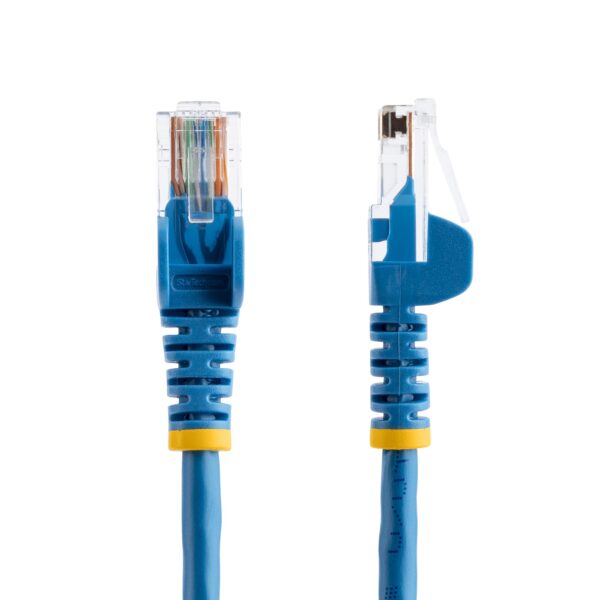

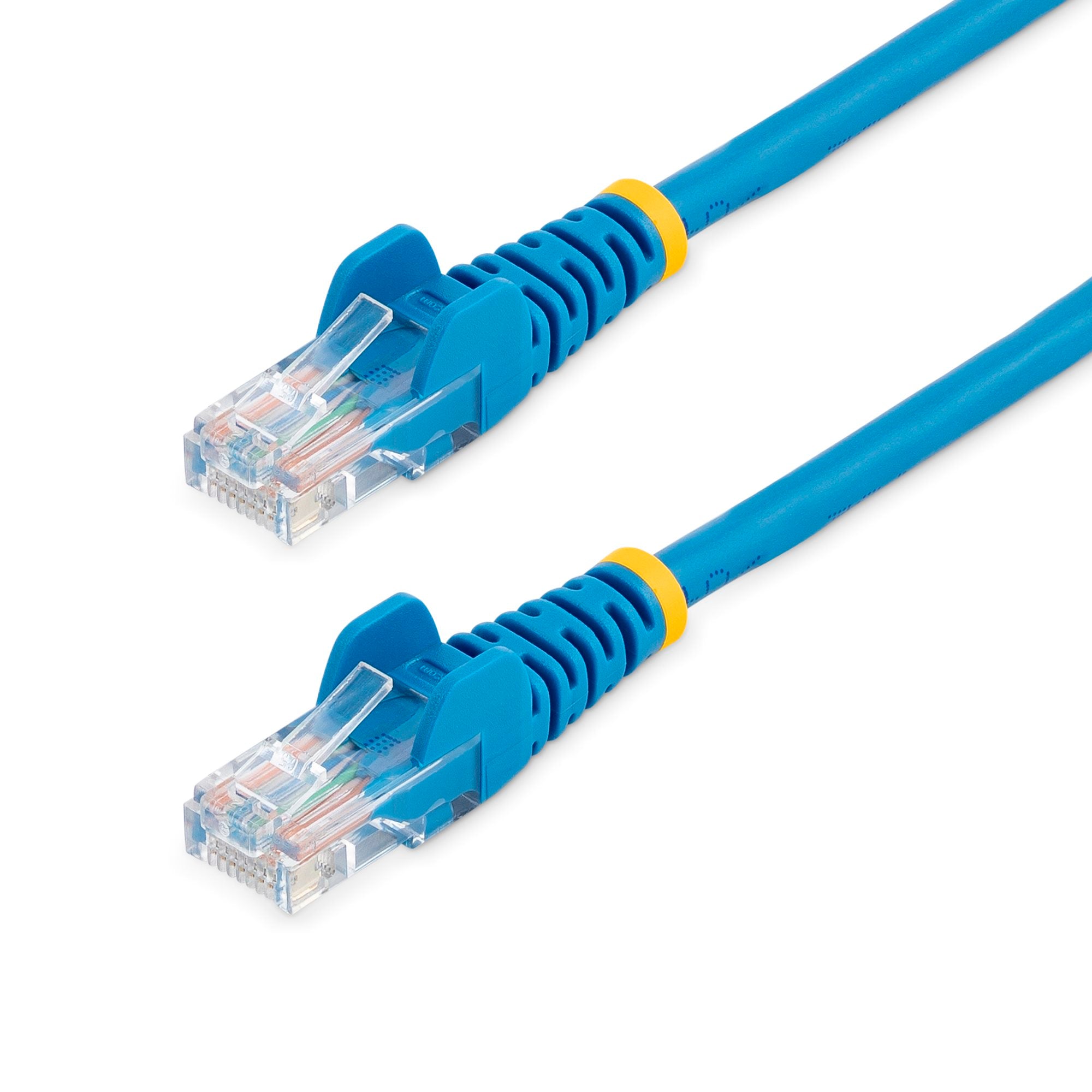

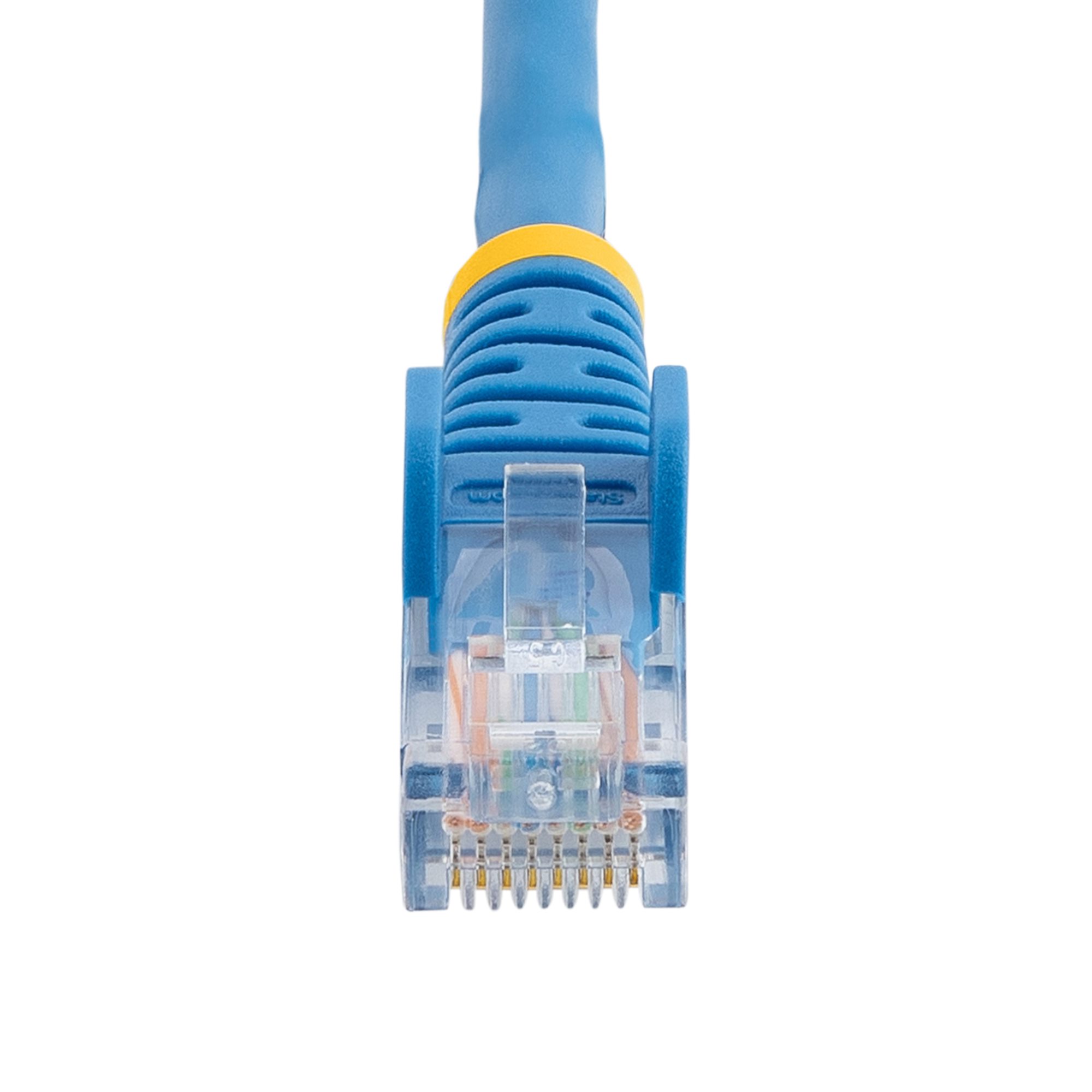

StarTech 1m Cat5e Blue Patch Cable with Snagless RJ45 Connectors – 45PAT1MBL

• Description
• Specifications
• Downloads

• StarTech 1m Cat5e Blue Patch Cable with Snagless RJ45 Connectors – 45PAT1MBL

  The 45PAT1MBL Cat5e patch cable (1m) meets or exceeds all Cat 5e cable specifications to ensure reliable Ethernet network connections, and features a durable blue PVC jacket that enables you to color code your network cable runs as needed.

  To ensure long-lasting performance, this high quality Cat5e patch cable features a snagless design that protects the RJ45 connector clips from damage and makes the cable less prone to snagging during installation. The cable also features molded PVC strain relief that prevents the RJ45 connector termination points from bending at sharp angles, reducing the risk of cable failure.

  Constructed of only top quality materials, this Cat5e patch cord delivers reliable performance and is backed by our lifetime warranty.

  100% copper for outstanding value
  Get the highest value for your cable investment with our Cat 5e cables, each one manufactured using high-quality copper conductors.

  24-gauge wire for high-performance network connection
  Ensure high-performance capability for your demanding Ethernet applications, such as Power-over-Ethernet, using cables that include 24 AWG copper.

  50-micron gold connectors provide peak conductivity
  Rely on our RJ45 connectors to deliver optimum conductivity while eliminating signal loss due to oxidation or corrosion.

  Applications
  Designed for use with Fast Ethernet networks
  Patches from hub to distribution panel
  Connects workstation to wall outlet

• Category	Details
  Warranty Information	Lifetime
  Connector(s)	Connector A: 1 – RJ-45
  	Connector B: 1 – RJ-45
  Environmental	Humidity: 0 ~ 60% RH
  	Operating Temperature: 0°C to 30°C (32°F to 86°F)
  	Storage Temperature: -20°C to 60°C (-4°F to 140°F)
  Hardware	Number of Conductors: 4 pair UTP
  	Cable Jacket Material: PVC – Polyvinyl Chloride
  	Fire Rating: CM Rated
  	Cable Type: Snagless
  Packaging Information	Package Height: 1.2 cm [0.5 in]
  	Package Length: 22.0 cm [8.7 in]
  	Package Width: 20.0 cm [7.9 in]
  	Package Quantity: 1
  	Shipping (Package) Weight: 50.0 g [1.8 oz]
  Performance	Cable Rating: CAT5e – 350 MHz
  Physical Characteristics	Product Height: 1.4 cm [0.5 in]
  	Product Width: 1.1 cm [0.4 in]
  	Color: Blue
  	Wire Gauge: 24 AWG
  	Conductor Type: Stranded Copper
  	Cable Length: 1 m [3.3 ft]
  	Product Length: 1.0 m [3.3 ft]
  	Weight of Product: 42.0 g [1.5 oz]
  What’s in the Box	Included in Package: 1 – 1m Blue Snagless Cat5e UTP Patch Cable

• Description	Downloads
  45PAT1MBL:Datasheet	Downloads
