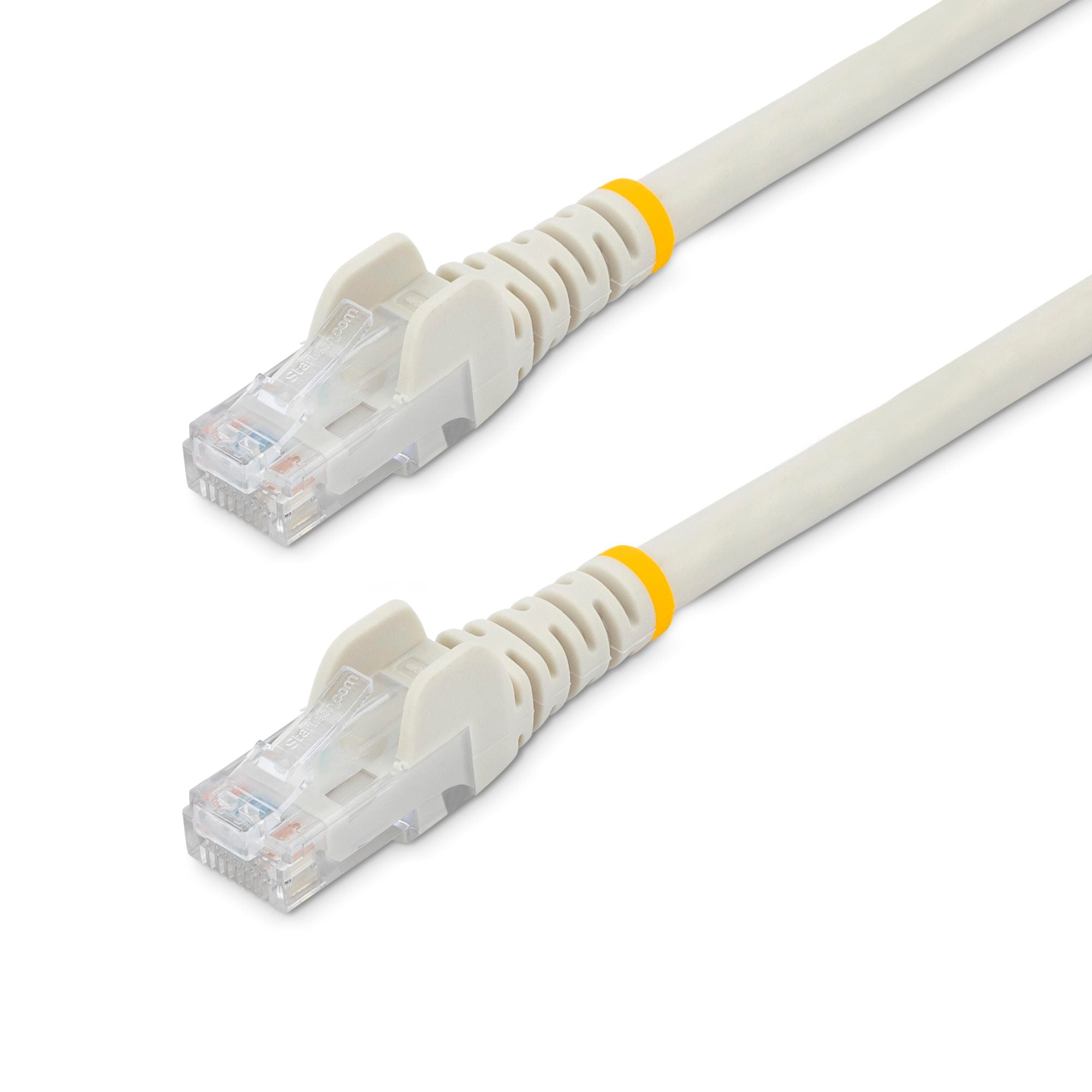

StarTech 10m White CAT6 Gigabit Ethernet Wire – N6PATC10MWH

• Description
• Specifications
• Downloads

• StarTech 10m White CAT6 Gigabit Ethernet Wire – N6PATC10MWH

  This 10-meter Cat6 cable meets or exceeds all Category 6 cable specifications to ensure reliable Gigabit network connections. Plus, the cable features a durable white PVC jacket that enables you to color code your network cable runs as needed.

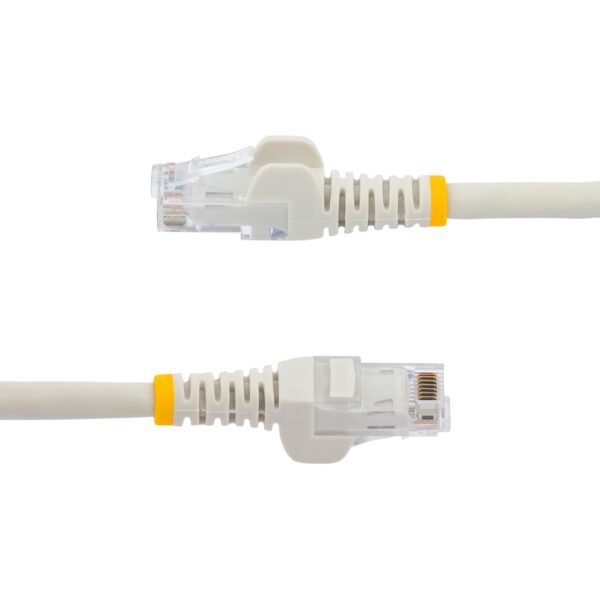

  Snagless RJ45 clips help protect your network connections
  For easier cable runs, the snagless connectors protect the cable’s RJ45 clips during installation, making them less likely to snag or break. This ensures a sturdy connection by preventing the cable from becoming loose from the port.

  The cable features moulded boots that offer connector strain relief, by stopping the RJ45 connector termination points from bending at sharp angles, and reducing the risk of damage to the cable, which could decrease network performance.

  100% copper for outstanding value
  Get the highest value for your cable investment with our Cat 6 cables, each one manufactured using high-quality copper conductors.

  24-gauge wire for high-performance network connection
  Ensure high-performance capability for your demanding Ethernet applications, such as Power-over-Ethernet, using cables that include 24 AWG copper.

  50-micron gold connectors provide peak conductivity
  Rely on our RJ45 connectors to deliver optimum conductivity while eliminating signal loss due to oxidation or corrosion.

  The N6PATC10MWH is backed by StarTech.com’s lifetime warranty for guaranteed reliability.

  Applications
  Designed for use with Gigabit networks
  Patches from hub to distribution panel
  Connects workstation to wall outlet

• Warranty Information
  Warranty	Lifetime
  Connector(s)
  Connector A	1 – RJ-45
  Connector B	1 – RJ-45
  Hardware
  Number of Conductors	4 pair UTP
  Connector Plating	Gold
  Cable Jacket Material	PVC – Polyvinyl Chloride
  Fire Rating	CMG Rated (General Purpose)
  Cable Type	Snagless
  Wiring Standard	TIA/EIA-568-B.1-2001 T568B
  Packaging Information
  Package Height	2.9 cm [1.1 in]
  Package Length	33.0 cm [13.0 in]
  Shipping (Package) Weight	404.0 g [14.3 oz]
  Package Width	25.5 cm [10.0 in]
  Package Quantity	1
  Performance
  Cable Rating	CAT6 – 650 MHz
  Physical Characteristics
  Product Width	1.3 cm [0.5 in]
  Product Height	1.6 cm [0.6 in]
  Color	White
  Conductor Type	Stranded Copper
  Cable Length	10 m [32.8 ft]
  Product Length	10.0 m [32.8 ft]
  Weight of Product	384.0 g [13.6 oz]
  What’s in the Box
  Included in Package	1 – 10 m Cat6 Patch Cable – White
