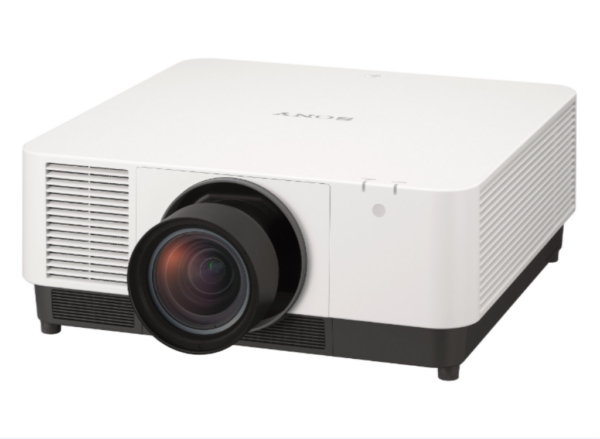

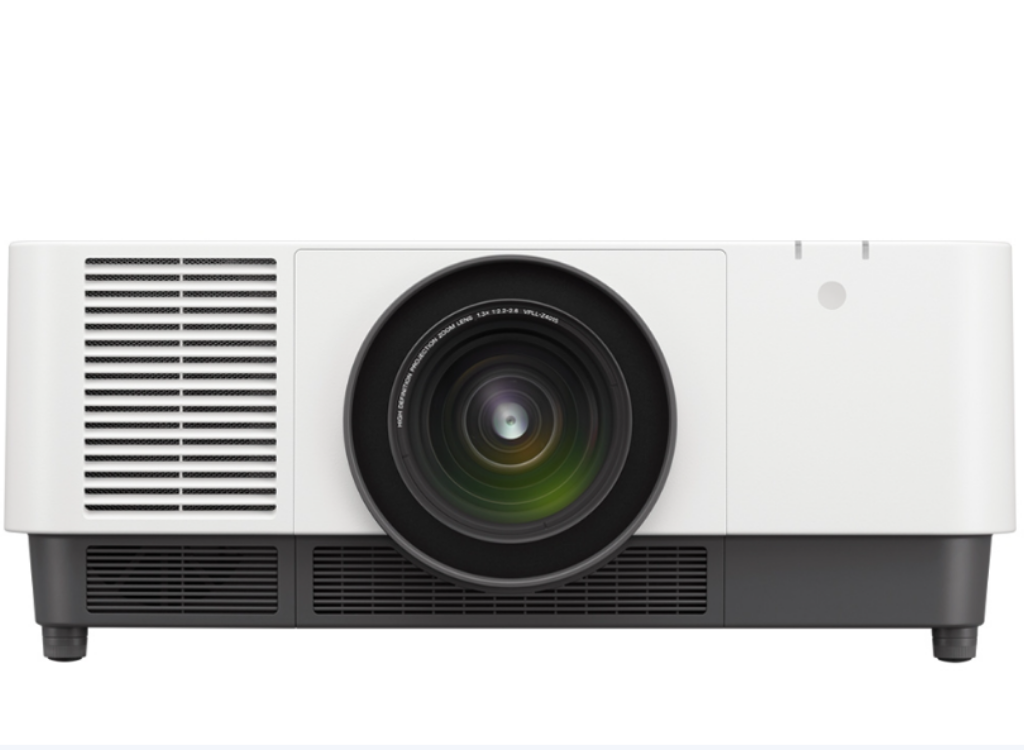

Sony VPL-FHZ131L Laser Installation Projector – 13000 Lumens

• Description
• Specifications
• Downloads

• Sony VPL-FHZ131L Laser Installation Projector – 13000 Lumens

  Brighter images in bigger venues
  Captivate your audience in conference halls, lecture theatres, galleries, museums, visitor attractions and other large spaces. Very high light output 13,000 lm (13,600 lm center) VPL-FHZ131L, 10,000 lm (10,400 lm center) VPL-FHZ101L, 9,000 lm (9,800 lm center) VPL-FHZ91L ensures big-screen presentations with extra presence, even in brightly lit rooms.


  Get closer to reality
  Impressive picture quality is boosted by Sony’s unique super resolution Reality Creation technology. This uses a powerful pattern-matching database to optimise lower-resolution images, enhancing clarity without increasing digital picture noise.


  Faster, fuss-free set-up
  Save time with Sony’s Intelligent Setting function that simplifies installation with pre-sets to optimise brightness, cooling, colour and other projector settings. You’ll be rewarded with great pictures in any environment – including meeting/classrooms, museums, entertainment venues and multi-screen setups.


  For more flexible installation
  Don’t restrict your thinking. You’ll appreciate an industry-leading lens shift adjustment range and a wide choice of interchangeable lenses, giving more options to install the projector in any space, including classrooms and halls with high ceilings. For extra flexibility the VPLL-Z4107 short throw lens is ideal when positioning the projector close to the screen to avoid ceiling-mounted obstructions.


  With normal lens shift
  The projector requires a mounting bracket, which obscures the audience’s view.


  With wide lens shift
  Lens shift gives greater installation flexibility, even in rooms with high ceilings.



• Category	Details
  Display System	3 LCD system
  Display Device	1” x 3 BrightEra LCD Panel, Aspect ratio: 16:10
  Number of Pixels	6,912,000 (1920 x 1200 x 3) pixels
  Resolution	WUXGA (1920 x 1200 pixels)
  Projection Lens	Powered / Manual (Depend on lens)
  Zoom – Ratio	Depends on Lens
  Throw Ratio	Depends on Lens
  Lens Shift – Powered / Manual	Powered
  Lens Shift – Range	Vertical: Depend on Lens
  	Horizontal: Depend on Lens
  Light Source	Laser diode
  Filter Replacement Cycle (Max.)	10,000 H (service maintenance)
  Screen Size	Depends on Lens
  Light Output	– Mode: Standard
  	13,000lm *2 / 13,600lm (Center)*3
  	– Mode: Middle
  	10,000lm
  	– Mode: Low
  	8,600lm
  Colour Light Output	– Mode: Standard
  	13,000lm
  	– Mode: Middle
  	10,000lm
  	– Mode: Low
  	8,600lm
  Contrast Ratio	∞ : 1 (full white / full black)
  Colour Space	sRGB 100% (Picture mode: sRGB)
  Displayable Scanning Frequency	– Horizontal: 15 kHz to 92 kHz
  	– Vertical: 48 Hz to 92 Hz
  Accepted Signal Resolution	– Computer Signal Input: Maximum signal resolution: 1920 x 1200
  	– Video Signal Input: 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i
  	1080/60p, 1080/50p, 1080/24p, 1080/30p *4
  Keystone Correction (Max.)	– Horizontal: +/- 30 degrees
  	– Vertical: +/- 30 degrees
  INPUT OUTPUT (Computer/Video/Audio/Control)	– INPUT A: RGB / Y PB PR input connector: 5 BNC (female)
  	– INPUT B: RGB input connector: Mini D-sub 15-pin (female)
  	– INPUT C: DVI input connector: DVI-D 24-pin (single link), HDCP support
  	– INPUT D: HDMI input connector: HDMI 19-pin, HDCP support
  	– INPUT E: HDBaseT interface connector: RJ45, 3 play
  	– INPUT F: Optional adaptor slot for 3G-SDI Input Adaptor (BKM-PJ20)
  	– INPUT G: HTML Viewer
  	– OUTPUT 1: Monitor output for Input A/Input B Connector: Mini D-sub 15-pin (female)
  	– USB-1: Type-A x 1
  	– USB-2: Type-B x 1 (for service)
  	– REMOTE: D-sub9pin male/RS232C
  	– LAN: RJ45, 10BASE-T/100BASE-TX/1000BASE-T
  Acoustic Noise	– Light Output Mode: Standard: 42dB
  	– Light Output Mode: Middle: 39dB
  Operating Temperature / Humidity	– Operating Temperature: 0°C to 45°C (32°F to 109°F)
  	– Operating Humidity: 20% to 80% (no condensation)
  Storage Temperature / Humidity	– Storage Temperature: -10°C to +60°C (14°F to +140°F)
  	– Storage Humidity: 20% to 80% (no condensation)
  Power Requirements	AC 100 V to 240 V, 10.8 A to 4.4 A, 50 Hz / 60 Hz
  Power Consumption (Maximum)	– AC 100 V to 120 V: 1076W
  	– AC 220 V to 240 V: 1033W
  Power Consumption (Standby Mode)	– AC 100 V to 120 V: 0.50W (when “Standby mode” is set to “Low”)
  	– AC 220 V to 240 V: 0.50W (when “Standby mode” is set to “Low”)
  Power Consumption (Networked Standby Mode)	– AC 100 V to 120 V: 21.6W (LAN)
  	– AC 220 V to 240 V: 21.3W (LAN)
  Heat Dissipation	– AC 100 V to 120 V: 3671 BTU/h
  	– AC 220 V to 240 V: 3524 BTU/h
  Dimensions (W x H x D)	Approx. 544 x 205 x 564 mm
  	(21 13/32 x 8 1/16 x 22 7/32 inches)
  Mass	Approx. 27 kg (58 lb)
  Supplied Accessories	Remote Commander: RM-PJ30
  	Projection Lens: VPLL-Z4107, 4008, Z4111, Z4015, Z4019, Z4025, Z4045

• Description	Downloads
  Datasheet	Download
