Sony SRG-X120WC Standard 4K30P IP PTZ Camera With 12x Optical Zoom

• Description
• Specifications

• Sony SRG-X120WC Standard 4K30P IP PTZ Camera With 12x Optical Zoom

  Capture every point of view with excellent 4K* picture quality and efficient IP production workflow
  The versatile SRG-X120 remotely controlled PTZ camera is ideal for a wide range of applications – from classrooms and meeting spaces and medical environments.

  The camera’s 1/2.5-type Exmor R CMOS sensor captures up to 4K* resolution images with excellent sensitivity, very low noise and rich, natural colour reproduction. It’s complemented by the integrated high-resolution 12x zoom lens that offers an expansive approx. 70° wide angle coverage to capture every point of view.

  High speed movement during preset recall captures the speaker’s every movement, while Picture Freeze during transitions ensures your audience isn’t disturbed by rapid camera movements. PTZ Motion Sync*** function allows smooth blending of separate pan, tilt and zoom movements for seamless, professional-looking transition.

  Efficient IP-based live production is augmented with support for NDI®|HX (via optional license), allowing flexible configuration with other networked NDI®-enabled devices.

  Images also can be reviewing remotely via a web browser, with support for RTSP (Real Time Streaming Protocol), RTMP*** (Real Time Messaging Protocol) and SRT*** (Secure Reliable Transport) ensuring smooth, stable streaming of video plus audio (from an optional microphone, available separately) over an IP network.

  Installation and set-up is easy, with a new Picture Setting File**** allowing the same settings to be applied to multiple cameras through a web interface from a laptop or PC.

  * NDI® is a registered trademark of NewTek, Inc.
  ** With Clear Image Zoom and Tele Convert Mode
  *** Requires firmware V3.00
  **** Requires firmware V2.00

  Note 1: This product contains pre-installed software and requires the purchase of licence keys to activate some functions.

  Note 2: When using RM-IP500 firmware should be updated to V2.10 and for RM-IP10, firmware should be updated to V2.17.


  Excellent images, even in low light
  The sensitive 1/2.5-type Exmor R™ sensor captures high-quality images with very low noise, even in dimly-lit environments.

  4K upgrade option
  Upgrade to 4K shooting via optional license.

  Wide viewing angle
  Cover the whole scene in meetings and lecture theatres with a horizontal viewing angle of approx. 70° and up to 12x zoom capability.

  Ideal for lecture caputure
  Use the camera in conjunction with the AI-based REA-C1000 Edge Analytics Appliance to smoothly track the speaker’s movements and automatically generate a cut-out image of speaker.

  High speed movement and Picture Freeze Preset
  Accurately capture the presenter’s movements with maximum 300°/s pan and tilt movement during preset recall. Picture Freeze Preset maintains a steady image while the camera moves to a new preset position – with no uncomfortable transitions for your audience.

  Smooth pan-tilt-zoom
  PTZ Motion Sync function* allows smooth blending of separate pan, tilt and zoom movements for seamless, professional-looking transitions.

  * Requires firmware V2.00.

  Simpler installation, lower costs
  A single network cable carries camera power, video output and control signals to simplify installation and reduce cabling costs.


  Support for NDI®*|HX
  NDI®|HX compatibility (via optional license) enables cost-effictive school studio system integration, allowing flexible configuration with other networked NDI®-enabled devices.

  * NDI® is a registered trademark of NewTek, Inc. Network services, content, and the [operating system and] software of this product may be subject to individual terms and conditions and changed, interrupted or discontinued at any time and may require fees, registration and credit card information.

  Flexible and efficient IP-based production
  In addition to RTSP, RTMP(S)* and SRT* (Secure Reliable Transport) are supported. Video can be streamed directly from camera to online streaming service, also can be transmitted more securely, with lower latency and more stably even in unstable network environment.

  * Requires firmware V3.00.

  Fast, fuss-free set-up
  The new Picture Setting File* function can apply the same camera settings among multiple cameras for fast set-up.

  * Requires firmware V2.00.

• Category	Specification
  Camera
  Image Sensor	1/2.5 type ExmorR CMOS
  Effective Pixels	Approx. 8.5M pixels
  Signal System	2160/29.97p, 25p, 23.98p; 1080/59.94p, 50p, 29.97p, 25p, 23.98p; 1080/59.94i, 50i; 720/59.94p, 50p
  4K Capability	Yes (requires 4K optional license)
  Minimum Illumination	1.6 lux (1/30s 50IRE F2 high-sensitivity OFF)
  Horizontal Resolution	1700 TV lines (4K); 1000 TV lines or higher (FHD)
  Gain	Auto/Manual (0 to +48 dB) (High Sensitivity On)
  Shutter Speed	1/1 to 1/10000 sec
  Exposure Control	Auto, Manual, Priority AE (Shutter, Iris)
  White Balance	Auto1, Auto2, One Push WB, Indoor, Outdoor, Manual
  Zoom Capability	12x
  Focusing System	Auto/Manual
  Horizontal Viewing Angle	Approx. 70° (Wide)
  Focal Length	f=4.4mm (Wide) to 52.8mm (Tele), F2.0 to F3.7
  Minimum Object Distance	80 mm (Wide) to 400 mm (Tele)
  Pan/Tilt Angle	Pan: ±170°, Tilt: +90°/-20°
  Pan/Tilt Speed (Max.)	Pan: 300°/s, Tilt: 126°/s
  Pan/Tilt Speed	Pan: 1.1° to 101°/s, Tilt: 1.1° to 91°/s
  Pan/Tilt Speed (Slow)	Pan: 0.5° to 60°/s, Tilt: 0.5° to 60°/s
  Pan/Tilt Slow Mode	Yes
  Pan/Tilt Operation Noise	NC30 or less
  Preset Position	256 (CGI), 100 (VISCA)
  Picture Freeze Preset	Yes
  PTZ Motion Sync	Yes
  Network
  IP Video Resolution	3840×2160, 1920×1080, 1280×720, 720×576, 720×480, 640×360
  Compression Format	H.264: High, Main, Baseline Profile; H.265: Main Profile
  Maximum Frame Rate	H.264: 60fps; H.265: 60fps
  Bitrate Compression Mode	CBR/VBR (selectable)
  Range of Bitrate Setting	512Kbps to 50 Mbps
  Multi Streaming Capability	3
  Maximum Number of Clients	5
  Protocols	IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, DNS, RTP/RTCP, RTSP, UPnP, VISCA over IP
  NDI®	HX Capability
  Camera Features
  Auto ICR	Yes
  Day/Night	Yes
  Visibility Enhancer	Yes
  Image Stabilization	Yes
  Image Flip	Yes
  Picture Setting File	Yes
  Flicker Cancel	On/Off
  Hide OSD Menu	On/Off
  Standby Mode	Yes
  Remote Standby	Yes
  Web UI	Ver Up
  Audio
  Channel	2ch
  Audio Codec	AAC LC 128 kbps/ST (IP); AAC LC 256 kbps/ST (IP)
  Setting Option	Auto Level Control (ALC): On/Off; Equalizer: Off, Low cut, Voice enhancement; Input selection: Microphone/Line; Mic volume: -10 to +10 (21 steps)
  Embedded Audio	Yes (3G-SDI, HDMI); Yes (IP Streaming)

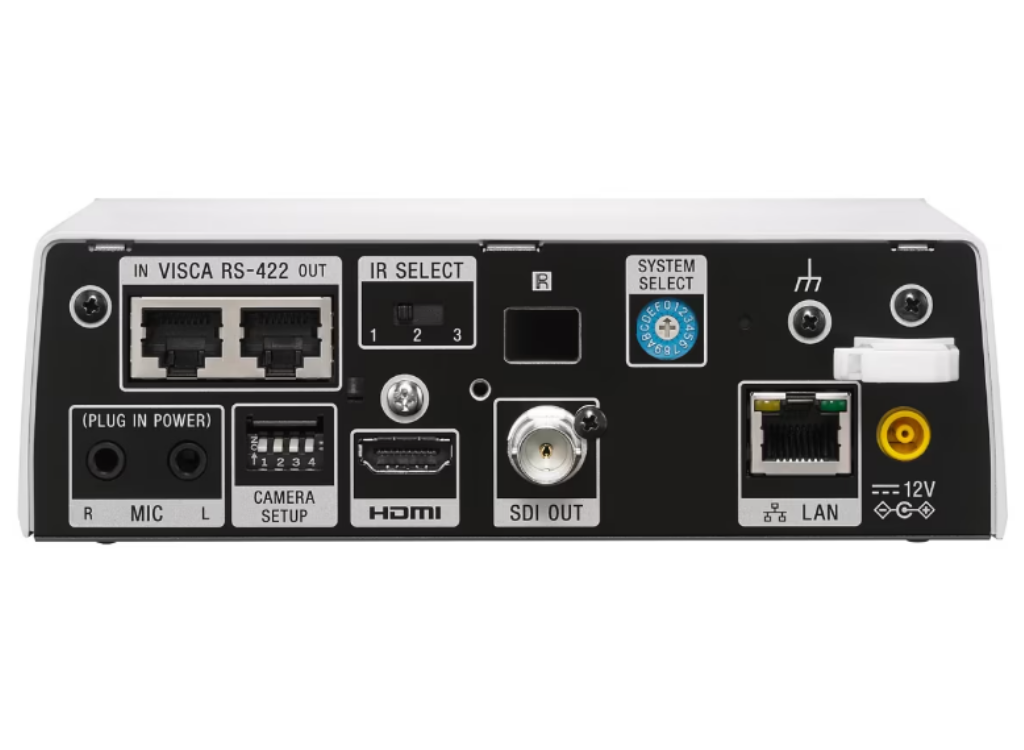

  Interface
  4K Video Output	HDMI x1, IP (streaming) x1
  HD Video Output	3G-SDI x1, HDMI x1, IP (streaming) x1
  Remote Video Format Switching	Yes
  HDMI Color Space	YCbCr, 4:2:2 8 bit; RGB, 4:4:4 8 bit
  Camera Control Interface	VISCA RS-422 RJ45 (In/Out), VISCA over IP RJ-45
  IR Remote Control	Yes
  Microphone Input	Mini-phone (φ3.5mm) x2, (Mic/Line Selectable)
  Sync. System	INT
  Power Connector Type	IEC60130-10 (JEITA standard RC-5320A) TYPE4
  General
  Power Requirements	DC 12V (DC 10.8 to 13.2V), PoE+ (IEEE802.3at compliant)
  Power Consumption	25.5 W Max.
  Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
  Storage Temperature	-20 °C to +60 °C (-4 °F to +140 °F)
  Dimensions (W x H x D)	158.4 x 177.5 x 200.2 mm (6 1/4 x 7 x 8 inch)
  Mass	Approx. 1.8 kg (3 lb 15.5 oz)
  Camera Body Color	White/Black
  Size of Screw Hole for Tripod	1/4-20UNC x1
  Mountable Angle	< ±15°
  Ceiling Mount	Yes
  Supplied Accessories
  Accessories	AC power adaptor, IR Remote Commander Unit, Ceiling bracket x2, Wire rope, Screw M3 x 8, Screw M2.6 x 6 BLACK, HDMI cable fixing plate, Safety regulation, Download site information, Warranty
