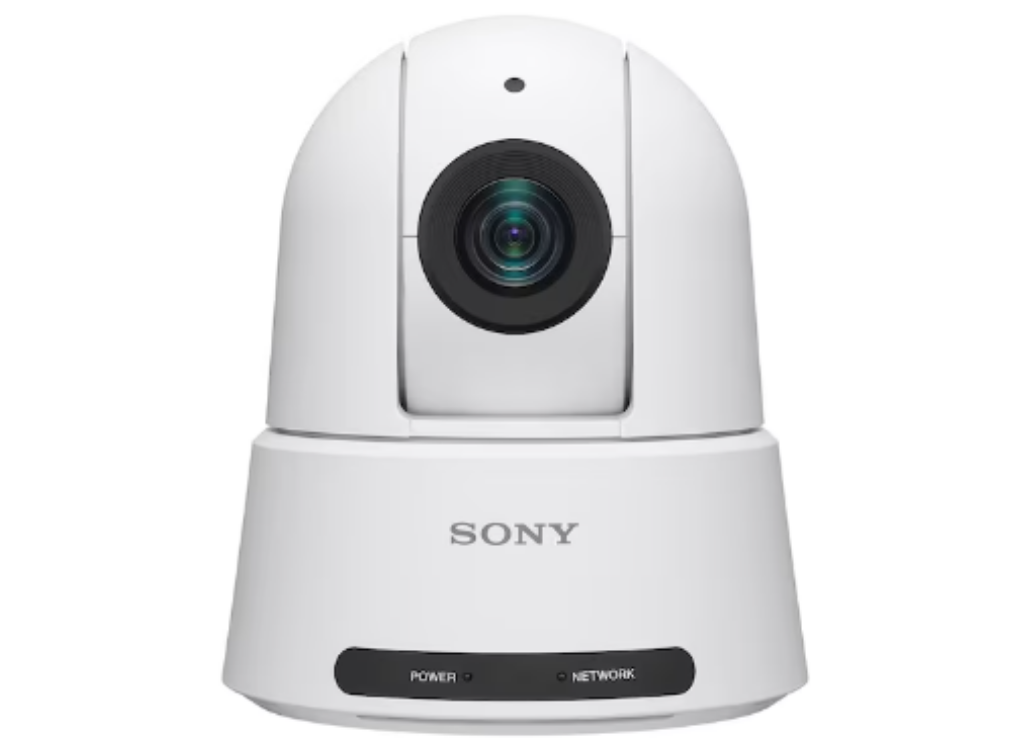

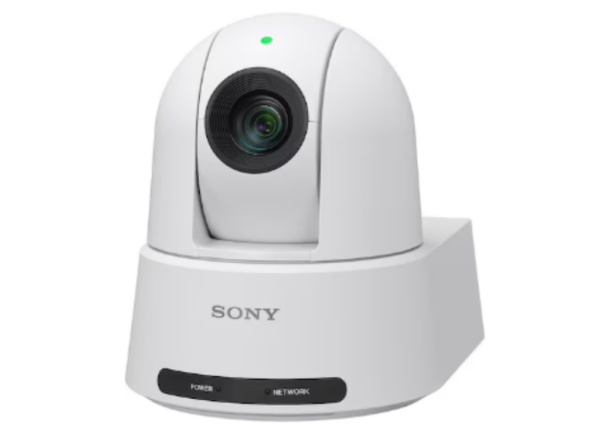

Sony SRG-A40WC 4K PTZ Auto Framing Camera

• Description
• Specifications

• Sony SRG-A40WC 4K PTZ Auto Framing Camera

  A Camera that Automatically and Naturally Shoots Video for you
  With the advanced PTZ Auto Framing feature, the camera automatically track the target in a comfortable viewing with smooth Pan-Tilt-Zoom movement regardless of posture, movement and what one is wearing.

  Since the camera does most of the work automatically, the operator can spend its time efficiently.


  PTZ Auto Framing with built-in AI analytics
  This camera harnesses powerful AI-powered video analytics that can automatically detect and track the position of a presenter within the camera frame. As the presenter moves, the camera’s pan/tilt/zoom mechanism ensures that the presenter is always framed naturally, without the need for a human camera operator to manually follow their movements.

  Automatically and reliably shoots video for you
  With Sony’s newly developed AI analytics algorithm, it detects the subject’s skeleton and head position and matches the subject’s detail features even when there are several people in the frame. It achieves accurate framing and consistent tracking.


  Choice from three shooting modes
  The camera has a choice of three shooting modes; Full body, Waist, and Close up. In each mode, you can adjust picture composition (size, up & down, and left & right) and the SRG-A40 and SRG-A12 can automatically track and keep the subject in the selected optimal position.


  Full Body


  Waist


  Close-up

  Integrated tally lamp
  The SRG-A40 and SRG-A12 feature a built-in tally lamp, just like you’d find on professional studio cameras. The lamp illuminates to give presenters visual confirmation of shooting status, or to show that PTZ Auto Framing mode is active. The lamp colour will change from Red (On Air) to Green (PTZ Auto Framing ON).

• Feature	Details
  Camera
  Image Sensor	1/2.5 type ExmorR CMOS
  Image Sensor (Number of Effective Pixels)	Approx. 8.5M pixels
  Signal System	2160/29.97p, 25p, 23.98p; 1080/59.94p, 50p, 29.97p, 25p, 23.98p; 1080/59.94i, 50i; 720/59.94p, 50p
  4K Capability	Yes
  Minimum Illumination (50IRE)	1.6 lux (1/30s 50IRE F2 high-sensitivity OFF)
  Horizontal Resolution	1700 TV lines (Center)(4K), 1000 TV lines or higher (Center)(FHD)
  Gain	Auto/Manual (0 to +48 dB), High Sensitivity On
  Shutter Speed	1/1 to 1/10000 sec (59.94 Hz system); 1/1 to 1/10000 sec (23.98 Hz system); 1/1 to 1/10000 sec (50Hz system)
  Exposure Control	Auto/Manual/Priority AE (Shutter, Iris)
  White Balance	Auto1/Auto2/One Push WB/Indoor/Outdoor/Manual
  Zoom Capability	30x (4K with CIZ), 40x (HD with CIZ), Max. 80x (HD with CIZ and Tele Convert Mode) *CIZ = Clear Image Zoom
  Focusing System	Auto/Manual
  Horizontal Viewing Angle	Approx. 70.0 degree (Wide)
  Focal Length	f = 4.4 mm (Wide) to 88.0 mm (Tele)
  F-number	F2.0 to F3.8
  Minimum Object Distance	80 mm (Wide) – 800 mm (Tele)
  Pan/Tilt Angle	Pan: ±170°, Tilt: +90°/-20°
  Pan/Tilt Speed (Max.)	Pan: 300 degrees/sec, Tilt: 126 degrees/sec
  Pan/Tilt Speed	Pan: 1.1° to 101°/s, Tilt: 1.1° to 91°/s
  Pan/Tilt Speed (Slow)	Pan: 0.5° to 60°/s, Tilt: 0.5° to 60°/s
  Pan/Tilt Slow Mode	Yes
  Pan/Tilt Operation Noise	NC30 or less (*4) (*4) Sony measurement conditions
  Preset Position	256 (CGI), 100 (VISCA)
  Picture Freeze Preset	Yes
  PTZ Motion Sync	Yes
  Network
  IP Video Resolution	3840×2160, 1920×1080, 1280×720, 640×360
  Compression Format	H.264: High/Main/Baseline Profile; H.265: Main Profile
  Maximum Frame Rate	H.264: 60fps; H.265: 60fps
  Bitrate Compression Mode	CBR/VBR (selectable)
  Range of Bitrate Setting	512Kbps~50 Mbps
  Multi Streaming Capability	3
  Maximum Number of Clients	5
  Protocols	IPv4, IPv6, TCP, UDP, ARP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP/RTCP, RTSP, VISCA over IP, SRT
  **NDI	HX Capability**
  Camera Features
  Auto ICR (Auto mode of IR Cut Filter Removal)	Yes
  Day/Night	Yes
  Visibility Enhancer	Yes
  Image Stabilizer	Yes
  Image Flip	Yes
  Picture Setting File	Yes
  Flicker Cancel	On/Off
  Hide OSD Menu	On/Off
  Standby Mode	Yes
  Remote Standby	Yes
  PTZ Auto Framing	Yes
  Web UI	Ver Up
  Languages	Japanese, English, French, Spanish, German, Italian, Chinese, Traditional Chinese, Korean, Portuguese, Russian, Polish, Hindi, Turkish
  OS and Browser	Windows 11 64-bit w/ Chrome, Windows 10 64-bit w/ Chrome, Windows 11 64-bit w/ Edge, Windows 10 64-bit w/ Edge, macOS 11 w/ Chrome, macOS 12 w/ Chrome
  Audio
  Channel	2ch
  Audio Codec	AAC LC 128kbps/ST (IP); AAC LC 256kbps/ST (IP)
  Setting Option	Auto level control: On/Off, Equalizer: Off/Low cut/Voice enhancement, Input selection: Microphone/Line, Mic volume: -10~+10 (21 steps)
  Embedded Audio in Baseband Video	Yes (3G-SDI, HDMI)
  Embedded Audio in IP Streaming	Yes

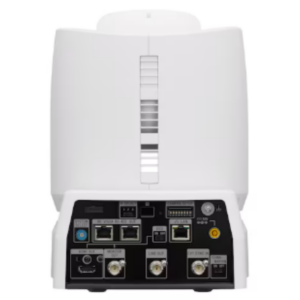

  Interface
  4K Video Output	HDMI x1, IP (streaming) x1
  HD Video Output	3G-SDI x1, HDMI x1, IP (streaming) x1
  SD Video Output	IP (streaming) x1
  Remote Video Format Switching	Yes
  HDMI Color Space	YCbCr, 4:2:2 8bit; RGB, 4:4:4 8bit
  Camera Control Interface	VISCA RS-422 RJ45 (In/Out); VISCA over IP RJ45
  IR Remote Control	Yes
  Microphone Input	Stereo Mini-phone (φ3.5mm) x1 (Mic/Line Selectable)
  Sync. System	INT
  Tally	Front x 1, Red/Green (for PTZ Auto Framing)
  Power Connector Type	IEC60130-10 (JEITA standard RC-5320A) Type5
  General
  Power Requirements	DC 19.5V, PoE++ (IEEE802.3bt type4 class8)
  Power Consumption	DC 19.5V: 80W; PoE++: 71.3W
  Operating Temperature	0 °C to 40 °C, 32 °F to 104 °F
  Storage Temperature	-20 °C to +60 °C, -4 °F to +140 °F
  Dimensions (W x H x D)	156.7 x 184.0 x 200.0 mm, 6 1/4 x 7 1/4 x 7 7/8 inch (*3: The values for dimensions are approximate)
  Mass	Approx. 2.0 kg, Approx. 4 lb 6.5 oz
  Body Color	White/Black
  Size of Screw Hole for Tripod	1/4-20UNC x1
  Mountable Angle	< ±15°
  Ceiling Mount	Yes
  Supplied Accessories	AC power adaptor (1); IR Remote Commander Unit (1); Ceiling bracket (2); Wire rope (1); Screw M3 x8 (9); Screw M2.6 x6 BLACK (1); HDMI cable fixing plate (1); Safety regulation (1); Download site information (1); Warranty (1)
