Socket Mobile DuraSled DS840 Modular Barcode Scanner – Plug-in Card Connectivity | CX3598-2249

• Description
• Specifications

• Socket Mobile DuraSled DS840 Modular Barcode Scanner – Plug-in Card Connectivity | CX3598-2249

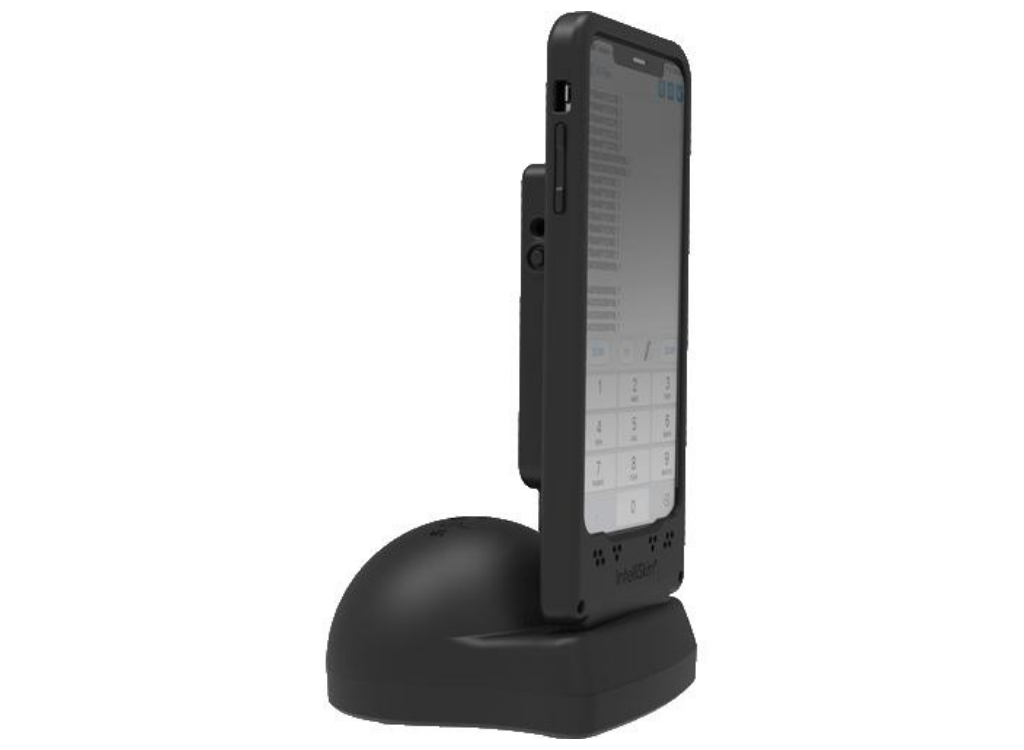

  The DuraSled™ DS840 is a universal barcode scanning sled for 1D/2D barcodes, with Bluetooth® wireless technology for Apple iPhones and iPods. The DuraSled reads printed or on-screen barcodes. It is easy-to-use and ideal for delivery services, asset tracking, ticketing, and other application-driven mobile solutions. Its rugged case protects phones from drop damage and provides a robust, versatile charging solution suitable for all workplace environments. Simply insert your iPhone/iPod, pair your scanner and you are ready to go. DuraSled supports iPhone 6, 7, 8, iPhone X series, SE 2020, and the entire iPhone 11 and 12 series. This makes it easy for workers to mix and match DuraSled™ solutions for iPhones, all while using the same accessories and application. The core components don’t change when switching to a new iPhone model, enabling users to maintain their mobile deployment investments for a relevant number of years.

  The Capture SDK enables easy integration into native, and/or web-based applications that use scanning to enhance the productivity of workers using iPhones.

  Certified by Apple® for iOS devices (iPad®, iPhone®, iPod Touch® devices).

  Bluetooth Wireless Technology – Connects easily to iPhone or iPod Bluetooth devices

  Compatibility – Certified by Apple® for iOS devices to assure compatibility. Supports HID keyboard emulation to work with any application out of the box. Socket Mobile’s SDK is integrated in over 700+ applications, and our scanners are one of the most natively integrated scanners available. With Socket Mobile’s SM Keyboard, enjoy rapid reliable barcode scanning without needing to switch between modes.

  Scanning – Fast 2D, 1D and omni-directional ability, allowing intuitively rapid barcode scanning with highly visible and safe LED aimer

  LED Aimer – Bright, rectangular illumination field with LED dot for precise aiming

  Scanner Feedback – Scanner provides audible scan tones, hand pulsation and Bluetooth indicators

  Long Lasting Replaceable Battery – Power to last over 9 hours and battery is field replaceable

  One-Handed Operation – Insert the iPhone/iPod for a one-handed scanning solution

  Interchangeable Scanner – Barcode scanner can be used separately, attached to a different iPhone/iPod, or inserted into any model DuraSled (Case Only)

  Protective material – Elastomeric (rubber) case protects both the Apple device and scanner

  Integrates connectors from both devices directly into the case for dual charging

  Features magnetic contacts for ease of docking

  Application Integration – Socket Mobile’s Capture SDK enables easy integration in your
  applications to improve business productivity with fast, efficient, and reliable data transfer over Bluetooth wireless technology

  Designed and made in USA

• Attribute	Details
  Host Interface	USB
  Bluetooth	Yes
  Weight (Approximate)	87.3 g
  Form Factor	Modular
  Length	137.2 mm
  Height	17 mm
  Width	61 mm
  Barcode Symbology Supported (1D)	Codabar, Code 39, Code 93, Code 128, EAN-13/JAN 13, EAN-8/JAN 8, GS1 Databar, GS1 Databar Expanded, GS1 Databar Limited, GS1-128, Interleaved 2 of 5, ISBT 128, UPC-A, UPC-E, UPC-E1, Bookland EAN, Chinese 2 of 5, Code 11, Composite CC-A/B, Composite CC-C, Composite TLC-39, Discrete 2 of 5, Inverse 1D, ISSN EAN, Matrix 2 of 5, MSI
  Barcode Symbology Supported (2D)	Aztec, Data Matrix, Maxicode, Micro QR Code, Micro PDF417, PDF417, QR Code, Han Xin
  Postal Codes Supported	USPS 4CB/One Code/Intelligent Mail, Australia Post, Japan Postal, Netherlands KIX Code, UK Postal, UPU FICS Postal, US Planet, US Postnet
  Connectivity Technology	Plug-in Card
  Scanning Distance	495.30 mm
  Image Sensor Type	Imager
  Cable Type Included	USB
  Scanning Capability	1D, 2D
  Product Type	Barcode Scanner
  Manufacturer Part Number	CX3598-2249
  Manufacturer	Socket Mobile, Inc
  Product Model	DS840
  Product Name	DuraSled DS840 Universal Barcode Scanning Sled for iPod & Charging Dock
  Product Line	DuraSled
  Product Series	800
  Brand Name	Socket Mobile
