Smart Board SBID-MX286-V4-PW 86″ 4K UHD Interactive Display With Smart Meeting Pro
- Description
- Specifications
- Downloads
-

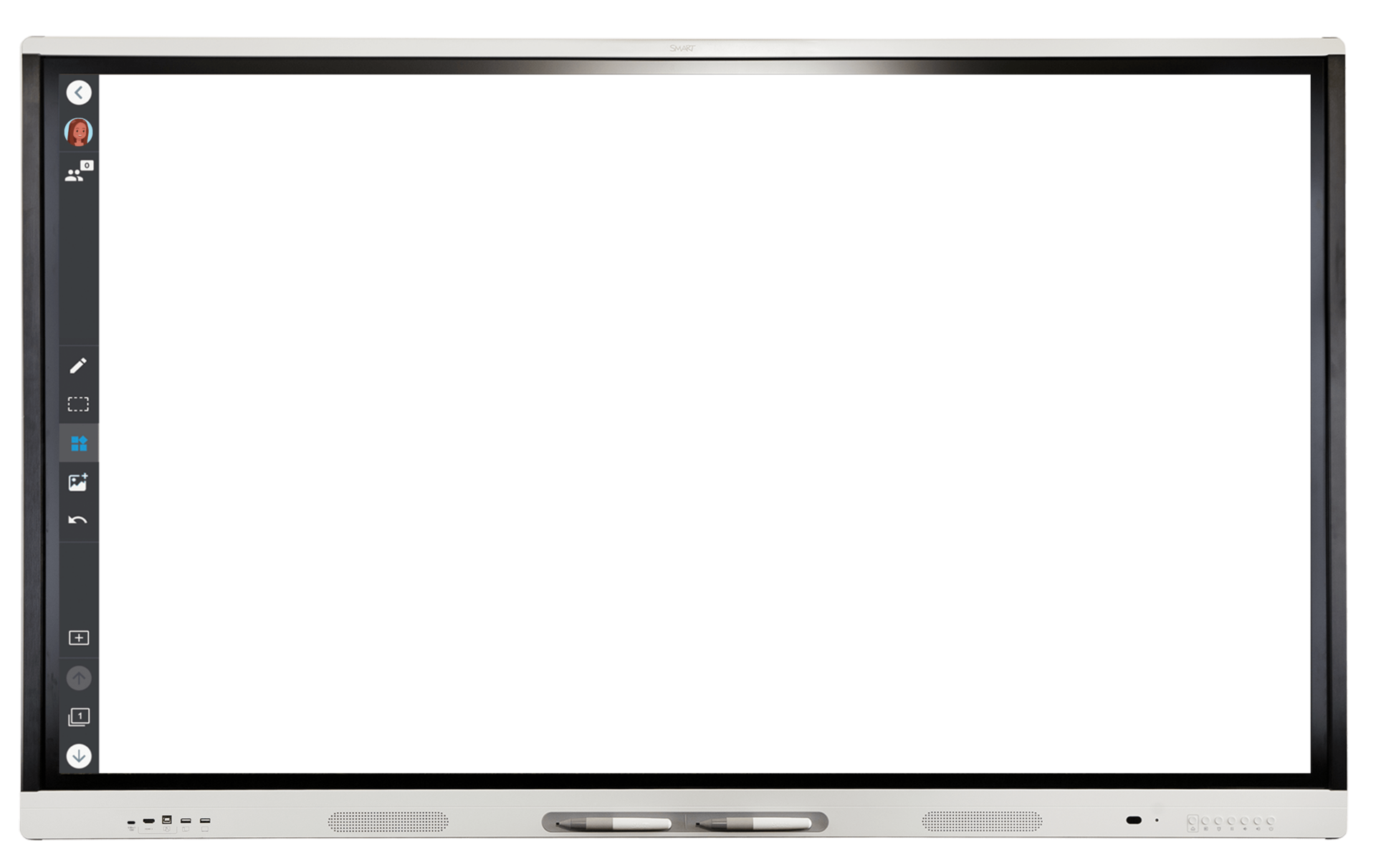

Smart Board SBID-MX286-V4 86″ 4K UHD Interactive Display With Smart Meeting Pro
The versatile, all-in-one display for visual collaboration
MX Pro series
The display that lets high-performance teams interact and collaborate from any location, anytime.The SMART Board® MX Pro series has all the interactive tools teams need to collaborate, co-create and drive decisions faster.
Interactivity made easy
The MX Pro series is designed with collaboration in mind and simple enough for even a first-time user to walk up and use from day one.The world leader in multi-user touch
Touch technology mastered
SMART makes the world’s ONLY interactive displays that allow multiple users to freely write, erase and gesture at the same time over any application.Don’t worry about figuring out the controls – the MX Pro series is smart enough to know the difference between your touch, gesture, pen and palm erase – without pressing a button.
The power of SMART Ink
Leave your mark – effortlessly
SMART Ink® software helps to keep ideas flowing and meetings dynamic. Simply pick up a pen and write into PDFs, Microsoft Office files, browsers and connected video sources.Plus, only SMART Ink lets you write and navigate at the same time without frustrating overlays. It really is as easy as putting pen to paper.
Bigger, better
Video conferencing
The MX Pro series boasts an integrated six element microphone array and combined 40W speakers for video conferencing with an immersive audio experience without connecting additional hardware .The MX Pro works with the SMART Ultra HD Camera 120, Logitech® and other UVC webcams, Microsoft Teams™, Zoom, Google Meet™, Webex and more to engage hybrid teams for effective collaboration.
Why SMART interactive displays are superior
Powered by Android 11

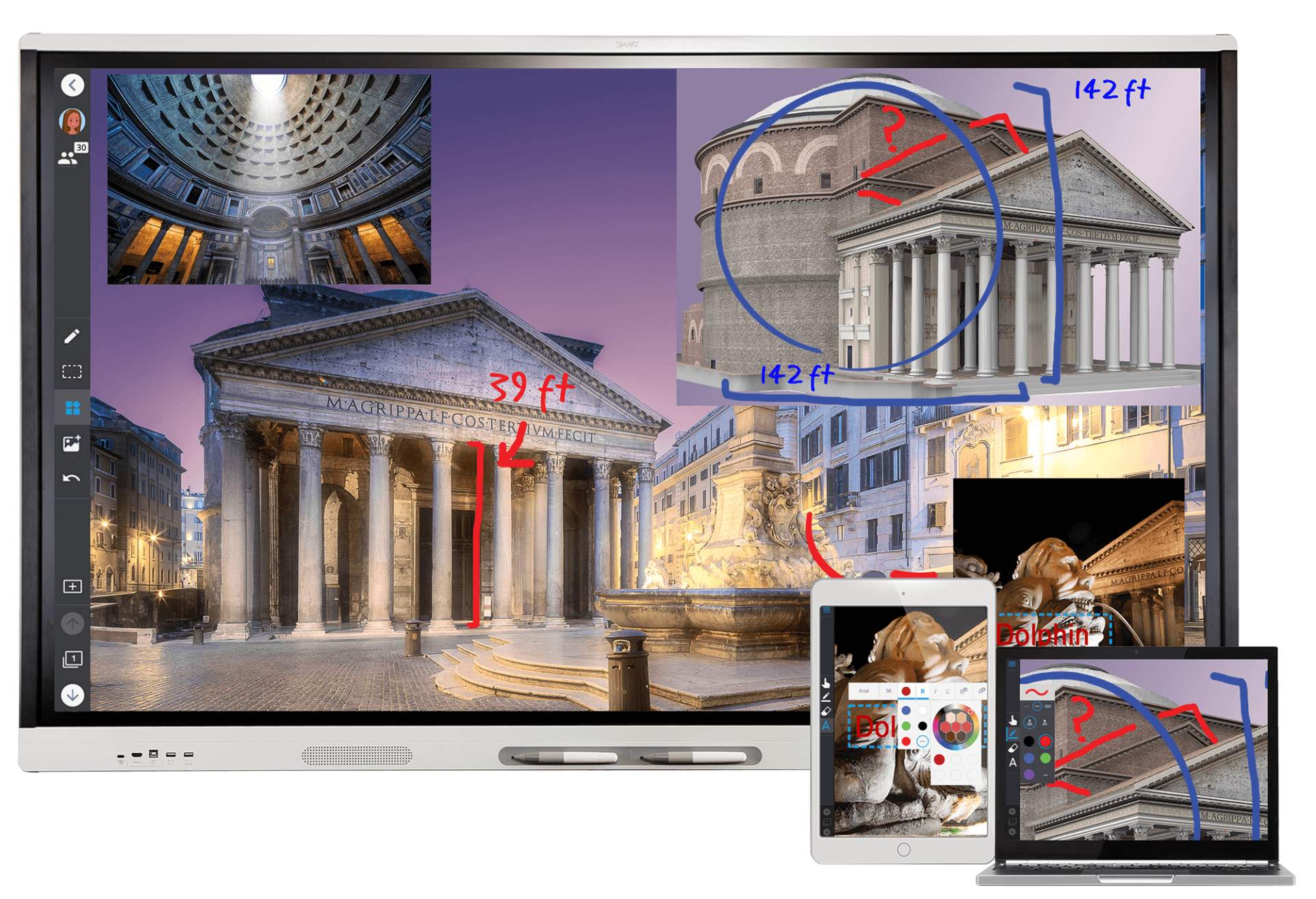

With a simple tap, switch from showing a video to writing and sharing on a digital collaborative whiteboard to keep ideas flowing.Works with any device
The MX Pro series works with popular iOS®, Windows® and Android™ devices, so you can easily collaborate, share screens and stream media using native casting, apps or a browser.Plug and Play with Windows Ink
Write and save editable annotations directly into Microsoft Office files – without installing any additional software or drivers.Two USB-C ports
Dual USB-C ports – supporting video, audio, touch and charging – make it easy for participants to interact and share with only one cord.HDMI pass through
Connect to additional displays for more collaboration space or project at any size with HDMI-out.Faster, louder, clearer
With Wi-Fi 6, 20W speakers, and zero-bonded glass for precise inking and clearer, crisper viewing from every angle -
Feature Specification Display Screen sizes (diagonal) 86″ Backlight LED Aspect ratio 16:9 Maximum display resolution 4K UHD (3840 x 2160) Refresh rate 60 Hz Lifespan ≥ 50,000 hours Brightness (maximum) ≥ 400 cd/m² Response time ≤ 8 ms Viewing angle 178° Glass Fully heat-tempered, anti-glare, bonded glass Frame Colour White Convenience buttons Home, power, volume, input select, screen shade, freeze frame Sensors Ambient light, infrared Audio Integrated speakers 2 x 20 W Integrated microphone array Yes (Linear six-microphone array) NFC Integrated RFID NFC reader/writer Yes (Support for ISO 14443A/B, ISO 15693, NFC Tag 1-4) Warranty Warranty 5 Year On-Site UK Mainland Interactive Experience Touch technology HyPr Touch™ with Advanced IR Typical response time ≤ 5 ms Frame rate ≥ 200 Hz Accuracy 1 mm Minimum object size 2 mm Multitouch capabilities 20 – Windows®, Mac, and Android™ 10 – Chrome OS™ Tools included Pens (x2) Tool holders Magnetic, frame-mounted Software Operating system Android version 11.0 Memory 8 GB DDR Storage 32 GB (Can be upgraded to 544 GB) Digital whiteboard Yes Web browser Yes Screen sharing Yes Other features Customizable home screen Live input preview File and app librariesGoogle Drive™ and OneDrive™ access PC Computing OPS support Yes OPS-C support Yes PC module power supported OPS 60 W Connectivity Wired RJ45 (x2) 1000baseT Wi-Fi IEEE 802.11ax (Wi-Fi 6) supporting various protocols Bluetooth 5.2 dual mode Power Power requirements 100V to 240V AC, 50 Hz to 60 Hz Power Consumption Typical 177 W Power Standby < 0.5 W Certification and Compliance EU / EEA / EFTA / UK CE, UKCA, LVD, CB, EMCD, RED, REACH, RoHS, Battery, WEEE, Packaging, POP, Ecodesign Installation, Dimensions, & Weights Weight 68 Kg Dimensions 1,982 x 1,119 x 79 mm VESA mount 800 x 600 mm Carrying Handles 4 Cable Requirements HDMI Certified premium high speed HDMI (18 Gbps) Maximum length: 7 m (23′) USB 2.0 Certified Hi-Speed (480 Mbps) support Maximum length: 5 m (16′) USB 3.0 Certified SuperSpeed (5 Gbps) support Maximum length: 3 m (9′) USB Type-C Certified SuperSpeed (5 Gbps) support Maximum length: 2 m (6′) -
Description Downloads Smart Board SBID-MX286-V4 86″ 4K UHD Interactive Display DataSheet Downloads
