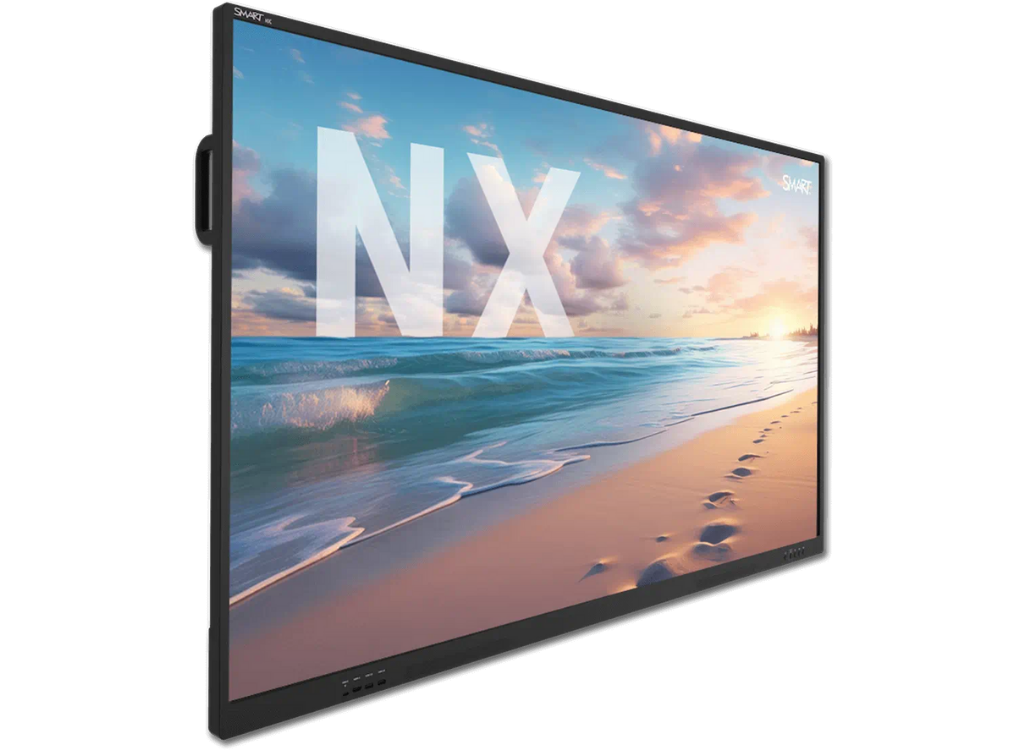

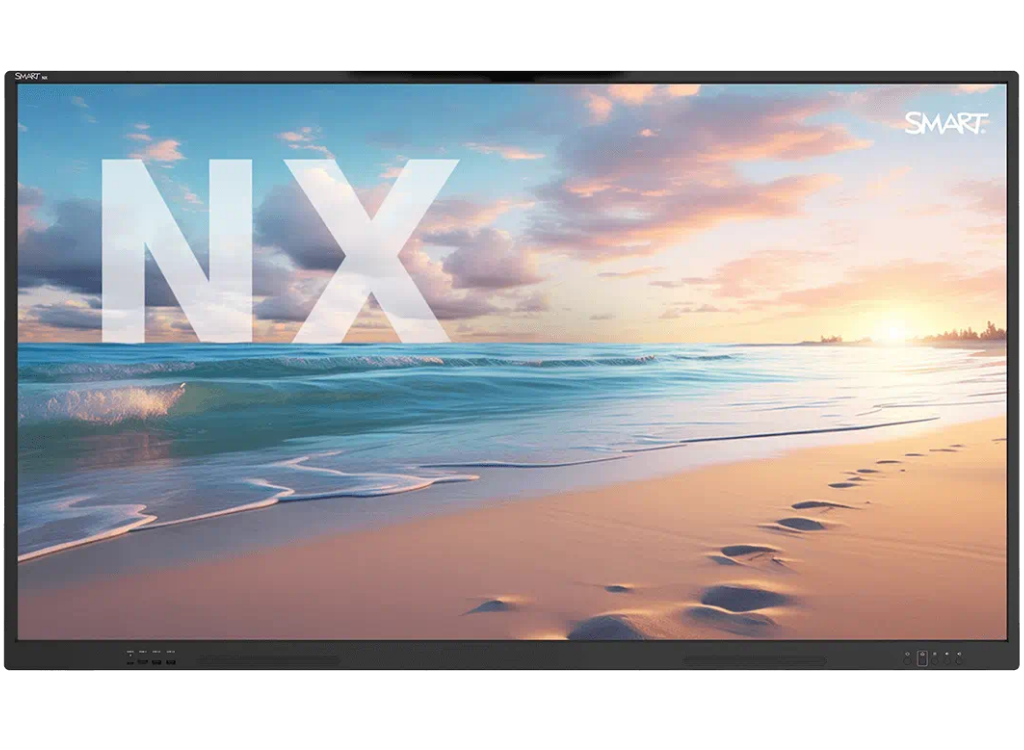

Smart Board NX Series NX175-5A 75″ 4K UHD Non-Interactive Display With Screen Sharing

• Description
• Specifications
• Downloads

• Smart Board NX Series NX175-5A 75″ 4K UHD Non-Interactive Display With Screen Sharing

  NX series
  Make screen sharing simple
  Share content quickly from any device, enable dual-screen setups for video meetings, and provide digital signage for your organization with the SMART Board® NX series non-interactive display.

  Launch meetings easily and share content smoothly across devices
  Enjoy quick setup, high-resolution screen sharing, and the renowned performance and reliability that SMART is known for.


  Available in 65”, 75”, 86”


  Share content with ease
  Intuitive functionality: share content with the NX series while keeping your interactive display free to present, curate, and collaborate from.

  Have a meeting space that doesn’t require interactivity? The NX series can be deployed as a reliable standalone display too.


  Ready for any Microsoft Teams Room
  Start, host, and conduct meetings with a dual-screen setup without fuss. Pair the NX series with any SMART interactive display to bring a new level of engagement to your conference room or Microsoft Teams Room deployment.


  Digital signage made simple
  Need a reliable solution to display digital content in reception areas and public spaces? The NX series is a high-quality and durable display that comes with SMART Mirror screen sharing, a physical remote with air-mouse capabilities, and optional SMART Remote Management software.

• Category	Details
  Display
  Screen sizes (diagonal)	65″, 75″, 86″
  Backlight	LED
  Aspect ratio	16:9
  Maximum display resolution	4K UHD (3840 × 2160)
  Refresh rate	60 Hz
  Lifespan	≥ 50,000 hours
  Brightness	400 cd/m²
  Display response time	≤ 8 ms
  Viewing angle	178°
  Glass	Full heat-tempered, Anti-glare, Bonded
  Frame color	Black
  Audio and Sensors
  Sensors	Ambient light, Infrared
  Audio	2 integrated 20W speakers with high fidelity audio
  Interactive Experience
  Touch technology	Advanced infrared
  Touch features	Simultaneous tool differentiation, Object Awareness™, Silktouch™
  Typical touch response time	≤ 8 ms
  Frame rate	≥ 125 Hz
  Accuracy	1 mm
  Minimum object size	2 mm
  Multitouch capabilities	40 – Windows®, 20 – Mac, 10 – Chrome OS™
  Software and Connectivity
  Operating system	Embedded Android OS version 13.04
  Inputs	HDMI® 2.0, VGA, USB Type-C, etc.
  Outputs	HDMI 2.0, Stereo 3.5 mm, S/PDIF optical, RJ45
  Power and Environment
  Power requirements	100V to 240V AC, 50 Hz to 60 Hz
  Operating temperature	32–104°F (0–40°C)
  Storage temperature	14–140°F (-10–60°C)
  Humidity	20–80% relative humidity, non-condensing
  Power consumption	Typical: 65″: 79 W, 75″: 88 W, 86″: 119 W; Standby: <0.5 W
  Certification and Compliance
  Regulatory models	IDGX65-2, IDGX75-2, IDGX86-2
  Compliance	ENERGY STAR®, HDMI, HDCP
