Shogun ultra universal arcade advanced JAMMA supergun BBS | BeharBros

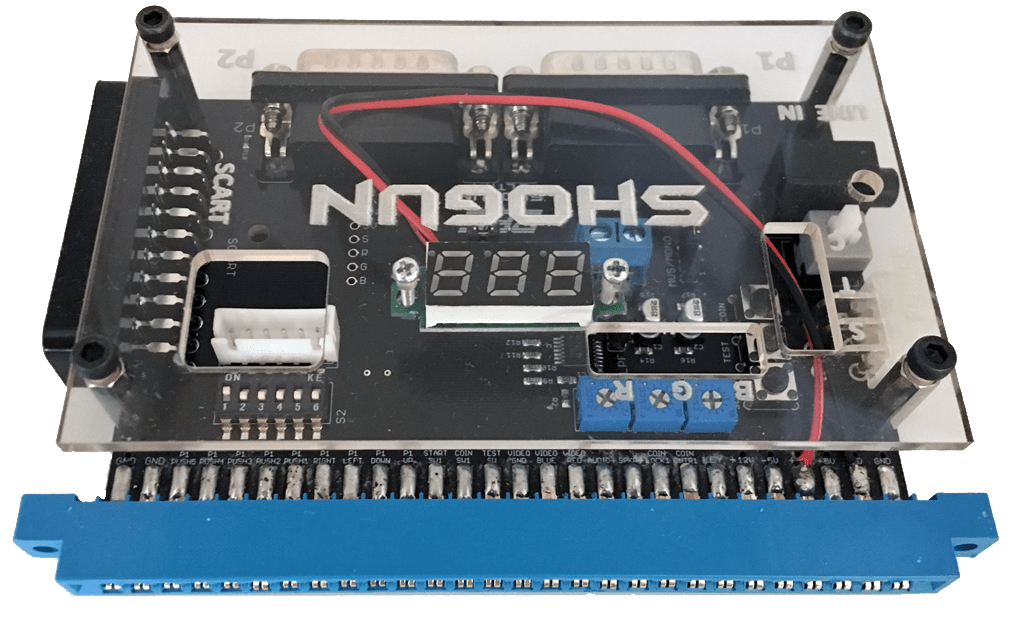

Shogun Ultra is an advanced supergun which can be used with commonly found JAMMA based arcade boards and contemporary Chinese boards.
– Impedance matching, amplified RGB video output by using the renowned THS7374 video amplifier chip…
- Individual potentiometers for calibrating the RGB color levels
– Includes a low-pass filter that can be enabled or disabled.
– Euro Scart connector for audio/video output.
– Kick Harness connector
– Dipswitch for enabling the Buttons 4,5 and 6 from the Jamma or Kick Harness.
– 2 types of Sync mode is selectable with a jumper: attenuated and buffered by THS7374 or Scmitt trigger
– Built-in audio attenuator.
– Line level audio input from terminal jack or 3.5mm Headphone jack
– Stereo audio output, selectable audio source, attenuated MVS or Line In
– MVS/Mono switch
– 2x Neo Geo (DB15) controller ports with all 6 buttons wired (can be used with CPS, Atomiswave and Chamma boards like Pandora).
– LCD Voltmeter for the 5v input.
– Test, Service and Coin1 push-buttons.
– Blue power led.
– OSSC safe.

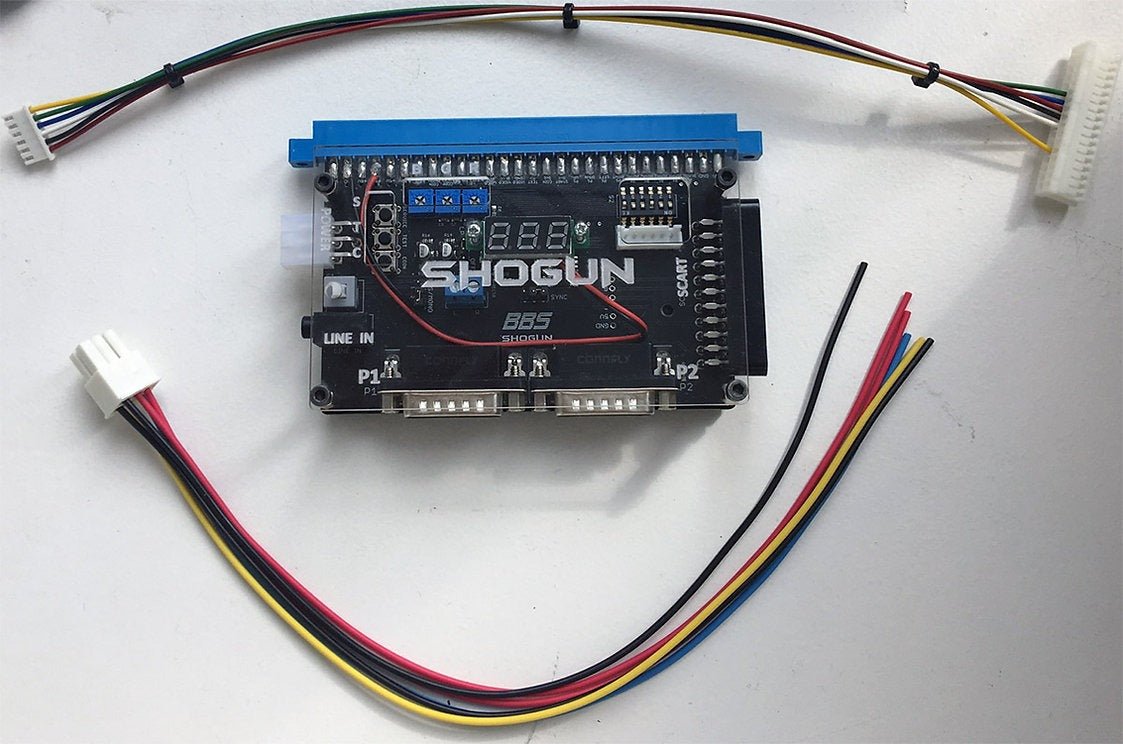

– Package includes
1. a high quality custom power cable with 6 pin Mini Fit Jr. connector (2xGND, 2x5V, 1x12v, 1x-5V)
2. a custom made Kick Harness for the CPS2/CPS3 boards.

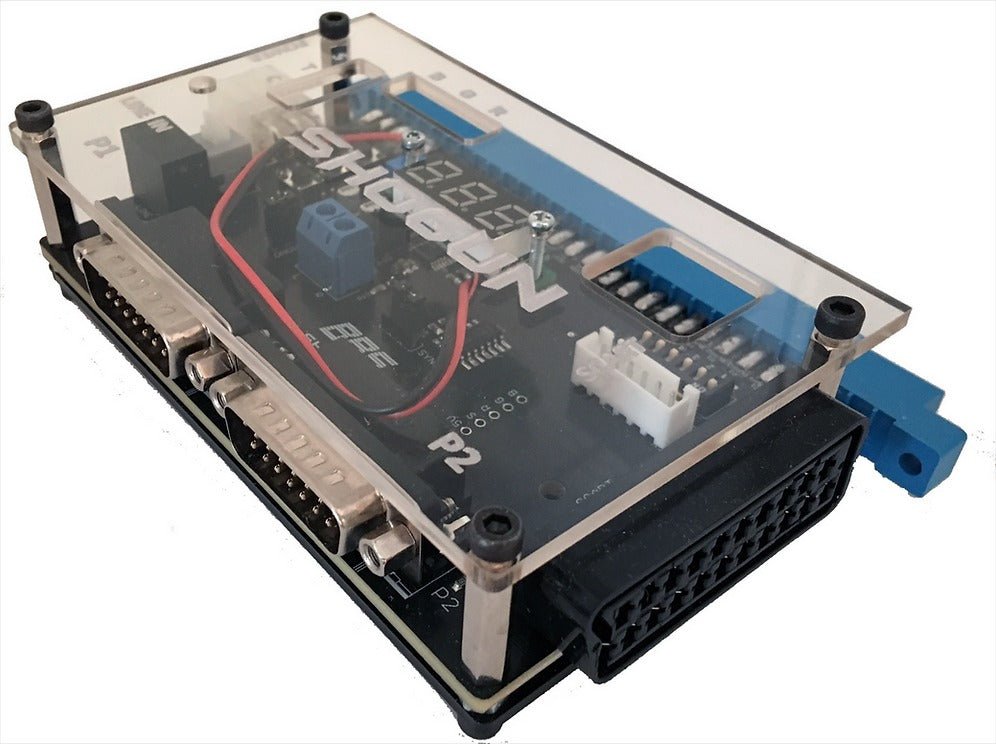

3. a custom designed, transparent, 3mm, laser etched, plexiglass shell.
