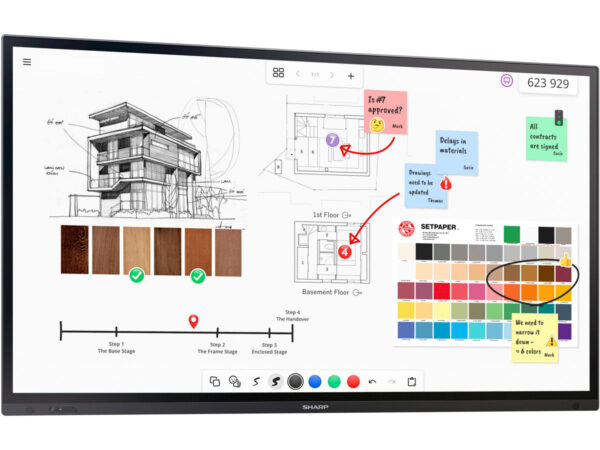

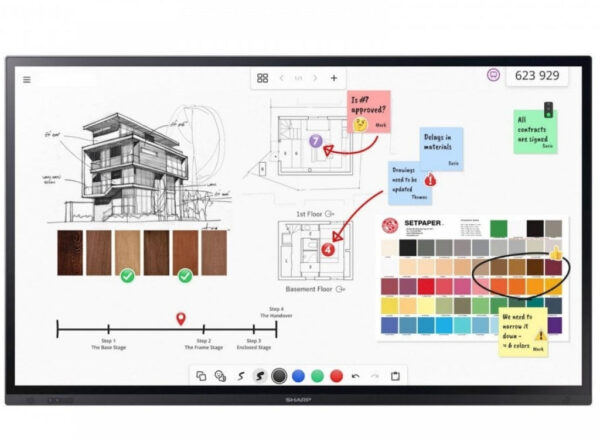

Sharp PN-LA752/60005933 75” 4K UHD Smart InGlass™ Touch Display
The Sharp PN-LA752 / 60005933 InGlass M5 interactive touch display bringing advanced professional functionality to Enterprise users. Sharp/NEC LA series safeguards the highest IT security standards whilst supporting maximum choice and flexibility. An Intel™ SDM slot expands the display’s customisable capability allowing safe and seamless integration into corporate IT systems, or benefit from pre-installed functionality including Sharp Meeting Launcher for quick access to your favourite apps and VC platforms, FlatFrog Board collaborative whiteboarding software, and AirServer™ for wireless screen sharing.
Featuring InGlass™ M5 premium touch technology, users benefit from the most natural writing experience and advanced interactive functionality. The high brightness output, high haze panel and premium glass coating delivers best readability in well-lit meeting rooms, without distraction from reflections, glare or fingerprints.
The LA series supports orientation any which way, including face up, allowing table-top, tilted desk or multi-board side-by-side installations for up to three displays. Users can connect their own notebook, safely and securely via a USB-C connection, providing best versatility in hybrid meetings and spontaneous collaborative interactions.
The LA series integrates elegantly and seamlessly into high-end meeting rooms and boardrooms providing trusted long-life performance whilst making minimal energy demands.
Highlights of the Sharp PN-LA752 75” 4K Smart InGlass™ Touch Display
Most natural writing experience – InGlass™ M5 premium touch system supports patented pressure sensitivity using passive pens as well as Windows Ink and palm rejection.
Secure by design – the non-Android platform with additional security features meets the highest IT security standards.
Optional Windows based Intel SDM slot-in PC – driving unlimited versatility with powerful integrated computing. Includes Sharp’s Meeting Launcher for quick and easy access to your apps offering a secure and locked environment.
Increase your productivity – benefit from a free one-year license for FlatFrog Board for Rooms. FlatFrog Board whiteboard software makes hybrid work easy and productive for everyone.
Energy efficiency – built-in functionality including an ambient light sensor, human presence detection and eco modes help to reduce power consumption. -
Feature Specification Display Panel Technology IPS with Direct LED backlights Screen Size (inch/cm) 75 / 189.3 Aspect Ratio 16:9 Brightness (cd/m²) 500 (LCD panel without glass); 450 (product) Contrast Ratio (typ.) 1200:1 Viewing Angle (°) 178 horizontal / 178 vertical (typ. at contrast ratio 10:1) Colour Depth (bn) 1.073 (10bit) Response Time (typ.) (ms) 8 Panel Refresh Rate (Hz) 60 Supported Orientation Face Up*; Landscape; Portrait Touch Touch Technology InGlass™ M5 Number of Touches Real multi-touch up to 20 touches Response Time (ms) ≤ 15 Touch Method Finger; Gloves; Stylus (≥ 2 mm) Supported Operating System Native Multi-Touch: Windows 7, Windows 8, Windows 10, Linux, Android; Default Mouse: Windows XP, Windows Vista, Mac OS X Data Interface USB-HID Accuracy (mm) < 1 Windows Ink yes Palm Rejection yes Pressure Sensitivity yes Glass Type Premium toughened glass, anti-glare coating; Zero Bonding Thickness (mm) 3 Haze Level (%) 4 ˜ 8 Hardness (H) ≥ 8 Resolution Native 3840 x 2160 Supported Resolutions See specification Horizontal Frequency (kHz) 15 – 135 Vertical Frequency (Hz) 23 – 76 Input Video Digital 1 x DisplayPort (with HDCP); 1 x USB-C (with HDCP, 65 W); 2 x HDMI (with HDCP) Input Audio Digital 1 x DisplayPort; 2 x HDMI Input Control LAN 100Mbit; RS232 Input Data 1 x USB 2.0 (Powered 5V/2A, Firmware Updates); 1 x USB 2.0 Type-B (Downstream); 2 x USB 2.0 (Downstream) Output Audio Analogue 1 x 3,5 mm jack Output Control 1 x LAN 100Mbit Input Detect Custom; First; Last PiP/PbP Dual-Split; Quad-Split; scalable picture size Intel® SDM accepts Intel® Smart Display Modules Large and Small up to 66 W Compute Module Slot RPi Compute Module 4 Ambient Light Sensor Integrated, triggered actions programmable Temperature Sensor Integrated, 3 sensors, triggered actions programmable Presence Sensor H angle left: 60°, H angle right: 60°, Distance: 3.6 m Power Consumption (W) 205; 0.5; < 2 (Networked Standby) Power Management VESA DPMS Power Supply 100-240 V AC; 50/60 Hz; internal Operating Temperature (°C) +0 to +35 Operating Humidity (%) 20 to 80 Storage Humidity (%) 10 to 80 Storage Temperature (°C) -20 to 60 Dimensions (W x H x D) (mm) 1,720.1 x 1,025.9 x 86.5 Weight (kg) 56.5 Bezel Width (mm) 32.3 (bottom); 4.8 (left, right and top) VESA Mounting (mm) 4 holes; 600 x 400 (FDMI); M8 Ingress Protection IP6x (front); IP2x (back) Packaging Dimensions (W x H x D) (mm) 1,900 x 1,125 x 225 Packaging Weight (kg) 68 Material Metal Pre-installed Applications FlatFrog Board for Rooms (1 year) – free download Energy Efficiency LED backlight Ecological Standards EnergyStar 8.0 Special Characteristics DICOM Simulation; HDMI ARC; Powered USB Port (5 W) Safety and Ergonomics CE; EMC Class B; Energy Star 8; FCC Class B; PSB; RCM; RoHS; SASO; UL/C-UL Pixel Failure Class ISO 9241-307, Class 1 Audio Integrated Audio Amplifier (for optional speakers up to 2 x 15 W); Integrated Speakers (10 W + 10 W) Shipping Content 1x 300 cm USB Cable; 2 x Passive Stylus; 2x AAA batteries; Blank Sticker; Bracket for Camera; Bracket for Mini PC; Cable Clamps; Display; Power Cable; Remote Control; Setup Manual Warranty 3 years warranty incl. backlight Operating Hours 24/7 External Control Crestron V2; HDMI CEC; HTTP Browser; Scheduled Timer; SNMP Remote Management Automated Email Alerts; NEC NaViSet Administrator 2 Security Disable HW Buttons; Disable IR Functionality; Emergency Notification Resistance to Fire Metal backcover, plastic material certified acc. to UL94-5VB1 -
Description Downloads Sharp PN-LA752/60005933 75” 4K UHD Smart InGlass™ Touch Display DataSheet Downloads
