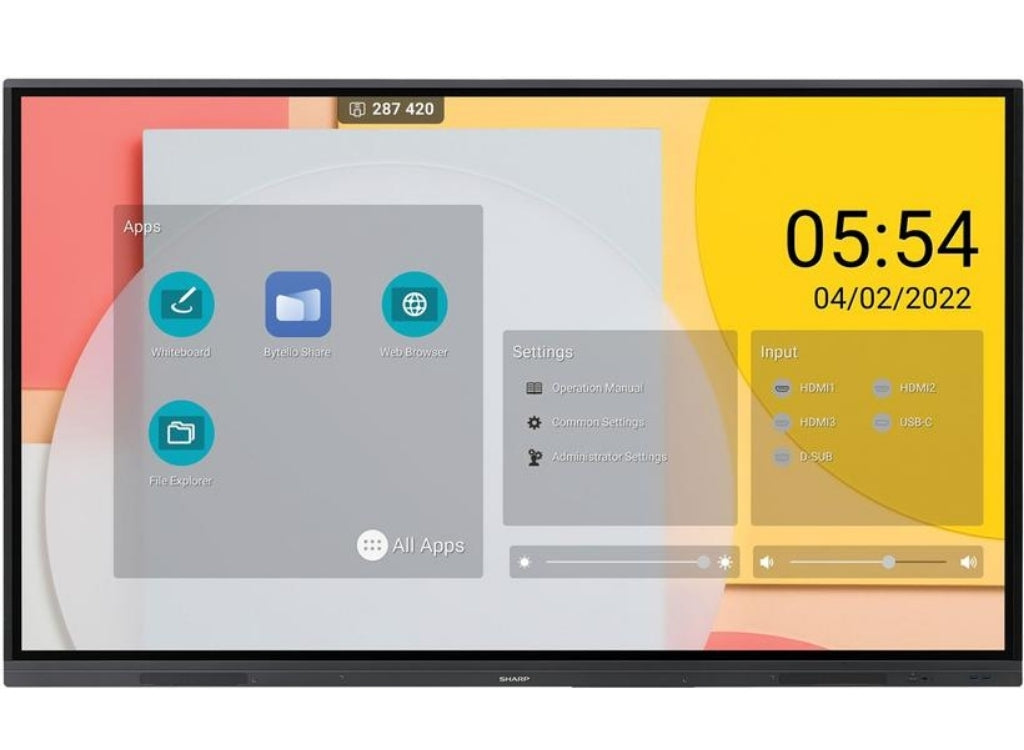

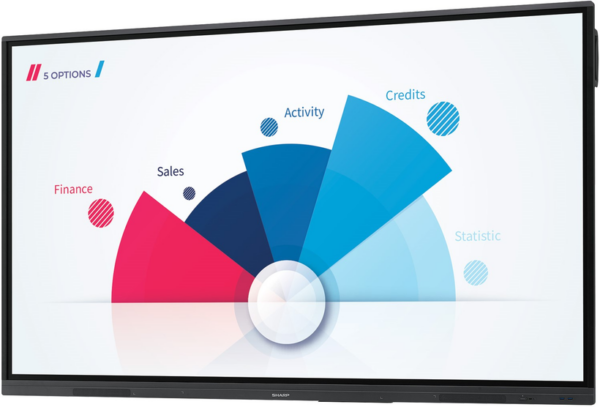

Sharp PN-L862B/60005559 86” 4K Smart Touch Display
Enjoy a more natural way of working
The BIG PAD L2B range of smart interactive displays combines genuine ‘4K reading and writing’ and an intuitive ‘Pen-on-Paper’ user experience with Zero Bonding and Sharp’s PrecisionTouch technology. The single USB-C connector makes it so simple to walk into a room, plug in your device and start working together straightaway. The L2B series also features an integrated Android PC with whiteboard, overlay writing mode and wireless screen sharing functionality as well as graded security to help enhance your productivity.The BIG PAD L2B series is the perfect choice for busy office environments, boardrooms, meeting rooms and training sessions that require quick responsive operation and smart integrated collaboration tools. It encourages effective group teamwork, promotes idea sharing and helps people deliver great presentations and achieve better meeting outcomes.
-
Category Details Display Panel Technology IPS with Direct LED backlights Screen Size 86″ / 217.4 cm Aspect Ratio 16:9 Brightness 350 cd/m² Contrast Ratio (typ.) 1200:1 Viewing Angle 178° / 178° (at contrast ratio > 10:1) Response Time (typ.) 8.5 ms Supported Orientation Landscape Glass Type Thermal-tempered, anti-glare coating; zero-bonding Thickness 3.4 mm Haze Level 3 ~ 8 Hardness ≥ 8 Resolution Native Resolution 3840 x 2160 Supported Resolutions See provided list Connectivity Input Video Analogue 1 x VGA Input Video Digital 1 x USB-C (with HDCP, 65 W); 3 x HDMI (with HDCP) Input Audio Analogue 1 x 3.5 mm jack Input Control LAN 100Mbit; RS232 Input Data 1 x USB 2.0 (Type-A); 2 x USB 3.0 (Type-B); 4 x USB 3.0 (Type-A) Output Audio Analogue 1 x 3.5 mm jack Output Control RS232 Open Modular Intelligence OPS Slot Slot Technology: Open pluggable specification (NEC / Intel OPS standard) OPS Max. Current / Power Consumption 3.25 A / 65 W Electrical Power Consumption Eco/max. 470 Eco (shipment setting), 470 W Power Savings Mode < 0.5 W Power Supply 100-240 V AC; 50/60 Hz Environmental Conditions Operating Temperature +5 to +35 °C Operating Humidity 20 to 80 % Mechanical Dimensions (W x H x D) 1,957 x 1,159.5 x 85.7 mm Weight 62.5 kg Bezel Width 16.8 mm (left, right and top); 45.7 mm (bottom) VESA Mounting 800 x 600 (FDMI); M8 Packaging Dimensions 2,112 x 1,283 x 280 mm Packaging Weight 84 kg Touch Touch Technology Precision Number of Touches Real multi-touch up to 20 touches Touch Method Finger; Gloves; Stylus dual pen tip (3mm/9mm) Data Interface USB-HID Palm Rejection No Windows Ink Yes Operating System Native Multi-Touch: Windows 8.1/10/11, Linux, Android 9.0 or higher, Chrome OS 87 or higher; Single Touch (Default Mouse): Mac OS 10.15/11/12 Embedded Computing Built-in Applications See provided list System Version Android 9.0 CPU Arm Cortex-A73 (Quad-Core) System Memory 4 GB RAM Internal Storage 32 GB ROM Bluetooth Bluetooth 5.0 compliant, supported protocols: A2DP, AVRCP, GATT, HID Wireless LAN WLAN IEEE802.11ac/n/a/b compliant Additional Features Safety and Ergonomics CE; FCC; RCM; REACH; RoHS; UL/C-UL Audio Integrated Speakers (10 W + 10 W) Shipping Content See provided list Warranty Warranty 3 years warranty incl. backlight Operating Hours 16/7 -
