Sharp PN-L652B/60005557 65” 4K UHD Smart Interactive Touchscreen Displays

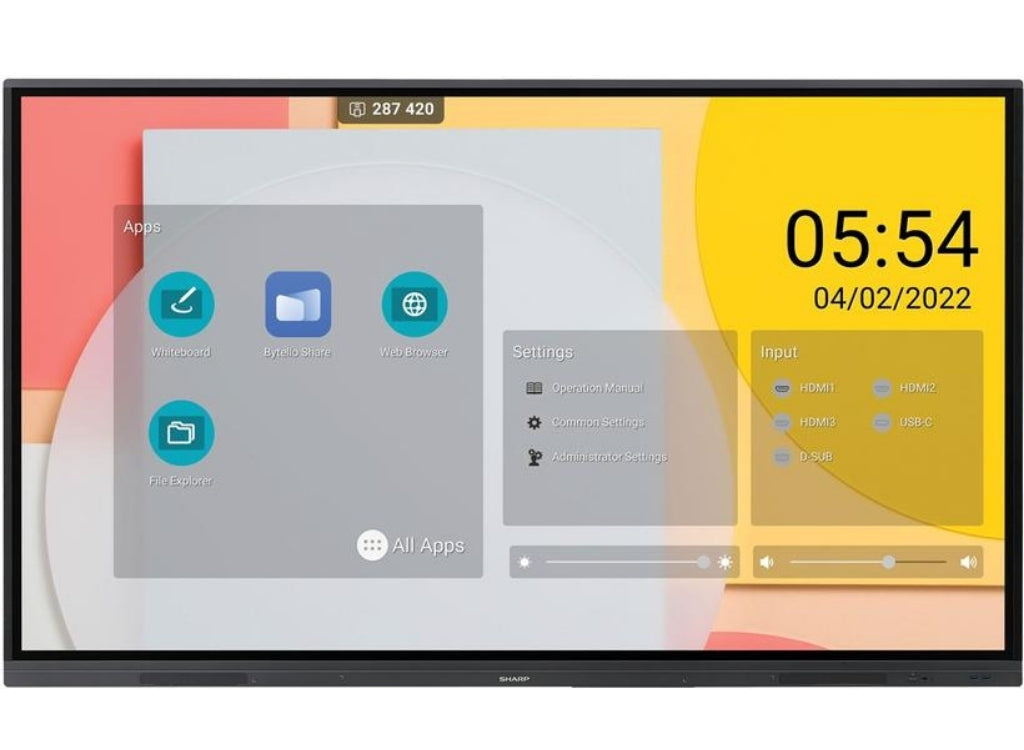

The Sharp BIG PAD PN-L652B / 60005557 smart interactive display combines genuine ‘4K reading and writing’ and an intuitive ‘Pen-on-Paper’ user experience with Zero Bonding and Sharp’s PrecisionTouch technology. The single USB-C connector makes it so simple to walk into a room, plug in your device and start working together straightaway. The Sharp BIG PAD PN-L652B / 60005557 also features an integrated Android PC with whiteboard, overlay writing mode and wireless screen sharing functionality as well as graded security to help enhance your productivity.
The Sharp BIG PAD PN-L652B / 60005557 is the perfect choice for busy office environments, boardrooms, meeting rooms and training sessions that require quick responsive operation and smart integrated collaboration tools. It encourages effective group teamwork, promotes idea sharing and helps people deliver great presentations and achieve better meeting outcomes.
Highlights of the Sharp PN-L652B 65” 4K Smart Infrared Precision Touch Display
Pen-On-Paper user experience – Zero Bonding and Sharp’s PrecisionTouch technology enable highly accurate and responsive writing and drawing with up to 20 touch points
Out-of-the-box collaboration – the integrated Android PC features a powerful home screen launcher offering fast and flexible access to a range of pre-installed applications

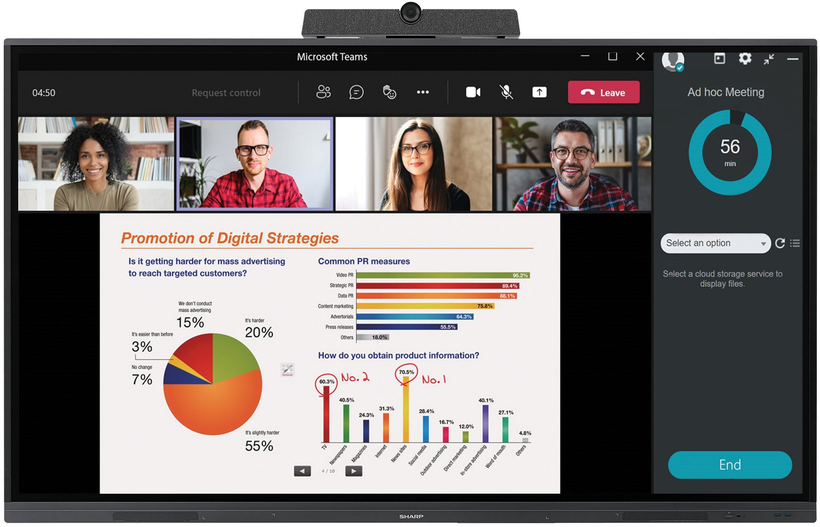

Latest BYOD wireless collaboration – wirelessly share content from any device via the integrated Android PC or utilise the OPS slot to extend the BIG PADs functionality with third-party add-ons and solutions
Maximum flexibility – provides exceptional freedom of use to meet the demands of even the most challenging corporate environments using USB-C, HDMI or VGA connectors
‘Secure by design’ – graded data security allows to adjust the level of security of the Android PC and maintain protection at the security level you need -
Category Details Product Information Product Name Sharp PN-L652B Product Group LCD 65″ Precision Touch Display Order Code 60005557 Display Panel Technology VA with Direct LED backlights Active Screen Area 1,428.5 x 803.5 mm (W x H) Screen Size 65″ / 163.9 cm Aspect Ratio 16:9 Brightness 400 cd/m² (without glass) Contrast Ratio 4000:1 Viewing Angle 178° / 178° (at contrast ratio > 10:1) Response Time 6.5 ms (typical) Supported Orientation Landscape; Portrait Touch Touch Technology Precision Number of Touches Real multi-touch up to 20 touches Touch Method Finger; Gloves; Stylus dual pen tip (3mm/9mm) Supported Operating System Windows 7, Windows 8, Windows 10, Linux, Android; Default Mouse: Windows XP, Windows Vista, Mac OS X Data Interface USB-HID Windows Ink Yes Palm Rejection No Glass Type Thermal-tempered, anti-glare coating; Zero Bonding Thickness 3.4 mm Haze Level 3 ~ 8% Hardness ≥ 8H Resolution Native Resolution 3840 x 2160 Supported Resolutions Various Connectivity Input Video Analogue 1 x VGA Input Video Digital 1 x USB-C (65W), 3 x HDMI (with HDCP) Input Audio Analogue 1 x 3.5 mm jack Input Control LAN 100Mbit; RS232 Input Data 1 x USB 2.0, 2 x USB 3.0, 4 x USB 3.0 (Type-A) Output Audio Analogue 1 x 3.5 mm jack Output Control RS232 Open Modular Intelligence OPS Slot Slot Technology: Open pluggable specification (NEC / Intel OPS standard) OPS Max. Current / Power Consumption 3.25A / 65W Electrical Power Consumption 165W Eco (shipment setting), 330W Power Savings Mode < 0.5W Power Supply 100-240 V AC; 50/60 Hz Environmental Conditions Operating Temperature +5°C to +35°C Operating Humidity 20% to 80% RH Mechanical Dimensions (W x H x D) 1,488.4 x 896.6 x 85.5 mm Weight 36.5 kg Bezel Width 16.8 mm (left, right and top); 45.7 mm (bottom) VESA Mounting 600 x 400 (FDMI); M8 Packaging Packaging Dimensions 1,628 x 1,005 x 208 mm Packaging Weight 49 kg Embedded Computing Built-in Applications Various System Version Android 9.0 CPU Arm Cortex-A73 (Quad-Core) System Memory 4GB RAM Internal Storage 32GB ROM Bluetooth Bluetooth Version 5.0 compliant, supported protocols: A2DP, AVRCP, GATT, HID Wireless LAN WLAN IEEE802.11 a/b/g/n/ac/ax compliant Available Options Accessories Pen software license extension, Soundbar, Trolley, USB-C cable, Wall mount, etc. OPS Slot Recommended Options OPS Enterprise Pro (100016118), OPS Enterprise Ultra (100016122) Additional Features Safety and Ergonomics CE, FCC, RCM, REACH, RoHS, UL/C-UL -
Description Downloads Sharp PN-L652B 65” 4K UHD Smart Interactive Touchscreen Displays DataSheet Downloads
