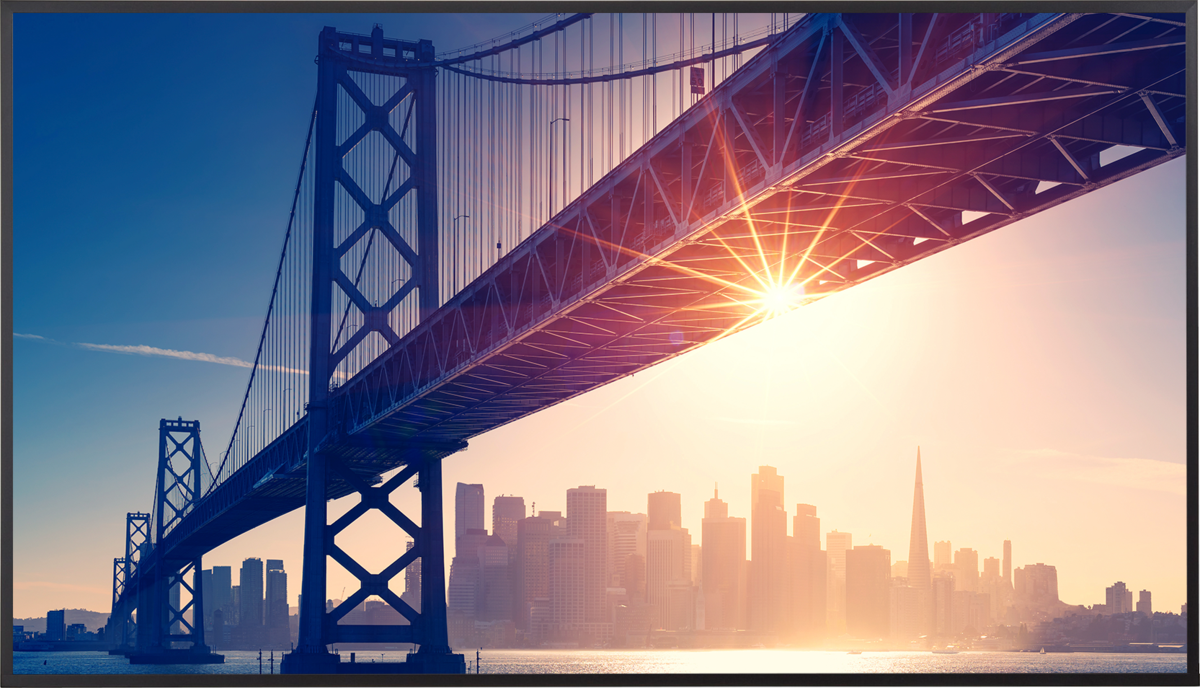

• Sharp MultiSync® ME752 LCD 75″ 4K Message Essential Large Format Display


  Class-leading performance and value
  For best-in-class visual performance and value, the second generation ME series commands feature-rich professional capabilities for meeting rooms and signage applications. The multi-functional Sharp MultiSync® displays with high haze panel, native USB-C connectivity, and quick input detection appeals to Enterprise users for Bring Your Own Device simplicity, supporting hybrid workflows and spontaneous meetings.

  An integrated System on Chip (SoC) with Android 13 CTS-compliant Operating System brings the most up to date features and security, powering signage applications and commanding high compatibility with CMS partners, making the multi-purpose Sharp MultiSync® ME series suitable for cost sensitive retail signage applications. Experience seamless access to Android apps and install apps directly on the display using the integrated browser, without the hassle and expense of an additional external media player.

  Trusted long-life reliability is assured through Japanese engineering standards and high-quality components. The Sharp MultiSync® ME series is a class-leading solution for today’s workplace challenges, bringing value and professional performance, without compromise.


  Benefits
  Seamless connectivity – native USB-C supports Bring Your Own Device workflows, safeguarding inclusion and boosting productivity, with a single cable connection between notebook and display.
  Best readability – aiding high productivity in well-lit meeting spaces, a high haze filter eliminates glare and reflections from windows and other light sources.
  Quick input detection – removing potential frustration and smoothing the way to productive meeting outcomes, the display responds immediately when a device is connected.
  Third-party compatibility – a flexible signage platform that supports integration with a wide range of workplace and content management systems.
  New feature-ready – regular OTA Android OS updates ensure availability of the latest features and system security.

• Category	Specification
  Display
  Panel Type	IPS with Direct LED
  Screen Size	75″ (189.3 cm)
  Aspect Ratio	16:9
  Brightness	450 cd/m²
  Contrast Ratio	1200:1
  Viewing Angle	178° H / V
  Colour Depth	1.073B (8bit + FRC)
  HDR Support	HDR10, HLG, PQ
  Response Time	8 ms
  Refresh Rate	60 Hz
  Haze Level	25% (Pro)

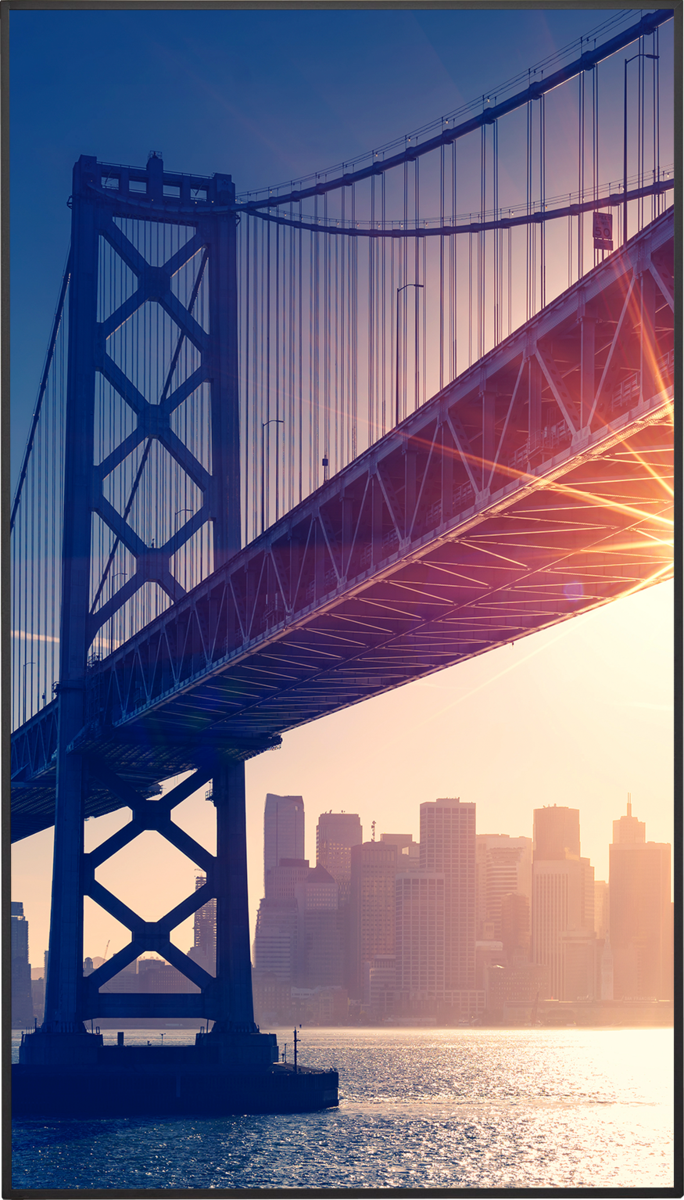

  Orientation	Landscape, Portrait
  Resolution
  Native Resolution	3840 x 2160
  Supported Resolutions	Up to 4096 x 2160
  Sync Rates
  Horizontal	15 – 135 kHz
  Vertical	23 – 76 Hz

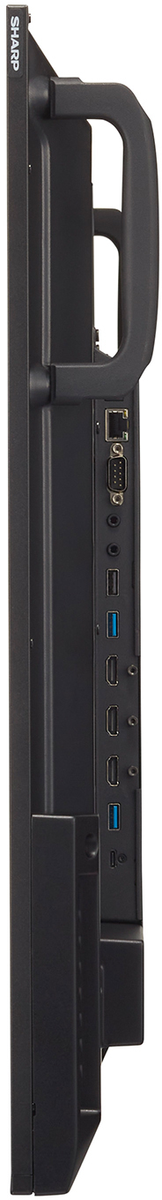

  Connectivity
  Video Input	1x USB-C, 3x HDMI
  Audio Input	USB-C, HDMI
  Control Input	LAN, RS232, Remote (3.5mm)
  USB Ports	3x USB 2.0 (Downstream)
  Audio Output	1x 3.5 mm jack
  Input Detect	Custom, First, Last
  Power
  Consumption	132 W (Shipping)
  Standby	<0.5 W / <2 W (Network)
  Supply	100–240 V AC, 50/60 Hz
  Environment
  Operating Temp	0°C to 40°C
  Operating Humidity	20% to 80%
  Storage Temp	-20°C to 60°C
  Storage Humidity	10% to 90%
  Mechanical

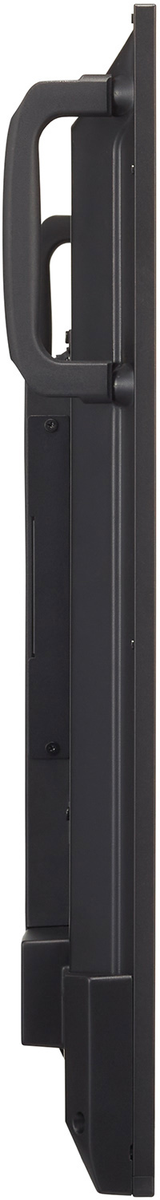

  Dimensions (W x H x D)	1686 x 964 x 68 mm
  Weight	34.3 kg
  Bezel Width	15.9 mm
  VESA Mount	800 x 600 mm (M8)
  IP Rating	IP5x Front & Back
  Packaging Size	1863 x 1090 x 225 mm
  Packaging Weight	51 kg
  Bezel Colour	Pantone Process Black M
  Material	Metal
  Media Player
  File System	FAT16/FAT32 via USB 2.0
  Video Format Support	MKV, MP4 up to 4096×2160@60fps
  Audio Format Support	MP3 up to 320 kbps
  Embedded Computing
  OS Version	Android 13
  RAM	4 GB
  Internal Storage	32 GB
  Built-in Apps	File Manager, Web Browser
  Accessories
  Optional Add-ons	Feet, Sensor, Soundbar, Speakers, Trolley, Wall Mount
  Certifications
  Safety/Regulatory	CE, FCC, BSMI, RCM, VCCI, RoHS, etc.
  Energy Efficiency	Class F, 110 kWh/1000h
  3rd Party Certs	Crestron CCV2, XiO Cloud
  Pixel Policy	ISO 9241-307, Class 1
  Fire Resistance	UL94-5VB compliant
  Audio & Features
  Integrated Audio	2x 10 W speakers
  Special Features	HDMI ARC, DICOM Sim, Powered USB (15W)
  Security	Disable HW Buttons, Disable IR
  External Control	HDMI CEC, AMX, Crestron, Timer
  Remote Management	Email Alerts, NaViSet Admin 2
  Operating Hours	18/7
  In the Box
  Contents	Remote, HDMI cable, Power cable, Manual, Batteries
