• Sharp MultiSync® ME502 LCD 50″ 4K Message Essential Large Format Display


  Class-leading performance and value
  For best-in-class visual performance and value, the second generation ME series commands feature-rich professional capabilities for meeting rooms and signage applications. The multi-functional Sharp MultiSync® displays with high haze panel, native USB-C connectivity, and quick input detection appeals to Enterprise users for Bring Your Own Device simplicity, supporting hybrid workflows and spontaneous meetings.

  An integrated System on Chip (SoC) with Android 13 CTS-compliant Operating System brings the most up to date features and security, powering signage applications and commanding high compatibility with CMS partners, making the multi-purpose Sharp MultiSync® ME series suitable for cost sensitive retail signage applications. Experience seamless access to Android apps and install apps directly on the display using the integrated browser, without the hassle and expense of an additional external media player.

  Trusted long-life reliability is assured through Japanese engineering standards and high-quality components. The Sharp MultiSync® ME series is a class-leading solution for today’s workplace challenges, bringing value and professional performance, without compromise.


  Benefits
  Seamless connectivity – native USB-C supports Bring Your Own Device workflows, safeguarding inclusion and boosting productivity, with a single cable connection between notebook and display.
  Best readability – aiding high productivity in well-lit meeting spaces, a high haze filter eliminates glare and reflections from windows and other light sources.
  Quick input detection – removing potential frustration and smoothing the way to productive meeting outcomes, the display responds immediately when a device is connected.
  Third-party compatibility – not simply a display, but an out-of-the-box solution, compatible with popular workplace and content management systems through the integrated SoC platform.
  New feature-ready – regular OTA Android OS updates ensure availability of the latest features and system security.

• Category	Specification
  Panel Technology	VA with Direct LED backlights
  Screen Size	50″ / 125.7 cm
  Aspect Ratio	16:9
  Brightness	450 cd/m²
  Contrast Ratio	5000:1 (typical)
  Viewing Angle	178° H / V
  Colour Depth	1.073 billion (8bit + FRC)
  Response Time	6 ms (typical)
  Refresh Rate	60 Hz
  Haze Level	25% (Pro)

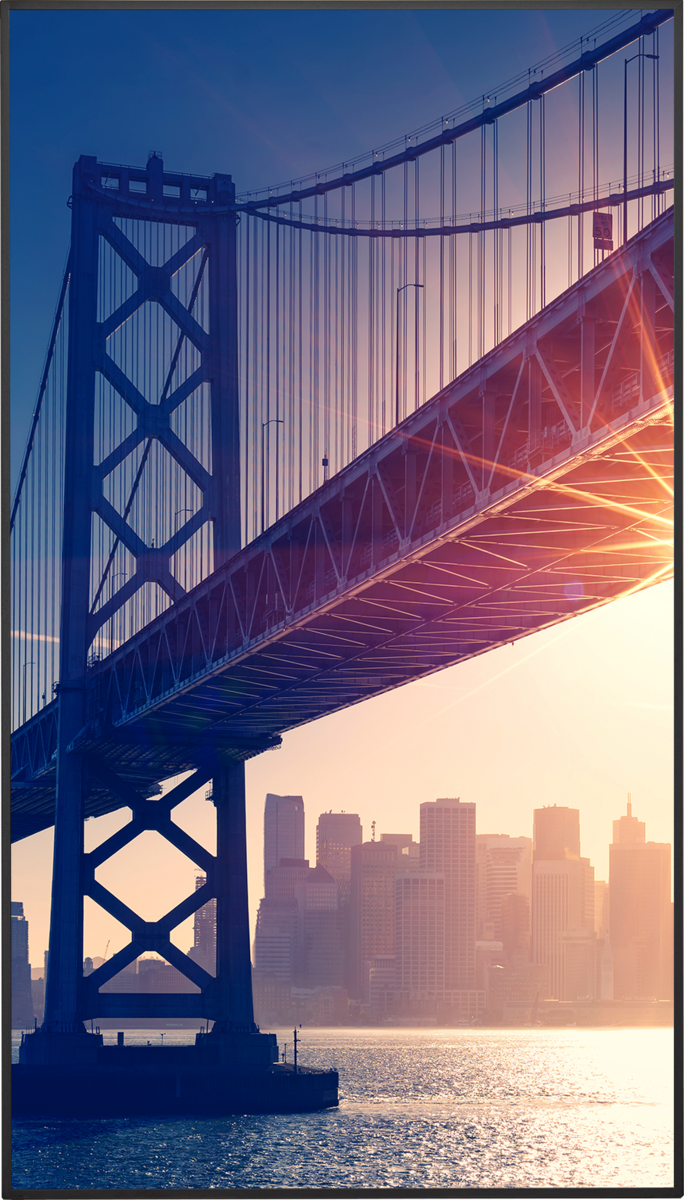

  Orientation	Landscape / Portrait
  Native Resolution	3840 x 2160 (4K UHD)
  Supported Resolutions	Up to 4096 x 2160
  Horizontal Frequency	15 – 135 kHz
  Vertical Frequency	23 – 76 Hz

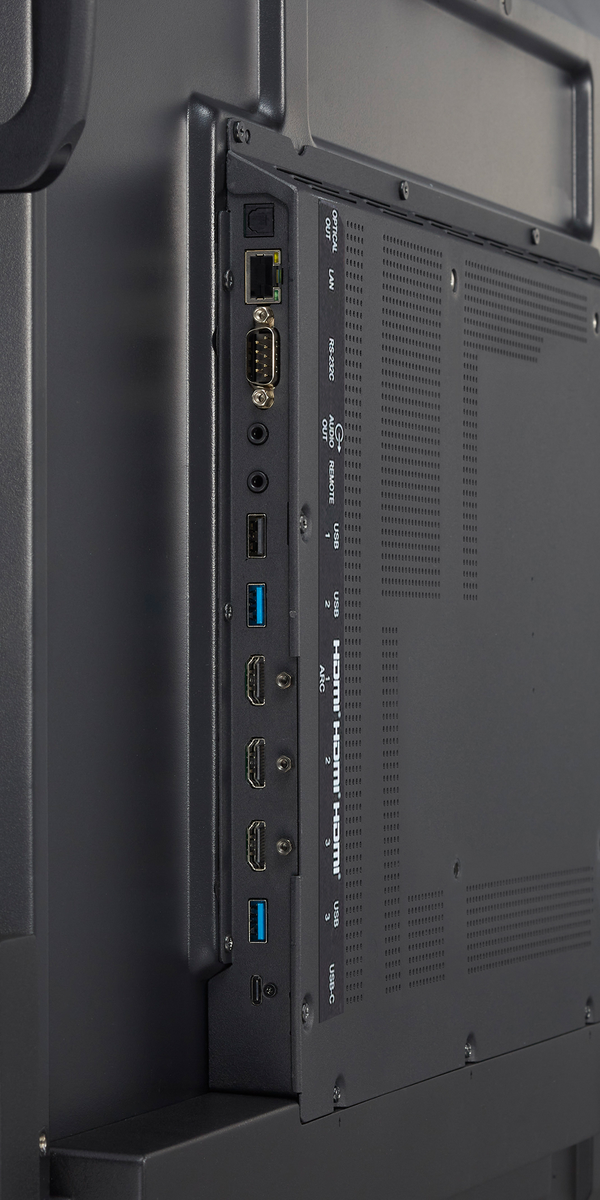

  Input (Video)	1x USB-C, 3x HDMI (with HDCP 1.3/2.2)
  Input (Audio)	1x USB-C, 3x HDMI
  Control Inputs	LAN, RS232, 3.5mm remote control wire
  USB Ports	3 x USB 2.0 (Downstream)
  Audio Output	1 x 3.5 mm jack
  Input Detection	Custom / First / Last
  Power Consumption	85 W (Shipping)
  Power Saving Mode	<0.5 W / <2 W (Networked Standby)
  Power Supply	100-240 V AC; 50/60 Hz; internal
  Operating Temp	0°C to 40°C
  Operating Humidity	20% to 80%
  Storage Temp	-20°C to 60°C
  Storage Humidity	10% to 90%
  Dimensions (WxHxD)	1118.6 x 639.2 x 62 mm
  Weight	11.7 kg
  Bezel Width	9.9 mm
  VESA Mounting	400 x 400 mm (M6), 4 holes
  IP Rating	IP5x front & back
  Packaging Size	1202 x 719 x 156 mm
  Packaging Weight	17.5 kg
  Bezel Colour	Pantone (Process Black M)
  Material	Metal
  Media Support	MPG, MP4 (up to 4K@60fps)
  Embedded OS	Android 13
  System Memory	4 GB RAM
  Internal Storage	32 GB ROM
  Built-in Apps	File Manager, Web Browser
  Accessories	Feet, Presence Sensor, Soundbar, Speakers, Trolley, Wall Mount
  Certifications	BSMI, CE, FCC B, RoHS, VCCI, Energy Star 8, etc.
  Pixel Failure Class	ISO 9241-307, Class 1
  Fire Resistance	UL94-5VB Certified
  Energy Use	96 kWh/1000 h (Energy Class G)
  Eco Standard	EnergyStar 8.0
  3rd Party Certs	Crestron CCV2, XiO Cloud
  Special Features	DICOM Sim, HDMI ARC, 15W USB Power, Removable Logo
  Audio	2 x 10 W speakers
  Included in Box	2x AAA batteries, Display, HDMI cable, Power cable, Remote, Manual
  Warranty	3 years incl. backlight (optional 4th/5th year)
  Operating Hours	18/7
  External Control	AMX, ASCII, Crestron, HDMI CEC, Timer
  Remote Management	Email Alerts, NaViSet Admin 2
  Security	Disable HW Buttons, Disable IR Functionality
