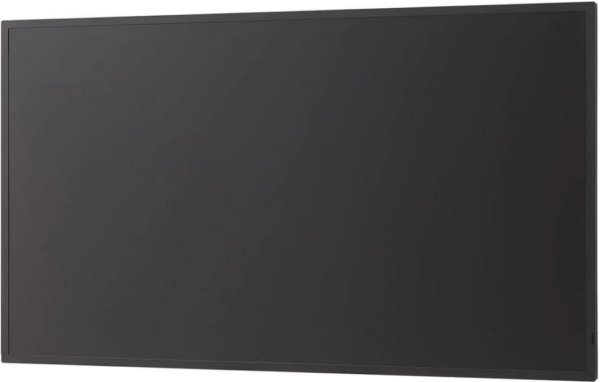

Sharp 60005554 / PN-HY431 43″ LCD Midrange Large Format Display

• Description
• Specifications
• Warranty

• Sharp 60005554 / PN-HY431 43″ LCD Midrange Large Format Display


  Clearly stand-out – where it matters most.

  Enjoy the perfect combination of an exceptionally slim and stylish design, vividly clear 4K pictures and powerful standalone operation with Sharp’s PN-HY digital signage displays.

  It makes them the ideal choice for signage and information sharing in a wide range of retail and corporate environments, including meeting rooms and reception areas, as well as food & beverage outlets and leisure establishments.

  Simply more life-like – the displays come with a wide colour gamut showing every colour with much greater accuracy.

  Operation around the clock – 24/7 with 500 cd/m² brightness.

  Instant plug & go – with the built-in USB MediaPlayer slideshows of 4K Ultra HD photos and
  videos as well as music can be played, no need to connect a separate PC or other hardware.

  Control made simple – using an integrated LAN/RS-232C interface all your displays can easily be controlled and monitored from a single PC.

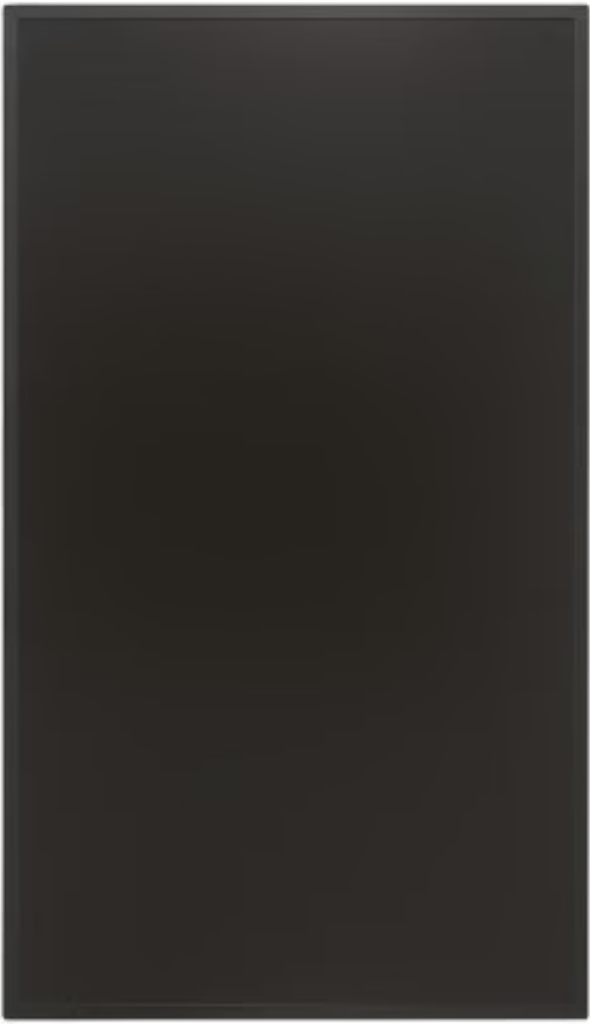

  All the flexibility you need – the display can be wall mounted in either landscape or portrait mode as well as face-down on a ceiling or face-up on a table or floor.

• Category	Details
  Product Name	Sharp PN-HY431
  Product Group	LCD 43″ Midrange Large Format Display
  Order Code	60005554
  Display
  Panel Technology	TFT with Direct LED backlights
  Active Screen Area	941 x 529 mm
  Screen Size	43″ / 107 cm
  Aspect Ratio	16:9
  Pixel Pitch	0.245 x 0.245 mm
  Brightness	500 cd/m²
  Contrast Ratio (typ.)	1200:1
  Viewing Angle	178° horizontal / 178° vertical (typ. at contrast ratio 10:1)
  Colour Depth	1.073 billion colors (10bit)
  Response Time (typ.)	8 ms
  Panel Refresh Rate	60 Hz
  Haze Level	Pro (25%)
  Supported Orientation	Face Down; Face Up 1; Landscape; Portrait
  Resolution
  Native Resolution	3840 x 2160
  Supported Resolutions	1024×768; 1280×1024; 1280×720; 1280×800; 1280×960; 1360×768; 1400×1050; 1440×900; 1680×1050; 1920×1080; 3840×2160; 4096×2160; 640×480; 800×600; 848×480
  Connectivity
  Input Video	Analogue: 1 x VGA
  	Digital: 3 x HDMI (with HDCP)
  Input Audio	Analogue: 1 x 3.5mm jack
  	Digital: 3 x HDMI
  Input Control	LAN 100Mbit; RS232
  Input Data	1 x USB Media Player
  Electrical
  Power Consumption (max.)	100 W
  Power Savings Mode	< 0.5 W; < 1 W (Networked Standby)
  Power Management	VESA DPMS
  Power Supply	100-240 V AC; 50/60 Hz; internal
  Environmental Conditions
  Operating Temperature	+0 to +40°C
  Operating Humidity	20% to 80%
  Storage Humidity	10% to 90%
  Storage Temperature	-20 to 60°C
  Mechanical
  Dimensions	973 x 561.2 x 63.5 mm
  Weight	11.5 kg
  Bezel Width	13.9 mm (bottom, left, right, top)
  VESA Mounting	200 x 200 (FDMI); 4 holes; M6
  Packaging Dimensions	1070 x 680 x 141 mm
  Packaging Weight	14 kg
  Green Features
  Energy Efficiency	Energy consumption: 90 kWh/1000 h; Energy efficiency class: G; LED backlight
  Additional Features	ASCII Control Commands; CEC Support; Removable Logo; Scheduler; USB Media Player
  Colour Versions	Black Front Bezel, Black Back Cabinet
  Safety and Ergonomics	CE; EAC; RoHS
  Audio	Integrated Speakers (2 x 10 W)
  Shipping Content	2x AAA batteries; CD-ROM (User Guides/Manuals); Display; Logo Sticker; Power Cable; Remote Control; Setup Manual
  Warranty	3 years warranty incl. backlight; on-site service; optional 4th & 5th year warranty extension
  Operating Hours	24/7
  External Control	ASCII Control Commands; HDMI CEC; Scheduled Timer

• In Warranty Support
  Warranty Period 36 Months
  Contact: NEC Display Solutions
  Tel. No. 01952 237003
  Email [email protected]
  Manufacturers Website http://www.nec-display-solutions.co.uk

  NEC deal with all your AfterCare requirements for the product you have purchased, they can help with technical queries and offer advice.


  Please contact them direct.
  You will need the following information to hand:

  * Customer Name
  * Email Address
  * Product Model Number
  *Proof of Purchase
  * Serial Number
  * Details of the fault
  * Any permanent security markings?
  * Any physical damage?
  * Any non-NEC repair or modi?caon?

  Once provided NEC will be able to issue a return and provide a replacement if required.

  If you have any questions or would like further advise, please feel free to contact our AfterCare Team (ACE) on 02081 919223 / who will be happy to assist

  3 Year On-Site Warranty. Please contact NEC for full Ts & Cs (exclusions apply).
