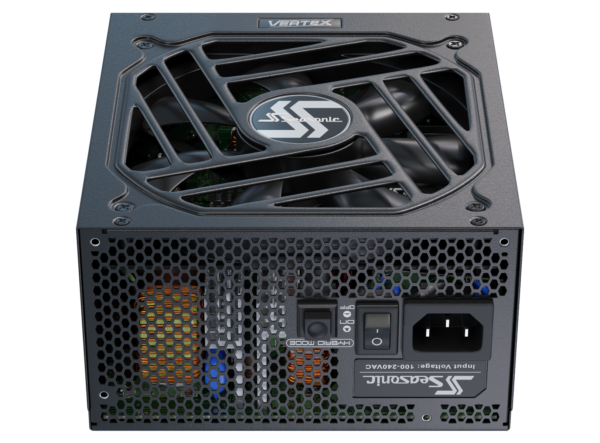

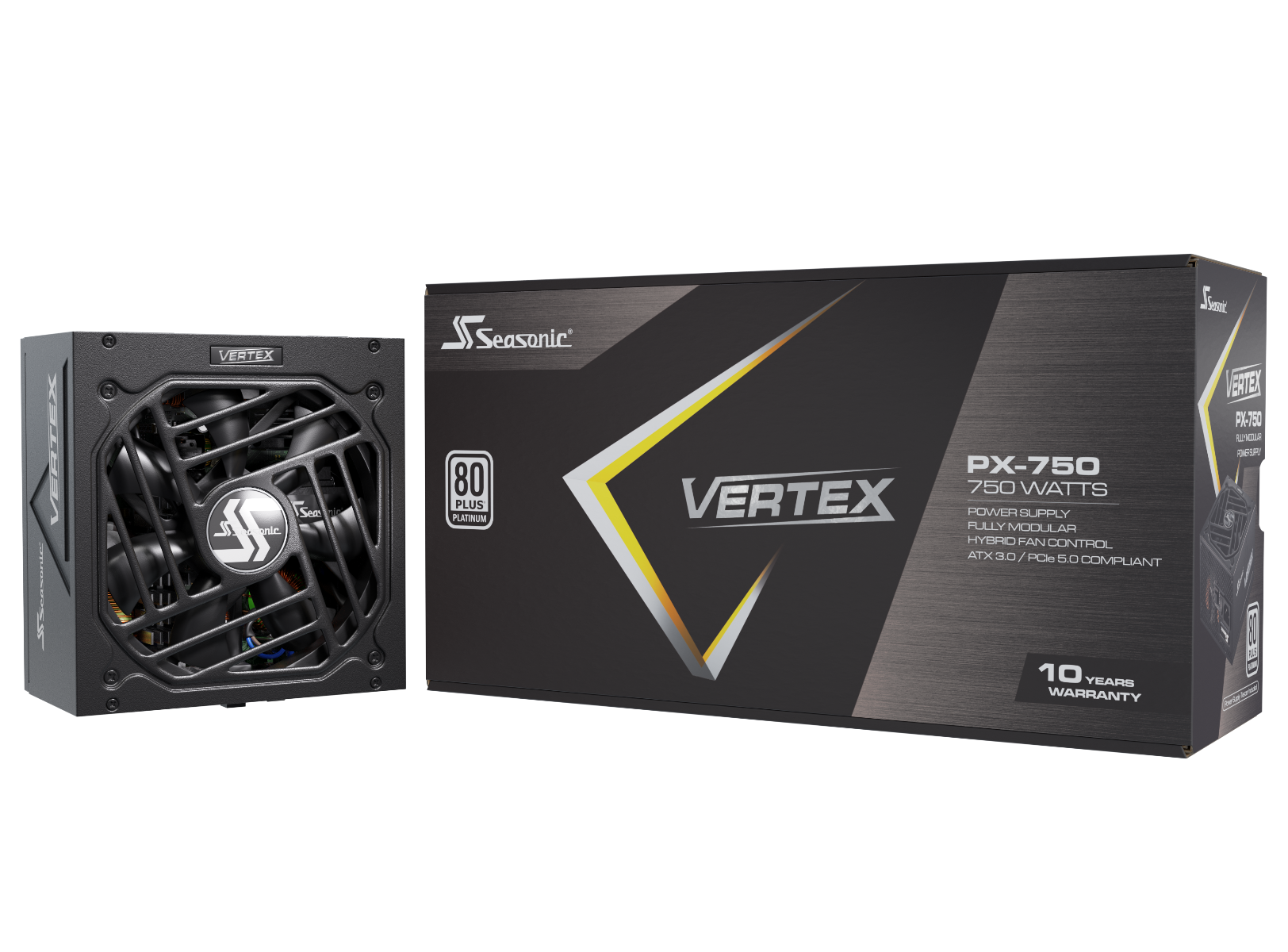

• Seasonic VERTEX PX-750 Power Supply Unit 750 W 24-Pin ATX ATX Black


  The new VERTEX Series units will provide 1200 W / 1000 W / 850 W and 750 Watts of true power in both Platinum and Gold levels of efficiency, with all the best features you can expect from a Seasonic power supply:
  Fully compatible with ATX 3.0 and PCIe 5.0 standards
  Full modularity for the best cable management options:
  Added 12VHPWR cable to comply with the new graphic cards

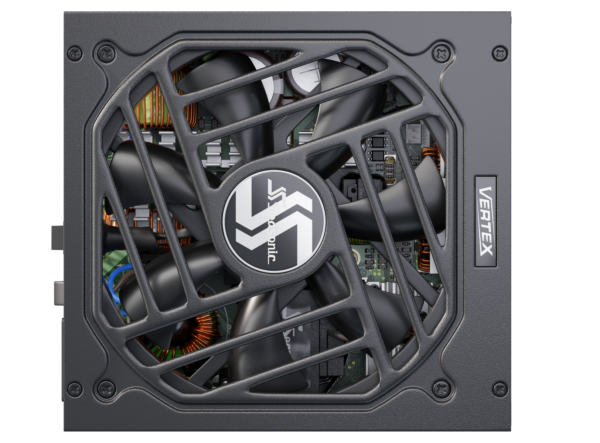

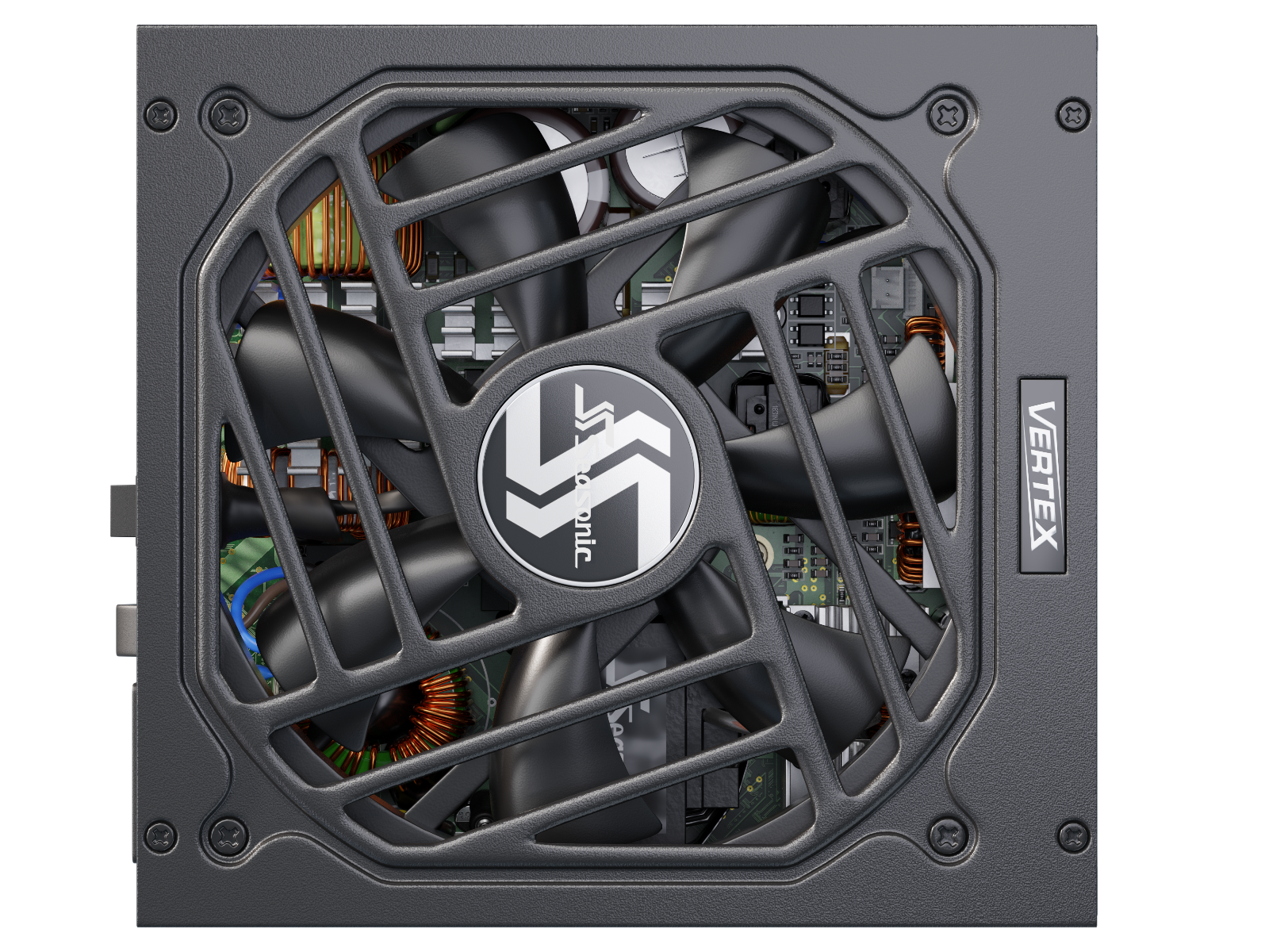

  135mm Fluid Dynamic Bearing (FDB) fan for quiet operation
  Seasonic Hybrid Silent Fan Control for optimal cooling
  Complete protection features: OPP / OVP / UVP / SCP / OCP / OTP
  12 years warranty – our commitment to high quality

  80 PLUS® PLATINUM
  The Vertex PX Series achieves 80 PLUS® Platinum certification with its 92 % efficiency at 50 % system load.

  ATX 3.0 AND 16-PIN PCIE GEN 5 CABLE (12VHPWR)
  Seasonic’s latest Vertex Series is designed and built to power new PC components requiring the new ATX 3.0 and PCIe 5.0 standards.

  PREMIUM HYBRID FAN CONTROL
  Seasonic’s vast experience in designing the most silent and efficient power supplies on the market was translated into the development of Hybrid Mode; a state-of-the-art fan control that enables users to keep the overall fan noise at the lowest possible level.

  FLUID DYNAMIC FAN BEARING
  High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.

  HOW IT WORKS
  When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.

• Technical Specifications
  80PLUS®	Platinum
  Cybenetics Efficiency Level	TBA
  Cybenetics Noise Level	TBA
  Form Factor	Intel ATX 12 V
  Dimensions	160 mm (L) x 150 mm (W) x 86 mm (H)
  Fan Information
  Fan Size	135 mm
  Fan Control	Digital Fan Control
  Fan Bearing	Fluid Dynamic Bearing
  Life Expectancy	50,000 hours at 40 °C, 15% – 65% RH
  Cable Information
  Modularity	Fully Modular
  Cable type	Cables with Braided Pattern
  Electrical Features
  Operating Temperature	0 – 50 °C (derating from 100% to 80% from 40 °C to 50 °C)
  MTBF @ 25 °C, excl. fan	100,000 hours
  AC Input	Full Range
  Protection	OPP, OVP, UVP, OCP, OTP, SCP
  Safety and Environmental
  Safety and EMC	cTUVus, TUV, CB, CCC, BSMI, EAC, CE
  Environmental Compliance	Energy Star, RoHS, WEEE, ErP Lot 6, REACH
  Warranty	12 Years
  Power Output
  AC Input
  Voltage	100 V – 240 V
  Current	10 – 5 A
  Frequency	50 Hz – 60 Hz
  DC Output	Rail +3.3 V +5 V +12 V -12 V +5 VSB
  Maximum Power	20 A 20 A 62 A 0.3 A 3 A
  	100 W 744 W 3.6 W 15 W
  Total continuous power	750 W
