Seagate FireCuda 530 M.2 2 TB PCI Express 4.0 3D TLC NVMe SSD – ZP2000GM3A023
- Description
- Specifications
- Downloads
-

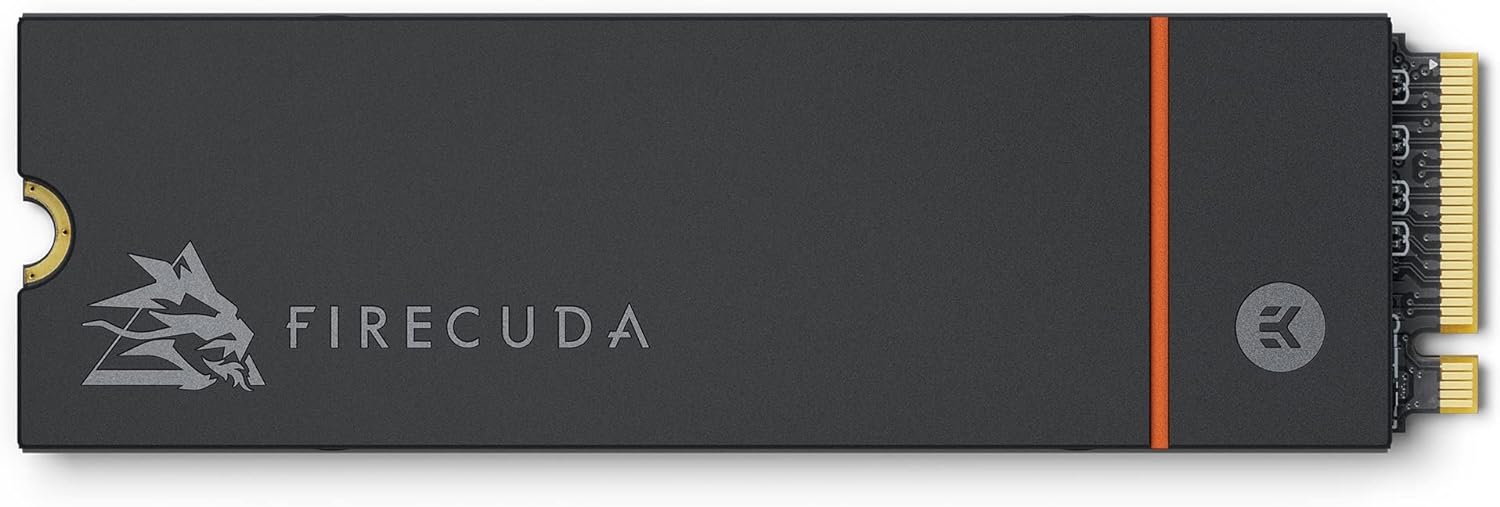

Seagate FireCuda 530 M.2 2 TB PCI Express 4.0 3D TLC NVMe SSD
Speed reigns
FireCuda 530 dominates the SSD lineup – delivering pure performance, absolute power, the most advanced components and unrivaled endurance.Highest performance
At up to 7,300 MB/s you can harness the full power of PCIe Gen4 speeds to dominate next-generation games and applications.Fastest FireCuda ever
Built for sustained, pro-level gaming and accelerated content creation with transfer speeds up to 2x faster than PCIe Gen3 NVMe SSDs and up to 12x faster than SATA SSDs.Latest tech
Built with a Seagate-validated E18 controller and the latest 3D TLC NAND, FireCuda 530 provides the most advanced speed and durability so you can push the limits of your machine.Game and create
Blistering transfer speeds of up to 7,300 MB/s, endurance, and capacity makes content creation applications run faster and smoother. -
General Device Type Solid state drive – internal Capacity 2 TB NAND Flash Memory Type 3D triple-level cell (TLC) Integrated Heatsink Yes Form Factor M.2 2280 Interface PCIe 4.0 x4 (NVMe) Features Halogen Free, TRIM support, NVM Express (NVMe) 1.4, Phison E18 controller, S.M.A.R.T. Width 24.2 mm Depth 80.15 mm Height 10.39 mm Weight 47 g Bundled with 3 years Seagate Rescue Data Recovery Performance SSD Endurance 2550 TB Internal Data Rate 7300 MBps (read) / 6900 MBps (write) Maximum 4KB Random Write 1000000 IOPS Maximum 4KB Random Read 1000000 IOPS Reliability MTBF 1,800,000 hours Expansion & Connectivity Interfaces 1 x PCI Express 4.0 x4 (NVMe) – M.2 M key Compatible Bay M.2 2280 Power Power Consumption 8 Watt (active), 24 mW (idle), 5 mW (L1.2 mode) Software & System Requirements OS Required Linux, Windows 10 Miscellaneous Compliant Standards RoHS Localisation Worldwide Dimensions & Weight (Shipping) Shipping Width 10.9 cm Shipping Depth 13.425 cm Shipping Height 2.4 cm Shipping Weight 62 g Manufacturer Warranty Service & Support Limited warranty – 5 years Environmental Parameters Min Operating Temperature 0 °C Max Operating Temperature 70 °C Min Storage Temperature -40 °C Max Storage Temperature 85 °C Shock Tolerance (non-operating) 1500 g @ 0.5 ms - Seagate FireCuda 530 M.2 2 TB PCI Express 4.0 3D TLC NVMe SSD DataSheet Downloads
