Seagate FireCuda 530 M.2 1 TB PCI Express 4.0 3D TLC NVMe SSD – ZP1000GM3A023
- Description
- Specifications
- Downloads
-
Seagate FireCuda 530 M.2 1 TB PCI Express 4.0 3D TLC NVMe SSD

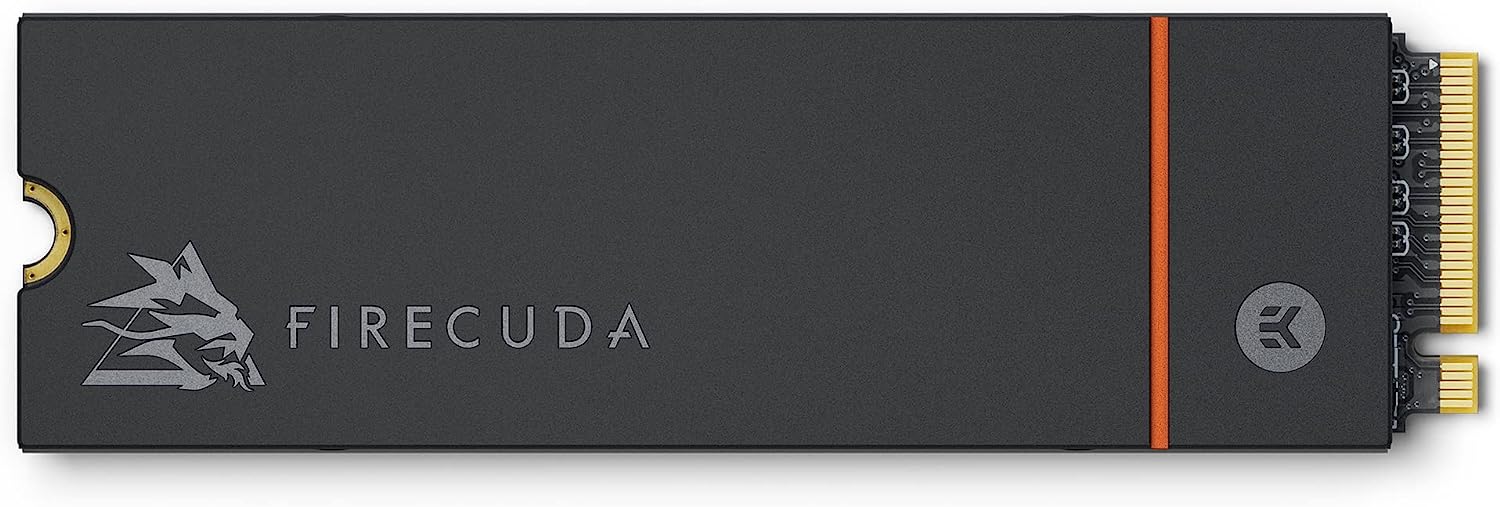

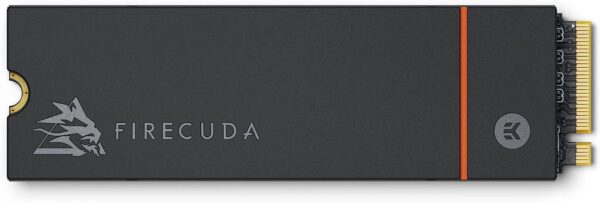

FireCuda 530 with heatsink offers a minimalist design, anodized aluminium body, and finely textured micropore surface to improve heat transfer and lower SSD temps making it super-efficient at maximum cooling to maintain peak performance for longer periods of time.
FireCuda 530 with heatsink is also compatible with PS5™ systems. Our built-in SSD and heatsink combo meets PS5 specs on performance and dimensions.
Speed Reigns The Fastest FireCuda Ever
FireCuda 530 dominates the SSD lineup, delivering
Blistering transfer speeds of up to 7,300 MB/s
Absolute power to make content creations apps run faster and smoother
Lightning-fast video rendering and exporting
Responsive performance built for accelerated gaming and sustained abuse record, download, rewrite, repeatAbsolute Performance
Up to 2x faster than PCIe Gen3 NVMe™ SSDs and up to 12x faster than SATA SSDs the FireCuda 530 redefines speed.Cool Speed Ahead
NVMe PCIe Gen4 extreme speeds generate extra heat. That’s why Seagate partnered with EKWB the leaders in heat management to develop FireCuda 530’s custom heatsink. Built from a high-grade aluminium block with a finely textured anodized finish to help maximise cooling efficiency, this built-in heatsink helps minimise thermal throttling while maximising peak performance for longer periods of time.Form and Function
Low-profile heatsink design allows for installation in tighter spaces, and premium dark gunmetal grey anodization creates additional micropores in the material surface to promote cooling properties.Endurance Unleashed
Designed to perform under heavy use and tough enough to go the distance with
0.7 Drive Writes per Day fill and delete 70% of the drive capacity, every day, for five years
1.8 Million Hours Mean Time Between Failures for trusted reliability
Up to 5,100 TB Total Terabytes Written durability deliveredLatest Tech
Push your rig to its limit the FireCuda 530 is built with a Seagate-validated E18 controller and the latest 3D TLC NAND for the most advanced speed and durability.Storage Expansion for PS5™
The FireCuda 530 is compatible with PS5™ consoles, and meets PS5 specs on performance and dimensions. Plus, the FireCuda with heatsink combo makes for an easy drop-in expansion solution with no additional parts needed.Visit our article on How to Install a M.2 SSD into a PS5 for more information and step-by-step instructions.
Rescue Data Recovery ServicesWe’ve Got Your Back
When the unexpected happens like water damage or natural disaster Rescue Services help you defend against data loss and retrieval costs, so you can rest easier.DiscWizard and SeaTools Making Drive Management Easier
Seagate makes it easy to add new drives to your computer and monitor their health and performance with the free DiscWizard™ and SeaTools™ software. Easily clone your current drive to your new Seagate drive, create and format partitions, transfer data, and back up data with DiscWizard and then seamlessly monitor drive health, performance, and firmware updates using SeaTools. -
Feature Details Interfaces/Ports Drive Interface PCI Express NVMe Drive Interface Standard PCI Express NVMe 4.0 x4 Miscellaneous Device Supported Desktop PC Operating System Compatibility Linux, Windows 10 Technical Information Storage Capacity 1 TB Platform Supported PC, Linux Drive Performance Maximum Read Transfer Rate 7300 MB/s Maximum Write Transfer Rate 6000 MB/s Random 4KB Read 800000 IOPS Random 4KB Write 1000000 IOPS Endurance (TBW) 1305.60 TB Physical Characteristics Weight (Approximate) 8.1 g Drive Type Internal Form Factor M.2 2280 Height 9.8 mm Width 24.2 mm Depth 80.2 mm General Information Product Type Solid State Drive Manufacturer Part Number ZP1000GM3A023 Manufacturer Website Address Seagate Manufacturer Seagate Technology Product Model ZP1000GM3A023 Product Name FireCuda 530 ZP1000GM3A023 SSD Package Type Retail Product Line FireCuda Product Series 530 Brand Name Seagate - Seagate FireCuda 530 M.2 1 TB PCI Express 4.0 3D TLC NVMe SSD DataSheet Downloads
Seagate FireCuda 530 M.2 1 TB PCI Express 4.0 3D TLC NVMe SSD Product Manual Downloads
