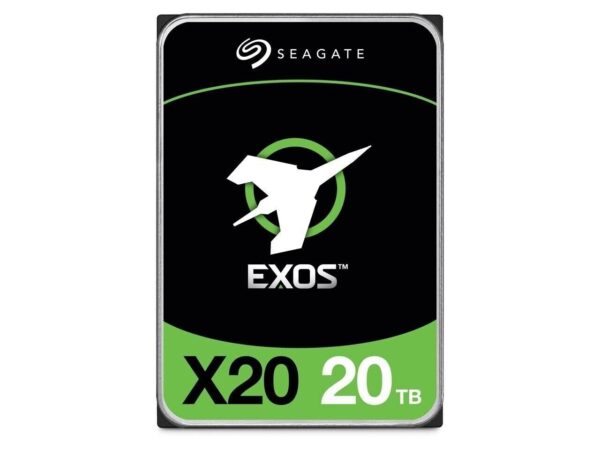

Seagate Exos X20 3.5″ 20000 GB Serial ATA III Internal Hard Drive
Scalable. Responsive. Innovative.
Powerful performance and proven reliability make Seagate’s Exos X20 drives the most sought after in our datasphere, with over 25,000 — and counting — drives deployed by leading cloud service providers, the Exos X20 offers extreme market-leading capacity and has earned customer confidence by delivering trusted peace of mind.Best-Fit Applications
Scalable hyperscale applications/cloud data centres
Massive scale-out data centres
Big data applications
High-capacity density RAID storage
Mainstream enterprise external storage arrays
Distributed file systems, including Hadoop and Ceph
Enterprise backup and restore — D2D, virtual tape Centralised surveillance -
General Device Type Hard drive – internal Capacity 20 TB Interface SATA 6Gb/s Buffer Size 256 MB Features PowerChoice, Low Halogen, Super Parity, Hot-Plug Support, PowerBalance, advanced format 512e, advanced format 4Kn, Organic Solderability Preservative, Seagate Fast Format, Conventional magnetic recording (CMR), Helium Sealed-Drive Design Width 101.85 mm Depth 147 mm Height 26.1 mm Weight 670 g Performance Drive Transfer Rate 600 MBps (external) Internal Data Rate 285 MBps Average Latency 4.16 ms Spindle Speed 7200 rpm Reliability MTBF 2,500,000 hours Non-Recoverable Errors 1 per 10^15 Expansion & Connectivity Interfaces 1 x SATA 6 Gb/s Power Power Consumption 5.4 Watt (idle), 9.4 Watt (random read), 6.4 Watt (random write) Manufacturer Warranty Service & Support Limited warranty – 5 years Environmental Parameters Min Operating Temperature 5 °C Max Operating Temperature 60 °C Shock Tolerance (operating) 40 g @ 2 ms Shock Tolerance (non-operating) 200 g @ 2 ms Vibration Tolerance (non-operating) 2.27 g @ 2-500 Hz - Seagate Exos X20 3.5″ 20000 GB Serial ATA III Internal Hard Drive DataSheet Downloads
