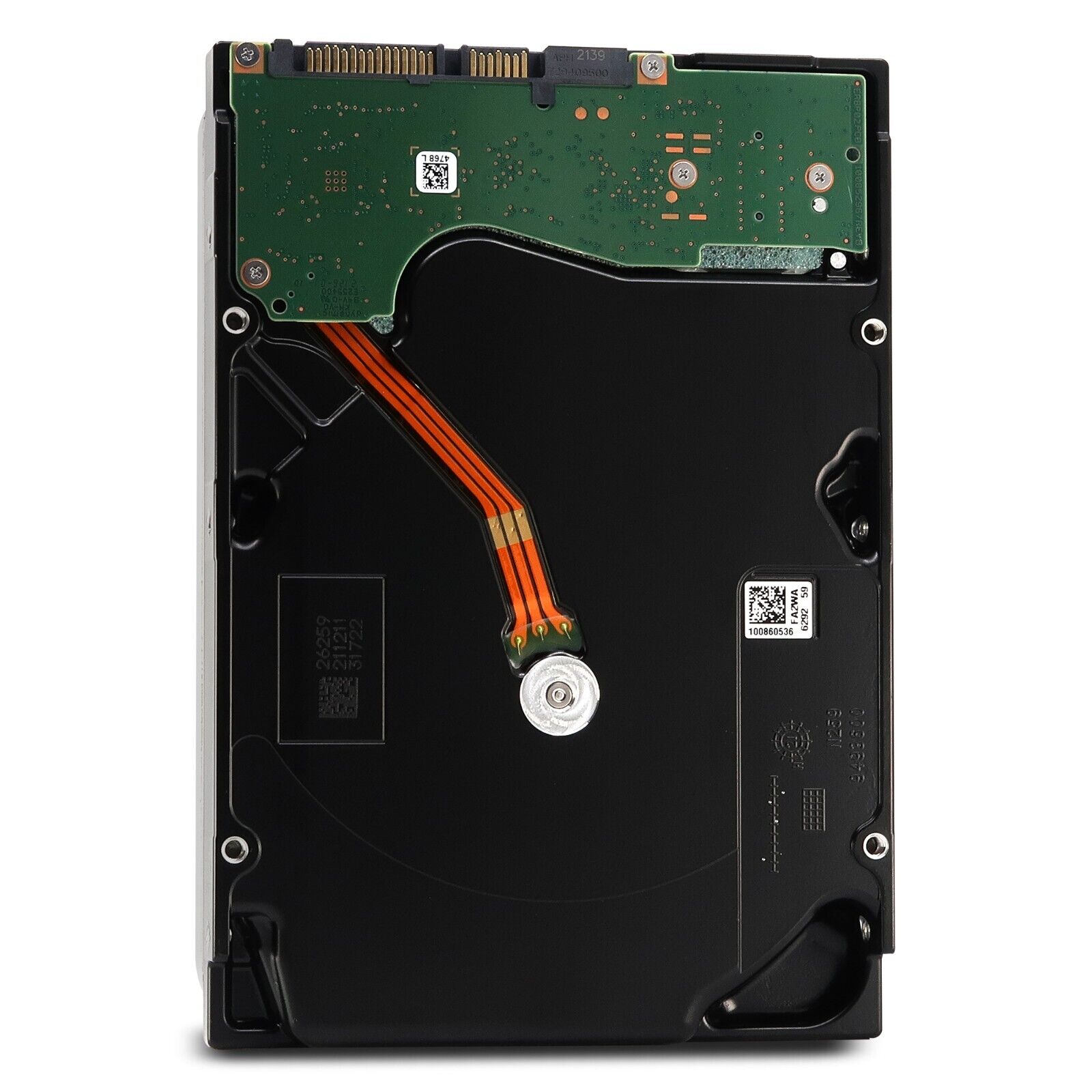

Seagate Exos X18 3.5″ 18 TB Serial ATA III Internal Hard Drive
SCALABLE. RESPONSIVE. INNOVATIVE.
Seagate manufactures hard drives that specifically address the demand for hyperscale cloud scalability. As the flagship of the Seagate® X class, the Exos® X18 enterprise hard drives are the highest-capacity hard drives in the fleet, delivering maximum storage capacity with the highest rack-space efficiency.SUPERIOR RELIABILITY
Enterprise-class drives with a 550 TB/year workload rating and 2.5M-hr MTBF to meet the most demanding storage requirements.CUSTOMISABLE POWER OPTIONS
PowerChoice™ and PowerBalance™ for optimised power consumption when in use and idle customisable to fit your needs.AMAZING PERFORMANCE
Advanced write caching coupled with up to 270 MB/s data transfer rates provides a boost in performance without compromising on capacity.ADVANCED DATA SECURITY
Password protection and AES-256 hardware encryption with Seagate Secure™ for drives you can depend on -
General Device Type Hard drive – internal Capacity 18 TB Interface SATA 6Gb/s Buffer Size 256 MB Features PowerChoice, Low Halogen, Super Parity, Hot-Plug Support, PowerBalance, advanced format 512e, advanced format 4Kn, Organic Solderability Preservative, CMR, Helium Sealed-Drive Design Width 101.85 mm Depth 147 mm Height 26.1 mm Weight 670 g Performance Drive Transfer Rate 600 MBps (external) Internal Data Rate 270 MBps Average Latency 4.16 ms Spindle Speed 7200 rpm Reliability MTBF 2,500,000 hours Non-Recoverable Errors 1 per 10^15 Expansion & Connectivity Interfaces 1 x SATA 6 Gb/s Power Power Consumption 5.3 Watt (idle) 9.4 Watt (maximum) 6.4 Watt (random read/write) Manufacturer Warranty Service & Support Limited warranty – 5 years Environmental Parameters Min Operating Temperature 5 °C Max Operating Temperature 60 °C Shock Tolerance (operating) 50 g @ 2 ms Shock Tolerance (non-operating) 200 g @ 2 ms Vibration Tolerance (non-operating) 2.27 g @ 2-500 Hz - Seagate Exos X18 3.5″ 18 TB Serial ATA III Internal Hard Drive DataSheet Downloads
