ScreenMoove 15.6″ Self-Service Kiosk for Restaurants and Takeaways

SUNMI PR-0031767/K2 MINI

15.6″ HD Self-Service Kiosk

• Description
• Specifications
• Warranty
• Downloads

• Kiosk

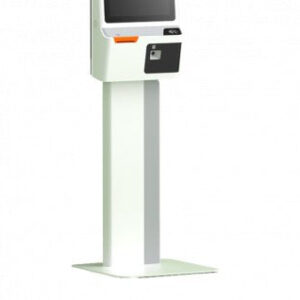

  SUNMI K2 MINI
  For a more compact self-service experience.


  SUNMI’s smart IoT devices have been widely used by businesses to help improve store operations, fasten check-out process and facilitate contactless payments, elevating the customer’s shopping experience.

  Lightweight
  Only 10Kg

  Dual Monitors
  Vertical Monitor 15.6″

  For More Scenarios
  Seiko 58mm/80mm

  Integrated Design
  Built-In Camera

  Out of the Box
  No Assembly Needed

  Harper Gen-Y
  “Since they installed the K2 MINI at my C-store, I no longer have to wait in line. Every morning, it only takes me 2 min to shop for my breakfast and checkout.”

  More shopping time for your customers, less waiting.


  Scanner is tilted forward for faster scanning process.K2 MINI can also support payment through QR codes,for a full contactless experience.(*Require software application support)

  Built-in 3D structured light camera for face recognition usage.

  Li Retiree
  “I’ve shopped in brick and mortar stores my entire life. Even for me,the K2 MINI is easy to use and I can still get my receipt.”

  For enhanced experience.
  Audio prompts help accelerate the self-checkout process and can guide the customer through the transaction.

  Don’t skip the receipt!
  K2 MINI can print a receipt of the transaction for your customers to keep track of their purchase.Printer supports both 58mm and 80mm rolls.*Software can be set to center the content to be printed

  Zhou Gen-Y
  “With K2 MINI, we can let customers checkout on their own, or if they need,assist them during the transaction.”

  A kiosk for stores of any size.
  With its fully integrated design and only half the size and weight of a traditional self-service device, K2 MINI (ReX Flix) is suitable for any store, including small ones.Choose between two configurations (one or two 15.6’’ HD screens) to fit your business.


  Salesclerk screen tilt range

  When it tilts 30° up, it can swivel 30° to the left/right
  When it tilts 40° up, it can swivel 20° to the left/right

  Optimize your staffing without sacrificing your revenues.
  During off-peak hours, when your store is not fully staffed, let your customers self-transact and use K2 MINI (ReX Flix) in unattended mode. In rush-hours, switch it to attended mode for your salesclerk to assist customers and ease the checkout process even further.

  User-centered design.

  Light Indicator
  Easy to spot, easy to solve. Quickly check device status with the light indicator at the top.

  Scanner
  Rather use a handheld scanner? No problem!

  Cash Drawer
  Cash payment? Can even plug a cash drawer.

  Ports
  Large set of ports to support any peripherals.

  SUNMI OS
  A dedicated operating system for business.

  Open Capabilities
  Selected capabilities. Quick implementation.

  Software Capabilities
  More business possibilities with SUNMI VAS.

  One device, multiple use cases.
  K2 MINI (ReX Flix) can be extended to support ID and contactless cards for further business cases.

  Public Sectors

  Healthcare

  Service

  Beauty

  Counter Top Single Monitor Version

  Wall-Mounted Version

  Facial recognition camera. 5~23° adjustable. 15.6″ Full HD touch screen with a wide view angle & sensitive response. International famous scanner scans barcode & payment QR code. Japanese Seiko printer supports high-speed printing. App Store management, kiosk mode, canary deployment… powered by SUNMI OS.

• Specification	Details
  OS	SUNMI OS (*based on Android OS)
  CPU	Qualcomm Snapdragon Octa-core/Rockchip Quad-core
  Memory	16GB ROM + 2GB RAM
  Support MicroSD(TF)	up to 64GB
  Display	Portrait screen: 15.6″ 1080×1920 FHD Multi-touch Screen; Landscape (optional): 15.6″ 1920×1080 FHD Multi-touch Screen
  Camera	3D structured light camera Support FR payment, membership verification, etc.
  Scanner	Support 1D, 2D mobile screen and printed barcodes
  NFC	2nd generation ID card reading Support M1/ID/CPU card reading & writing (an option for Extendable Version)
  Printer	Thermal printer with automatic cutter Support 58/80mm OD paper roll Print speed up to 250mm/s(max)
  Speaker	1*3W
  Wi-Fi	2.4GHz/5GHz IEEE 802.11 a/b/g/n/ac
  Bluetooth	Support Bluetooth 2.1/3.0/4.0 Support BLE
  Ethernet	One 10/100M self-adaptive
  Interface	5× USB Type-A ports 1× RJ11 Serial port 1× RJ12 Cash drawer port 1× RJ45 LAN port 1× Audio jack 1× Power port 1× Micro USB debug port
  Dimensions	Dual monitor: 380280590mm Single monitor: 300250590mm Wall-mounted: 265120680mm
  Total Weight	Dual monitor: 10.5Kg Single monitor: 8Kg Wall-mounted: 5Kg
  Power Adapter	Input: AC100~240V/1.7A Output: DC24V/2.5A
  Environment	Operating temperature: 0 ~ 40°C Storage temperature: -20°C ~ 55°C

• Warranty

• Brochure Name	Downloads
  SUNMI PR-0031767/K2 MINI Brochure	Downloads
