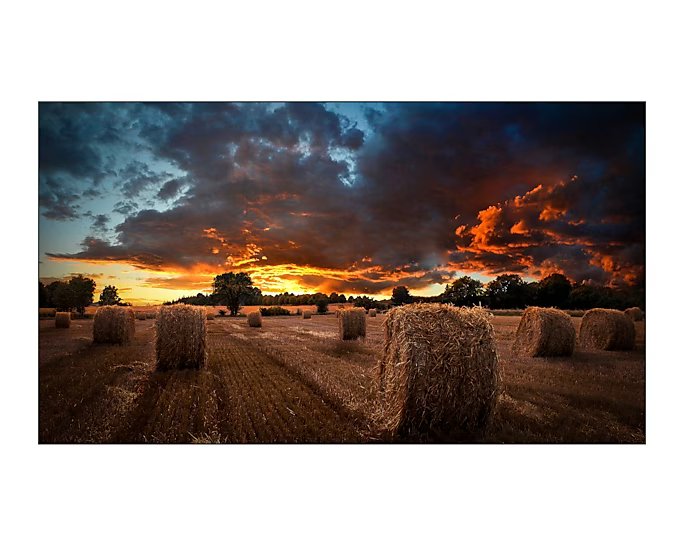

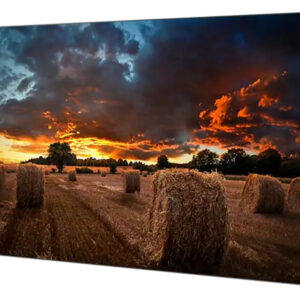

Samsung VM55BU/LH55VMBUBGBXEN 55″ VM-Series Videowall Display
Samsung VM55BU/LH55VMBUBGBXEN
55″ VM-Series Videowall Display
- Description
- Specification
- Warranty
-
Always-on, space-saving solution with extreme-narrow bezels
See an immersive and dependable viewing experience, 24/7 with Samsung’s VMB-U series. The display’s slim depth and 500 nit brightness ensures highly visible images and legible messages in a wide range of locations from shopping malls to lobbies, meeting rooms, control rooms and more.
Transform any space with high impact visuals

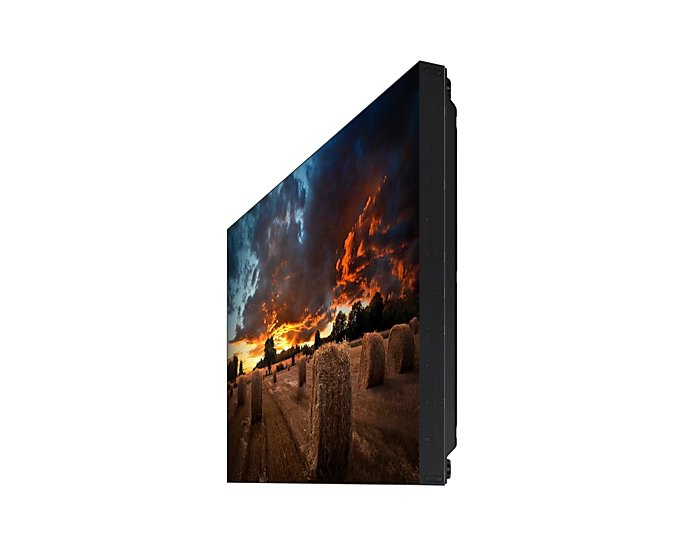

The slender design and 73.1mm cabinet depth provide flexibility for installation and an ultra-narrow 3.5mm bezel-to-bezel width creates a seamless picture opening endless possibilities for designing a captivating visual experience.
View content from any angle
Wide viewing angles mean content is easily visible even if viewers aren’t standing directly in front of the display. Audiences can get clear details and vivid colors regardless of where the screen is located.
Vibrant images in any light
Non-glare panels evenly distribute light across the screen to maintain vibrant and accurate content. Combined with a high contrast ratio and 24/7 operation, visuals are vivid and eye-catching any time of the day or night — regardless of ambient light.
Image enhancement
Samsung’s powerful picture enhancement technology ensures all content is vibrant and clear. With Picture Enhancer mode, color saturation and contrast are improved by adjusting the gamma curve. Using Black Equalizer mode, dark images are lightened, making details easier to see.
Comprehensive calibration to fit your needs
Multi-step factory tuning provides uniform brightness and color. Users can also fine-tune advanced settings with free powerful Color Expert Pro software. For quick and simple calibration, Color Expert Pro Mobile enables white balance adjustments for displays up to 3×3 using a mobile camera.
Advanced presentation, simplified operation
Utilizing daisy chain design through DisplayPort 1.2 or HDMI ports enables the display to present UHD content on multiple screens without an external graphic card. Samsung’s UHD Signage Player Box streamlines functionality by combining the media player and content management software.
Durable and user-friendly design
IP5x certified, the VMB-U series is dust-resistant and able to withstand a range of environmental conditions without needing to prepare additional enclosure in dusty places. An embedded, centrally located infrared receiver (IR) allows for easier and more flexible user control to the display.
Rigorous testing, robust protection
VMB-U series is delivered in specialized packaging which has passed a rigorous 4-step test to meet ISTA standards, ensuring the display is protected from any potential damage during transit. This provides peace of mind for businesses that the display is ready to function immediately after delivery. -
Category Details Display Diagonal Size 1m 40cm (55″) Panel Type IPS Resolution 1,920 x 1,080 Pixel Pitch (HxV) 0.63×0.63 Brightness (Typ) MAX 500 nit Contrast Ratio 1,200:1 Viewing Angle (H/V) 178/178 Response Time 8ms Color Gamut 72 % Glass Haze 25 % H-Scanning Frequency 62.7~72.3kHz Maximum Pixel Frequency 82MHz V-Scanning Frequency 57~63Hz Contrast Ratio (Dynamic) 45,000:1 Operation Time Support 24/7 Connectivity HDMI In 2 DP In 1 DVI In Yes Version of HDMI 2 Version of DP 1.2 Version of HDCP 2.2 USB 1 IR In Yes Audio In Yes Audio Out Stereo Mini Jack Video Out Yes Power Out No RS232 In Yes RS232 Out Stereo Mini Jack RJ45 In Yes Power Power Supply AC100-240V 50/60Hz Power Consumption (On Mode) 220 W Power Consumption (Sleep Mode) 0.5 W Dimension Set Dimension (WxHxD) 1213.5 x 684.3 x 73.1 mm Package Dimension (WxHxD) 1398 x 844 x 257 mm Weight Set Weight 21.2 kg Package Weight 28.8 kg Operation Conditions Temperature 0℃~ 40℃ Humidity 10 ~ 90% Mechanical Specification VESA Mount 600 x 400 mm Bezel Width 2.25mm(U/L), 1.25mm(R/B) Frame Material Glossy Optional Feature Mount Yes Stand No Certification and Compliance EMC FCC (USA) Part 15, Subpart B Class A; CE (Europe): EN55032:2012 or 2015, EN55024:2010 or EN 55035:2017; VCCI (Japan): VCCI CISPR32:2016 Class B; KC/C (Korea): Tuner: KN13/KN20, Tunerless: KN22/KN24; BSMI (Taiwan): CNS13438 (ITE EMI) Class A, CNS14336-1 (ITE Safety), CNS15663 (RoHS); C-Tick (Australia): AS/NZS CISPR32:2015; CCC (China): GB/T9254-2008, GB17625.1-2012; GOST (Russia/CIS): ROCT CISPR 24-2013, ROCT CISPR 22:2005 Safety CB (Europe): IEC60950-1/EN60950-1; CCC (China): GB4943.1-2011; PSB (Singapore): PSB+IEC60950-1; NOM (Mexico): Tunerless: NOM-019-SCFI-1998; IRAM (Argentina): IRAM+IEC60950-1; SASO (Saudi Arabia): SASO+IEC60950-1; BIS(India): IEC60950-1/IS13252; KC(Korea): K 60950-1; EAC(Russia): EAC+IEC60950-1; INMETRO(Brazil): INMETRO+IEC60950-1; BSMI(Taiwan): BSMI+IEC60950-1; RCM(Australia): IEC60950-1/AS/NZS 60950-1; UL(USA): cUL60950-1, CSA (Canada): cULTUV (Germany): CE, NEMKO (Norway): CE Manufacturer’s Information Manufactured by SAMSUNG ELECTRONICS HCMC CECOMPLEX CO. LTD., I11, D2 ROAD, TANG NHON PHU B WARD, SAIGON HITECH PARK, DISTRICT 9, HO CHI MINH CITY, VIETNAM 70000 Country of Origin Vietnam Imported by Samsung India Electronics Pvt. Ltd. having its Registered Office at: 6th Floor, DLF Centre, Sansad Marg, New Delhi-110001 Contact us Launch date May 21st, 2022 -
SAMSUNG SMART SIGNAGE STARDARD
WARRANTY GUIDE
SMART SIGNAGE1. Warranty Term
Samsung currently provides a 3 year standard limited warranty, but the warranty period may vary by country. Please contact your local Samsung representative to check the standard warranty period applicable for your country.Customers can purchase an extended warranty service pack, which must be purchased when the Product is purchased. The extended warranty period can increase the warranty period up to a total of 5 years.
2. Warranty Description
Samsung warrants that the Product will be free from manufacturing defects in material and workmanship during the abovementioned warranty period and fit for being used as commercial digital signage.During the warranty period, Samsung will, at its sole discretion,
1) provide service via phone, mail, technical support website (ex. Service Cloud) or e-support access to Help Desk to assist in resolving issues. Phone support is available during normal business hours.
2) repair (at Samsung’s own or Samsung’s Authorized Service Center(ASC)), or replace (using new or refurbished replacement parts or Products) any defect within a reasonable period of time and free of charge.
Generally, On-Site Repair Service is the default service for any Product requiring repair during the applicable warranty period. However, depending on the installed Product, location, environment and any special contract terms, there could be other services available such as Carry-In or Pick-up & Return.Service Response Turnaround Time (“TAT”):
The average TAT for Service Response is D+1 business days. Service Response means first response to a request (phone, e-mail, technical support website and / or verbal).Service Response may take more than 1 business day depending on the case.
Service Repair TAT:
Service Repair means initial repair activity by Samsung or Samsung’s ASC.※ Initial repair activity means one of below activities; site visit, checking symptoms, defective part exchange, configuration adjustment, etc.
Samsung shall aim for a Service Repair TAT of D+5 business days, provided however, additional time may be required, due to, by way of example, limitations in transportation/personnel availability, inaccessibility of location, locations requiring special access authorization (i.e. duty free stores), repeatability of the problem, and inaccurate description of the problem provided. Samsung will use its best efforts to solve the problem during its first on-site visit.
In the event Samsung experiences or foresees such delay, Samsung shall notify the customer and the Parties shall discuss in good faith to arrive at a resolution including a new delivery schedule.
Samsung recommends that the customer maintain a buffer stock of Products to minimize downtime.
3. Warranty Coverage
This limited warranty begins on the original date of purchase, and is valid only on Products purchased directly from Samsung or through Samsung’s authorized partners. To receive warranty service, the customer must contact Samsung for problem determination and service procedures. Warranty service can only be performed by a Samsung ASC. The original dated bill of sale must be presented upon request as proof of purchase to Samsung or Samsung’s ASC. In the event that no proof of purchase can be presented to Samsung, the limited warranty will commence from the date of manufacture specified on the Product.All replaced parts and Products shall become the property of Samsung and must be returned to Samsung. The repaired or replaced parts or Products assume the remaining original warranty
