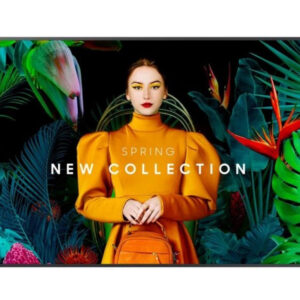

Samsung QB13R-M/LH13QBRMBGCXEN 13″ Small Digital Signage Display

• Description
• Specification
• Warranty
• Downloads

• Samsung QB13R-M/LH13QBRMBGCXEN 13″ Small Digital Signage Display

  Enhanced communication in a compact display
  Samsung’s QB13R-M enables personalised and more impactful communication through its compact and versatile design. An all-in-one solution designed for professional use, the QB13R-M improves the operational efficiency of content, while also ensuring reliable performance for any business use.

  Crisp and visible content
  The display supports 1920×1080 FHD resolution, displaying crisp and easy-to-read content. This is enhanced by a non-glare panel which always delivers clear content in any ambient light. These innovative features are supported by reliable 16/7 operation, suitable for professional use.

  Slim, smart design
  The compact and slim design of the QB13R-M allows for efficient space utilization, even in compact locations. A sleek back design makes the display optimal for both wall mounting or simply standing, while the connectivity, content play and device controls are easy to operate.

  Powerful content playback
  With an embedded MagicINFO S player, backed by TIZEN, the QB13R-M allows efficient and seamless playback without any external media player. SSSP also allows easy content development through reinforced compatibility with multiple web formats.

  Comprehensive security setup
  The powerful Knox security system provides rigid, three-layer security, offering airtight protection at the application, platform and system level, while restricting access to content and hardware. In addition, remote control of the network and USB ports prevents any unauthorised access.

  Convenient, clean display control
  With center IR, each display receives IR signals direct to the panel, allowing easy and convenient remote control even with a tailored installation. When mounted, display doesn’t require an IR receiver cabling extension. Built-in Wi-Fi allows wireless remote management for both content and display.

  Safe operation, reliable performance
  The QB13R-M is electromagnetic compatibility (EMC) class B compliant, meeting strict safety and reliability standards for operation. Additionally, IP5x rating ensures durable performance even in dusty environments.

• Category	Specification
  Display
  Diagonal Size	13″
  Panel Type	ADS
  Resolution	1,920 x 1,080
  Pixel Pitch (HxV)	0.153 (H) x 0.153 (V) mm
  Brightness (Typ)	500 nit
  Contrast Ratio	800:1
  Viewing Angle (H/V)	178°/178°
  Response Time	30ms
  Colour Gamut	45%
  Glass Haze	25%
  H-Scanning Frequency	30~81kHz
  Maximum Pixel Frequency	594MHz
  V-Scanning Frequency	48~75Hz
  Contrast Ratio (Dynamic)	10,000:1
  Operation Time Support	16/7
  Connectivity
  HDMI In	1
  DP In	No
  Version of HDMI	1.4
  Version of DP	No
  Version of HDCP	2.2
  USB	1
  IR In	No
  Audio In	No
  Audio Out	Stereo Mini Jack
  RS232 In	Yes
  RJ45 In	Yes
  WiFi	Yes
  Power
  Power Supply	AC100-240V 50/60Hz
  Power Consumption (On)	27.5W
  Power Consumption (Sleep)	0.5W
  Dimension
  Set Dimension (WxHxD)	322 x 193.5 x 28.2 mm
  Package Dimension (WxHxD)	376 x 132 x 248 mm
  Weight
  Set Weight with Stand	0.9 kg
  Package Weight	1.7 kg
  Operation Conditions
  Temperature	0℃~ 40℃
  Humidity	10 ~ 80%, non-condensing
  Mechanical Specification
  VESA Mount	100 x 100 mm
  Bezel Width	12.2 mm
  Frame Material	Non-Glossy
  Optional Feature
  Mount	No
  Stand	Inbox (Simple Stand) (2ea)
  SoC
  OS Version	Tizen 4.0
  Flash Memory Size	8GB
  Certification and Compliance
  EMC	Class B
  Safety	60950-1, 62368-1

• SAMSUNG SMART SIGNAGE STARDARD
  WARRANTY GUIDE
  SMART SIGNAGE

  1. Warranty Term
  Samsung currently provides a 3 year standard limited warranty, but the warranty period may vary by country. Please contact your local Samsung representative to check the standard warranty period applicable for your country.

  Customers can purchase an extended warranty service pack, which must be purchased when the Product is purchased. The extended warranty period can increase the warranty period up to a total of 5 years.

  2. Warranty Description
  Samsung warrants that the Product will be free from manufacturing defects in material and workmanship during the abovementioned warranty period and fit for being used as commercial digital signage.

  During the warranty period, Samsung will, at its sole discretion,

  1) provide service via phone, mail, technical support website (ex. Service Cloud) or e-support access to Help Desk to assist in resolving issues. Phone support is available during normal business hours.
  2) repair (at Samsung’s own or Samsung’s Authorized Service Center(ASC)), or replace (using new or refurbished replacement parts or Products) any defect within a reasonable period of time and free of charge.
  Generally, On-Site Repair Service is the default service for any Product requiring repair during the applicable warranty period. However, depending on the installed Product, location, environment and any special contract terms, there could be other services available such as Carry-In or Pick-up & Return.

  Service Response Turnaround Time (“TAT”):
  The average TAT for Service Response is D+1 business days. Service Response means first response to a request (phone, e-mail, technical support website and / or verbal).

  Service Response may take more than 1 business day depending on the case.

  Service Repair TAT:
  Service Repair means initial repair activity by Samsung or Samsung’s ASC.

  ※ Initial repair activity means one of below activities; site visit, checking symptoms, defective part exchange, configuration adjustment, etc.

  Samsung shall aim for a Service Repair TAT of D+5 business days, provided however, additional time may be required, due to, by way of example, limitations in transportation/personnel availability, inaccessibility of location, locations requiring special access authorization (i.e. duty free stores), repeatability of the problem, and inaccurate description of the problem provided. Samsung will use its best efforts to solve the problem during its first on-site visit.

  In the event Samsung experiences or foresees such delay, Samsung shall notify the customer and the Parties shall discuss in good faith to arrive at a resolution including a new delivery schedule.

  Samsung recommends that the customer maintain a buffer stock of Products to minimize downtime.

  3. Warranty Coverage
  This limited warranty begins on the original date of purchase, and is valid only on Products purchased directly from Samsung or through Samsung’s authorized partners. To receive warranty service, the customer must contact Samsung for problem determination and service procedures. Warranty service can only be performed by a Samsung ASC. The original dated bill of sale must be presented upon request as proof of purchase to Samsung or Samsung’s ASC. In the event that no proof of purchase can be presented to Samsung, the limited warranty will commence from the date of manufacture specified on the Product.

  All replaced parts and Products shall become the property of Samsung and must be returned to Samsung. The repaired or replaced parts or Products assume the remaining original warranty

• Description	Downloads
  Quick Guide	Download
