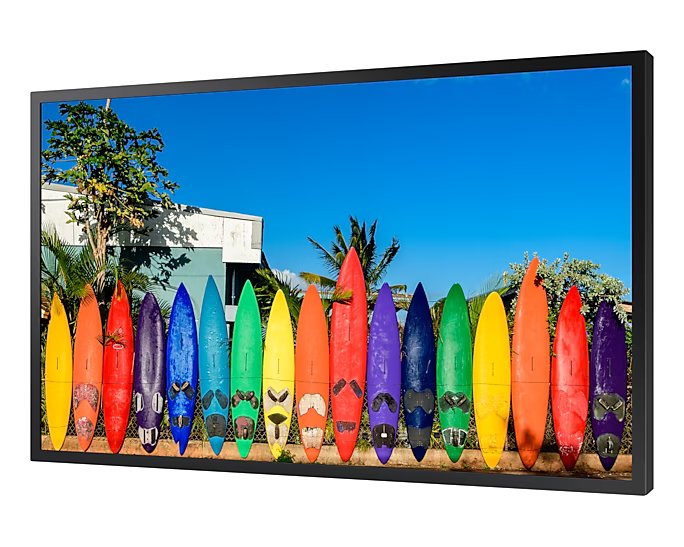

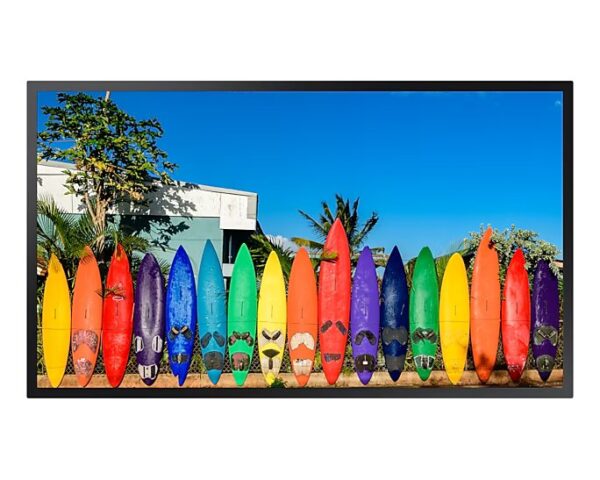

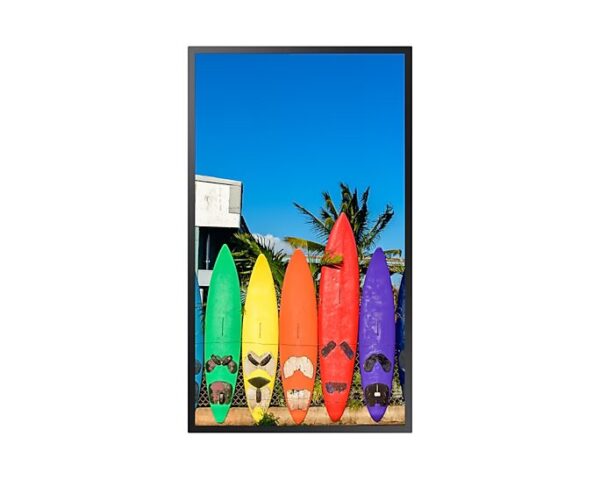

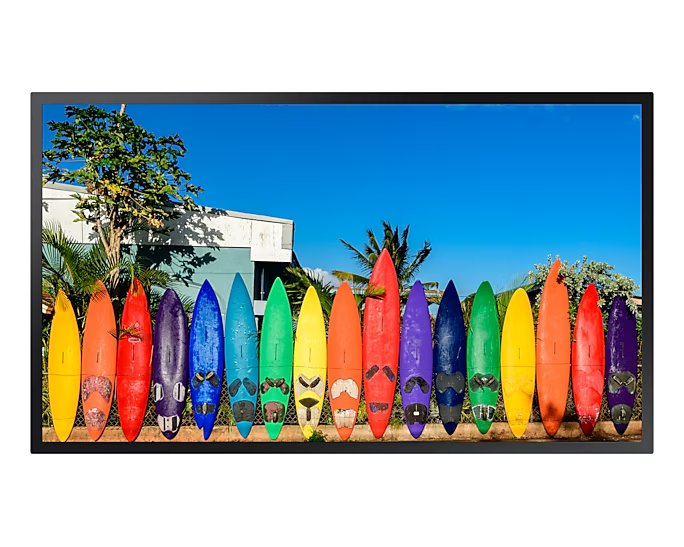

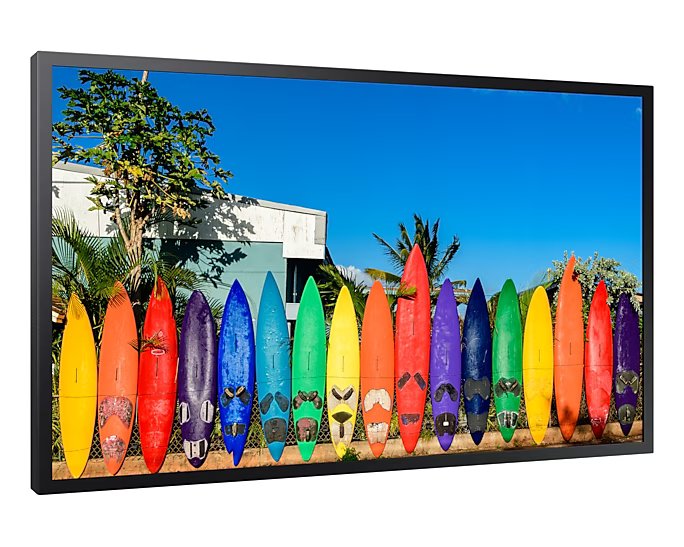

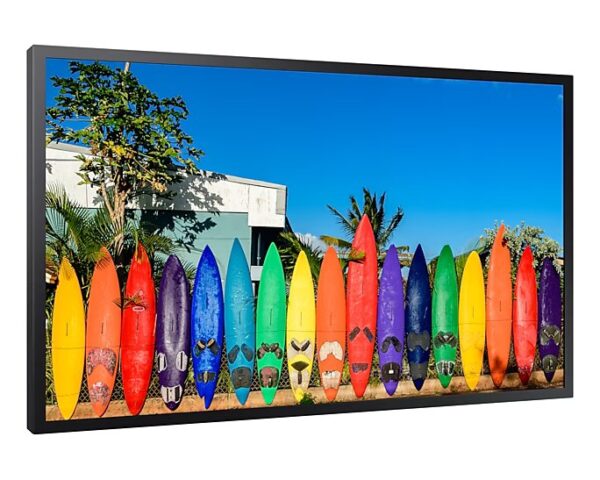

Samsung OM46B/LH46OMBEBGBXEN 46″ Window High Bright Display

Samsung OM46B/LH46OMBEBGBXEN

46″ Window High Bright Display

• Description
• Specification
• Warranty

• Promote content in any storefront window
  Samsung’s OM46B was designed with a storefront window display in mind. It projects clear, bright images that attract and engage audiences, increasing the probability of an in-store visit.

  Foster brilliant presentation for all
  Even in direct sunlight, the OM46B delivers exceptional picture quality with optimal brightness and high contrast ratio for an uncompromised customer viewing experience.

  Marvel at the lifelike colour expression
  Dynamic Crystal Display
  Immerse your customers in every picture with a wider range of colour. Dynamic Crystal Display creates lifelike images allowing the viewer to see even the subtlest details.

  Modernise space with slim design
  Supporting the best-in-class picture quality is a slim design that complements the surroundings of any retail environment, while freeing up valuable space for all those latest products.

  Streamline content management
  Samsung’s embedded MagicINFO Player boosts performance, simplifies content management and offers seamless content playback.

  Durable Performance
  With IP5X-validated dust protection and embedded, proprietary functionality that mitigates overheating, the OMB series continuously provides robust durability.

  Clutter-Free Configuration
  Cable guide and embedded Wi-Fi provide clean, organised look and allow for content and firmware updates without the need for additional messy cables.

• Category	Details
  Display
  Diagonal Size	46″
  Panel Type	VA
  Resolution	1,920 x 1,080
  Pixel Pitch (HxV)	0.53 x 0.53mm
  Brightness (Typ)	4,000 nit
  Contrast Ratio	6,000:1
  Viewing Angle (Horizontal/Vertical)	178/178
  Response Time	6ms
  Colour Gamut	NTSC 72%
  Glass Haze	0%
  H-Scanning Frequency	15135kHz (HDMI), 30135kHz (DP)
  Maximum Pixel Frequency	594MHz (HDMI), 533.25MHz (DP)
  V-Scanning Frequency	2475Hz (HDMI), 3075Hz (DP)
  Contrast Ratio (Dynamic)	Mega
  Operation Time Support	24/7
  Connectivity
  HDMI In	2
  DP In	1
  DVI In	N/A
  Version of HDMI	2
  Version of DP	1.2
  Version of HDCP	2.2
  Tuner In	N/A
  USB	1
  IR In	Yes
  HDBaseT In	N/A
  HDBaseT Out	N/A
  Audio In	No
  Audio Out	Stereo Mini Jack
  Video Out	Yes
  Video Out	No
  RS232 In	Yes
  RS232 Out	Yes
  RJ45 In	Yes
  RJ45 Out	Yes
  WiFi	Yes
  3G Dongle	N/A
  Bluetooth	N/A
  Power
  Power Supply	AC100-240V 50/60Hz
  Power Consumption (Off Mode)	N/A
  Power Consumption (On Mode)	350W
  Power Consumption (Sleep Mode)	0.5W
  Dimension
  Set Dimension (WxHxD)	1062.0 x 616.6 x 54.5 mm
  Package Dimension (WxHxD)	1189 x 757 x 158 mm
  Weight
  Set Weight with Stand	18.2 kg
  Package Weight	23 kg
  Operation Conditions
  Temperature	0~40 ℃
  Humidity	10 ~ 80%, non-condensing
  Mechanical Specification
  VESA Mount	400 x 400 mm
  Bezel Width	19.9 mm
  Glass Thickness	N/A
  Glass Film	N/A
  Frame Material	N/A
  Optional Feature
  Protection Glass	N/A
  Mount	N/A
  Stand	N/A
  SoC
  OS Version	Tizen 5.0
  Flash Memory Size	8GB
  Eco
  Energy Efficiency Class	N/A
  Certification and Compliance
  EMC	Class A
  Safety	60950-1

• SAMSUNG SMART SIGNAGE STARDARD
  WARRANTY GUIDE
  SMART SIGNAGE

  1. Warranty Term
  Samsung currently provides a 3 year standard limited warranty, but the warranty period may vary by country. Please contact your local Samsung representative to check the standard warranty period applicable for your country.

  Customers can purchase an extended warranty service pack, which must be purchased when the Product is purchased. The extended warranty period can increase the warranty period up to a total of 5 years.

  2. Warranty Description
  Samsung warrants that the Product will be free from manufacturing defects in material and workmanship during the abovementioned warranty period and fit for being used as commercial digital signage.

  During the warranty period, Samsung will, at its sole discretion,

  1) provide service via phone, mail, technical support website (ex. Service Cloud) or e-support access to Help Desk to assist in resolving issues. Phone support is available during normal business hours.
  2) repair (at Samsung’s own or Samsung’s Authorized Service Center(ASC)), or replace (using new or refurbished replacement parts or Products) any defect within a reasonable period of time and free of charge.
  Generally, On-Site Repair Service is the default service for any Product requiring repair during the applicable warranty period. However, depending on the installed Product, location, environment and any special contract terms, there could be other services available such as Carry-In or Pick-up & Return.

  Service Response Turnaround Time (“TAT”):
  The average TAT for Service Response is D+1 business days. Service Response means first response to a request (phone, e-mail, technical support website and / or verbal).

  Service Response may take more than 1 business day depending on the case.

  Service Repair TAT:
  Service Repair means initial repair activity by Samsung or Samsung’s ASC.

  ※ Initial repair activity means one of below activities; site visit, checking symptoms, defective part exchange, configuration adjustment, etc.

  Samsung shall aim for a Service Repair TAT of D+5 business days, provided however, additional time may be required, due to, by way of example, limitations in transportation/personnel availability, inaccessibility of location, locations requiring special access authorization (i.e. duty free stores), repeatability of the problem, and inaccurate description of the problem provided. Samsung will use its best efforts to solve the problem during its first on-site visit.

  In the event Samsung experiences or foresees such delay, Samsung shall notify the customer and the Parties shall discuss in good faith to arrive at a resolution including a new delivery schedule.

  Samsung recommends that the customer maintain a buffer stock of Products to minimize downtime.

  3. Warranty Coverage
  This limited warranty begins on the original date of purchase, and is valid only on Products purchased directly from Samsung or through Samsung’s authorized partners. To receive warranty service, the customer must contact Samsung for problem determination and service procedures. Warranty service can only be performed by a Samsung ASC. The original dated bill of sale must be presented upon request as proof of purchase to Samsung or Samsung’s ASC. In the event that no proof of purchase can be presented to Samsung, the limited warranty will commence from the date of manufacture specified on the Product.

  All replaced parts and Products shall become the property of Samsung and must be returned to Samsung. The repaired or replaced parts or Products assume the remaining original warranty
