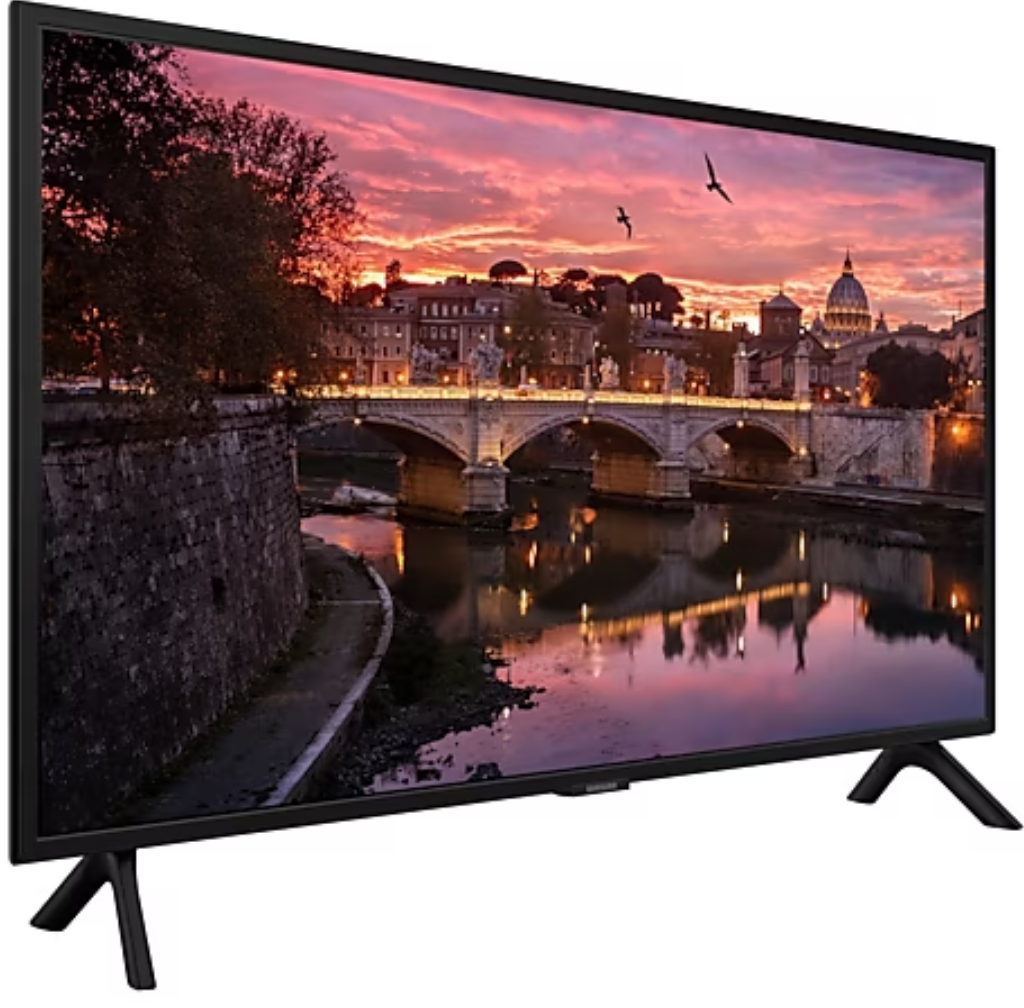

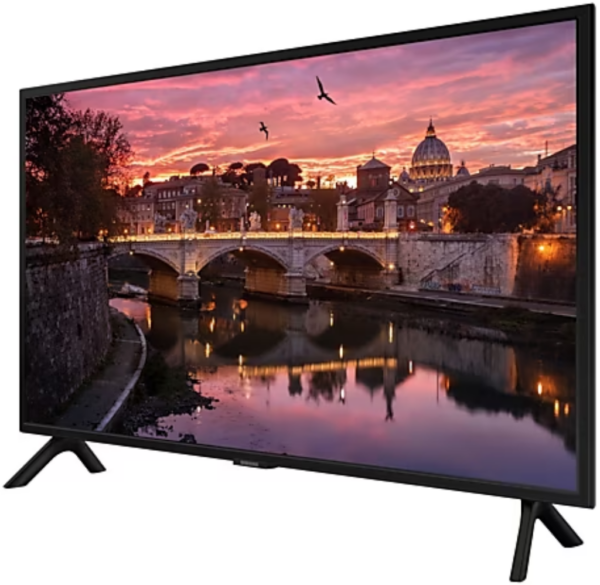

Samsung 32HJ690W 32″ 1080p Smart Commercial Hotel TV

• Description
• Specification
• Warranty
• Downloads

• Samsung 32HJ690W 32″ 1080p Smart Commercial Hotel TV


  Compact QLED that blends into any interior
  The Samsung HJ690W enables hotel operators to create welcoming environments ready to impress their guests, even when space is limited. Its compact design seamlessly blends into any setting to maximise space, allowing visitors to relax in comfort while enjoying signature QLED quality.

  A billion shades of colour with Quantum Dot
  100% Colour Volume with Quantum Dot
  Quantum Dot technology delivers our finest picture ever. With Colour Volume 100%, Quantum Dot takes light and turns it into breath taking colour that stays true at any level of brightness.

  * 100% color volume measured in Movie Mode and the DCI-P3 colour space, certified by VDE.

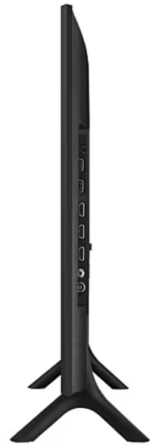

  Sleek and slim, more than ever
  AirSlim
  Ultra-slim design provides further flexibility, enabling hotel operators to create optimised room layouts that increase guest comfort.

  A tailored home menu
  Each Samsung hospitality display includes an intuitive, customisable home menu that streamlines content exchange between hotels and guests. Content managers can easily incorporate images, logos and feature icons specific to guest needs while reinforcing special offers and hotel branding.

  Powerful performance, enhanced security
  Backed by the powerful TIZEN operating system, Samsung hospitality displays ensure secure content delivery across the application, platform and system layers.

  Simple, compatible web app development
  Beyond its advanced graphics capabilities, Samsung’s H.Browser empowers smooth application development. All apps can be stored within the TIZEN OS and are supported by Web Simulator and Remote Web Inspector tools that further refine app performance and security.

  Centralised, real-time management
  Compatible with existing LAN, Wi-Fi and coaxial infrastructures, Samsung’s LYNK REACH 4.0 content platform centralises and streamlines overall hotel maintenance. Hotel managers now can remedy issues across single displays or display groups before they escalate.

  End-to-end personalised service
  Hotels additionally can use LYNK REACH 4.0 to deliver customized guest messaging. Upon arrival, guests can receive a personalised greeting along with information about promotions or on-site amenities relevant to their stay. LYNK REACH 4.0 also provides express check-out for added convenience.

• Category	Specification
  Display
  Backlight	QLED
  Screen Size	32 inches
  Resolution	1,920 x 1,080
  Video
  Picture Engine	Quantum Processor Lite
  Micro Dimming	Micro Dimming Pro
  Auto Motion Plus	Yes
  Clear Motion	N/A
  Film Mode	Yes
  Natural Mode Support	Yes
  PQI (Picture Quality Index)	2100
  HDR(High Dynamic Range)	HDR
  HDR10+	N/A
  HLG (Hybrid Log Gamma)	Yes
  Contrast	Mega Contrast
  Color	100% Color Volume with Quantum Dot
  Viewing Angle (Horizontal/Vertical)	178/178
  Auto Depth Enhancer	N/A
  Contrast Enhancer	Yes
  Audio
  Dolby Digital Plus	Yes
  Sound Output (RMS)	20W
  Speaker Type	2CH
  Woofer	N/A
  Bluetooth Audio	N/A
  Smart TV
  Samsung SMART TV	Smart
  Voice Interaction	N/A
  TV Plus	N/A
  Web Browser	Yes
  Universal Guide	N/A
  VESA
  VESA Mount	100 x 100 mm
  VESA Screw Size	M4
  VESA Screw Depth	19-22
  Convergence
  TV to Mobile – Mirroring	N/A
  Mobile to TV – Mirroring, DLNA	Yes
  Ambient Mode	N/A
  360 Video Player	Yes
  360 Camera Support	Yes
  Easy Setup	N/A
  Bluetooth Low Energy	N/A
  WiFi Direct	N/A
  TV Sound to Mobile	N/A
  Sound Mirroring	N/A
  General Feature
  Accessibility	UK English, German, French, Spanish, Italian, Dutch, Polish, Danish, Swedish, Finnish, Norwegian, Portuguese, Russian (only when connecting to Network in EE, LV, LT)
  Digital Clean View	Yes
  Auto Channel Search	Yes
  Auto Power Off	Yes
  Caption (Subtitle)	Yes
  Connect Share™ (HDD)	Yes
  ConnectShare™ (USB 2.0)	Yes
  EPG	Yes
  OSD Language	27 European Languages + Russian (only when connecting to Network in EE, LV, LT)
  Picture-In-Picture	N/A
  BT HID Support	N/A
  USB HID Support	Yes
  Teletext (TTX)	Yes
  Ultra Clean View	N/A
  V-Chip	N/A
  MBR Support	N/A
  IPv6 Support	Yes
  System
  Digital Broadcasting	DVB-T2CS2
  Analog Tuner	Yes
  CI (Common Interface)	CI+(1.4)
  Data Broadcasting	HbbTV 2.0.1(IT)/ HbbTV 1.5(CZ,SK,DE,AT,FR,ES,FI,EE,GR)/ HbbTV 1.0(PL,HU,CH,BE,NL,LU,PT,DK)/ MHEG 5(GB,IE)
  Hospitality Feature
  H.Browser Compatibility	Yes
  Samsung LYNK™ REACH (IP)	REACH 4.0
  Samsung LYNK™ REACH (RF)	REACH 4.0
  Samsung LYNK™ Cloud	N/A
  Hospitality Home Menu	Home Menu 2017
  Hospitality Home Menu 2.0	N/A
  Bluetooth Music Player (Mobile → TV)	N/A
  Hospitality Plug&Play (Easy Set-up)	Yes
  Auto Source Mode	Yes
  Power On Mode	Yes
  Hotel Channel List	Yes
  Channel Menu Display	Yes
  Mixed Channel List (ATSC, DVB-T/T2/C/S2, Analog)	Yes
  My Channel	Yes
  Energy Saving Mode (BLU Control)	Yes
  Logo Display with Time Out Setting (BMP/Movie)	Yes
  Welcome Message	Yes
  RJ12/IR Pass Through	Yes
  Clock Back Up Supply	Yes
  Software Clock	N/A
  Multi Code Remote Control	Yes
  Music Mode (Input: PC/AV/Component/HDMI)	N/A
  Music Mode Backlight on/off	N/A
  TTX Clock Update (Analogue)	Yes
  USB Cloning	Yes
  Smoovie Compatibility	Yes
  Soft AP	N/A
  On/Off Timer (Schedule)	Yes
  Wake-up Timer (Alarm)	Yes
  Samsung LYNK™ DRM	Yes
  Pro:Idiom	N/A
  Pro:Idiom SW	N/A
  bLAN	N/A
  Security Mode	Yes
  S/W EPG (Solution EPG)	Yes
  UL Certification	N/A
  Input & Output
  USB	2
  Component In (Y/Pb/Pr)	N/A
  Composite In (AV)	N/A
  Ethernet (LAN)	1
  Headphone	N/A
  Audio Out (Mini Jack / LR) (Side/Rear)	N/A
  Digital Audio Out (Optical)	1
  RF In (Terrestrial / Cable input / Satellite Input)	1/1(Common Use for Terrestrial)/1
  Ex-Link (Supports RS-232C Gender)	N/A
  CI Slot	1
  HDMI A / Return Ch. Support	Yes
  Wireless LAN Built-in	Yes (WiFi4)
  Anynet+ (HDMI-CEC)	Yes
  Pillow Speaker Jack	N/A
  Variable Audio Out	1
  Variable Audio Out Volume Control	Yes
  Video Out	N/A
  RJ12 (Side/Rear)	1
  RJP (Remote Jackpack) (Side/Rear)	1
  Headphone ID	N/A
  Door-Eye Control (Side/Rear)	N/A
  Door-Eye Video In (Side/Rear)	N/A
  PC/DVI Audio In (Mini Jack) (Side./Rear)	N/A
  Ethernet Bridge (LAN-Out)	1
  Design
  Front Colour	BLACK
  Stand Type	SLIM FEET
  Swivel (Left/Right)	N/A
  Bezel Type	VNB
  Light Effect (Deco)	N/A
  Eco
  Energy Efficiency Class	F
  Eco Sensor	Yes
  Power
  Power Supply (V)	AC220-240V~ 50/60Hz
  Power Consumption (Max)	80 W
  Power Consumption (Energy Saving Mode)	N/A
  Power Consumption (Stand-by)	0.50 W
  Power Consumption (Typical)	27.4 W
  Dimension
  Set Dimension without Stand (WxHxD)	723.3 x 425.6 x 30.3 mm
  Set Dimension with Stand (WxHxD)	723.3 x 477.7 x 154.2 mm
  Package Dimension (WxHxD)	811.0 x 530.0 x 120.0 mm
  Weight
  Set Weight without Stand	5.3 kg
  Set Weight with Stand	5.4 kg
  Package Weight	7.6 kg
  Accessory
  Remote Controller Model	TM1240A
  Batteries (for Remote Control)	Yes
  Samsung Smart Control (Included)	N/A
  Mini Wall Mount Supported	N/A
  Vesa Wall Mount Supported	Yes
  User Manual	N/A
  E-Manual	N/A
  ANT-Cable	N/A
  Power Cable	Yes
  Quick Install Guide	Yes
  Data Cable	Yes
  Stand Mount Kit	N/A
  Security Screws (Stand Base)	N/A
  PureCare Remote(Seamless White Remote)	N/A
  Optional Stand Support	N/A
  Slim Gender Cable	N/A
  Screwed Battery Cover (Remote Control)	Yes
  Angle Adaptor (for Side RF tuner)	N/A

• SAMSUNG SMART SIGNAGE STARDARD
  WARRANTY GUIDE
  SMART SIGNAGE

  1. Warranty Term
  Samsung currently provides a 3 year standard limited warranty, but the warranty period may vary by country. Please contact your local Samsung representative to check the standard warranty period applicable for your country.

  Customers can purchase an extended warranty service pack, which must be purchased when the Product is purchased. The extended warranty period can increase the warranty period up to a total of 5 years.

  2. Warranty Description
  Samsung warrants that the Product will be free from manufacturing defects in material and workmanship during the abovementioned warranty period and fit for being used as commercial digital signage.

  During the warranty period, Samsung will, at its sole discretion,

  1) provide service via phone, mail, technical support website (ex. Service Cloud) or e-support access to Help Desk to assist in resolving issues. Phone support is available during normal business hours.
  2) repair (at Samsung’s own or Samsung’s Authorized Service Center(ASC)), or replace (using new or refurbished replacement parts or Products) any defect within a reasonable period of time and free of charge.
  Generally, On-Site Repair Service is the default service for any Product requiring repair during the applicable warranty period. However, depending on the installed Product, location, environment and any special contract terms, there could be other services available such as Carry-In or Pick-up & Return.

  Service Response Turnaround Time (“TAT”):
  The average TAT for Service Response is D+1 business days. Service Response means first response to a request (phone, e-mail, technical support website and / or verbal).

  Service Response may take more than 1 business day depending on the case.

  Service Repair TAT:
  Service Repair means initial repair activity by Samsung or Samsung’s ASC.

  ※ Initial repair activity means one of below activities; site visit, checking symptoms, defective part exchange, configuration adjustment, etc.

  Samsung shall aim for a Service Repair TAT of D+5 business days, provided however, additional time may be required, due to, by way of example, limitations in transportation/personnel availability, inaccessibility of location, locations requiring special access authorization (i.e. duty free stores), repeatability of the problem, and inaccurate description of the problem provided. Samsung will use its best efforts to solve the problem during its first on-site visit.

  In the event Samsung experiences or foresees such delay, Samsung shall notify the customer and the Parties shall discuss in good faith to arrive at a resolution including a new delivery schedule.

  Samsung recommends that the customer maintain a buffer stock of Products to minimize downtime.

  3. Warranty Coverage
  This limited warranty begins on the original date of purchase, and is valid only on Products purchased directly from Samsung or through Samsung’s authorized partners. To receive warranty service, the customer must contact Samsung for problem determination and service procedures. Warranty service can only be performed by a Samsung ASC. The original dated bill of sale must be presented upon request as proof of purchase to Samsung or Samsung’s ASC. In the event that no proof of purchase can be presented to Samsung, the limited warranty will commence from the date of manufacture specified on the Product.

  All replaced parts and Products shall become the property of Samsung and must be returned to Samsung. The repaired or replaced parts or Products assume the remaining original warranty
