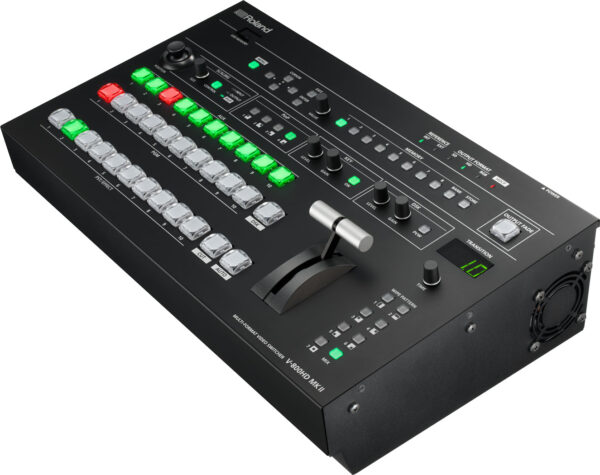

Roland MK2 HDMI Multi-Format Video Switcher | V-800HDMK2

• Description
• Specifications
• Downloads

• Roland MK2 HDMI Multi-Format Video Switcher


  Multi Format 16 Input Video Switcher
   Multi Format 16 Input Video Switcher
   16 inputs, 10 Cross points
   (4 SDI/Composite/RGB + 4 DVI-I/HDMI)
   6 outputs (2 SDI + 2 DVI + RGB + Composite) Simultaneous output
   Dedicated multi-view monitor output
   High quality 4:4:4/10 bit processing
   1080p/i, WUXGA processing
   1 M/E (KEY, PinP) + AUX or DSK
   Frame Sync & Scaler on all inputs and outputs
   3G, HD, SD 3-mode SDI
   (3G-SDI Level A/B compatible)
   DVI-D/RGB/HDMI compatible
   Input signal status confirmation LEDs
   HDCP Compatible
   Two active still images from sixteen still memories
   Ten assignable cross points
   AUX bus switch


  UPDATED VERSION OF THE INDUSTRY STANDARD MULTI-FORMAT VIDEO SWITCHER
  A refreshed interface for improved workflow with the versatile multi-format V-800HD video switcher. Newly added AUX bus delegation layer switches enhance both visibility and operability.

  STELLAR IMAGE QUALITY AT 1080P (3G-SDI)
  Supports 1080p video signals at bit rates as high as 3 Gbps — twice the rate of conventional HD.
  Asserts all the vividness of high-realism, high-detail camera and computer sources.

  TRUE MULTI-FORMAT PERFORMANCE
  There’s no need to convert the input source to match the video output format. The built-in scalers up-convert and down-convert any video source to the optimal resolution.


  FULL RANGE OF CONNECTIVITY
  The V-800HD MK II supports a large number of input formats, from analogue to digital, with all the necessary connectors. The SDI connectors accommodate 3G, HD, and SD. The DVI-I connectors pull full duty for DVI-D, DVI-A and even HDMI using a simple HDMI/DVI adapter. The Mini D-Sub 15 pin type connector accommodates SD/HD component as well as computer input via RGB.

  EQUIPPED WITH AUX BUS SWITCH
  Easily switch sources connected to the assignable AUX outputs with the dedicated AUX layer switches. This is ideal for selecting which source is sent to a confidence monitor or secondary destination.

• Feature	Details
  Video Processing	4:4:4 (Y/Pb/Pr, RGB), 10-bit
  Supported Formats	480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
  PC Resolutions	640 x 480 to 1920 x 1200, conforms to VESA DMT Version 1.0 Revision 10
  Still Image	Max 1900 x 1200 pixels, 24-bit per pixel, uncompressed
  Input Connectors	3G/HD/SD-SDI x 4, DVI-I/HDMI x 4, Component (Mini D-sub 15-pin) x 4, Composite x 4, Analog RGB x 4
  Output Connectors	3G/HD/SD-SDI x 2, DVI-D/HDMI x 2, HDMI x 1 (multi-view), Component x 1, Composite x 1, Analog RGB x 1
  Other Connectors	Tally x 2, Reference BNC, MIDI x 2, RS-232, USB Type A (host)
  Effects	Mix, Cut, Wipe (9 patterns), PinP, DSK, Chrominance Key, Luminance Key, External Key, Output Fade, Output Freeze
  Power Supply	AC 115 V, 117 V, 220 V, 230 V, 240 V (50/60 Hz)
  Power Consumption	75 W/0.7 A (115 V, 117 V), 75 W/0.4 A (220 V, 230 V, 240 V)
  Operating Temperature	+0 to +40 °C (+32 to +104 °F)
  Dimensions	482 (W) x 275 (D) x 116 (H) mm, 19 (W) x 10-7/8 (D) x 4-5/8 (H) inches
  Weight	5.5 kg (12 lbs 3 oz)
