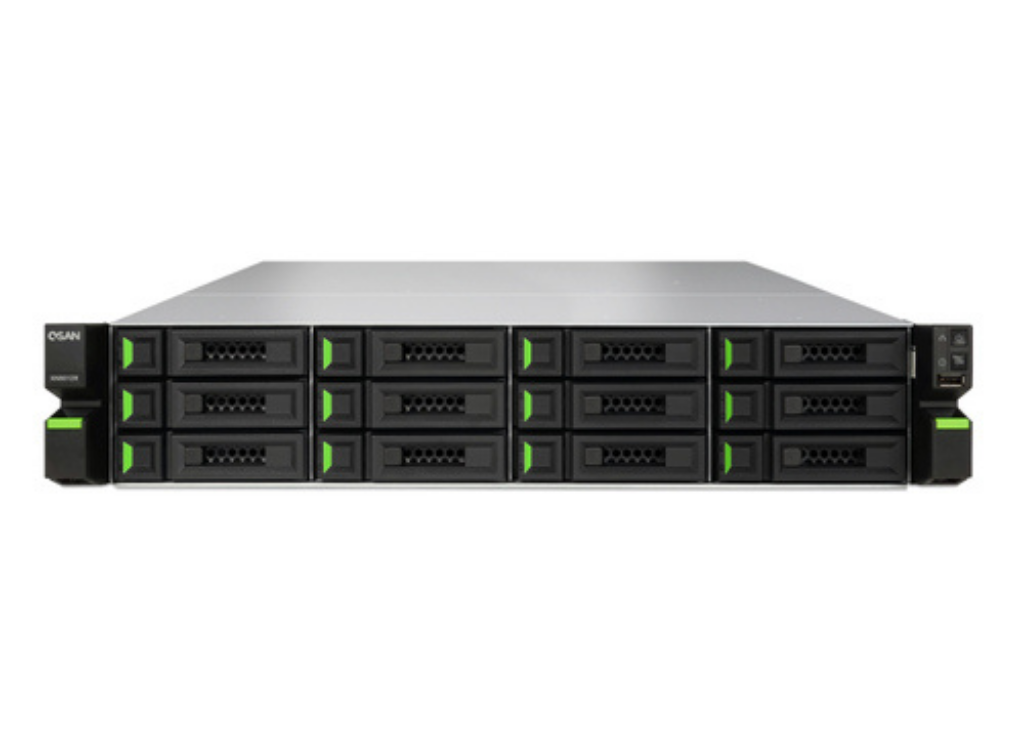

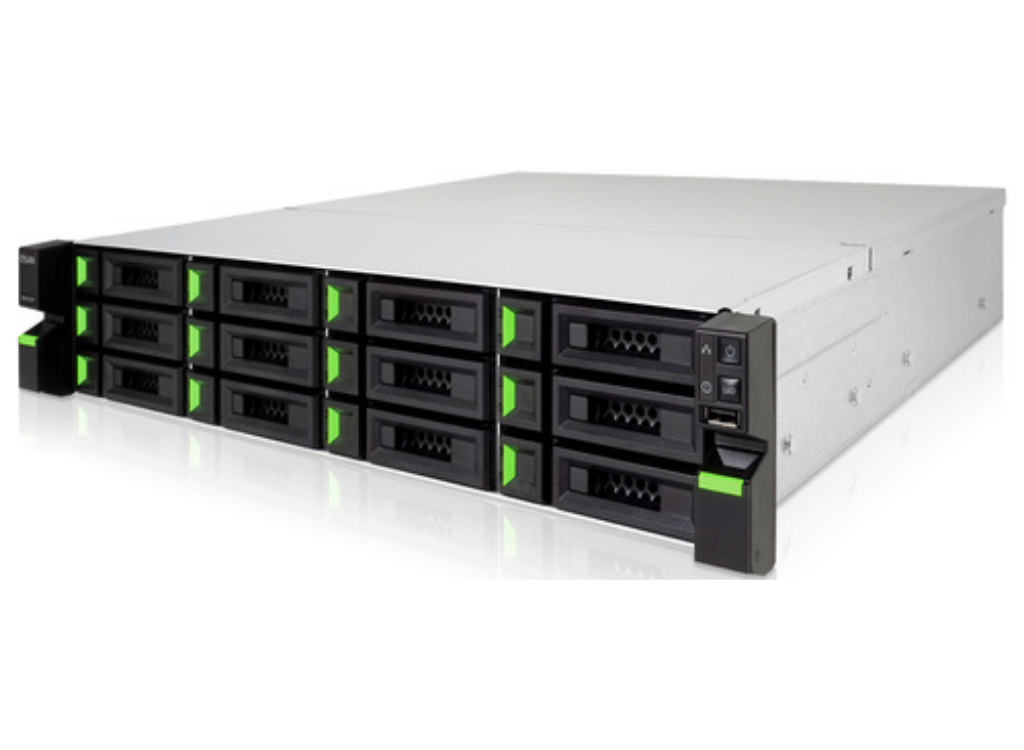

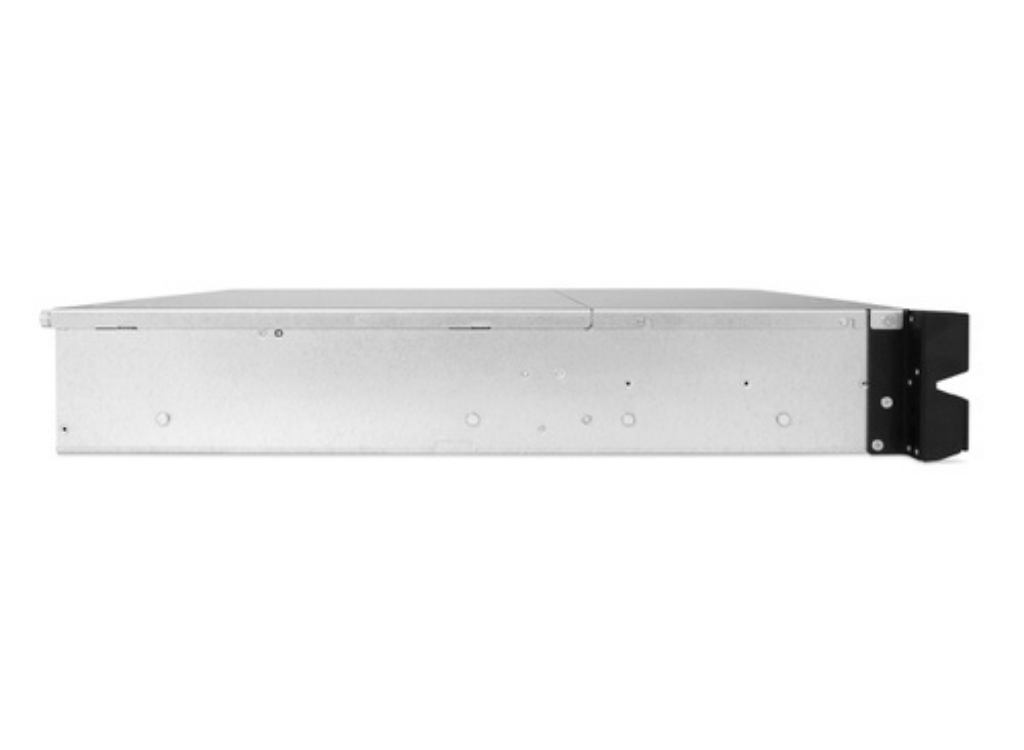

Qsan Origin Storage Xcube Rackmount 2U 12 + 6 Bay with Intel 2.9GHz Dual-Core Processor 8Gb DDR4 U-DIMM (Max 64GB) with 8 x Enterprise SATA 8TB NAS | XN5012RE/64TB

• Description
• Specifications

• Qsan Origin Storage Xcube Rackmount 2U 12 + 6 Bay with Intel 2.9GHz Dual-Core Processor 8Gb DDR4 U-DIMM (Max 64GB) with 8 x Enterprise SATA 8TB NAS | XN5012RE/64TB

  Web Finder
  No need to install any applications, you can easily find your XCubeNAS.

  XFinder
  XFinder is a desktop utility that searches for QSAN XCubeNAS devices in the local area network.


  Lightest SMB Multi-function Data Center

  WORM
  WORM technology is designed to prevent intentional modification and help your data away from ransomware attack.

  XReplicator
  The most reliable and efficient PC backup solution on XCubeNAS.

  XMirror
  You can regularly synchronizes a volume, or the contents of a folder between multiple XCubeNAS devices.


  Rsync
  Data copies can be distributed to your trusted storage locations through real-time remote backup.

  Snapshot Replication
  Transporting snapshots to multiple XCubeNAS to help administrators utilize the storage capacity and secure your data.

  File Retention
  Automatically file management increases the efficiency of the storage capacity.

• Category	Specification
  Certificates	CE, FCC, BSMI, VCCI, RCM
  Software	Operating system installed: QNAP Storage Manager
  	Operating system version: 3
  Operational Conditions	Operating relative humidity (H-H): -10 – 50%
  	Storage temperature (T-T): 20 – 80 °C
  	Operating temperature (T-T): 0 – 40 °C
  	Storage relative humidity (H-H): 10 – 90%
  Design	Chassis type: Rack (2U)
  	Product colour: Black, Metallic
  	Number of fans: 3 fan(s)
  	Cooling type: Active
  	Fan diameter: 6 cm
  Memory	Internal memory type: DDR4
  	Memory slots: 4
  	Memory form factor: UDIMM
  	Maximum RAM supported: 64 GB
  	Internal memory: 8 GB
  Performance	Type: NAS
  	Reset button: Yes
  	S.M.A.R.T. support: Yes
  	Device class: Small & Medium Business
  	Backup function: Yes
  Weight & Dimensions	Weight: 12.7 kg
  	Package weight: 14.1 kg
  	Height: 88.5 mm
  	Width: 438 mm
  	Depth: 510 mm
  Network	Ethernet LAN: Yes
  	Wake-on-LAN ready: Yes
  	Link aggregation: Yes
  	Jumbo frames support: Yes
  	Ethernet LAN data rates: 10,100,1000 Mbit/s
  	iSCSI support: Yes
  Ports & Interfaces	Serial ports quantity: 1
  	USB 2.0 ports quantity: 1
  	Ethernet LAN (RJ-45) ports: 4
  	HDMI ports quantity: 1
  	USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
  	USB port: Yes
  Power	Power consumption (typical): 300 W
  	Number of power supply units: 2
  	Redundant power supply (RPS) support: Yes
  	AC input frequency: 50 – 60 Hz
  	AC input voltage: 100 – 240 V
  	Power supply location: Built-in
  	Power supply unit (PSU) capacity: 250 W
  	Power consumption (HDD standby): 168 W
  Processor	Processor model: D-1527
  	Processor manufacturer: Intel
  	Processor family: Intel® Celeron®
  	Processor cores: 2
  	CPU multiplier (bus/core ratio): 7
  	CPU configuration (max): 1
  	FSB Parity: No
  	Bus type: FSB
  	Processor frequency: 2.9 GHz
  	Conflict-Free processor: Yes
  Processor Special Features	Enhanced Intel SpeedStep Technology: Yes
  	Execute Disable Bit: Yes
  	Idle States: Yes
  	Intel Trusted Execution Technology: Yes
  	Intel Enhanced Halt State: Yes
  	Intel VT-x with Extended Page Tables (EPT): Yes
  	Embedded options available: Yes
  	Intel Demand Based Switching: No
  	Intel TSX-NI: Yes
  	Intel 64: Yes
  	Intel Virtualization Technology for Directed I/O (VT-d): Yes
  	Intel Secure Key Technology version: 1.00
  	Intel Virtualization Technology (VT-x): Yes
  	Intel TSX-NI version: 1.00
  Storage	RAID levels: 0, 1, 5, 6, 10, 50, 60, JBOD
  	RAID support: Yes
  	Storage drive size: 2.5/3.5″
  	Storage drive interface: Serial ATA III
  	Number of storage drives supported: 12
  	Storage drives installed: Yes
  	Maximum supported storage capacity: 192 TB
  	Number of storage drives installed: 8
  	Installed storage drive type: HDD
  	Supported storage drive types: HDD & SSD
  	Hot-swap drive bays: Yes
  	Storage drive capacity: 16 TB
  	RAID rebuild: Yes
  	Total installed storage capacity: 64 TB
