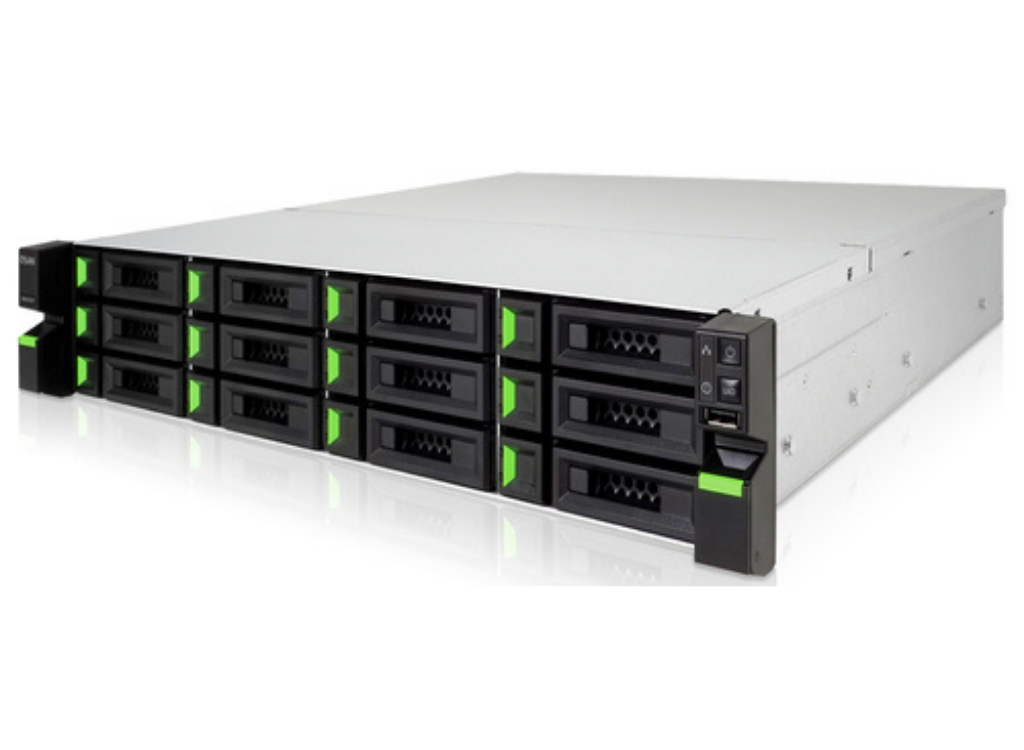

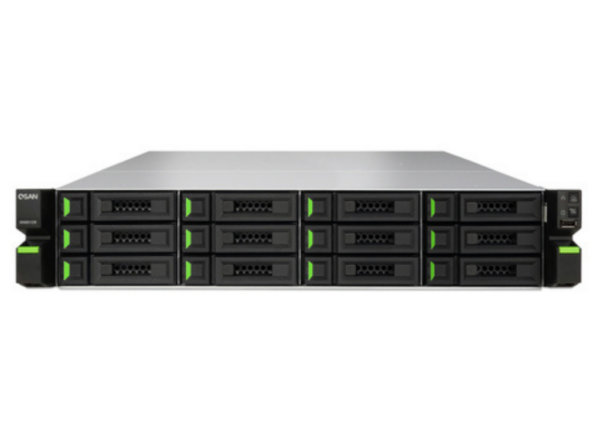

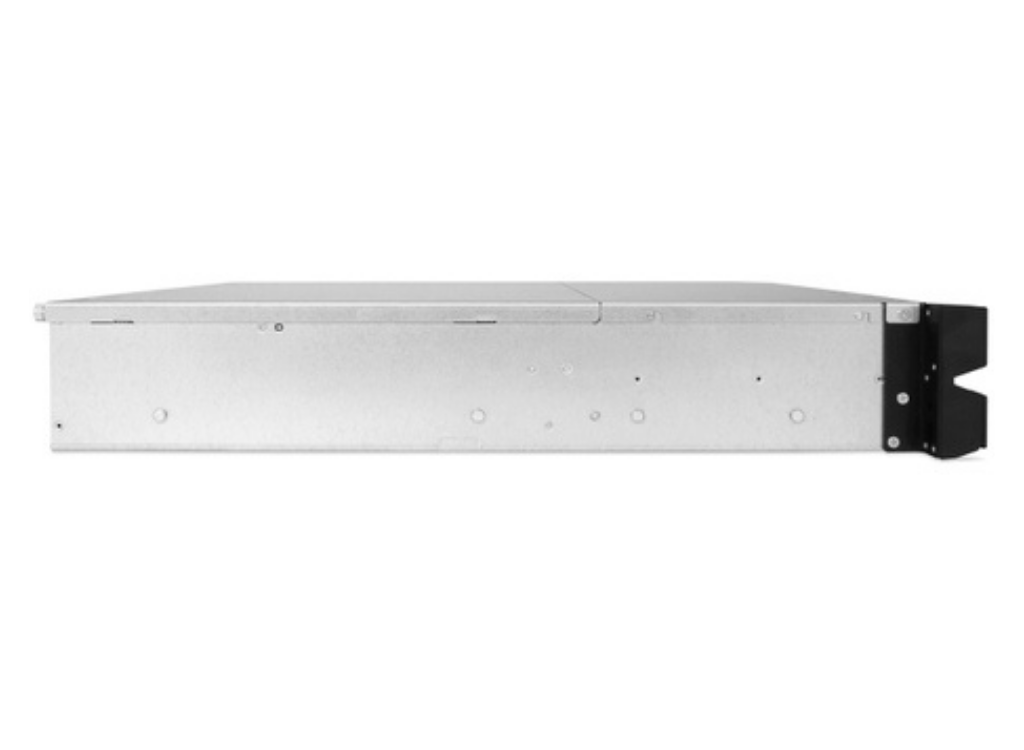

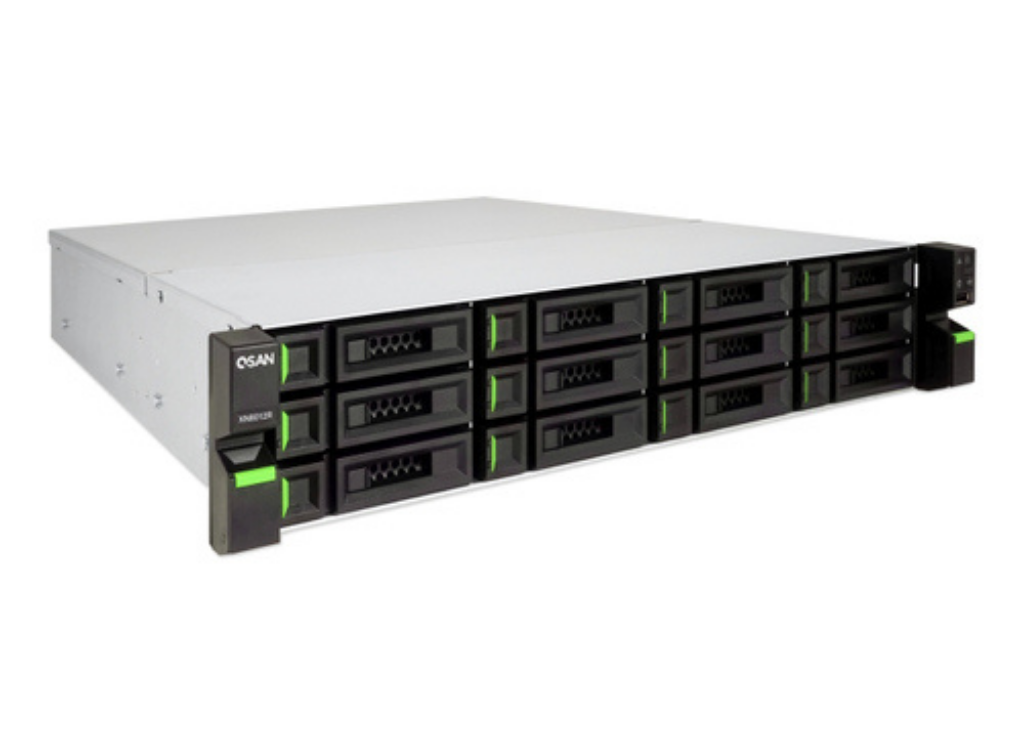

Qsan Origin Storage Xcube Rackmount 2U 12 + 6 Bay with Intel 2.9GHz Dual-Core Processor 8Gb DDR4 U-DIMM (Max 64GB) with 12 x Enterprise SATA 14TB (ex Rear Bays), NAS | XN5012RE/168TB

• Description
• Specifications

• Qsan Origin Storage Xcube Rackmount 2U 12 + 6 Bay with Intel 2.9GHz Dual-Core Processor 8Gb DDR4 U-DIMM (Max 64GB) with 12 x Enterprise SATA 14TB (ex Rear Bays), NAS | XN5012RE/168TB

  Web Finder
  No need to install any applications, you can easily find your XCubeNAS.

  XFinder
  XFinder is a desktop utility that searches for QSAN XCubeNAS devices in the local area network.

  Lightest SMB Multi-function Data Center

  WORM
  WORM technology is designed to prevent intentional modification and help your data away from ransomware attack.

  XReplicator
  The most reliable and efficient PC backup solution on XCubeNAS.

  XMirror
  You can regularly synchronizes a volume, or the contents of a folder between multiple XCubeNAS devices.

  Rsync
  Data copies can be distributed to your trusted storage locations through real-time remote backup.

  Snapshot Replication
  Transporting snapshots to multiple XCubeNAS to help administrators utilize the storage capacity and secure your data.

  File Retention
  Automatically file management increases the efficiency of the storage capacity.

• Category	Specification
  Certificates	CE, FCC, BSMI, VCCI, RCM
  Software	OS installed: QNAP Storage Manager
  	OS version: 3
  Operational Conditions	Rel. humidity (H-H): -10 – 50%
  	Storage temp. (T-T): 20 – 80 °C
  	Operating temp. (T-T): 0 – 40 °C
  	Storage humidity (H-H): 10 – 90%
  Design	Chassis: Rack (2U)
  	Colour: Black, Metallic
  	Fans: 3 fan(s)
  	Cooling: Active
  	Fan diameter: 6 cm
  Memory	Memory type: DDR4
  	Slots: 4
  	Form factor: UDIMM
  	Max RAM: 64 GB
  	Internal memory: 8 GB
  Performance	Type: NAS
  	Reset button: Yes
  	S.M.A.R.T. support: Yes
  	Device class: SMB
  	Backup function: Yes
  Weight & Dimensions	Weight: 12.7 kg
  	Package weight: 14.1 kg
  	Height: 88.5 mm
  	Width: 438 mm
  	Depth: 510 mm
  Network	Ethernet LAN: Yes
  	Wake-on-LAN: Yes
  	Link aggregation: Yes
  	Jumbo frames: Yes
  	LAN data rates: 10,100,1000 Mbit/s
  	iSCSI support: Yes
  Ports & Interfaces	Serial ports: 1
  	USB 2.0 ports: 1
  	RJ-45 ports: 4
  	HDMI ports: 1
  	USB 3.2 Gen 1 ports: 4
  	USB port: Yes
  Power	Power consumption (typical): 300 W
  	Power supply units: 2
  	RPS support: Yes
  	AC frequency: 50 – 60 Hz
  	AC voltage: 100 – 240 V
  	Power supply location: Built-in
  	PSU capacity: 250 W
  	Power consumption (HDD standby): 168 W
  Processor	Model: E6300
  	Manufacturer: Intel
  	Family: Intel® Celeron®
  	Cores: 2
  	Frequency: 2.9 GHz
  Processor Special Features	Enhanced SpeedStep: Yes
  	Execute Disable Bit: Yes
  	Idle States: Yes
  	Trusted Execution: No
  	Enhanced Halt State: Yes
  	Intel 64: Yes
  	VT-x: Yes
  Storage	RAID levels: 0, 1, 5, 6, 10, 50, 60, JBOD
  	RAID support: Yes
  	Drive size: 2.5/3.5″
  	Interface: Serial ATA III
  	Drives supported: 12
  	Drives installed: Yes
  	Max capacity: 192 TB
  	Drives installed: 12
  	Drive type: HDD
  	Supported types: HDD & SSD
  	Hot-swap bays: Yes
  	Drive capacity: 14 TB
  	RAID rebuild: Yes
  	Total capacity: 168 TB
