ProXtend PCIe X4 Quad RJ45 Gigabit Ethernet NIC | PX-NC-10797

• Description
• Specifications

• ProXtend PCIe X4 Quad RJ45 Gigabit Ethernet NIC

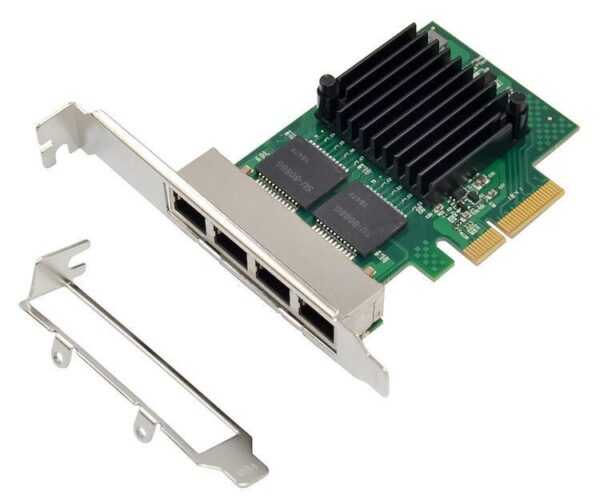

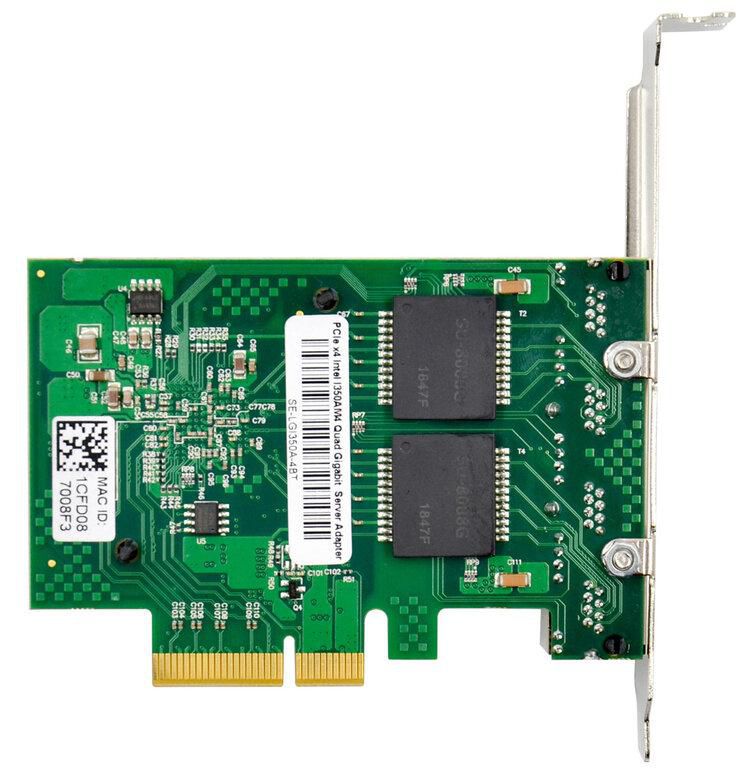

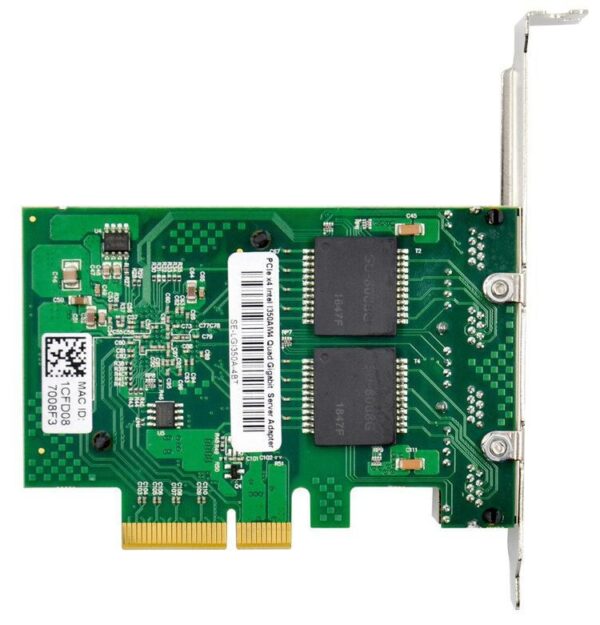

  PCIe X4 Quad RJ45 Gigabit Ethernet NIC
  The ProXtend PX-NC-10797 is a PCI Express 2.1 (x1) quad RJ45 Gigabit network adapter based upon the Intel I350 AM4 chipset, compatible with PCIe x4, x8 and x16 slots. Providing unparalleled networking performance for any PCI Express enabled clients, servers, or workstations. Network Adapter Card supports high performance dual channel networking and maximum data transfer speeds of 1000Mbps in each direction, up to ten times faster than traditional 10/100 Ethernet.
  ProXtend PCIe Network Cards offer 100% compatibility with all major vendors, delivering performance and functionality for the most demanding server and desktop applications.

• Category	Feature	Details
  Design	Certification	CE, ROHS
  	Component for	PC
  	Internal	Yes
  Legal Information	UNSPSC Code (Icecat)	43201404
  Network	Cabling Technology	10/100/1000BaseT(X)
  	Ethernet Interface Type	Gigabit Ethernet
  	Ethernet LAN	Yes
  	Ethernet LAN Data Rates	10/100/1000 Mbit/s
  	Jumbo Frames Support	Yes (9500)
  	LAN Controller	Intel® I350-AM4
  	Maximum Data Transfer Rate	1000 Mbit/s
  	Maximum Operating Distance	100 m
  	Networking Standards	IEEE 1588, 802.1Q, 802.3, 802.3ab, 802.3az, 802.3u
  Package Dimensions	Depth	0.23 cm
  	Width	0.16 cm
  	Height	0.03 cm
  	Gross Weight	0.21 kg
  Ports & Interfaces	Connectivity Technology	Wired
  	Ethernet LAN (RJ-45) Ports	4
  	Host Interface	PCI Express
  	Interface	Ethernet
  	PCI Card Form Factor	Full-height (low-profile)
  	PCI Version	2.1
  Product Dimensions	Depth	0.23 cm
  	Width	0.16 cm
  	Height	0.03 cm
  	Net Weight	0.21 kg
  Sustainability	Certificates	RoHS
  System Requirements	Linux OS Supported	Yes
  	Other OS Supported	FreeBSD, Novell, OpenUnix 8, UnixWare
  	Server OS Supported	Windows Server 2008/2012/2016
  	Windows OS Supported	Windows 10/7/8
  Technical Details	Compliance Certificates	RoHS
  Vendor Information	Brand Name	ProXtend
  	Warranty	3 Years
  Categories	Main Category	Server, Computer & Printer Parts
  	Subcategories	Servers & Computers, System Components, Networking Cards
