ProDVX PoE LED Android Touch Display | APPC-10SLBN-R23

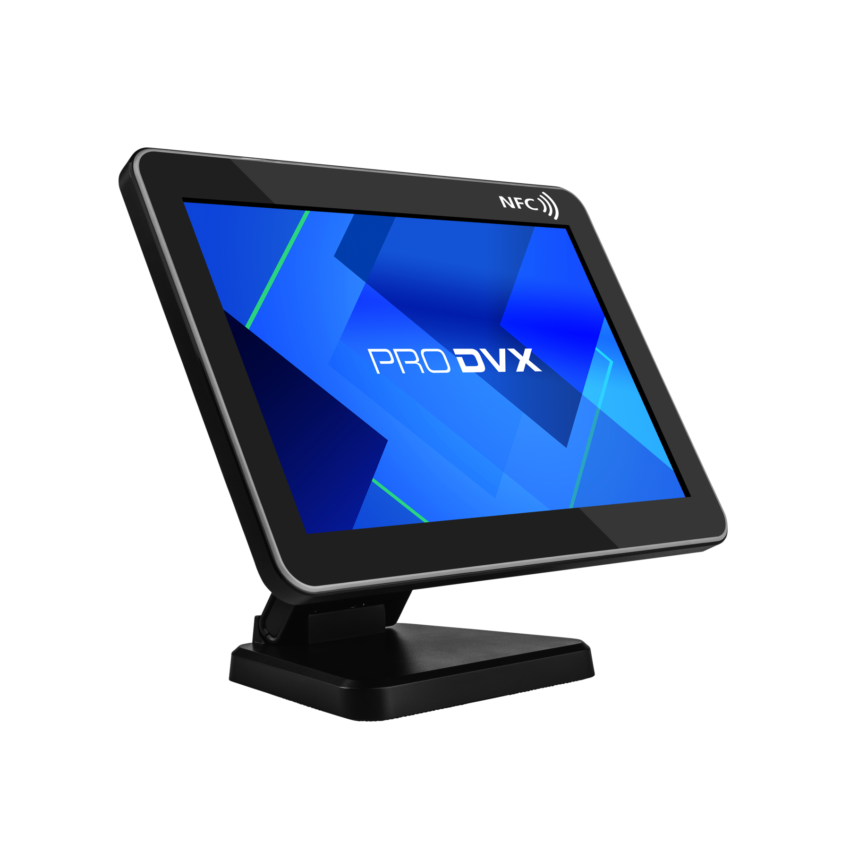

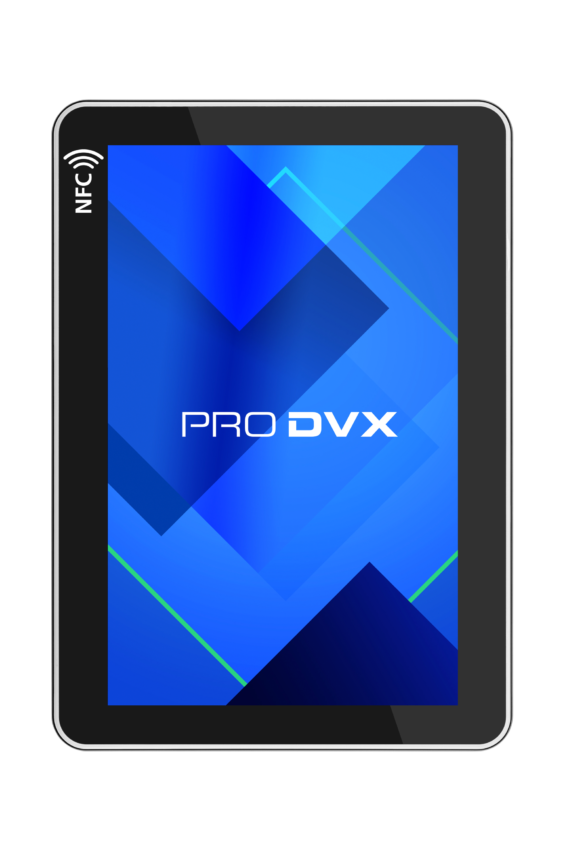

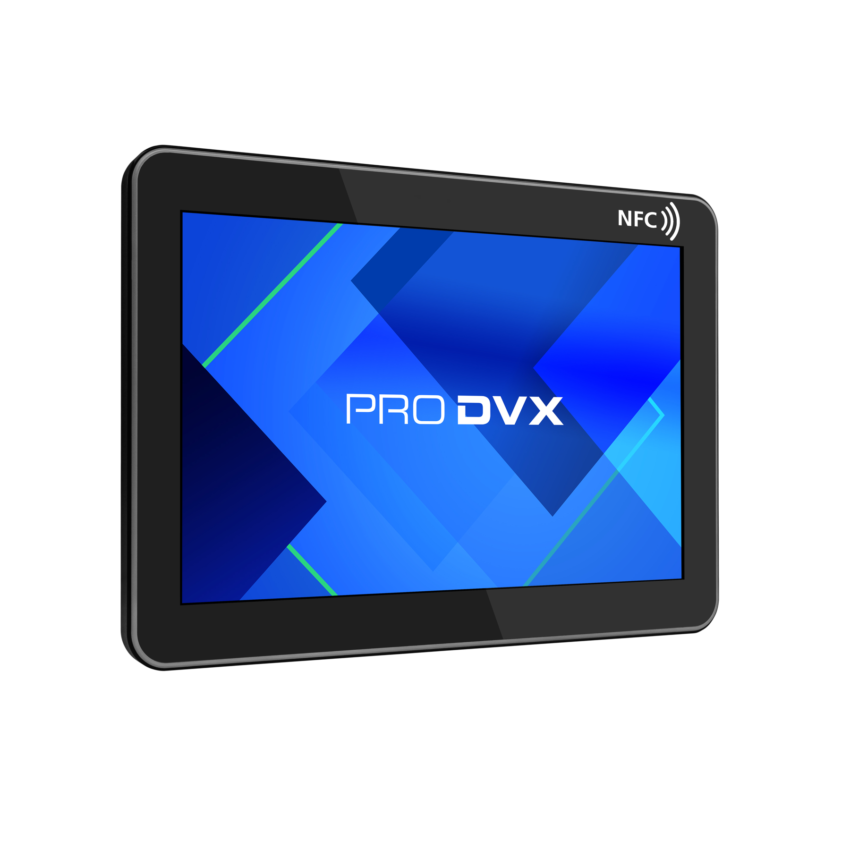

The APPC-10SLBN (R23-7581) is a 10.1-inch Android Panel PC, featuring Android 12 and a new quad-core Cortex-A55 CPU and Mali-G52 GPU (RK3568). It comes with a surround RGB LED bar for efficient signalling, and an integrated NFC reader for NFC-enabled solutions. The APPC-10SLBN (R23-7581) ensures superior performance and next-level user experience. Enjoy hassle-free installation with the VESA mounting frame, and Power over Ethernet+ capability for efficient power provisioning. In addition, the non-glare touch panel, which supports 10-point PCAP touch functionality and high brightness, ensures an optimal user experience. The APPC-10SLBN (R23-7581) is a highly versatile device, capable of handling any solution with ease. Its variety of I/O ports and pogo pin ports allow you to add any peripheral to further enhance your solution.
-
Feature Details Panel Type TFT LCD IPS Resolution 1280 x 800, 16:10 Brightness 500 cd/m², non-glare Viewing Angle H160° / V160°, 800:1 contrast Touch Type 10-point PCAP, 10 ms Operation Hours 24/7 CPU RK3568 GPU Mali-G52 Memory 4 GB DDR4 SDRAM Internal Storage 16 GB eMMC External Storage SD-Card Slot OS Android 12 Ports 12V DC-IN, USB, RJ45, HDMI out, Audio-out Network LAN RJ45, WiFi, Bluetooth 5 PoE IEEE 802.3at (PoE+) NFC Integrated NFC reader Camera Via PoGo & USB Speakers 2 x 2 W Audio Jack 3.5mm Output Housing ABS+PC, Black Weight 650 g Dimensions 255.3 x 181 x 26.7 mm Mounting VESA 75 Power Usage 10 ~ 23 Watt Operating Temp 0 ~ 40°C Storage Temp -10 ~ 55°C Humidity 10 ~ 90% non-condensing Certifications UKCA, CE, FCC, RoHS, REACH -
Description Downloads ProDVX PoE LED Android Touch Display | APPC-10SLBN-R23 DataSheet Downloads ProDVX PoE LED Android Touch Display | APPC-10SLBN-R23 User Manual Downloads ProDVX PoE LED Android Touch Display | APPC-10SLBN-R23 Quick Start Guide Downloads
